The 3rd Gen Toyota 4Runner (1996–2002) is well-regarded for its durability and off-road performance. When performing maintenance or repairs, following the correct torque specifications is essential to ensure safety and prevent damage. Below is a system-by-system breakdown of key torque specs, compiled from reliable sources such as Toyota-4Runner.org.

Engine Torque Specs

• Cylinder Head Bolts:First Pass: 29 ft-lbs.Second Pass: Tighten an additional 90° turn.Follow the correct tightening sequence in the service manual.
• Valve Cover Bolts: 53 in-lbs (4.4 ft-lbs).
• Spark Plugs: 13 ft-lbs. (Use anti-seize on threads if needed.)
• Oil Pan Bolts: 80 in-lbs (6.7 ft-lbs).
• Crankshaft Pulley Bolt (Harmonic Balancer): 217 ft-lbs.
• Timing Belt Tensioner Bolt: 14 ft-lbs.
• Thermostat Housing Bolts: 13 ft-lbs.
• Exhaust Manifold Bolts: 32 ft-lbs.

Suspension Torque Specs

Front Suspension

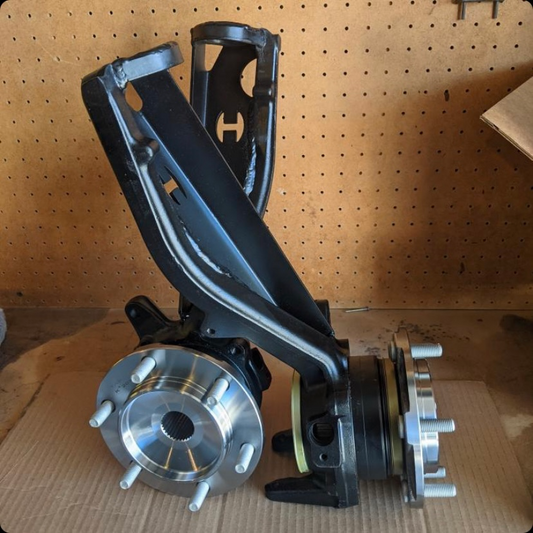

• Upper Control Arm Bolts: 85 ft-lbs.
• Lower Control Arm Bolts: 101 ft-lbs.

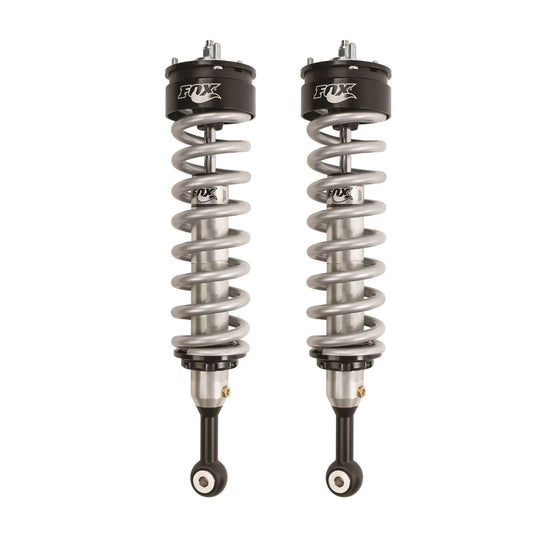

• Front Shock Absorber (Top Nut): 14 ft-lbs.
• Front Shock Absorber (Lower Bolt): 100 ft-lbs.
• Ball Joint (Upper Mounting Bolts): 37 ft-lbs.
• Ball Joint (Lower Mounting Bolts): 59 ft-lbs.
• Stabilizer Bar Bracket Bolts: 22 ft-lbs.
• Stabilizer Bar End Link Bolts: 14 ft-lbs.

Rear Suspension

• Rear Shock Absorber (Top Nut): 18 ft-lbs.
• Rear Shock Absorber (Lower Bolt): 72 ft-lbs.

Drivetrain Torque Specs

• Driveshaft Flange Bolts: 54 ft-lbs.
• Differential (Front and Rear) Drain Plug: 36 ft-lbs.

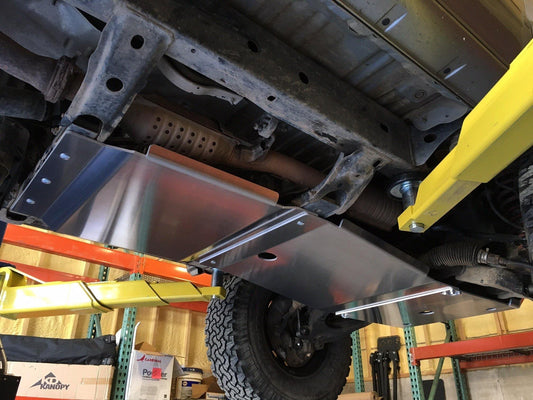

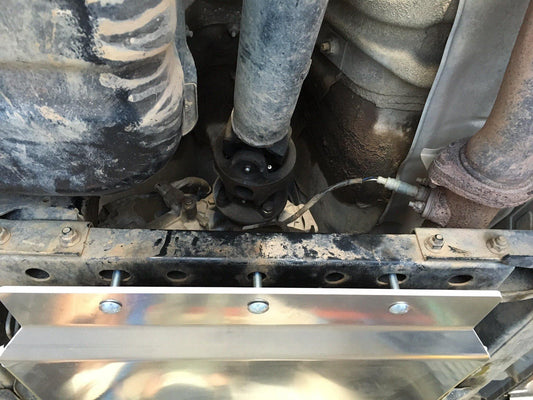

• Transfer Case Drain Plug: 27 ft-lbs.
• Transfer Case Fill Plug: 27 ft-lbs.
• Axle Nut (Front): 174 ft-lbs.
• Axle Nut (Rear): 103 ft-lbs.
• Propeller Shaft Grease Fitting Plug: 10 ft-lbs.

Brake System Torque Specs

• Front Brake Caliper Mounting Bolts: 90 ft-lbs.
• Rear Brake Caliper Mounting Bolts: 65 ft-lbs.
• Brake Bleeder Screws: 8 ft-lbs.
• Brake Master Cylinder Mounting Nuts: 14 ft-lbs.
• Brake Booster Mounting Nuts: 14 ft-lbs.
• Wheel Lug Nuts: 83 ft-lbs. (Tighten in a star pattern for even pressure.)

Steering Torque Specs

• Tie Rod End Nuts: 67 ft-lbs.
• Pitman Arm Nut: 123 ft-lbs.
• Idler Arm Mounting Bolts: 59 ft-lbs.
• Steering Gear Mounting Bolts: 74 ft-lbs.

Miscellaneous Torque Specs

• Radiator Drain Plug: Hand-tighten; do not overtighten.
• Fuel Injector Retaining Bolts: 7.6 ft-lbs.
• Throttle Body Mounting Bolts: 15 ft-lbs.
• EGR Valve Mounting Bolts: 14 ft-lbs.

Wheel Assembly Torque Specs

• Wheel Lug Nuts: 83 ft-lbs. (Always tighten in a star pattern.)

Tips for Accurate Torque Application

1. Use a Torque Wrench: A high-quality, calibrated torque wrench is essential for accuracy.
2. Follow Tightening Sequences: For cylinder heads, wheels, and other critical components, always follow the correct tightening pattern.
3. Double-Check Critical Components: After driving a few miles, recheck the torque of suspension and drivetrain components to ensure nothing has loosened.
4. Clean Threads Before Tightening: Remove any debris or rust from threads to ensure accurate torque readings.
5. Avoid Over-Tightening: Overtightening can strip threads or break bolts, leading to costly repairs.

Final Thoughts

This guide provides a complete list of torque specs for the 3rd gen Toyota 4Runner. Following these specifications ensures that your vehicle is repaired safely and will continue to perform reliably. When in doubt, consult Toyota’s official service manual or trusted resources like the Toyota-4Runner.orgforum.

By adhering to these specs, you’ll protect your 4Runner from unnecessary wear and tear, ensuring it’s always ready for your next adventure.
