Vidal Metal Worx Bumpers

High clearance bumpers for the 3rd Gen 4Runner, Land Cruiser 100 and LX470, plus the VF-117 for the 5th Gen. Laser-cut and CNC-bent in Corona, CA.

14 products

  • Sort by

Compare Vidal Metal Worx bumpers

*STRYKER fronts fit a Badlands 12K winch with the control box relocated and the clutch handle trimmed. "Not listed" means the listing doesn't say, so ask us. Prices and lead times are pulled from each listing.

ModelFront / rearHigh clearanceWinchWelded or DIYBody liftLead timeFrom
3rd Gen 4Runner (1996-2002)
STRYKER OG, welded Front Yes Yes, Badlands 12K* Welded None or 1" 4-6 weeks $1,649
STRYKER OG DIY kit Front Yes Yes, Badlands 12K* DIY kit None or 1" 2 weeks $1,099
VPR-1 prerunner Front Not listed Not listed – None only 4-6 weeks $1,250
F-14D tube bumper Rear Yes – Welded – 8-12 weeks $1,399
NIGHTHAWK Rear Not listed – Welded – 4-6 weeks $1,399
Land Cruiser 100 / Lexus LX470 (1998-2007)
STRYKER 100, welded (LC100) Front Yes Yes, Badlands 12K* Welded None only 4-6 weeks $1,649
STRYKER 100 DIY kit (LC100) Front Yes Yes, Badlands 12K* DIY kit None only 4-6 weeks $1,099
STRYKER 100, welded (LX470) Front Yes Yes, Badlands 12K* Welded None only 4-6 weeks $1,649
STRYKER 100 DIY kit (LX470) Front Yes Yes, Badlands 12K* DIY kit None only 4-6 weeks $1,099
5th Gen 4Runner
VF-117, Pre Runner wings Front Not listed Yes Welded None 4-6 weeks $1,749
VF-117, Pre Runner wings, 1" body lift Front Not listed Yes Welded 1" 4-6 weeks $1,749
VF-117, Open wings Front Not listed Yes Welded None 4-6 weeks $1,749
VF-117, Open wings, 1" body lift Front Not listed Yes Welded 1" 4-6 weeks $1,749

Vidal bumpers by vehicle

Find your truck below. Every model name links straight to its listing, and each vehicle has a link to the rest of the parts we carry for it.

3rd Gen 4Runner front bumpers (1996-2002)

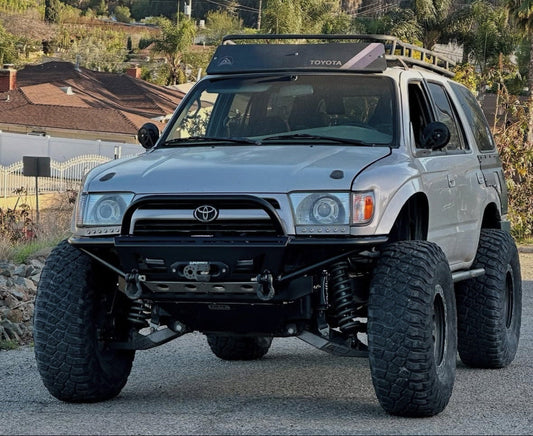

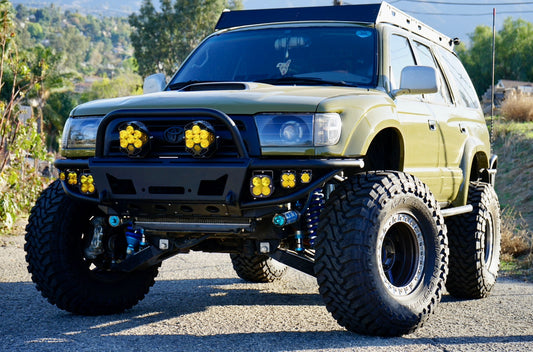

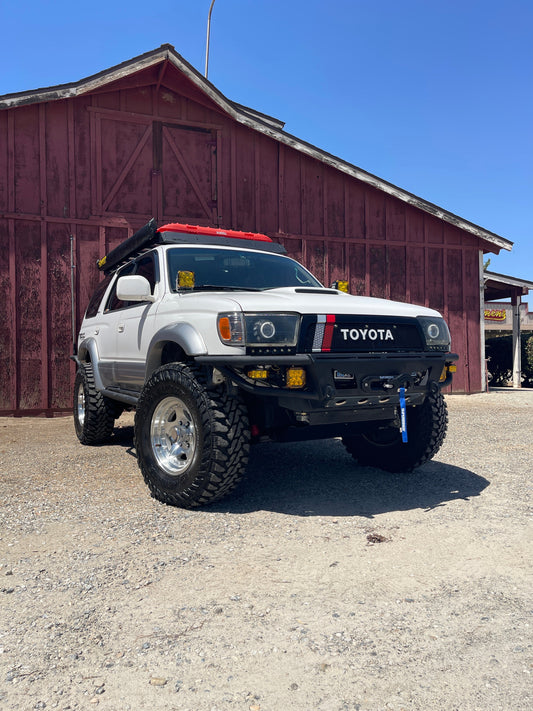

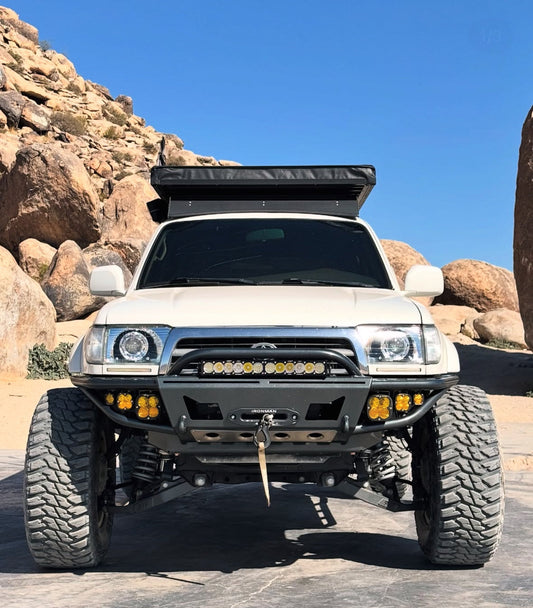

The STRYKER OG is the high clearance front. It has a 3/16" front plate, 1.75" x 0.120" DOM wings in Open or Pre Runner style, built-in light pod brackets and room for a Badlands 12K winch. Get it welded or as a DIY kit, for no body lift or a 1" body lift. It bolts on with some minor frame trimming.

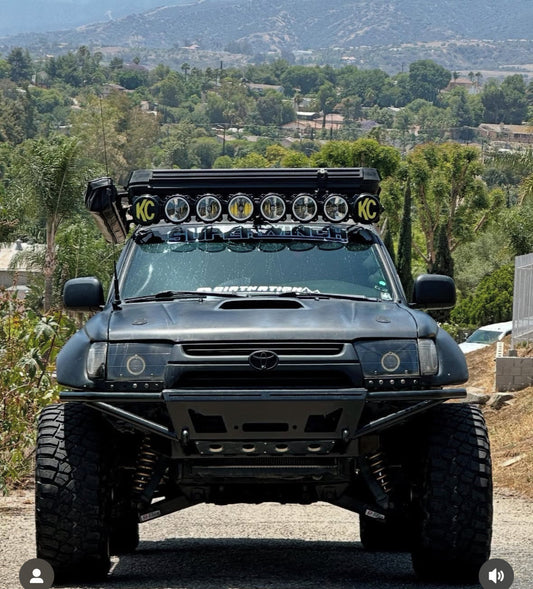

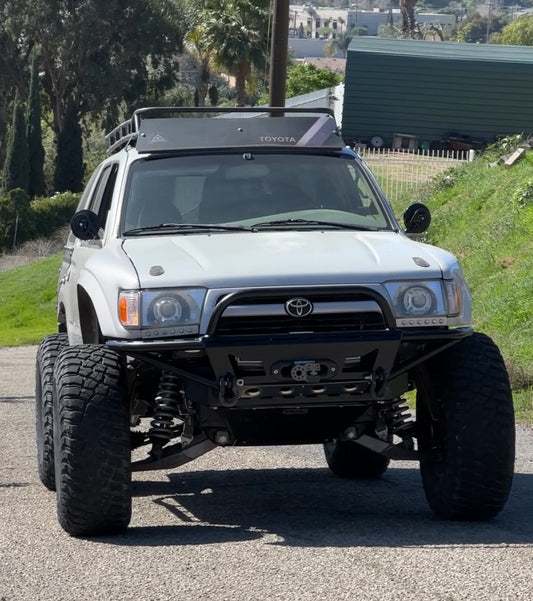

The VPR-1 is the minimalist prerunner front, built around aggressive approach angles. It uses a 1/8" cover plate, 3/16" front supports and 1.75" DOM tubing, with built-in light pod mounts. It fits trucks with no body lift.

Every 3rd Gen bumper we carry, from Vidal and other shops: 3rd Gen 4Runner bumpers.

3rd Gen 4Runner rear bumpers (1996-2002)

The F-14D is a high clearance rear tube bumper that bolts on with no trimming or welding. You can add a single or dual swing out, a jerry can holder, a hitch receiver tube or quarter panel hoops. The receiver tube has no tow rating, so it's for accessories, not towing.

The NIGHTHAWK bolts on too. Its swing out options run on Ratha's heavy duty hinge kit, and the rear body mounts have to be installed before the bumper goes on. Both rears come welded with E3 billet latches, ready for you to paint. Quarter panel hoops fit rear bumpers with tube wings.

Building out the rest of the truck? TEQ Offroad makes door MOLLE panels and a MAM dash mount for the same 1996-2002 4Runners, and the 3rd Gen 4Runner parts page has everything else.

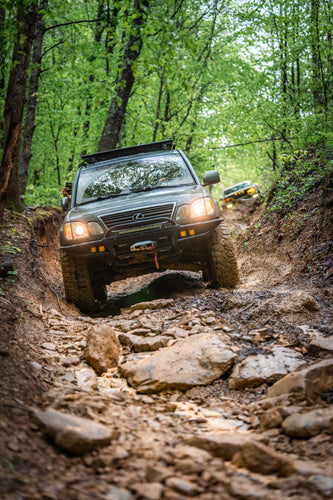

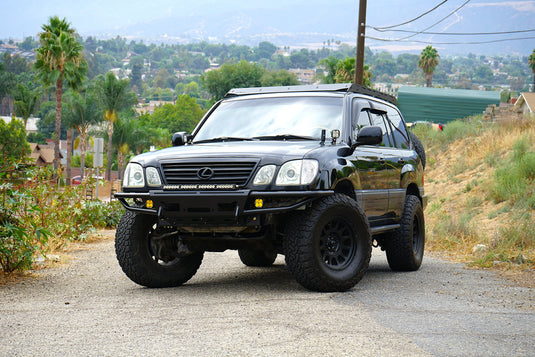

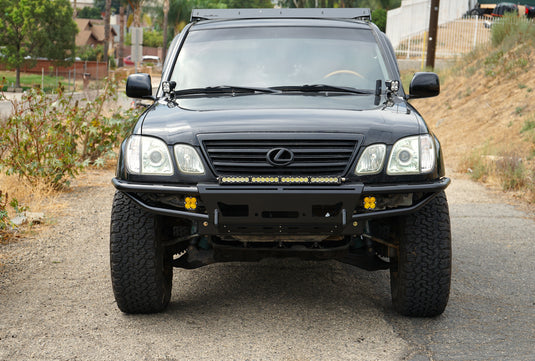

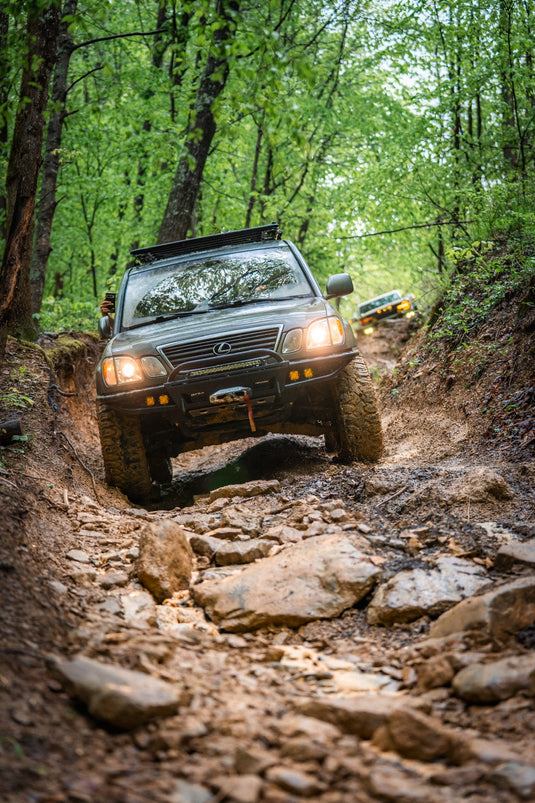

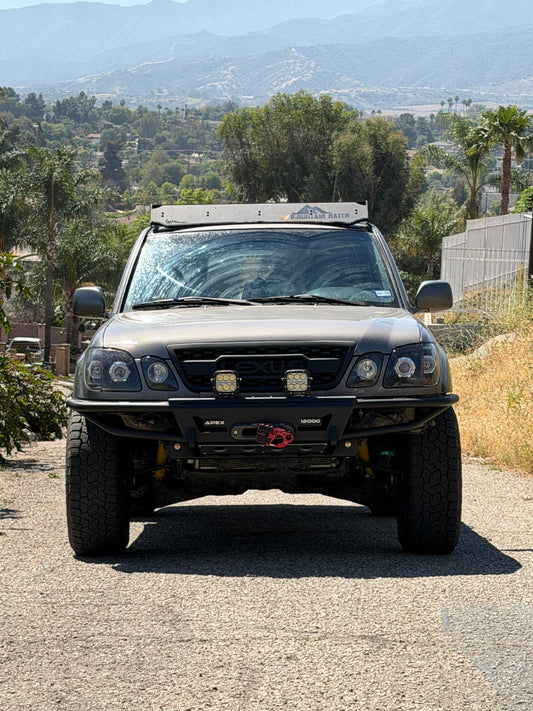

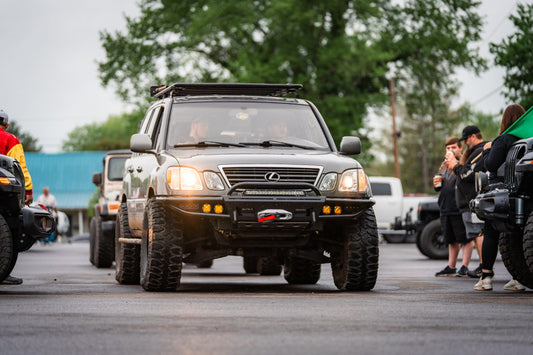

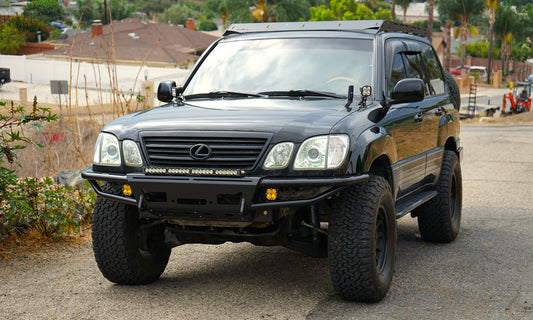

Land Cruiser 100 and Lexus LX470 front bumpers (1998-2007)

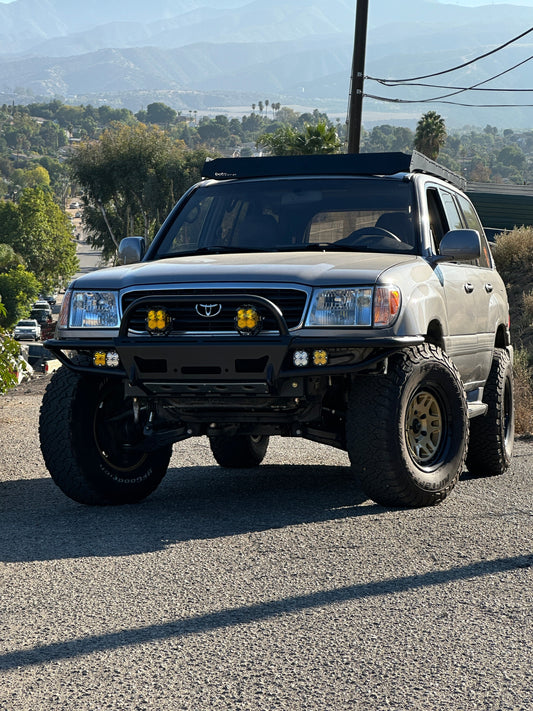

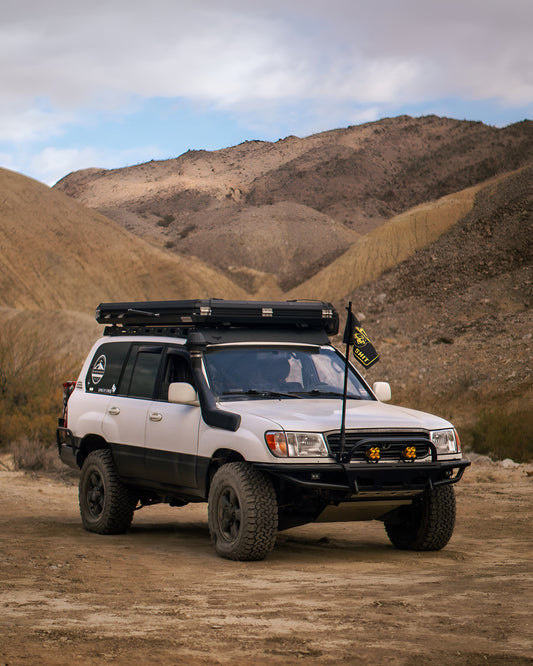

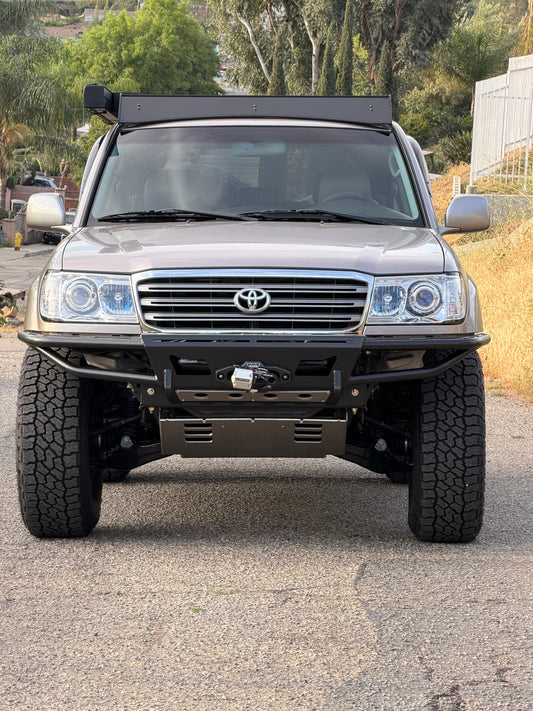

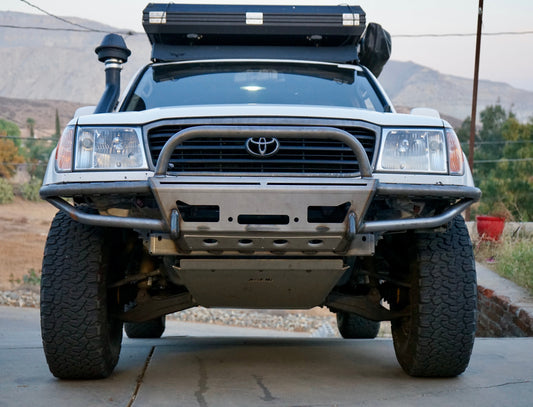

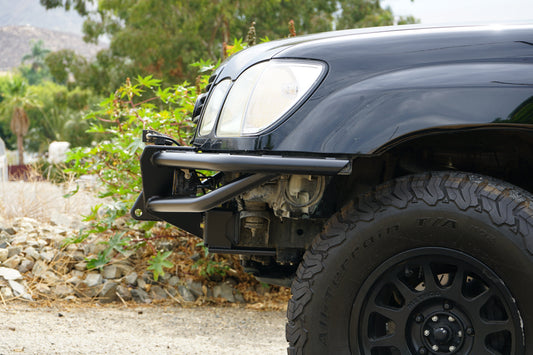

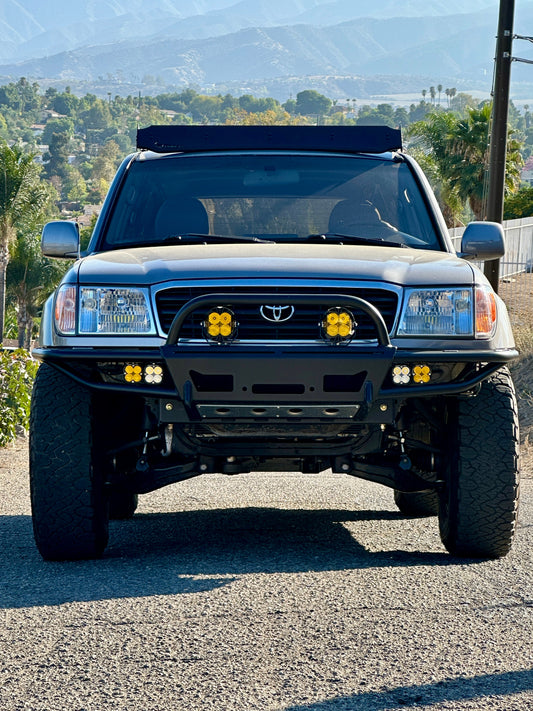

The STRYKER 100 is the same high clearance design, built for the 100 Series. There are four listings: Land Cruiser 100, welded, Land Cruiser 100 DIY kit, LX470, welded and LX470 DIY kit.

Every version fits a Badlands 12K winch, has built-in light pod brackets and works with no-body-lift setups only. The LX470 needs some minor trimming.

More for the 100 Series: 100 Series Land Cruiser parts.

5th Gen 4Runner front bumper

The VF-117 has a modular face plate that runs enclosed, or open for light pods or a medium light bar, in 1/8" aluminum or 3/16" steel. Choose Open or Pre Runner wings, for a stock body or a 1" body lift: Pre Runner, Pre Runner with 1" body lift, Open or Open with 1" body lift.

It needs no cutting or welding on the frame, but the factory bumper gets cut and trimmed, and the front camera and any TSS sensors need relocating. It weighs 100-110 lbs depending on the face plate.

More 5th Gen options: 5th Gen 4Runner bumpers. TEQ Offroad's door MOLLE panels fit the same trucks.

What makes a bumper high clearance?

A factory bumper hangs low and wide, so it's often the first thing to hit a rock or ledge. A high clearance bumper tucks the ends up and in, close to the body. That leaves the tires room to climb and improves your approach angle (or departure angle, out back).

In the Vidal lineup, the STRYKER OG, STRYKER 100 and F-14D rear are high clearance designs. The STRYKER fronts get there with a low-profile center, tube wings and some minor frame trimming. The VPR-1 is built around aggressive approach angles, and the VF-117 lists improved approach angles. If you're comparing clearance between models for your build, ask us.

Welded bumper or DIY kit?

The STRYKER OG and STRYKER 100 come two ways. The welded bumper shows up built, so all that's left is finishing and install. The DIY kit is the lower-priced version you weld up yourself. Both listings use the same materials: a 3/16" front plate, 1/4" mounting bracket and gussets, and 7/8" clevis shackles.

Go DIY if you (or a buddy) can lay down solid structural welds and you'd rather put the savings toward a winch or lights. Go welded if you want it ready to bolt on. The table above shows current prices for both.

Body lift and winch fit

Body lift. The STRYKER OG (welded or DIY) comes for a stock body or a 1" body lift. The VF-117 has separate listings for a stock body and a 1" body lift. The STRYKER 100 and VPR-1 fit no-body-lift setups only.

Winch. STRYKER fronts take a Badlands 12K winch with the control box relocated and the clutch handle trimmed. The VF-117 has a removable face plate for winch access, and with a winch the power steering line may need adjusting. The VPR-1 listing doesn't mention a winch, so ask us first.

Still not sure? Message us your year, trim and any body lift, and we'll point you to the right bumper.

About Vidal Metal Worx

Vidal Metal Worx is a small fab shop in Corona, California, building bumpers for the trucks we see most: the 3rd Gen 4Runner, the 100 Series Land Cruiser and Lexus LX470, and the 5th Gen 4Runner. Each bumper starts with CAD and a 3D scan of the truck. The parts are laser-cut and CNC-bent, so the fit is consistent from one bumper to the next.

STRYKER fronts use a 3/16" front plate, a 1/4" main mounting bracket, 1/4" gussets, 7/8" clevis shackles and 1.75" x 0.120" DOM wings. The F-14D and NIGHTHAWK rears use E3 billet compression latches and come welded, ready for you to paint.

We carry Vidal's bumpers for all four trucks and we're happy to check fitment before you order. Right now every Vidal bumper order comes with a free TEQ Offroad Under Hood LED Light Kit.

Vidal Metal Worx bumper FAQ

Which Vidal bumpers fit a 3rd Gen 4Runner?

For 1996-2002 4Runners there are two fronts, the STRYKER OG (welded or DIY kit) and the VPR-1 prerunner. For the rear there are the F-14D tube bumper and the NIGHTHAWK. Quarter panel hoops work on rear bumpers with tube wings.

Does the STRYKER 100 fit a Lexus LX470?

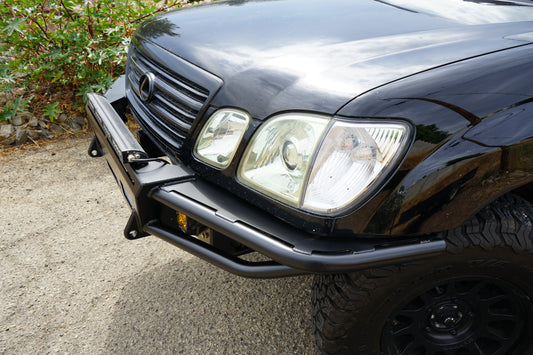

Yes. The STRYKER 100 fits the Land Cruiser 100 and the LX470. The LX470 needs minor trimming. It fits no-body-lift setups only. See the LX470 welded and LX470 DIY kit listings.

Are Vidal bumpers high clearance?

The STRYKER OG, STRYKER 100 and F-14D rear are high clearance designs. The VPR-1 is a prerunner front built around aggressive approach angles, and the VF-117 lists improved approach angles. The listings for the VPR-1, VF-117 and NIGHTHAWK don't call them high clearance.

Welded or DIY kit: which should I get?

The STRYKER OG and STRYKER 100 come welded or as a lower-priced DIY kit. If you're not sure the DIY kit is right for your build, message us before you order.

Can I run a winch?

STRYKER fronts fit a Badlands 12K winch with the control box relocated and the clutch handle trimmed. The VF-117 has a winch mount behind a removable face plate, and with a winch the power steering line may need adjusting. The VPR-1 listing doesn't mention a winch, so ask us first.

Are they bolt-on?

STRYKER and VPR-1 fronts bolt on with some minor frame trimming. The VF-117 needs no cutting or welding to the frame, but the OEM bumper is cut and trimmed, and the front camera needs relocating. The F-14D and NIGHTHAWK rears bolt on with no trimming or welding. The NIGHTHAWK needs the rear body mounts installed first.

How long is the lead time?

Each listing shows its current lead time, and the table above reads it straight from the listing. Most are 4-6 weeks right now. The F-14D is 8-12 weeks. Orders are processed in the order received, and lead times are estimates that can move with workload and holidays.

Does the free LED kit come with every Vidal bumper?

Yes. Right now every Vidal bumper order comes with a free TEQ Offroad Under Hood LED Light Kit.

Where are Vidal bumpers made?

Vidal Metal Worx designs its bumpers in Southern California, and the shop is in Corona, CA. Parts are laser-cut and CNC-bent.

Do the rear bumpers come painted?

No. The F-14D and NIGHTHAWK come welded and ready for you to paint.

What if I need to return it?

If it arrives defective or damaged, or you get the wrong item, contact us right away and we'll make it right. Returns for any other reason carry a 20% restocking fee. Please request a return before sending anything back. See the refund policy.
