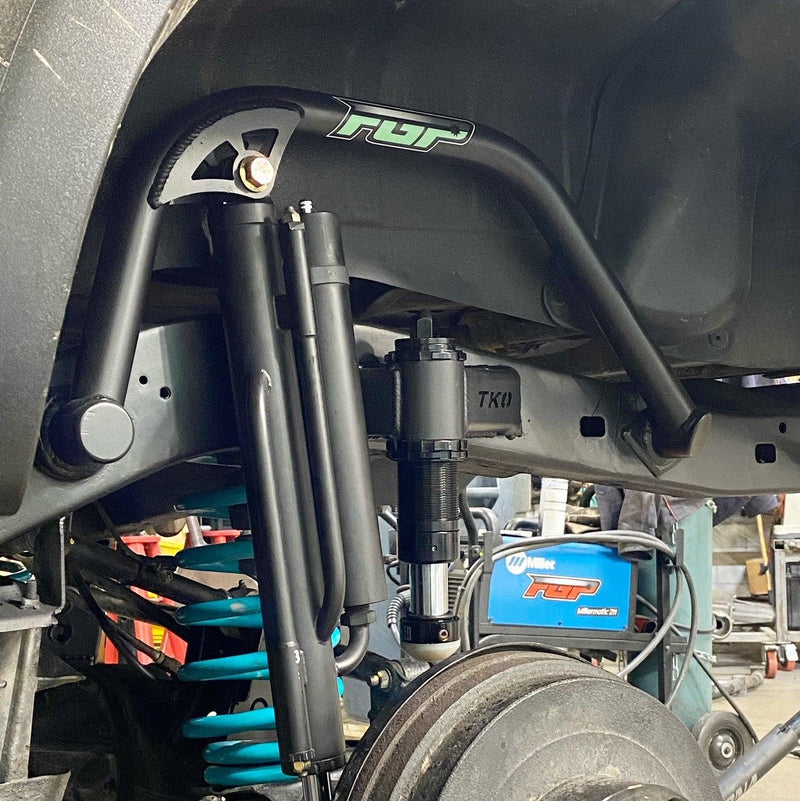

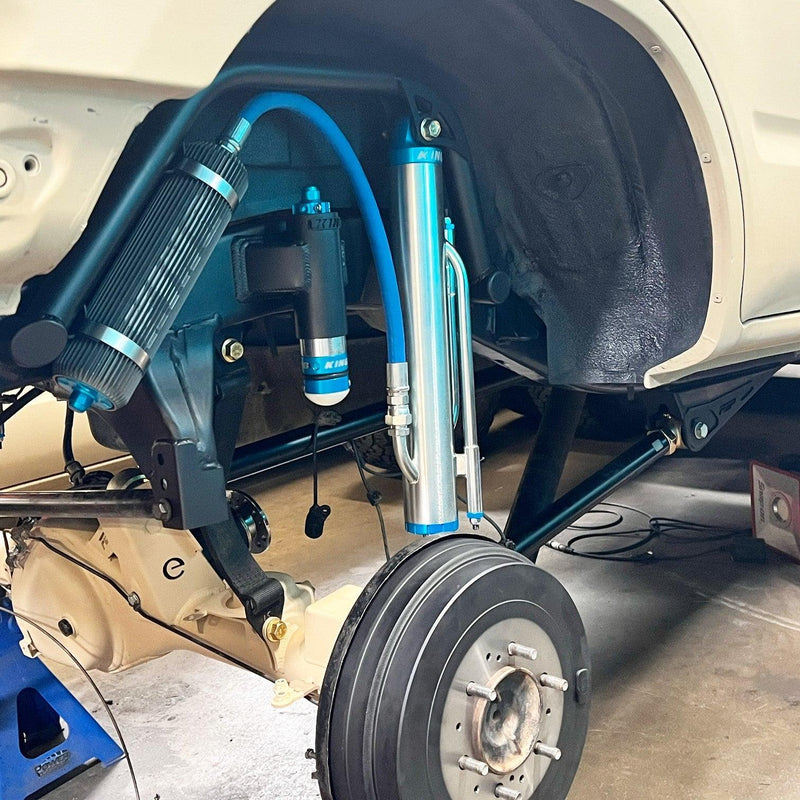

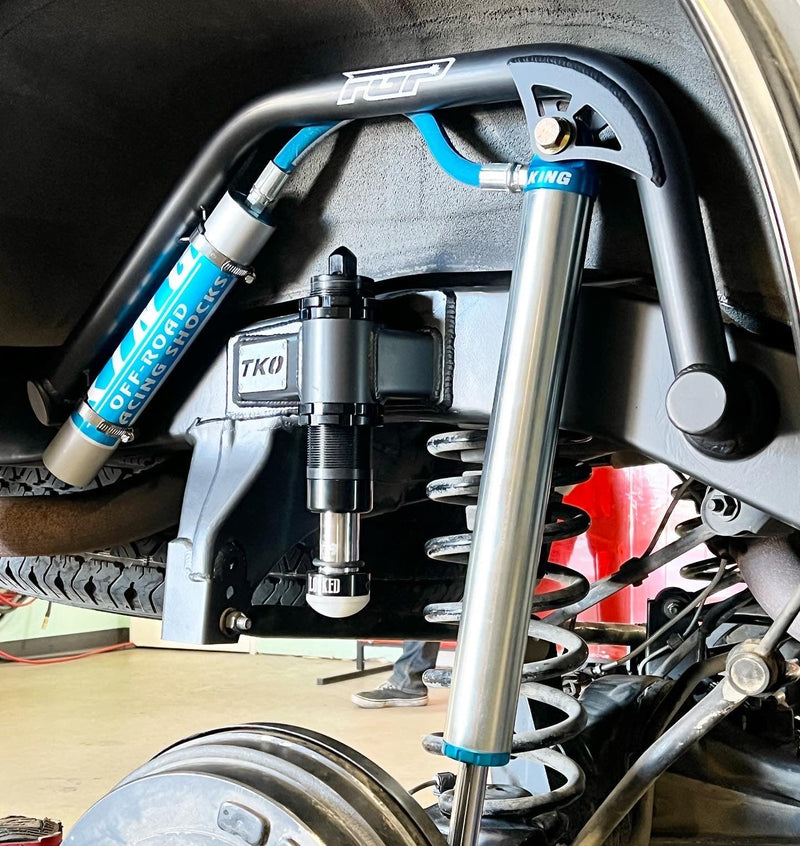

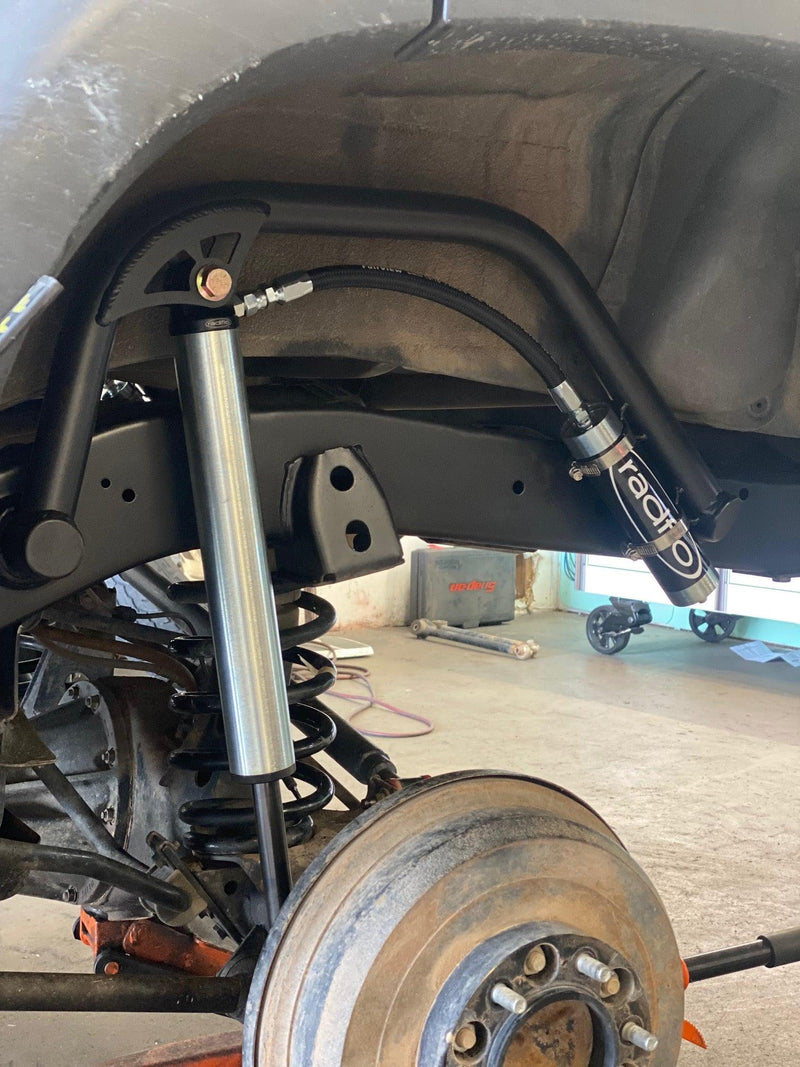

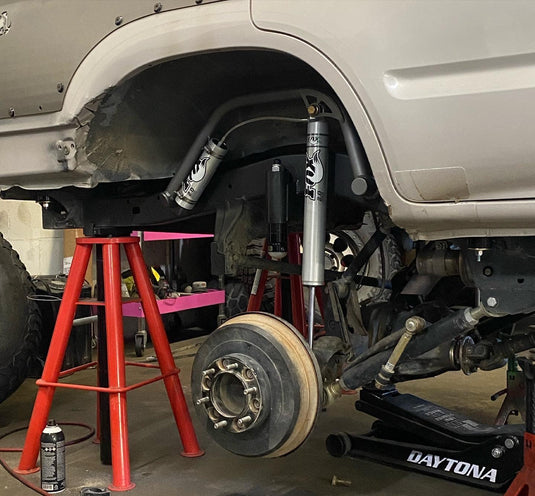

Move the shocks where they should've been in the first place, to the outside of the frame. The FGP "OSR" allows for longer shocks, makes shock install/removal a breeze, and greatly improves the efficiency and performance of your shocks.

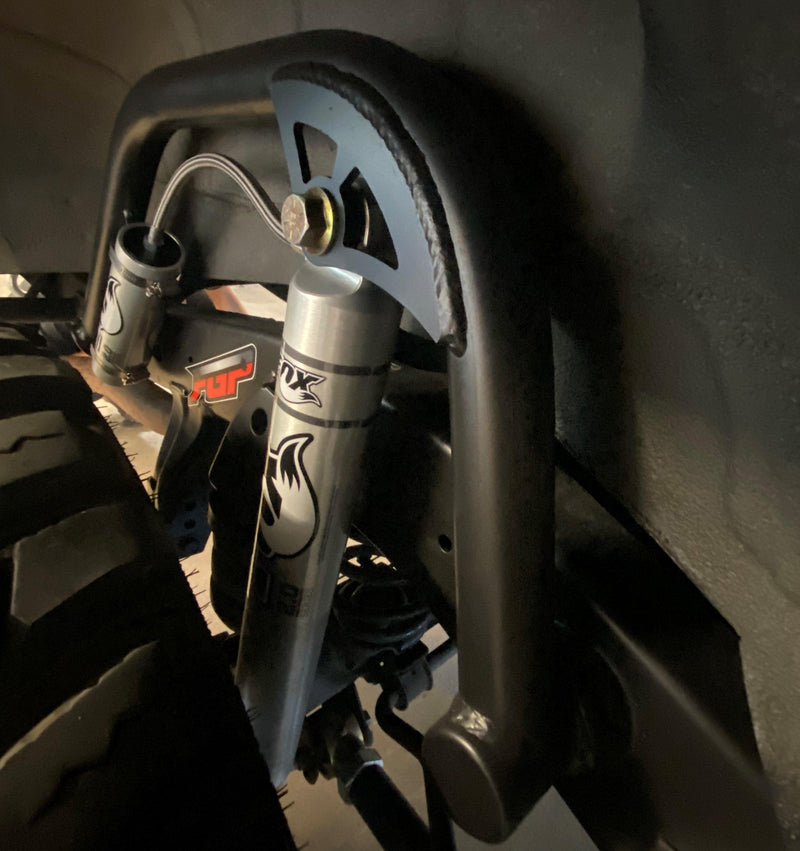

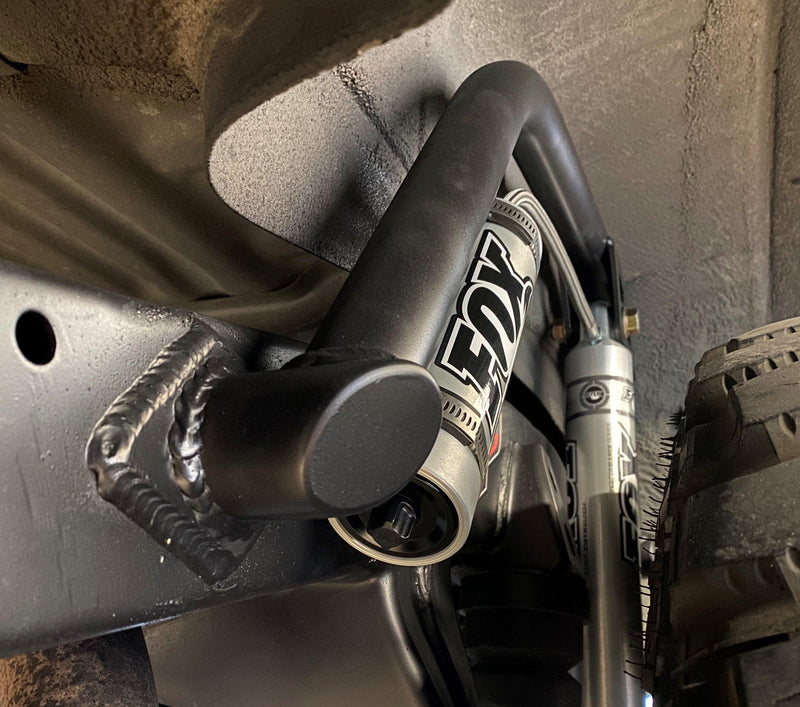

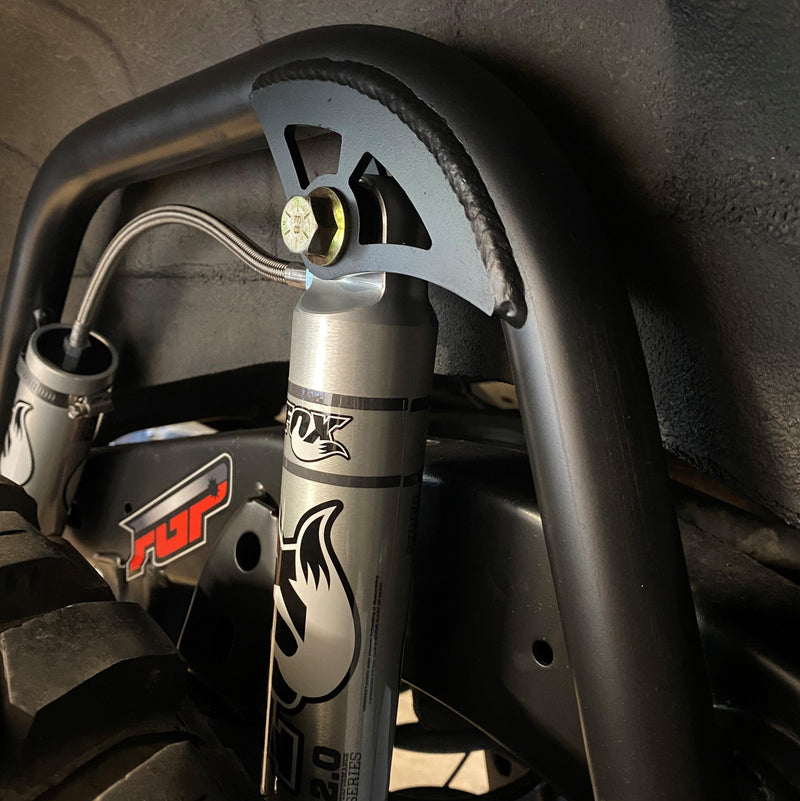

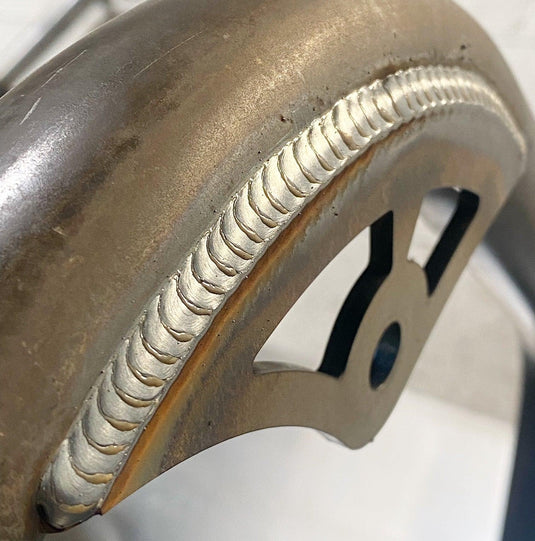

This kit utilizes fishplate gusset frame plates to add load bearing strength at the mounting points, as well as radiused upper mounts to provide more weld surface and strength.
Designed to be compatible with 10-12" smooth body shocks.
To increase ground clearance, or run a 14" shock, check out the OSR+ HERE!
For 2.0 shocks, a minimum 3.5” wheel backspacing is recommended for tire clearance. Example: if you have 4.5” BS wheels, you will need 1” spacers to bring it down to 3.5”. 2.5in shocks require minimum 3" backspace. Results may vary.
DISCLAIMER: 2.5x12" diameter "off the shelf" shocks WILL NOT work for this application as they are commonly longer collapsed than an off the shelf 2.0" diameter shock. Frame notching will be required for 2.5" shocks.
What's included:
- Shock hoops
- Upper shock mount tabs
- Frame plates & end caps
- Lower shock mount tabs
- Flanged grade 8 hardware
Options:
- Weld it yourself, or have it shipped pre-assembled.
- Add reservoir mounts & hardware.
- Add frame notch plates (for clearing 2.5" diameter shocks)
**INSTALL INSTRUCTIONS**
Current Estimated Lead Time: 6-12 weeks
Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
