0 Degree Axle Link Tower 2 5/8" Wide

0 Degree Axle Link Tower – 2 5/8" Wide

Heavy-Duty Upper Link Bracket for 3" Axle Tubes

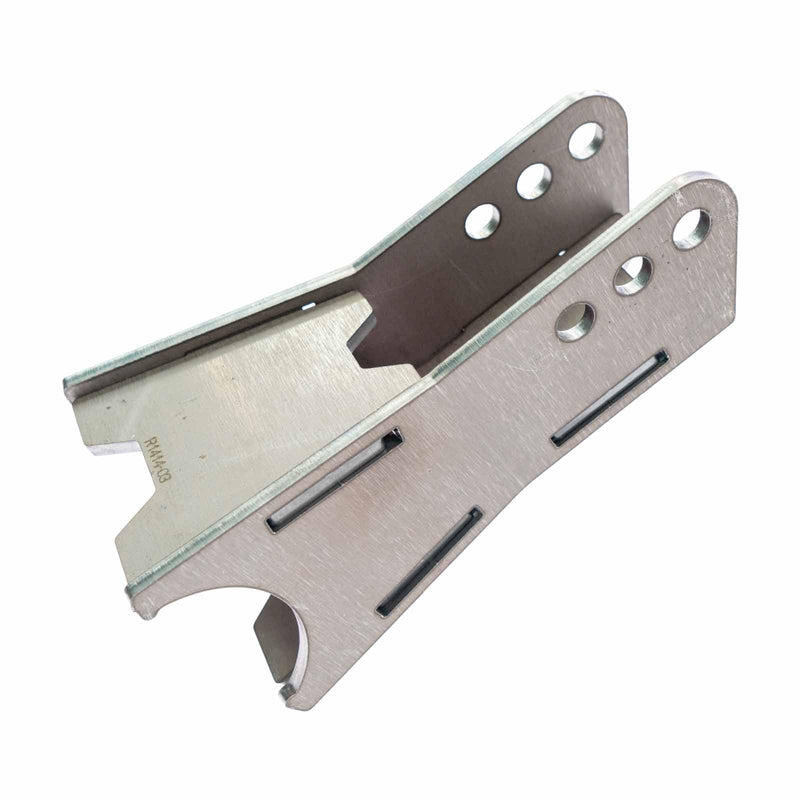

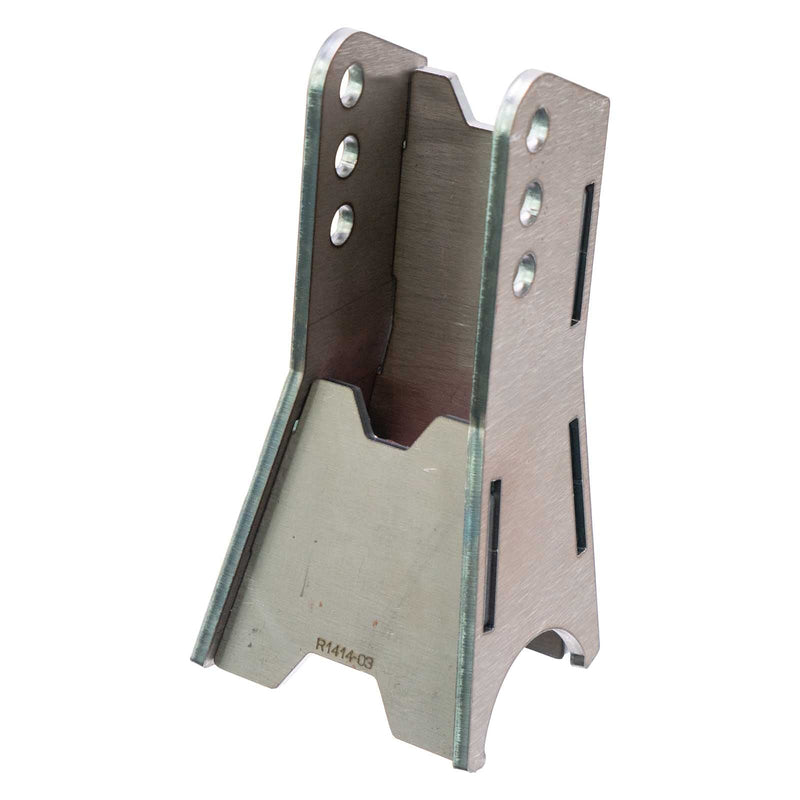

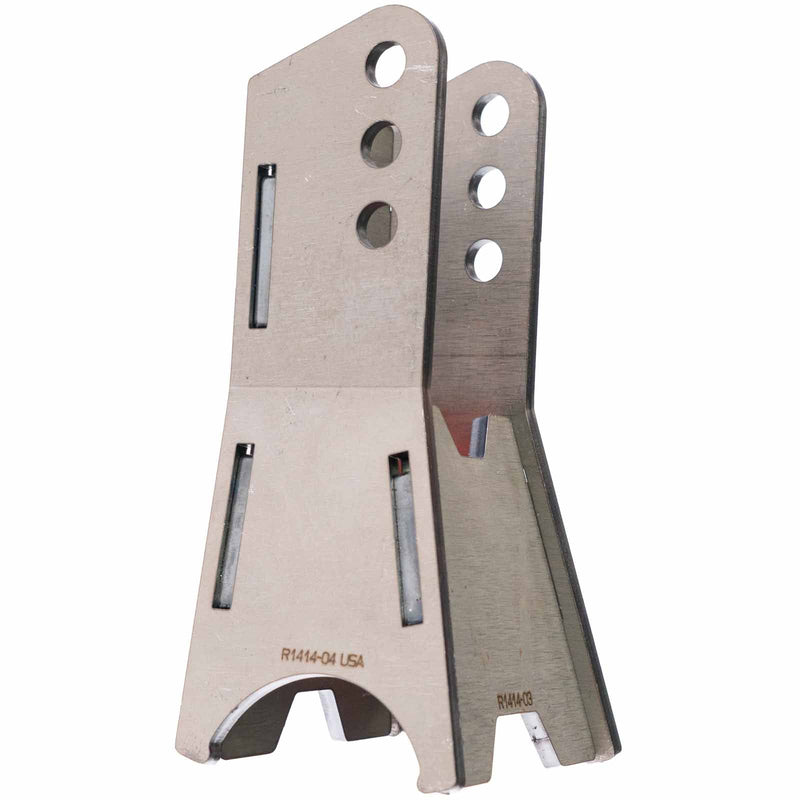

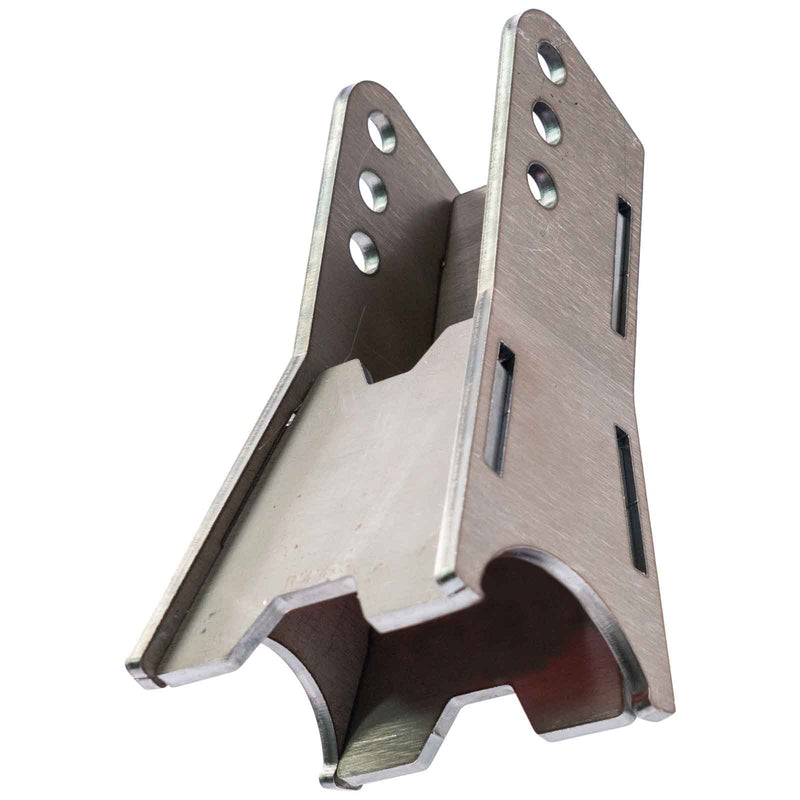

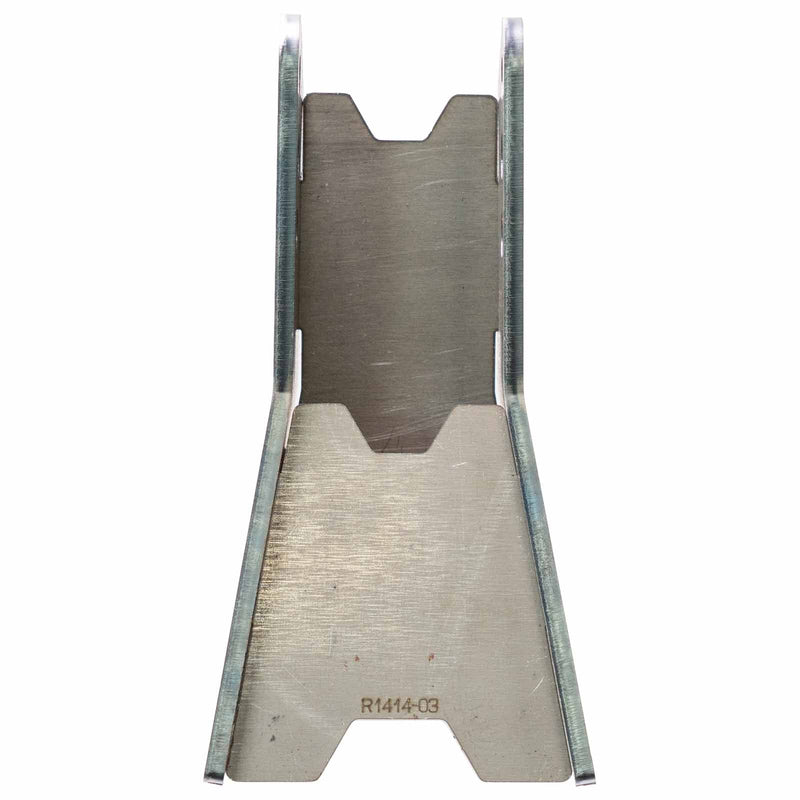

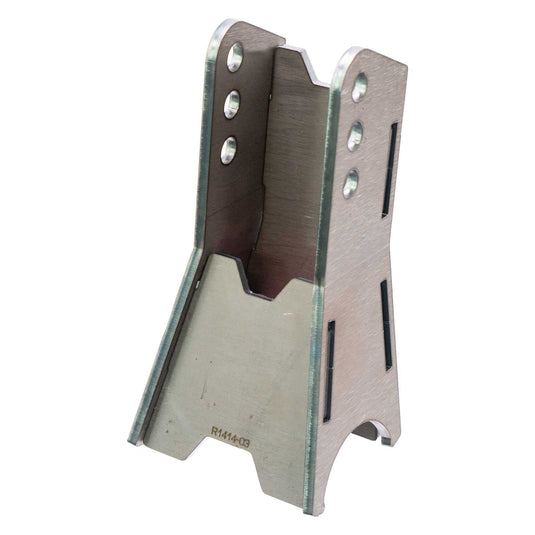

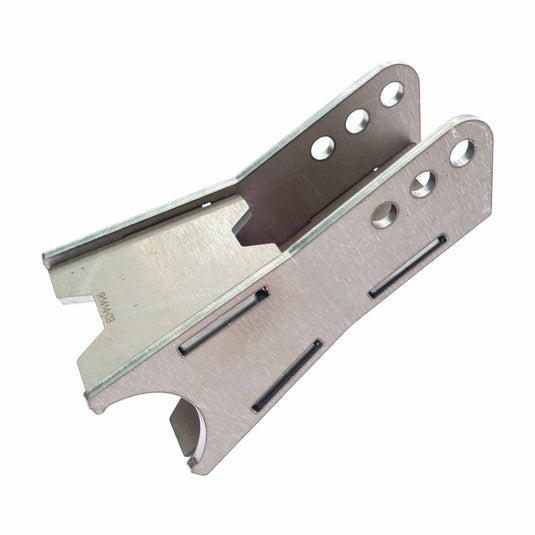

The RuffStuff 0 Degree Axle Link Tower is a weld-on upper link mount designed for serious 4-link or triangulated suspension setups. Built from laser-cut 1/4" steel, this bracket delivers strength, adjustability, and modular flexibility — everything you need when dialing in custom suspension geometry.

It features three 9/16" mounting holes spaced at 7", 8", and 9" from the axle tube centerline, giving you precise control over your suspension setup. Designed to fit 3" axle tubes out of the box, the integrated 1/8" nubs can be trimmed for 3.25" tubes. The 2 5/8" bracket width works perfectly with 1-1/4" rod ends — a trail-tested solution for high-stress link systems.

Key Features:

• Part Number: R1414
• Bracket Width: 2 5/8" (fits 1-1/4" rod ends)
• Material: 1/4" thick mild steel (A36)
• Mounting Holes: Three 9/16" holes at 7", 8", and 9" from axle centerline
• Fits Axle Tubes: 3" OD (can be trimmed to fit 3.25")

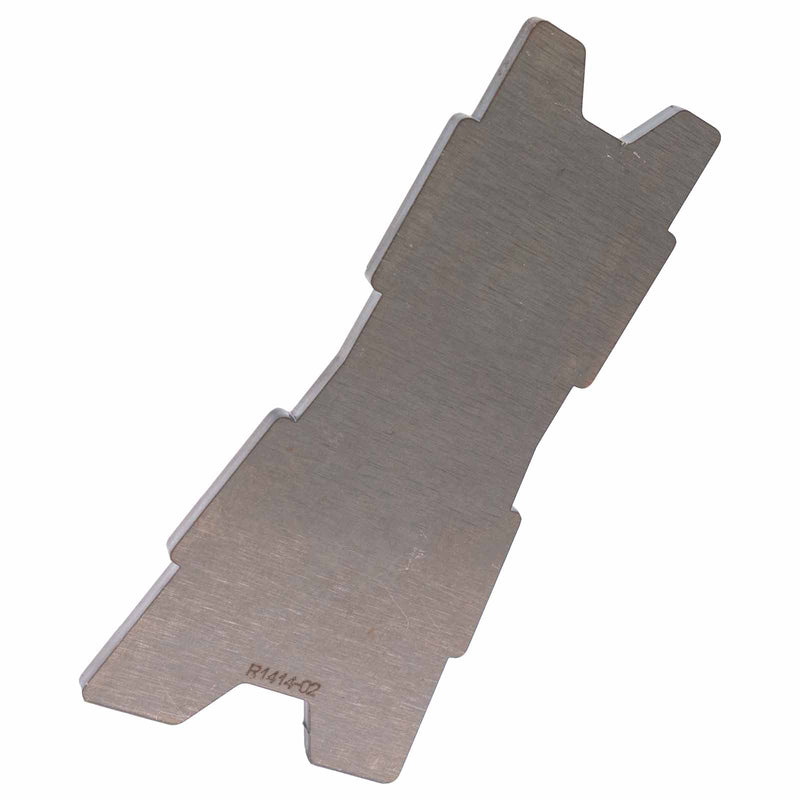

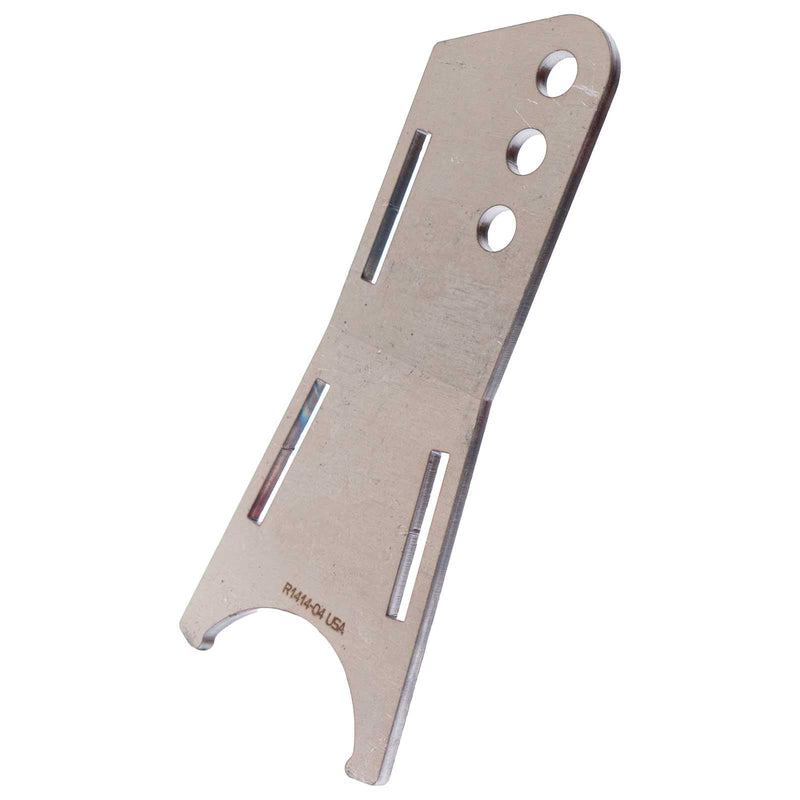

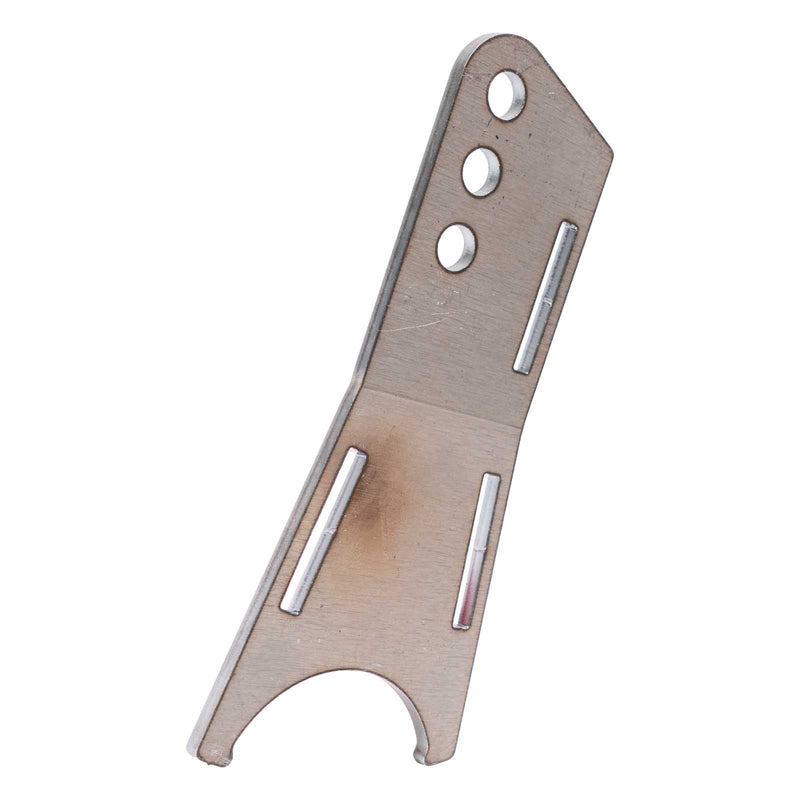

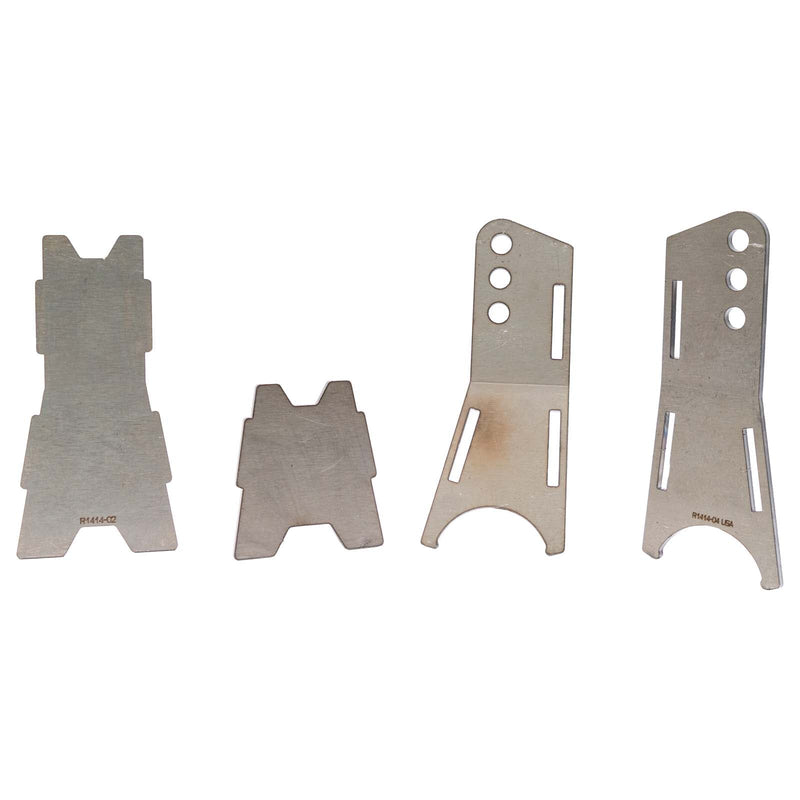

• Weld-on modular design for easier fitment around center sections or custom axle housings
• Made in the USA
• Sold individually

Built to take hits and keep rolling — this bracket is made for off-roaders who don’t cut corners.
