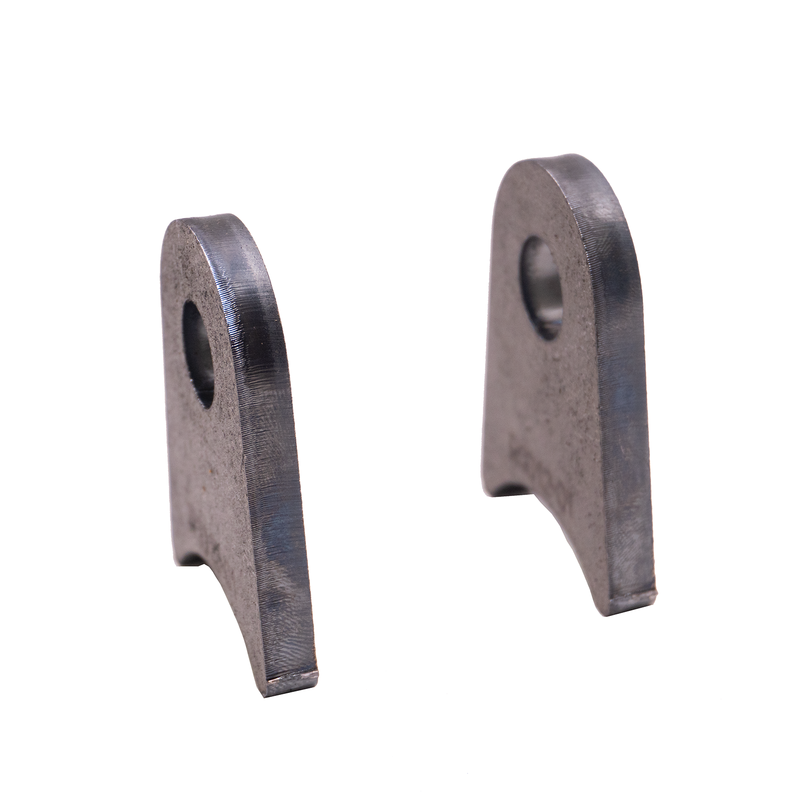

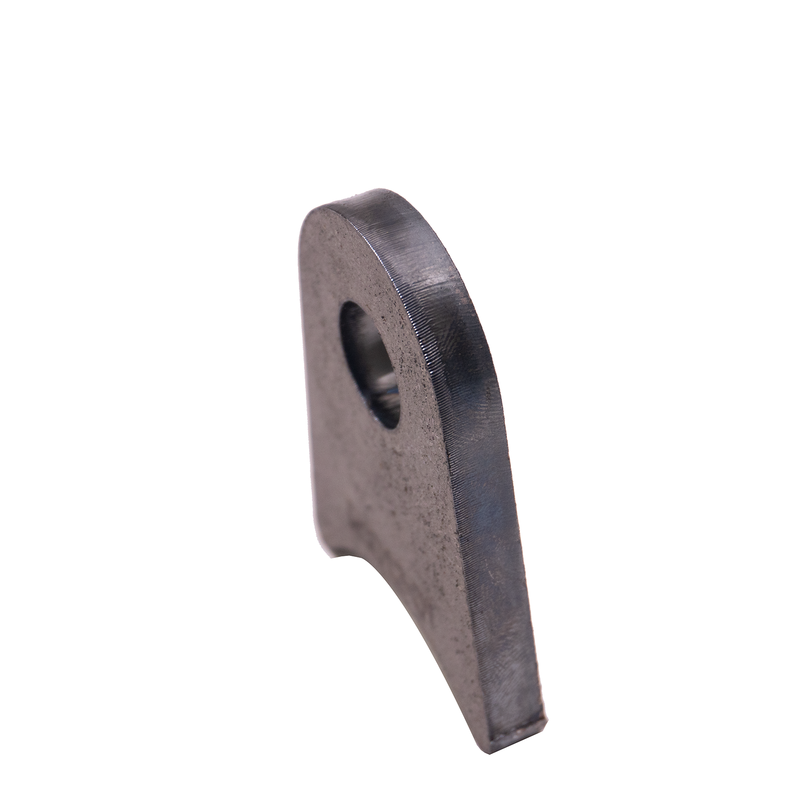

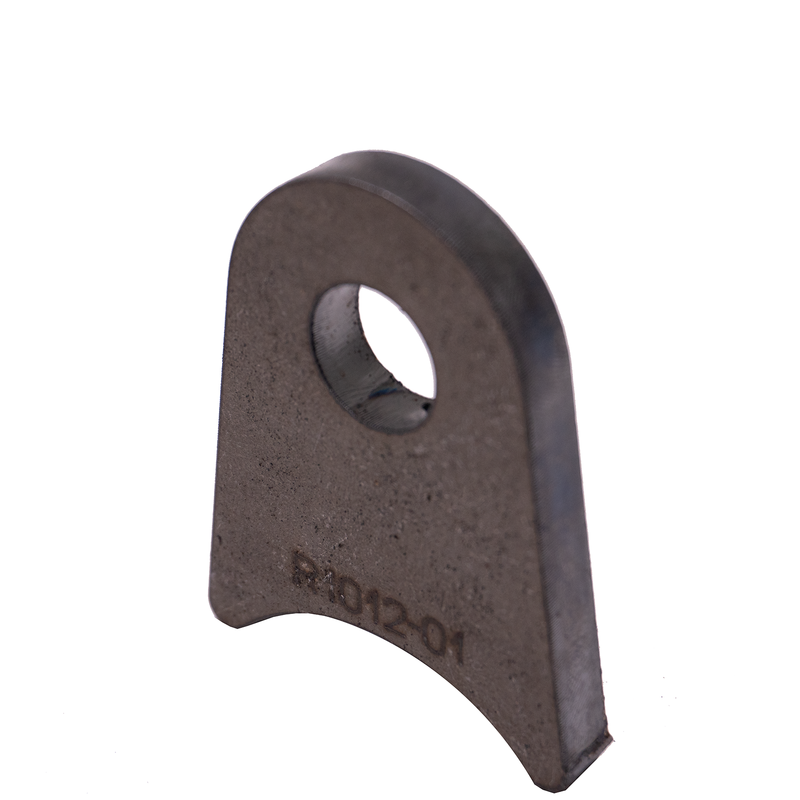

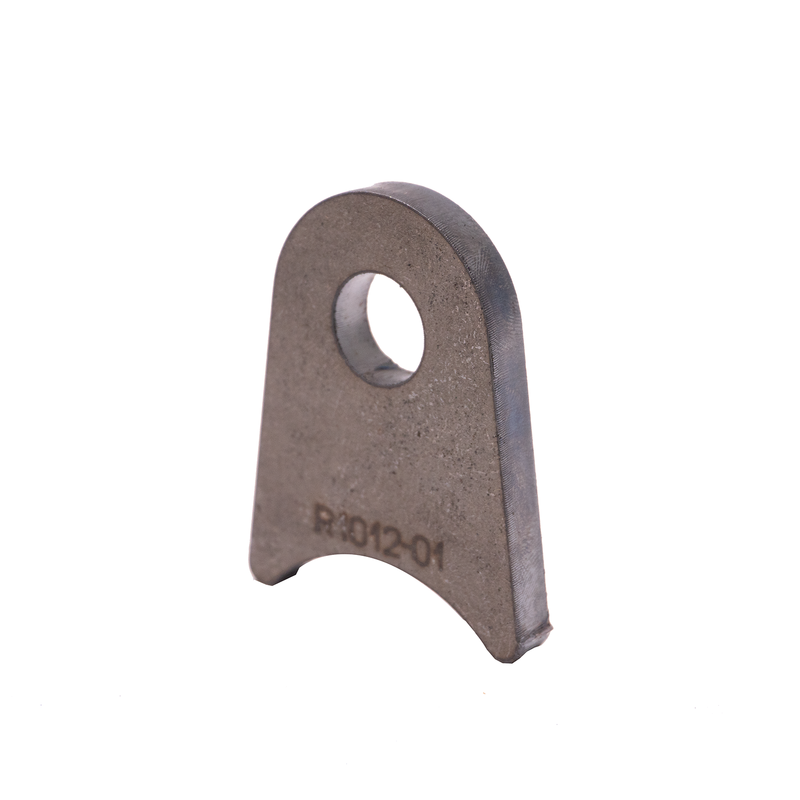

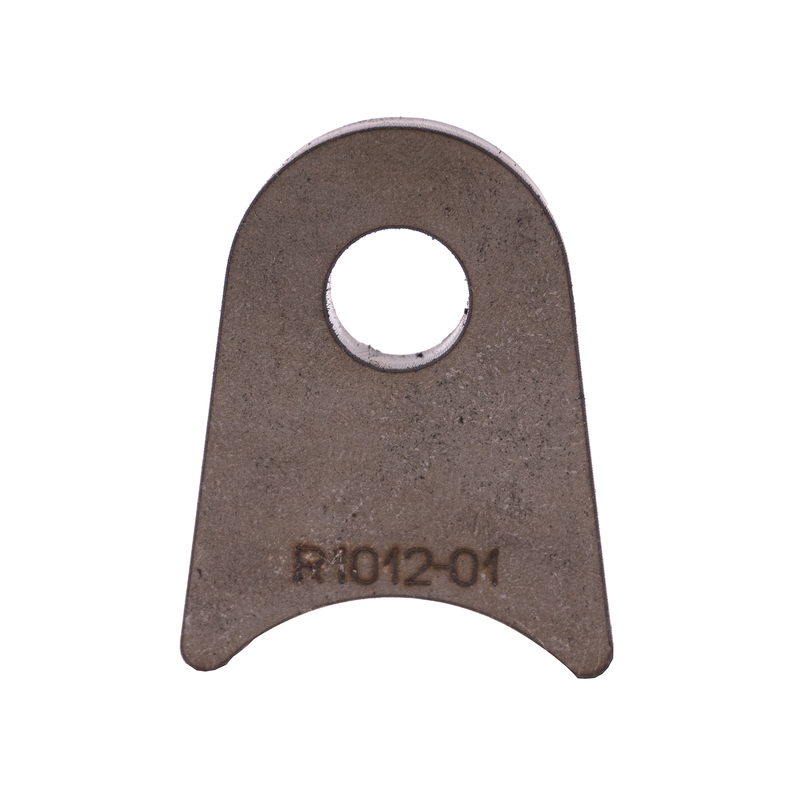

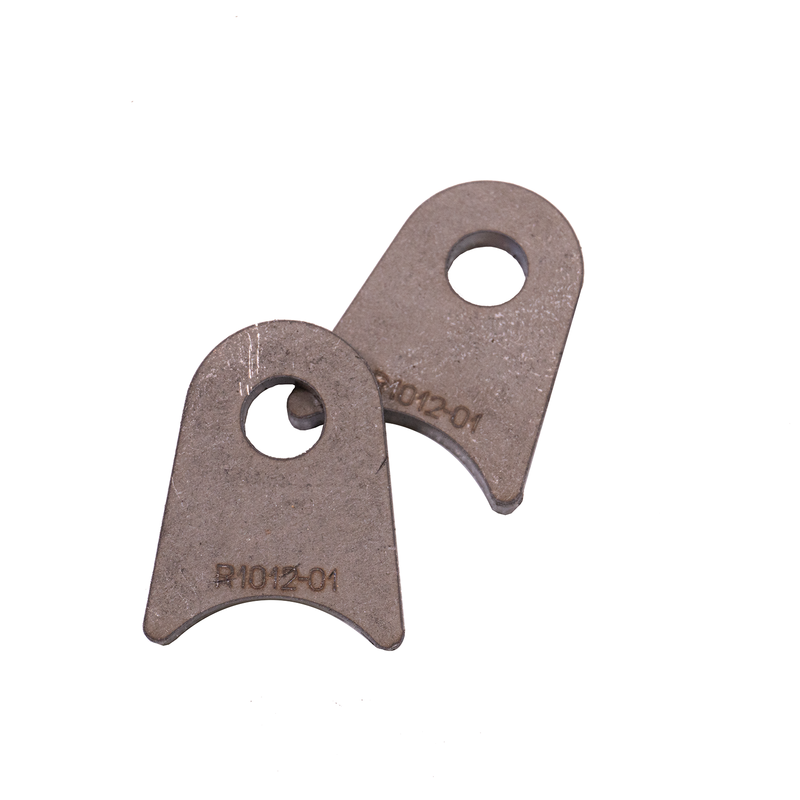

1.75" Radius Shock Tab For Tight Spaces, Pair

1.75" Radius Shock Tab for Tight Spaces – Pair

Compact Shock Mounting Tabs for Tight Clearance Applications

When space is limited and you need to tuck your shocks in tight, these compact shock tabs get the job done. Measuring only 1.125" from the mounting surface to the shock’s centerline, they’re perfect for tight clearances around bump cans, coil buckets, or inner fenders. Made from heavy-duty 1/4" thick HR P&O steel, they provide reliable strength in a compact footprint.

These tabs will work with about 90% of all standard shock bodies, but due to the tight spacing, it's a good idea to double-check fitment for your specific application.

Key Features:

• Part Number: R1012-Kit-1
• Material: 1/4" thick HR P&O steel
• Bolt Hole: 1/2" diameter
• Centerline Distance: 1.125" from mounting surface to bolt hole
• Mount Style: Weld-on tab with 1.75" radius
• Sold as a pair
• Optional Hardware: 1/2" x 3" Grade 8 Bolt and Lock Nut - Shock Bracket Bolts
• Made in the USA
