1.75" Short Link Tab

1.75" Short Link Tab

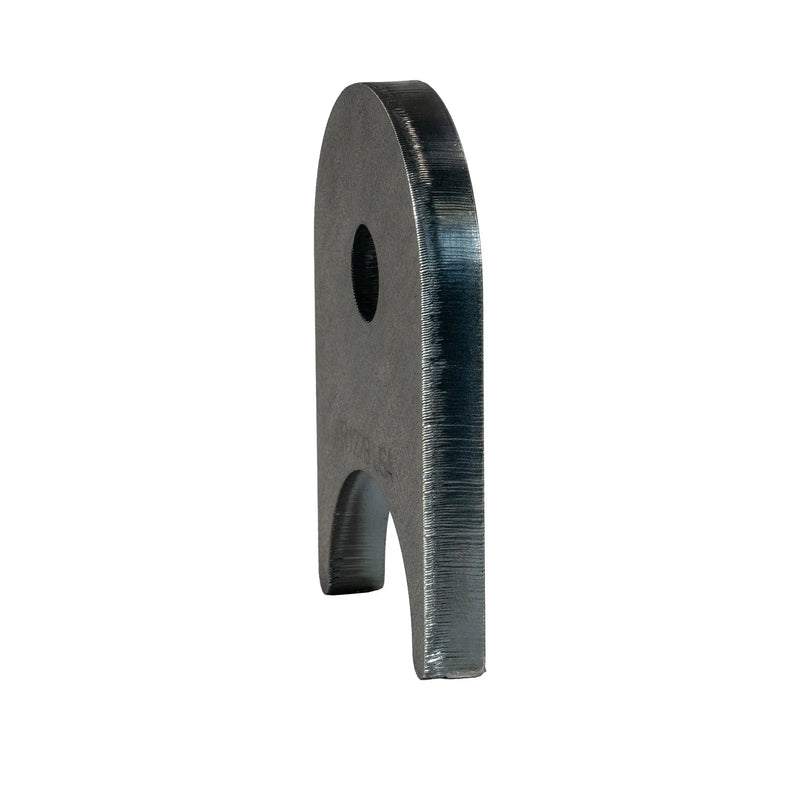

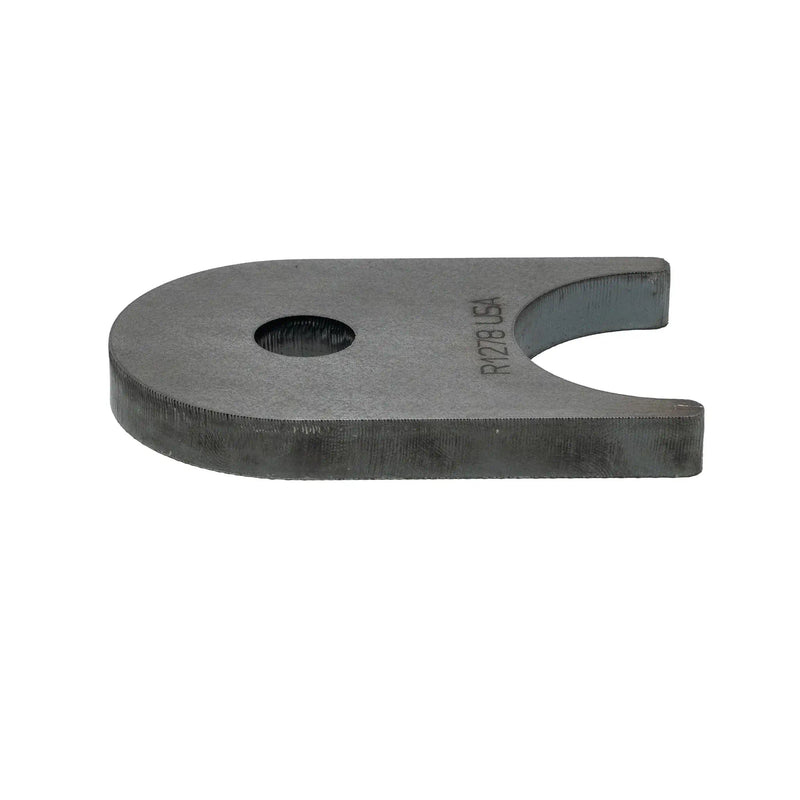

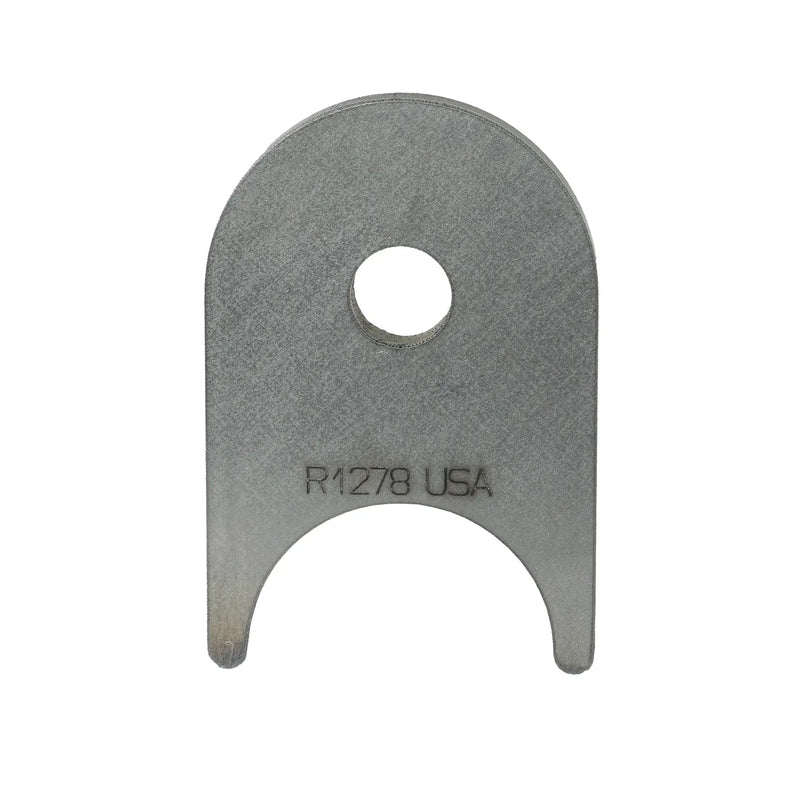

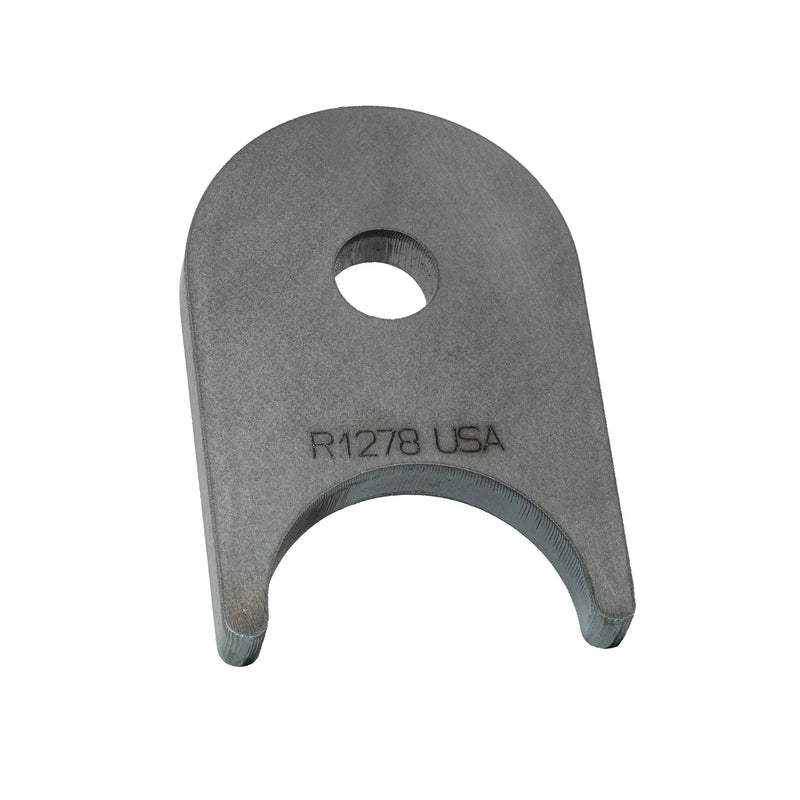

Weld-On Suspension Tab for 1.75" Axle Tubes | 3/8" Thick Steel

This short link tab is designed to fit 1.75" axle tubes and is easy to modify for slightly larger or smaller tubing. Cut from 3/8” thick mild steel, it’s built for real-world abuse and delivers the strength needed for demanding off-road suspension setups.

At 1.25" from axle to bolt centerline, this is the shortest of our 1.75" tab lineup — great for tight clearances, upper link mounts, or applications where you need minimal offset. These work well on their own or combined with medium and long tabs to fine-tune suspension geometry. Add a bridge between two if you want to create a custom paired bracket.

• Part Number: R1278

• Fitment: Designed for 1.75" axle tubes (can be modified to fit others)
• Material: 3/8" thick mild steel
• Hole Size: .5625" (9/16"), easily drilled larger if needed
• Tab Height: 1.25" from axle to bolt centerline
• Use Case: Ideal for tight packaging, upper links, and triangulated suspensions
• Weld-on design – compact, strong, and versatile
• Compatible with other RuffStuff tab sizes for full geometry control
• Made in the USA
• Sold individually
