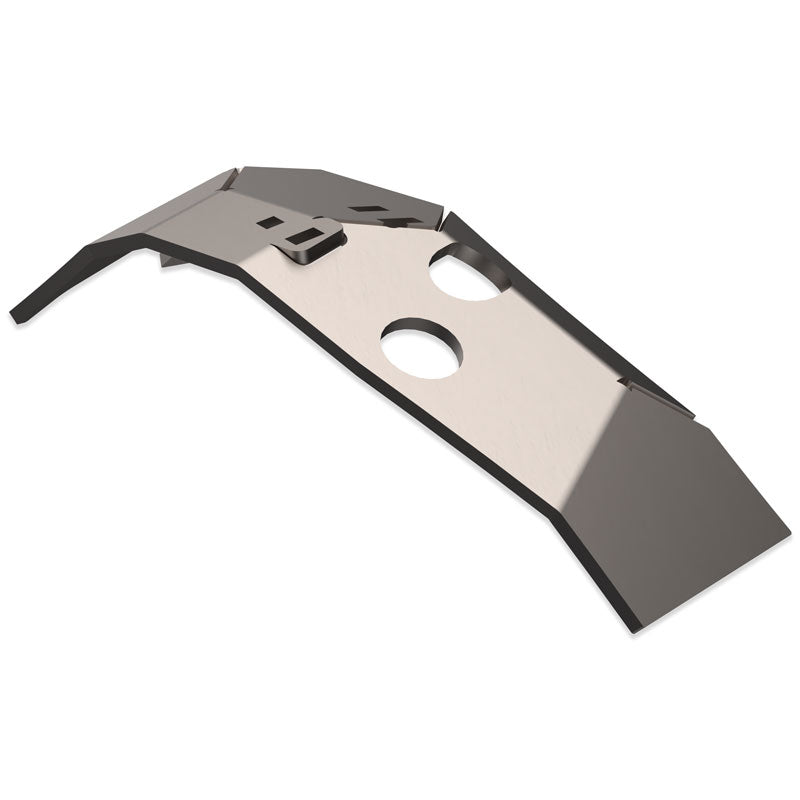

1 TON - APEX Front 60 1985-1997 Differential Top Cap
This heavy duty top cap weld directly to the differential casting for the Kingpin/Balljoint front 60 1985-1997 axle
to allow mounting of driver side upper control arm brackets.
Stronger Design, Lighter Weight, Easier Install
A NEW ERA HAS BEGUN WITH THE ARRIVAL OF THE APEX TRUSS! Artec Industries is proud to announce the next generation of PATENT PENDING axle trusses. This series of trusses not only builds on our experience as the world leader in axle truss design, it brings it to a whole new level of cost savings, strength, weight savings, simplicity of installation, precision fitment, and complete axle protection never before seen in the industry.
The key feature that sets the APEX truss apart is its unique peaked shape top which provides extra rigidity to the whole truss while allowing both a reduction in weight (vs using a thicker material top) and eliminating long weld seams. Previous version with long weld seams which can be lead to extra weld warping of the axle, longer install times and can be inconsistent. Without long seams to weld, now you drop the truss directly on to the axle and weld it to the axle faster.

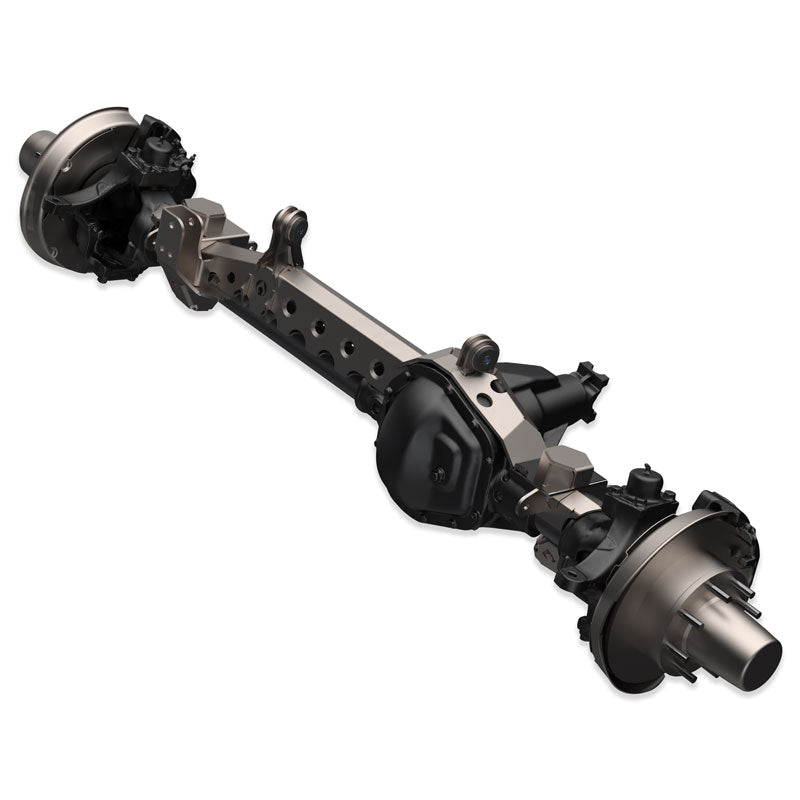

Shown below on kits JL6531 and JL6532. The Top Cap is included in those kits but some may want to buy the Top Cap if they purchased JL6533, in which the Top Cap is not included.
|
IMPORTANT NOTES:
The Front 60 that works with this kit is from Ford F-250 and F-350 trucks from model years 1985-1991.5 (kingpin) and 1992-1997 (balljoint). This truss is not intended for other year axles due to different differential offsets and casting contours.
Only works with Front APEX Truss JL6530 which is in kits JL6531, JL6532, or JL6533. Uses JL6500 UCA brackets for mounting bushings or Johnny Joints.
Trimming of the factory differential casting will be necessary (see instructions). Other fabrication and modifications may be needed due to variances in lift kits and other factors. Differential casting will need to be trimmed along the top edge right under the UCA slots on the truss at a 45 degree angle approximately 1/4" deep. Test Top Cap on diff first and if it doesn't sit flush on the edges, check for casting protrusions
|
| Features include:
|
NOTE: This kit requires general welding and fabrication skills. Welding should only be done by a competent welder who understand different materials. Some welding of cast and mild steel will be used. Artec Industries implies no guarantees or warranties and is not liable for improper installation.
*Some grinding and fitment may be required when installing this kit. Every axle varies slightly and some fabrication may be required. Will require brake line relocation to fit.
**Some versions of this axle have a hump on top of the differential which may need to be ground down. Test Top Cap on diff first and if it doesn't sit flush on the edges, check for casting protrusions.
*** In rare and extreme cases, the truss may come into contact with oil pan. Prior to operating the vehicle, remove the coil springs, cycle the suspension including full compression of both sides simultaneously and add bumpstop extensions to prevent damage to oil pan.
