Power Your System the Right Way
Trail Grid Pro's 12-gauge amplifier wiring kit provides all the necessary components to safely and efficiently power your high-power radio or power pack drawing less than 30 amps, all while keeping things economical.
Power Ratings and Efficiency
Amplifiers are typically categorized into two "Classes" with varying efficiencies and power wire size needs. Class AB amplifiers generally operate at 50% to 60% efficiency, while Class D amplifiers tend to be more efficient, ranging from 75% to 80%. This Trail Grid Pro wiring kit is designed to handle the energy needs of a Class AB amplifier with up to 140 watts RMS or a Class D amp with up to 220 watts RMS.
Trail Grid Pro Wire Solutions
Crafted from oxygen-free copper, Trail Grid Pro wire eliminates impurities that could impact signal flow or introduce interference. Our wire meets all Consumer Technology Association (CTA-2015) standards for size, resistance, and insulation quality, ensuring top performance for your system.
Product Highlights:
- Complete wiring kit for power packs and high-power radios
- RCA cables, remote turn-on lead, and speaker wire not included
- Maximum power ratings: Class AB – 140 watts RMS, Class D – 220 watts RMS
- Oxygen-free copper wires meet all ANSI and CEA standards
- 17 feet (5.2m) of 12-gauge red power wire with ring terminal and in-line ATC fuse holder
- 6 feet (0.9m) of 12-gauge black ground wire with ring terminal
- Includes 3 ATC fuses (15A, 20A, 30A)
- Assorted hardware included
- 6 feet (1.8m) of 12-gauge black split loom
- 12-gauge firewall bushing
- Two 12-10-gauge butt connectors
- Six wire ties
- Warranty: 1 year

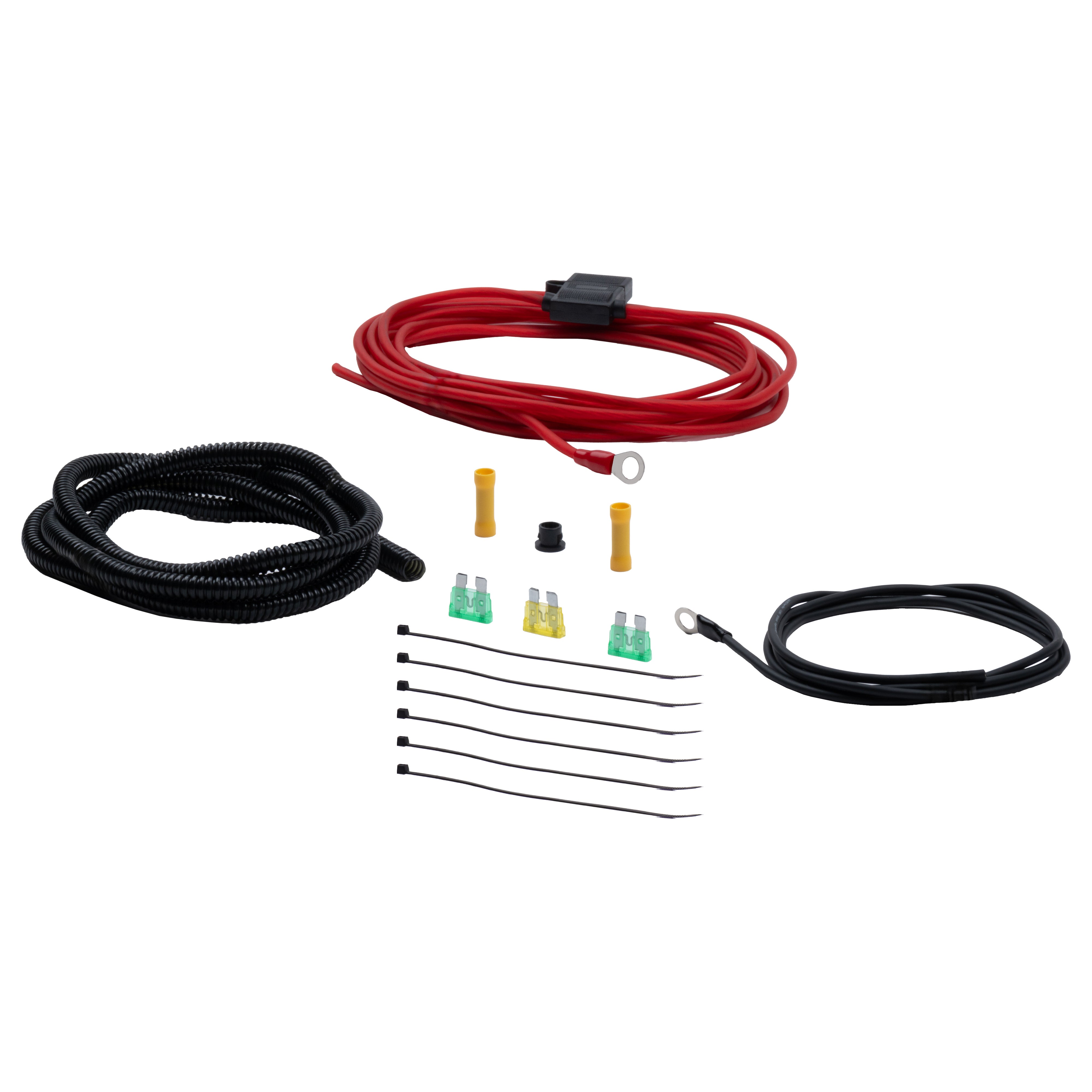

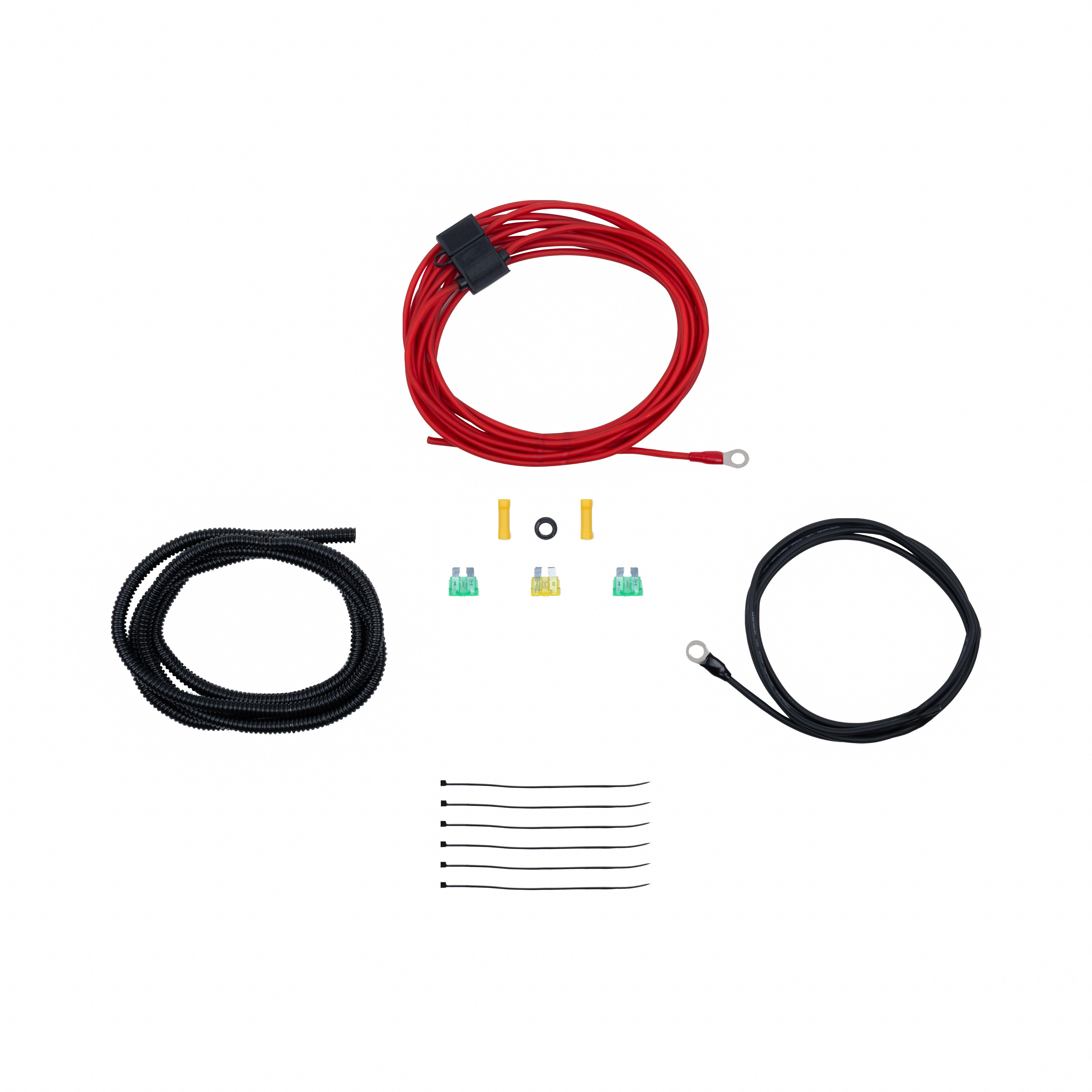

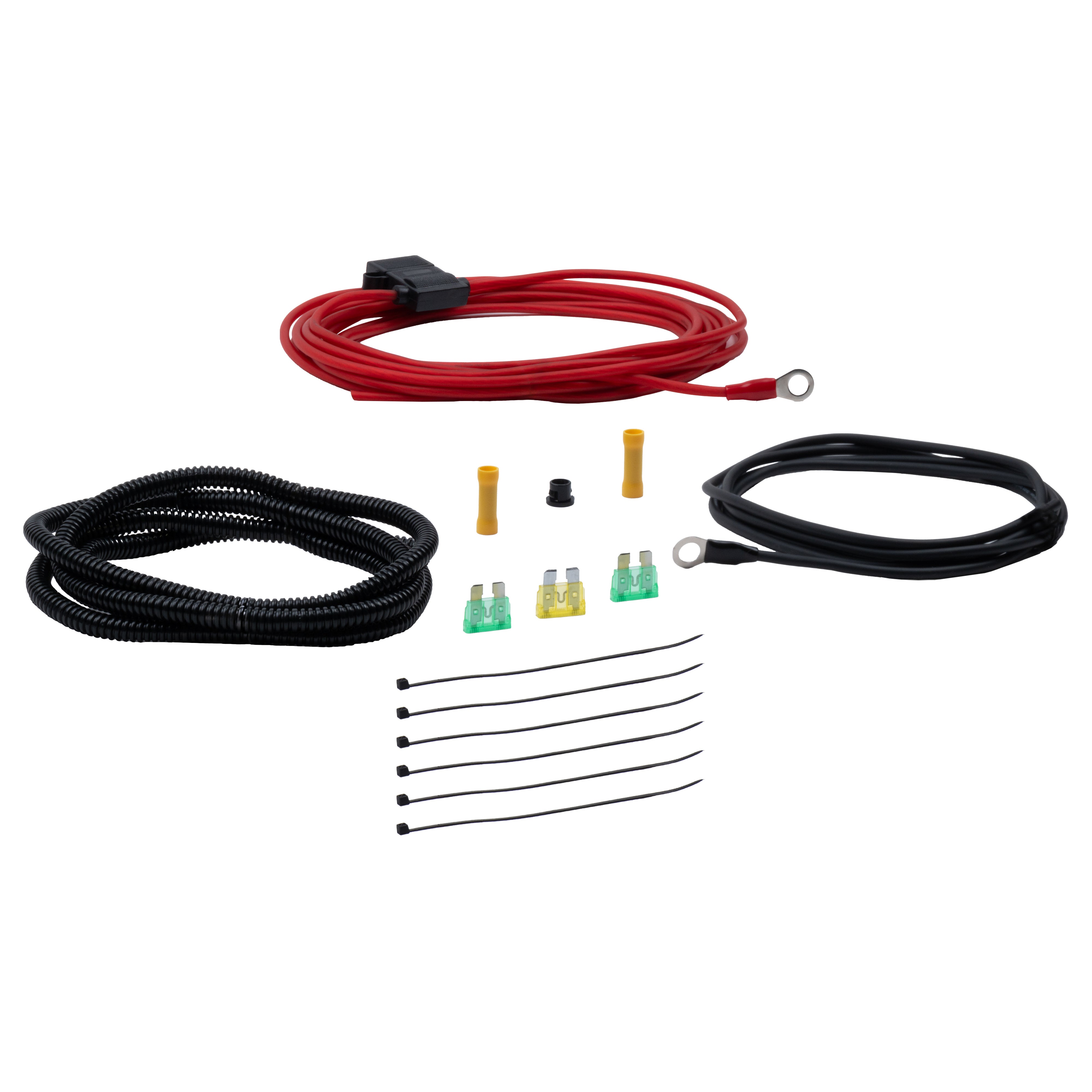

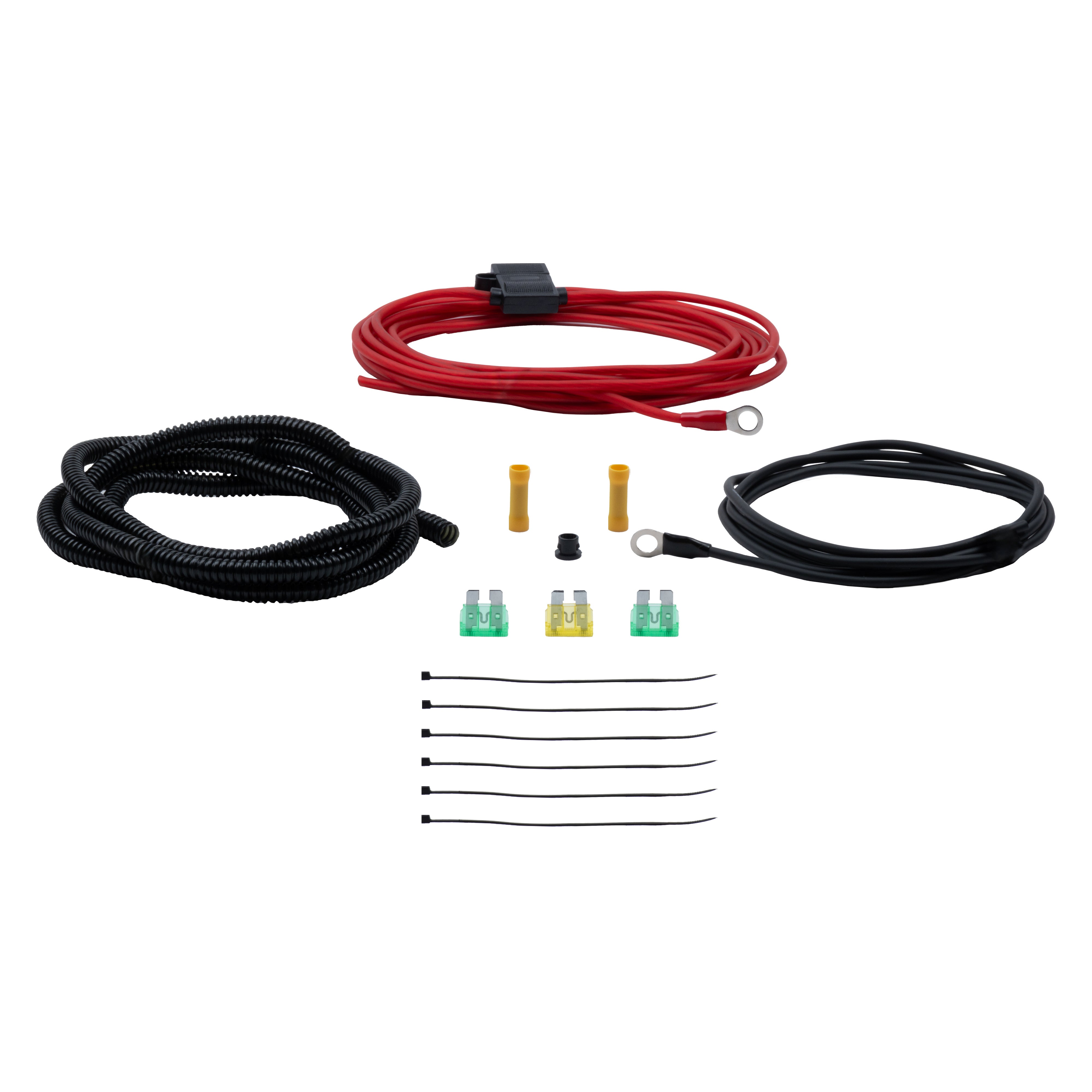

Included:
- 17 feet of 12-gauge power wire with in-line fuse holder (red translucent jacket, ring-terminal on one end)
- 6 feet of 12-gauge ground wire (black translucent jacket, ring-terminal on one end)
- 15-amp ATC fuse
- 20-amp ATC fuse
- 30-amp ATC fuse
- Firewall bushing
- Two 12-10 gauge butt connectors (yellow)
- 6 feet of split loom
- Six 3-inch zip ties
