14 Bolt 4 Link Kit
Built to flex, built to last—link your rig the right way.

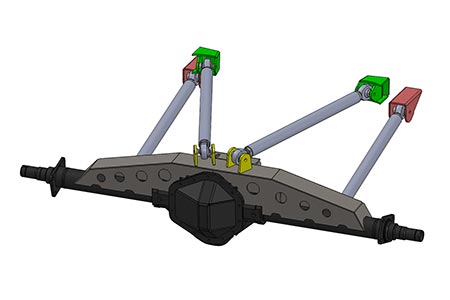

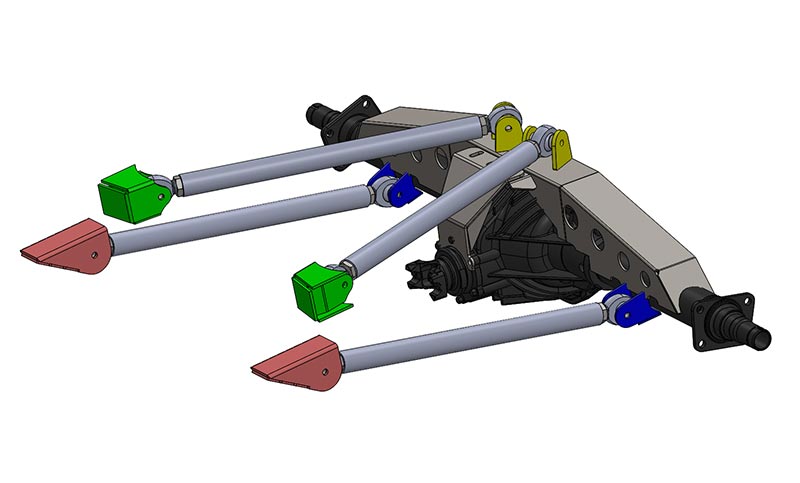

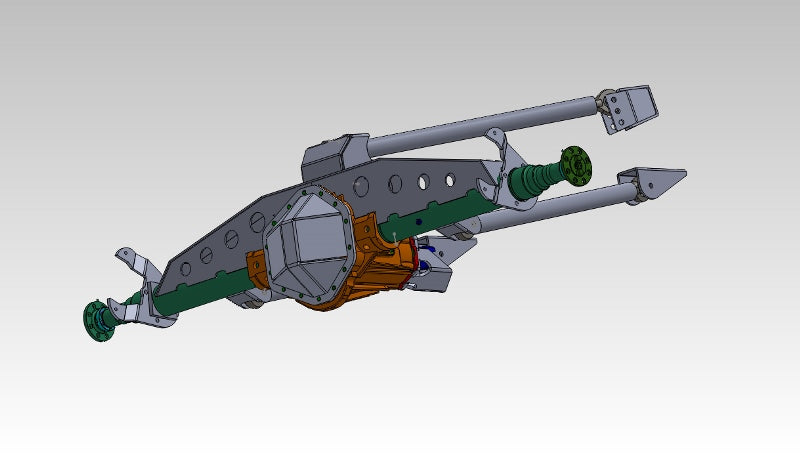

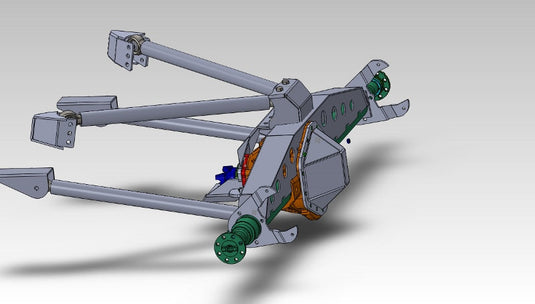

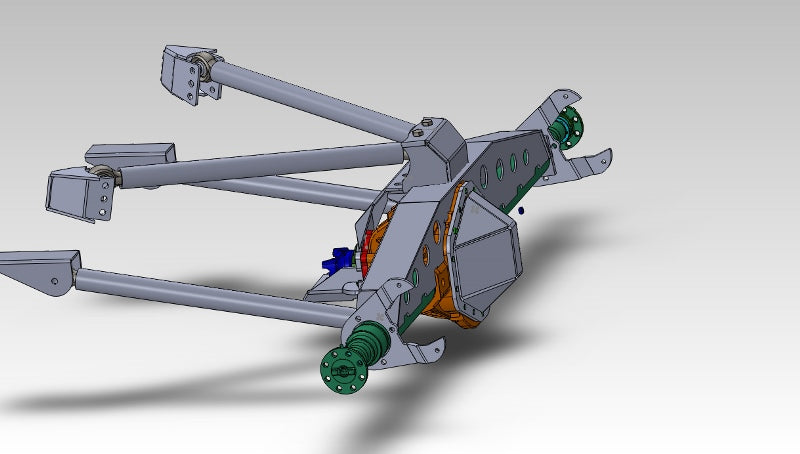

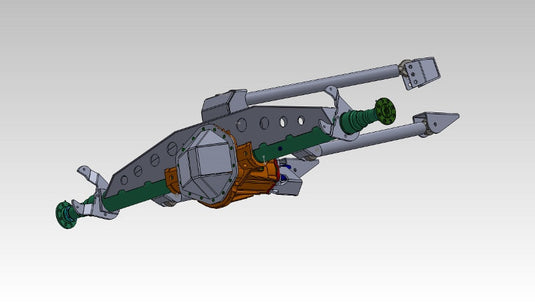

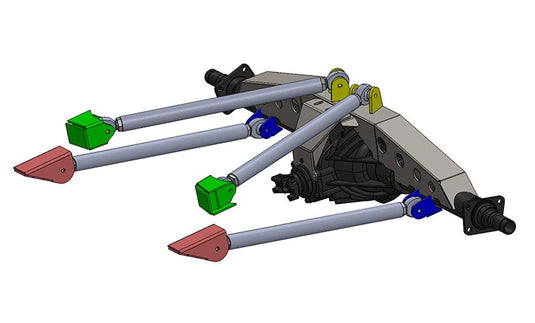

This 4 link suspension kit is built specifically for full float 14 Bolt axles and includes our heavy-duty RuffStuff truss with integrated pinion support. It's a customizable setup designed for builders who need reliable articulation and strength without compromise. Perfect for rock crawlers, trail rigs, and off-road toys looking to upgrade to a full triangulated or parallel 4 link setup.
Everything is laser-cut and CNC-formed from thick mild steel for consistent fitment and durability. The included link brackets, heims, and hardware provide a solid foundation to handle serious abuse. This kit does not include DOM tubing—available separately if needed.
Key Features
- Part Number: R1491
- Fits full float 14 Bolt axles
- Includes RuffStuff truss with integrated pinion support
- Customizable with multiple link bracket options
- All brackets are laser-cut and CNC-formed from heavy-duty steel
- Heim joints are 1.25", heat-treated chromoly with matching tube adapters and jam nuts
- DOM tubing not included—available separately
- Made in the USA
What's Included in This Kit
- 4 - RH 1.25" Heims with Tube Adapters & Jam Nuts
- 4 - LH 1.25" Heims with Tube Adapters & Jam Nuts
- 16 - Stainless Steel Misalignment Spacers
- 2 - Upper Frame Link Brackets (your choice)
- 2 - Lower Frame Link Brackets (your choice)
- 2 - Lower Axle Link Brackets
- 4 - Upper Axle Link Tabs or 1 - Upper 4 Link Bracket (your choice)
- 1 - 14 Bolt RuffStuff Truss with Integrated Pinion Support
- 1 - Complete Link Hardware Kit – Grade 8
Available Kit Options
Upper Frame Brackets:
3-Legged Link Bracket
Adjustable Upper Link Bracket
Lower Frame Brackets:
Chassis Link Bracket
Lower Dual Triangulated Bracket
Upper Axle Link Mounts:
Flat Link Tabs
Upper 4 Link Bracket
Tips to Help Prevent Any Seized or Warped Threads
- Correctly adjust welder settings and start your puddle on the tube (too much heat will warp the threads).
- Do not weld the tube adapter with the rod end threaded inside (different cooling rates will lock them together).
- Wait until everything is fully cooled before threading rod ends into the adapters.
Start your selection
Rod End Maintenance Tip
We only recommend using Tri-Flow to service our rod ends. Using products like WD-40 or Blaster will void the warranty.
Sold as a complete kit—DOM tubing not included
