FREE SHIPPING TO 48 STATES
Lead time: SOLD OUT, estimated ship date June 15th

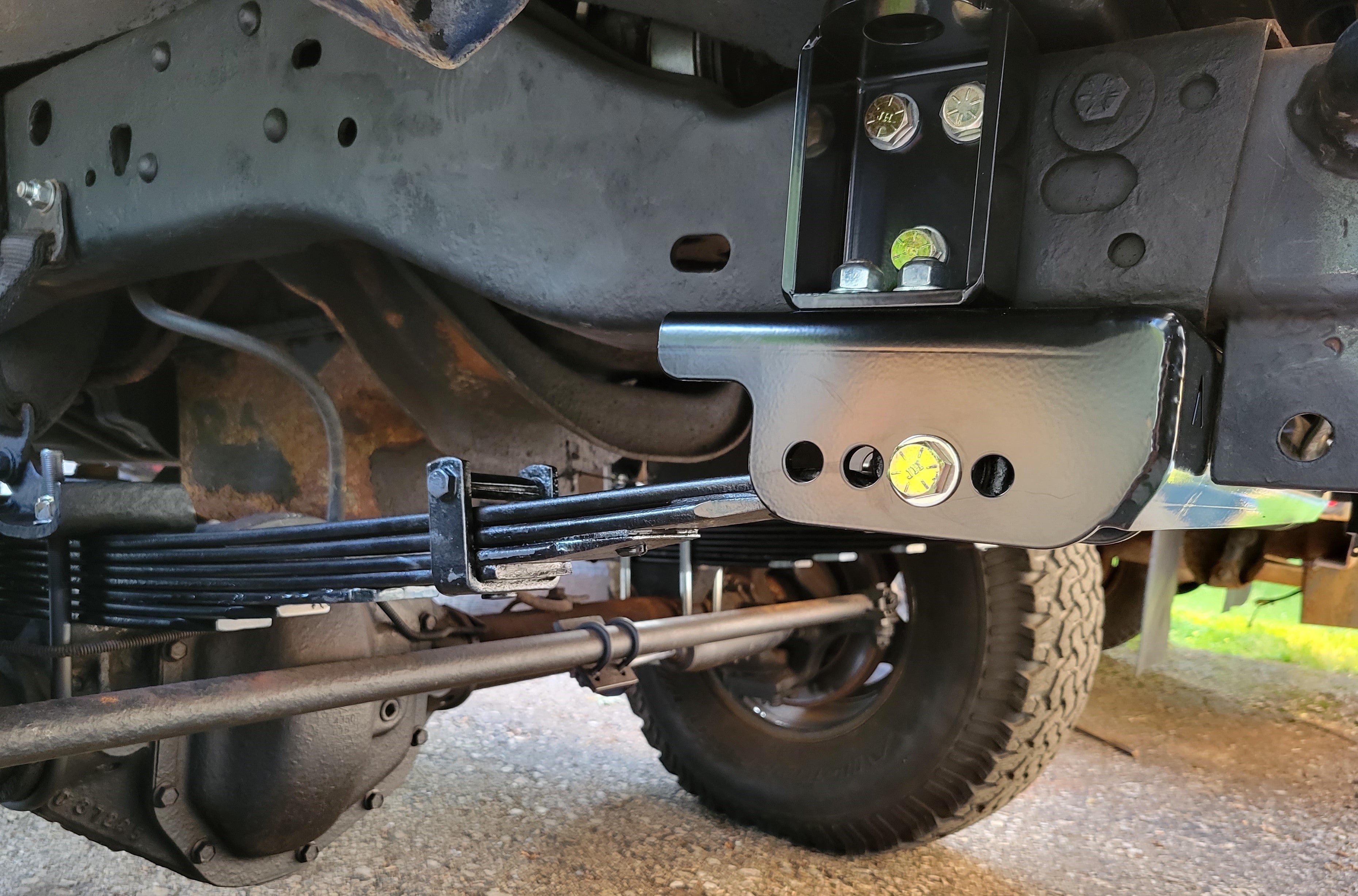

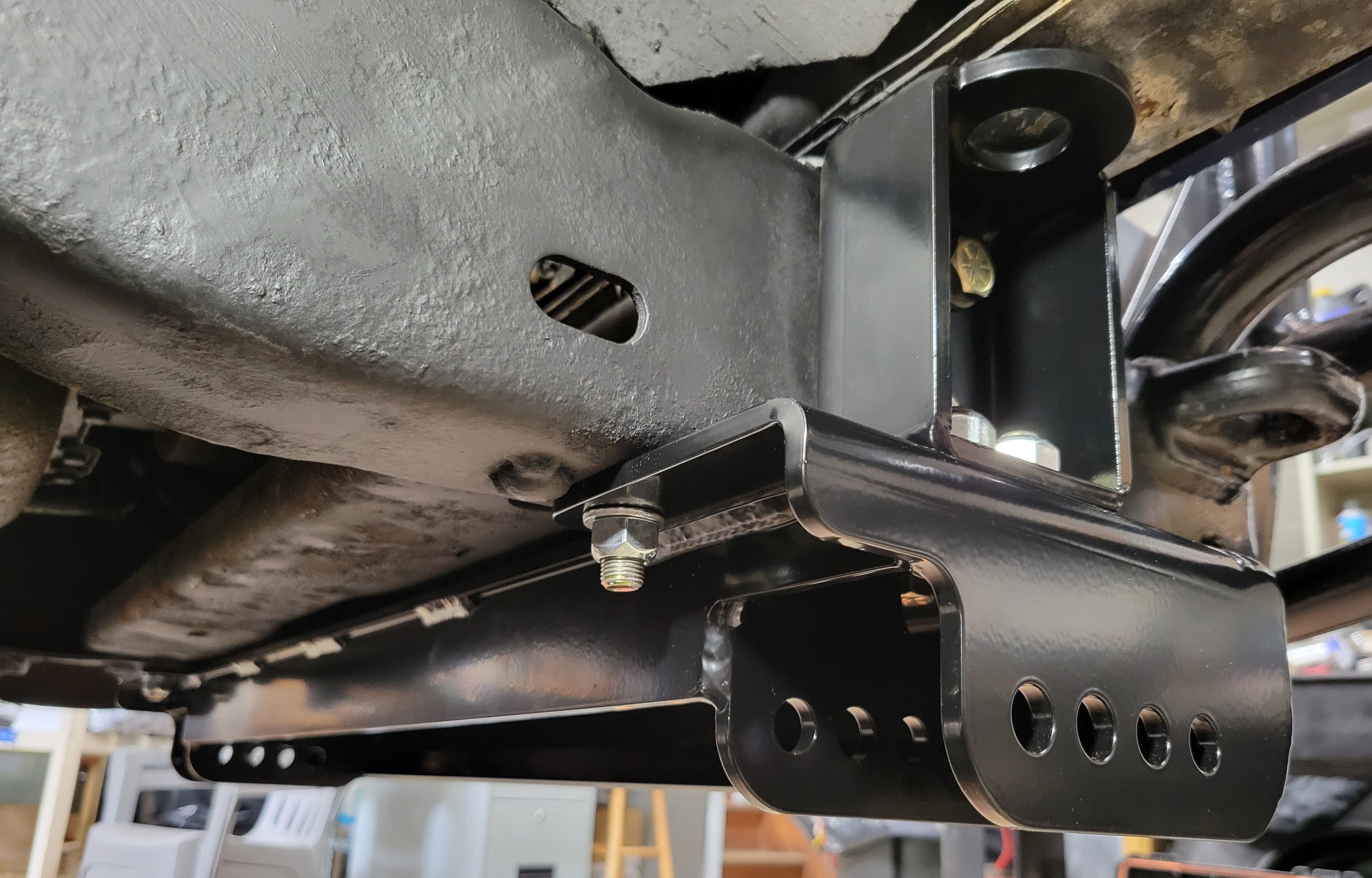

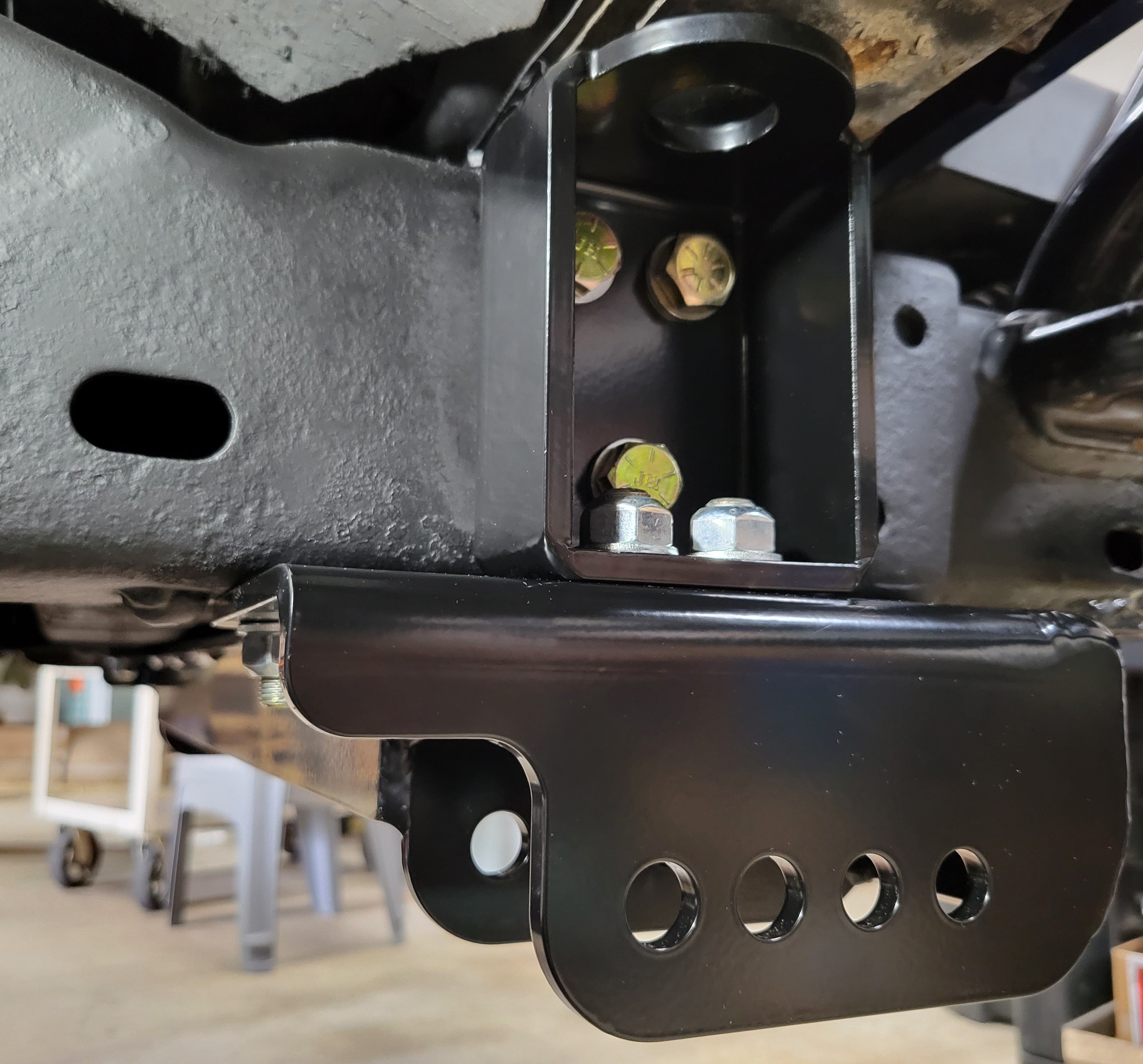

A Robust hanger designed for severe duty off road use! 1-piece box design resists steering and suspension forces much better than 2 separate hangers. Hanger bolts into original rivet holes, after rivets are removed and drilled out to 1/2" (bit included)

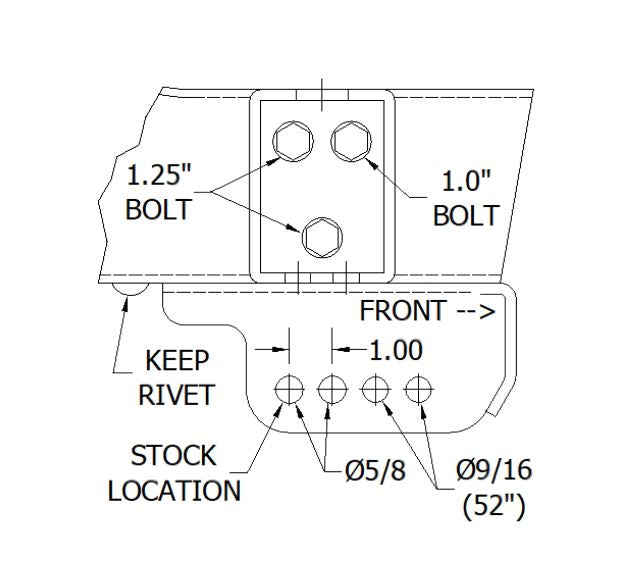

Fits 1972-1993 Dodge Ram trucks W150 W250 W350 and Ramcharger Trailduster. Mounts stock springs (48") & aftermarket or up to 52" springs (see bolt diagram). This bracket is great for 4x4 conversions on 2WD D150 D250 or D350.
Thinking 52" Springs? Check these out:
Archive has 52" DODGE-SPECIFIC springs (Made in USA).
If going 52", you'll need the 5" long AG shackles.

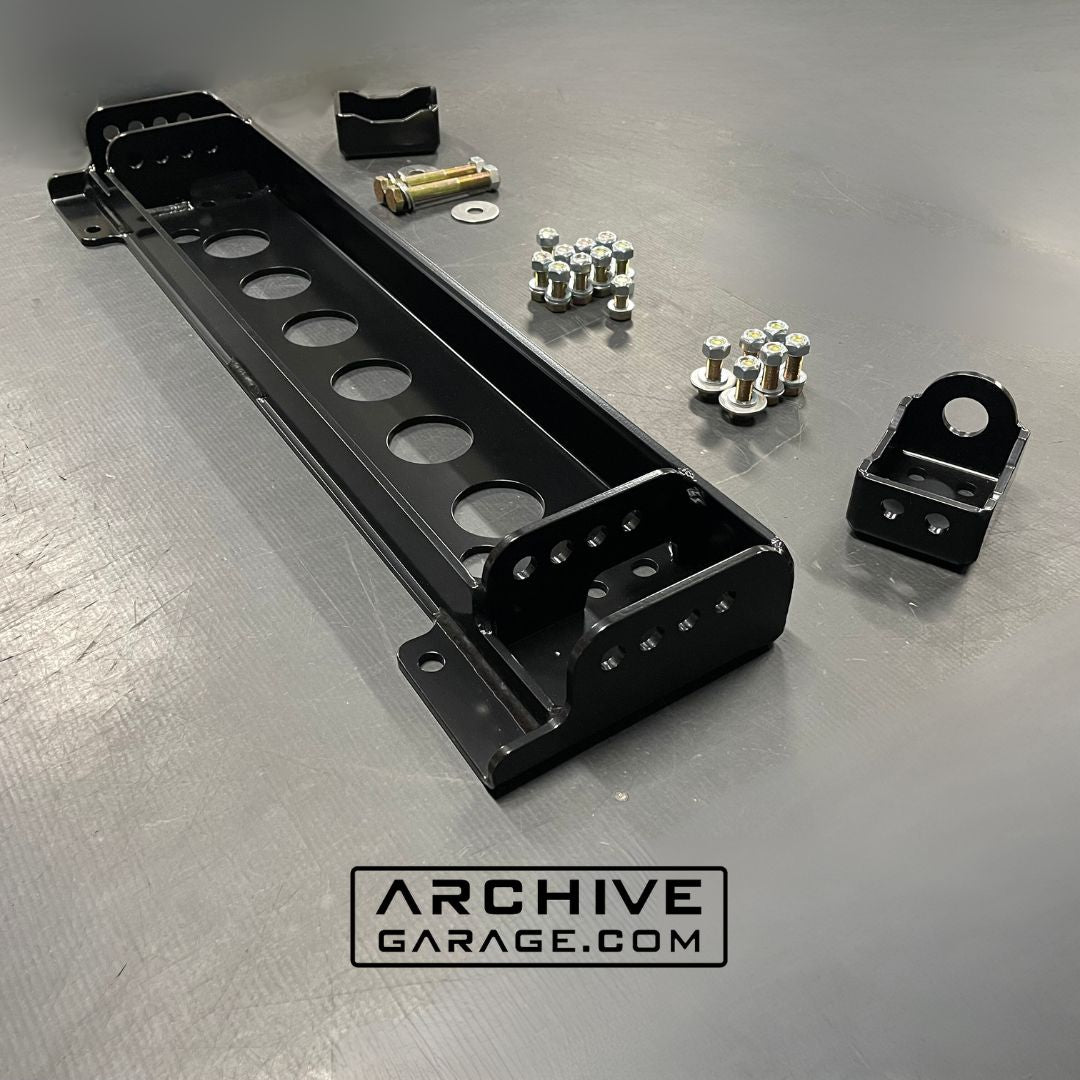

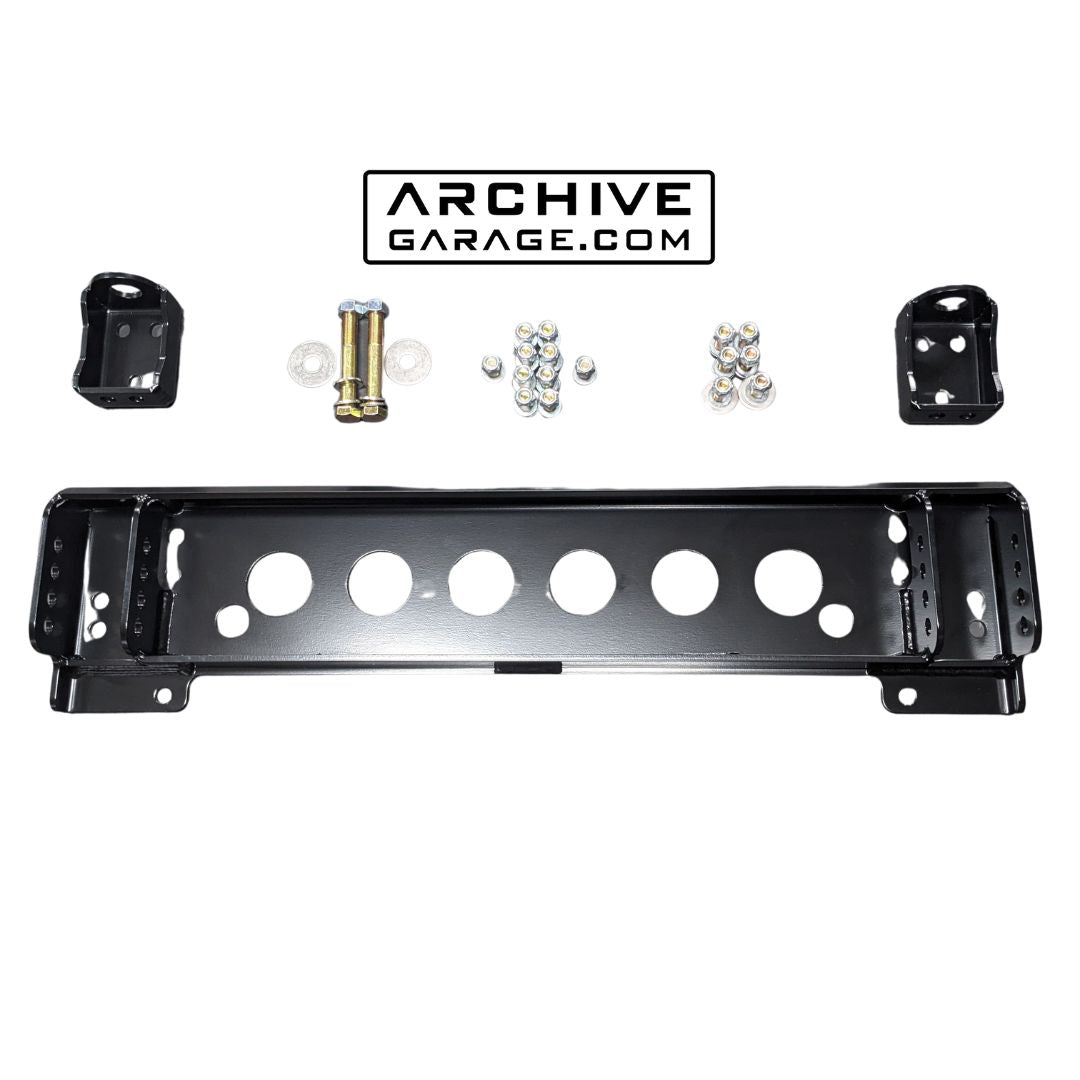

Kit Includes the following:
-Constructed with 1/4" HSLA high-strength steel (30% stronger than mild steel)
-MIG welded, zinc-rich-primed, and powder coated black
-(2) front spring eye Grade 8 bolts Included: both (2) 5/8" for stock spring and (2) 9/16" for Archive 52")
-1/2" grade 8 Flanged frame bolts with top-lock nuts and washers
-(2) HD Hanger Side Support Brackets INCLUDED (1/4" high-strength steel)
-Complimentary quality 1/2" drill bit!

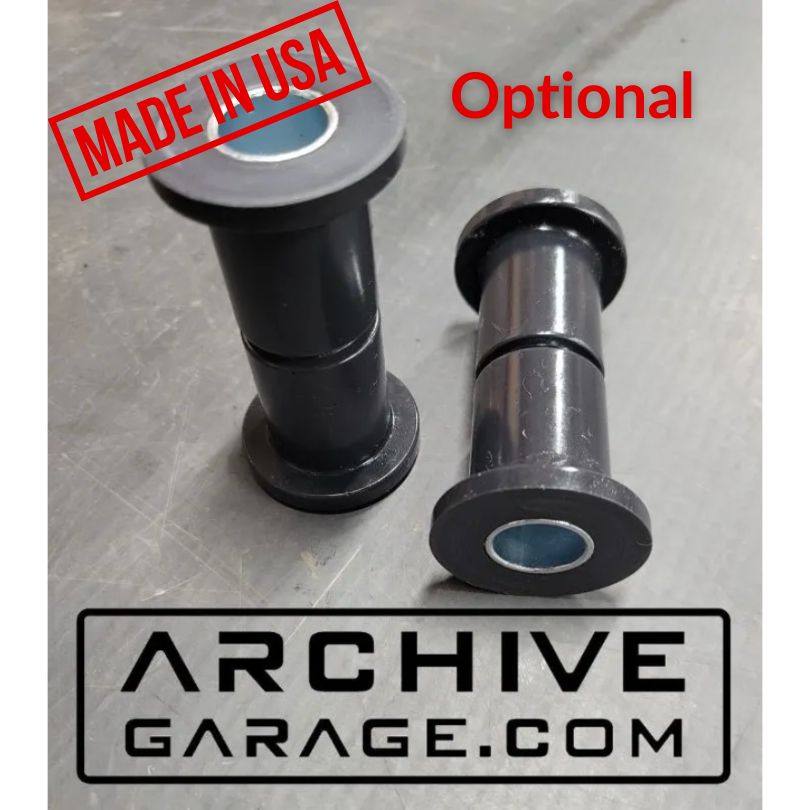

Don't forget to add the optional front spring eye bushings.
