Video----> Archive Garage Front Shackle Hangers
-Fits Dodge Ram trucks, Ramcharger and Trailduster 1972 to 1993.
-Easy install in a few hours. NO HOLE SAW REQUIRED like other brands force!

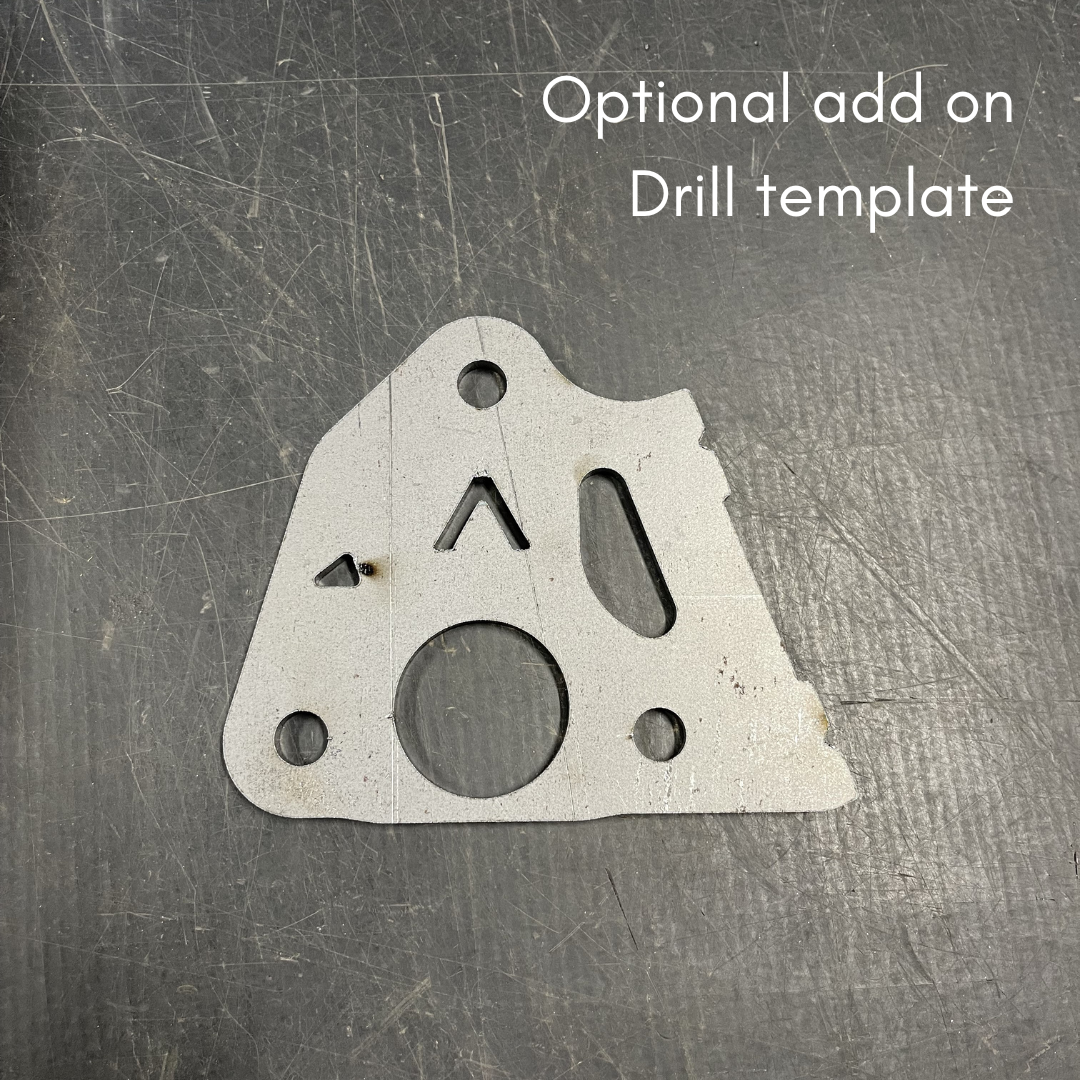

-Great for 4x4 conversion, optional 4x4 conversion drill template locates off of frame features
-Simply grind off stock rivet heads on outside of frame, punch 'em out, grind just a hair off top of frame hole (~1/16", deformed from stamping)
-Fits without drilling out original rivet holes if you select 7/16" frame bolts

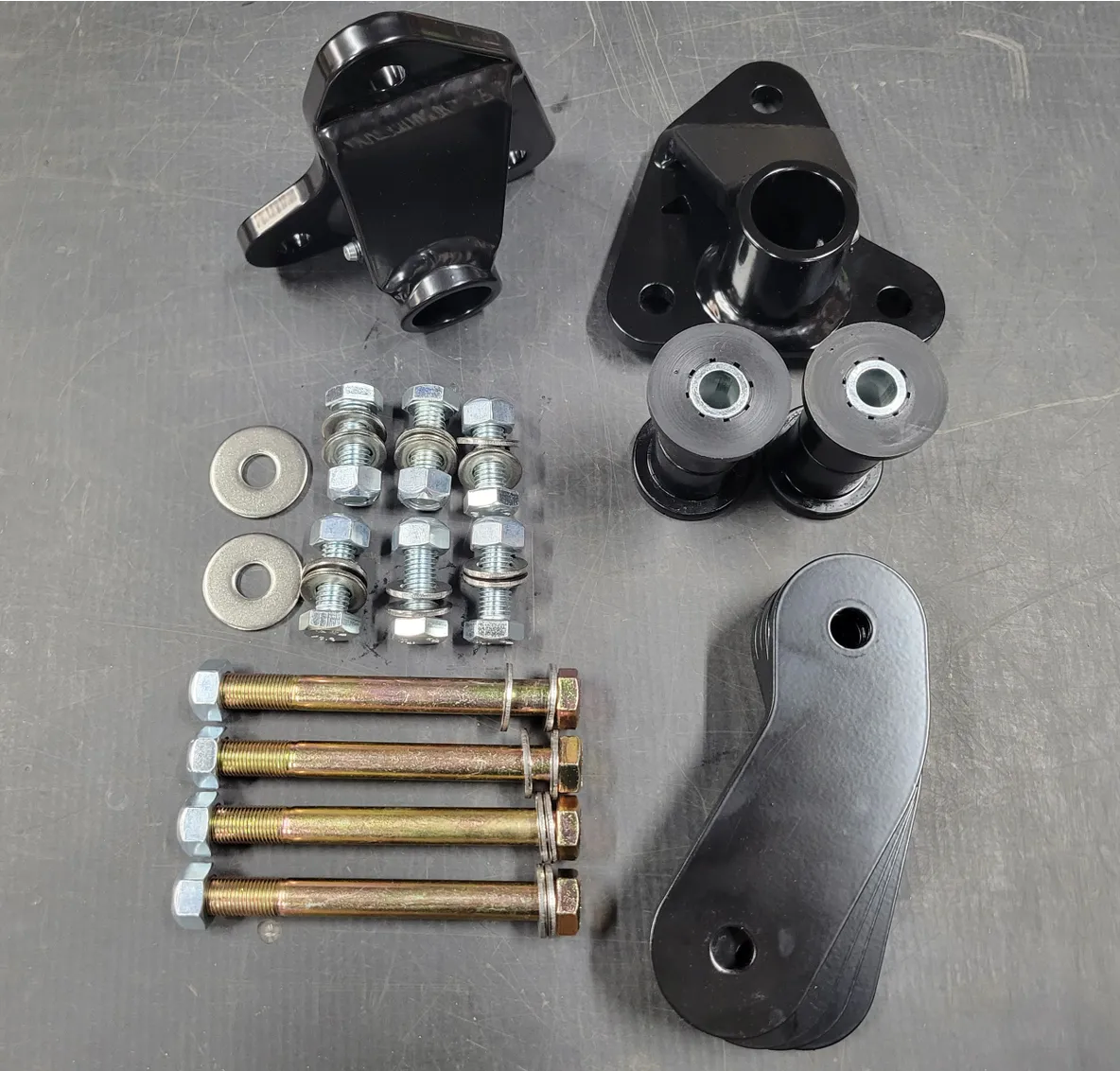

Kit Includes:
-(1) LH & (1) RH shackle mount in 3/8" A36 plate steel. Grease zerk fitting in DOM tube. Blasted, primed and Powdercoated black for years of durability.
-Made for 3" wide bushing sleeves for a extra clearance outboard of frame. 1/8" washers supplied for stock outboard spring eye to = 3.00"
-(4) 3/8" thick 4.25" or 5.0" boomerang plate shackles: 1/2 or 9/16 or 5/8" holes
-(4) Grade 8 shackle pivot bolts: 1/2", 9/16" or 5/8" (select size desired, but 1/2" held your truck up for 30 years).
-(6) Grade 8 Frame Bolt options:
a. 7/16" fit in original holes without drilling (no taking parts off your truck to drill, 7/16" is working great for hundreds of customers)
b. 1/2" requires drilling (factory hole .47")
-(4) high quality greaseable poly bushings and (2) tough DOM bolt sleeves (common bushings for future replacement if needed)
-Written instructions provided
Save time & money - We recommend add on an Archive Garage Drill Bit Set
