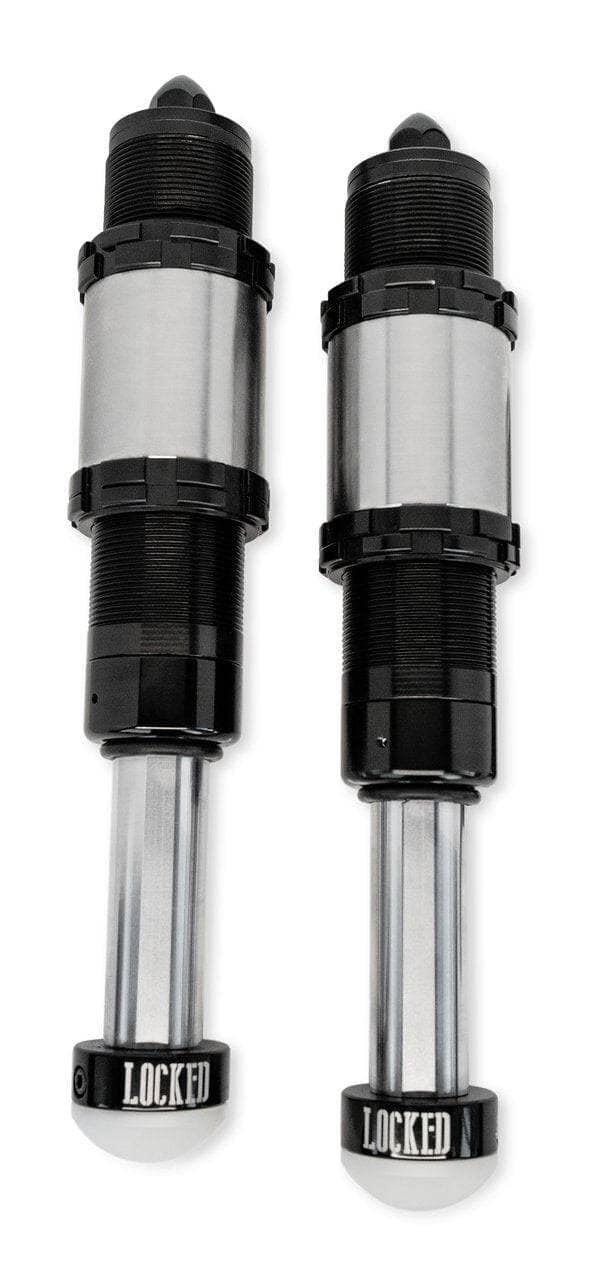

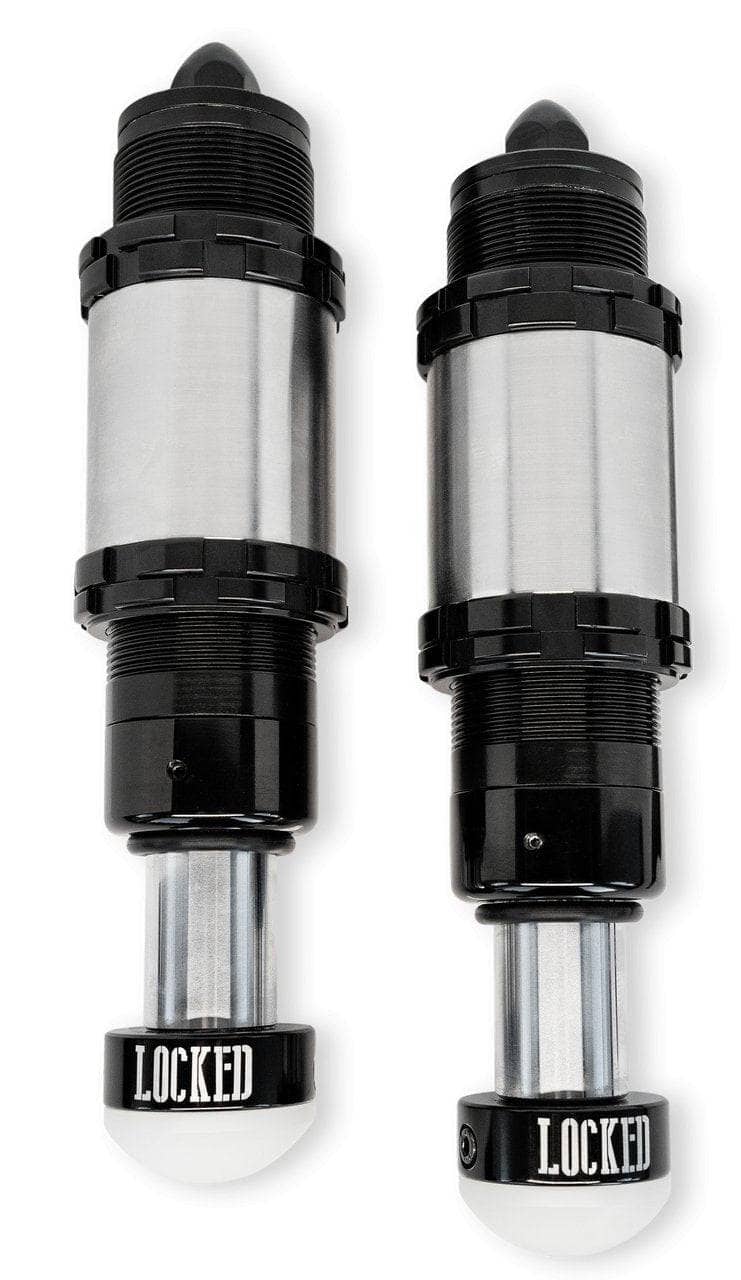

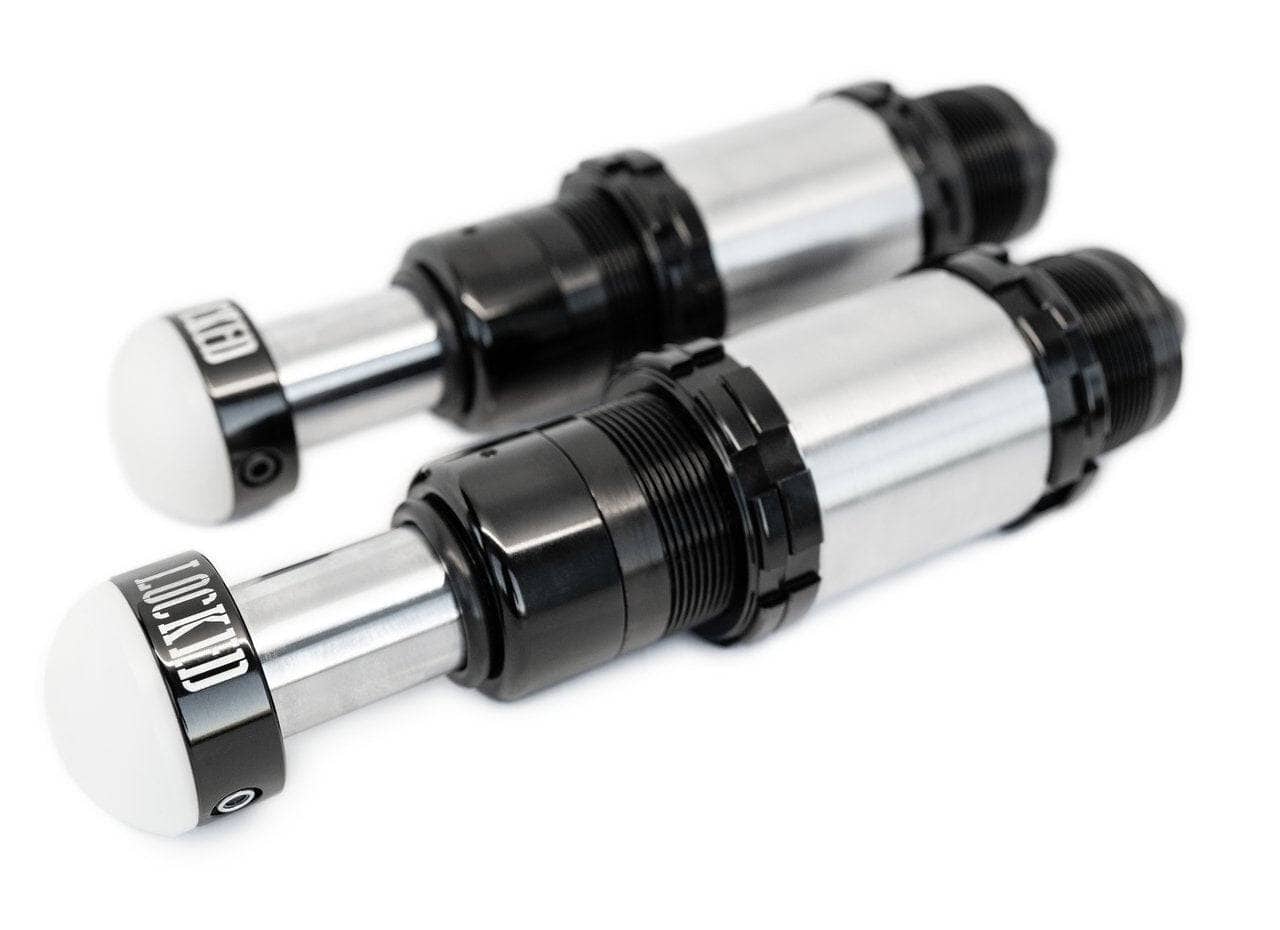

PAIR OF 2.0" THREADED BUMP STOPS – 2" & 4" TRAVEL OPTIONS

• Hydraulic bump stops
• Fully rebuildable
• Adjustable oil volume & nitrogen pressure
• Includes threaded mounting sleeves
• 2 sets of locking rings per bump stop

TECHNICAL SPECS:

• 2.0" Diameter Body
• 2" Stroke: Extended 11.75" | Collapsed 9.75"
• 4" Stroke: Extended 14.75" | Collapsed 10.75"
• 1.26" diameter shafts – Hard-chromed and mirror-polished for rust prevention and extended seal life
• Schrader cap mounts directly to the body, not the valve, for a stronger, cleaner seal
• O-ring travel indicator shows real-time shaft travel
• Delrin contact pad uses a flushmount design for silent performance and no metal-on-metal contact

MOUNTING SLEEVES:

• Heavy-duty threaded sleeves, weld-ready
• Threaded Can OD: 2.52" | Height: 2.55"
• Total OD with lock rings: 2.72"
• 360° clamping support — no pinch points like traditional cans
• Built-in weld shrinkage tolerance ensures proper fit

BUILT TO PERFORM:

• Viton Seals
• 4130 Chromed & Polished Shafts
• Black Zinc-Coated Steel Bodies
• 6061 Anodized Aluminum Components

WARRANTY:

2-Year Warranty on non-wearable part

NOTE:

Intended for off-highway use only.
