INCLUDES:

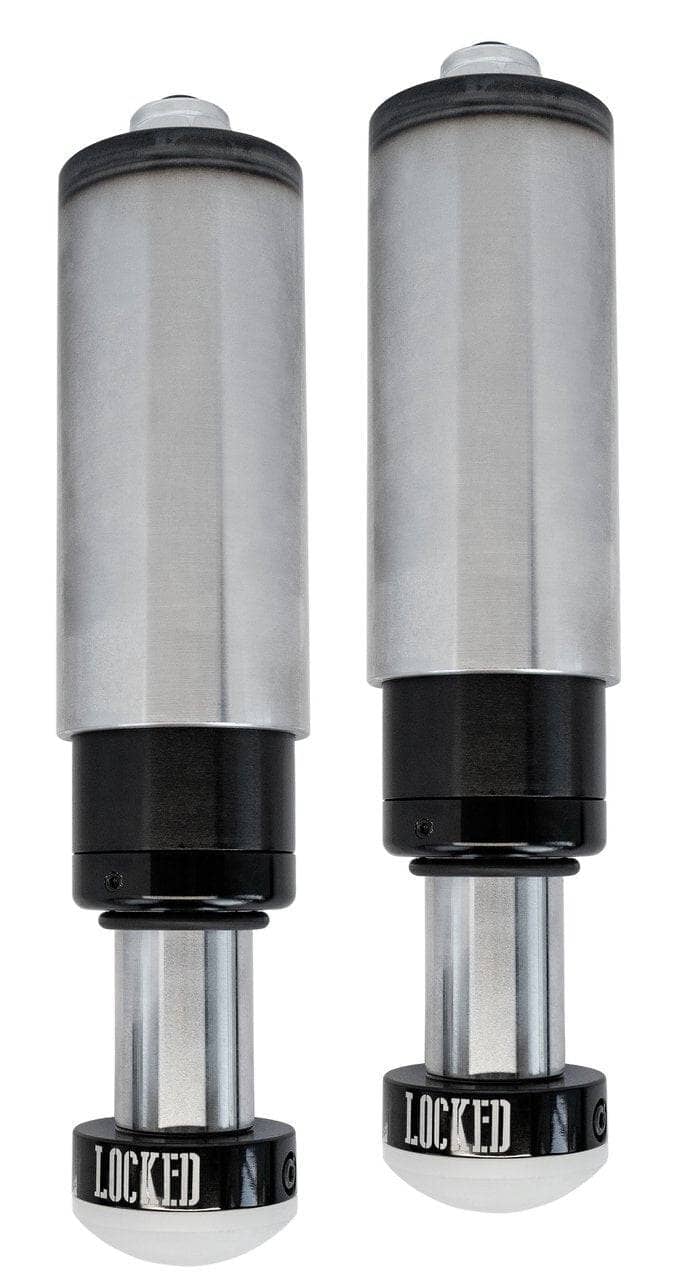

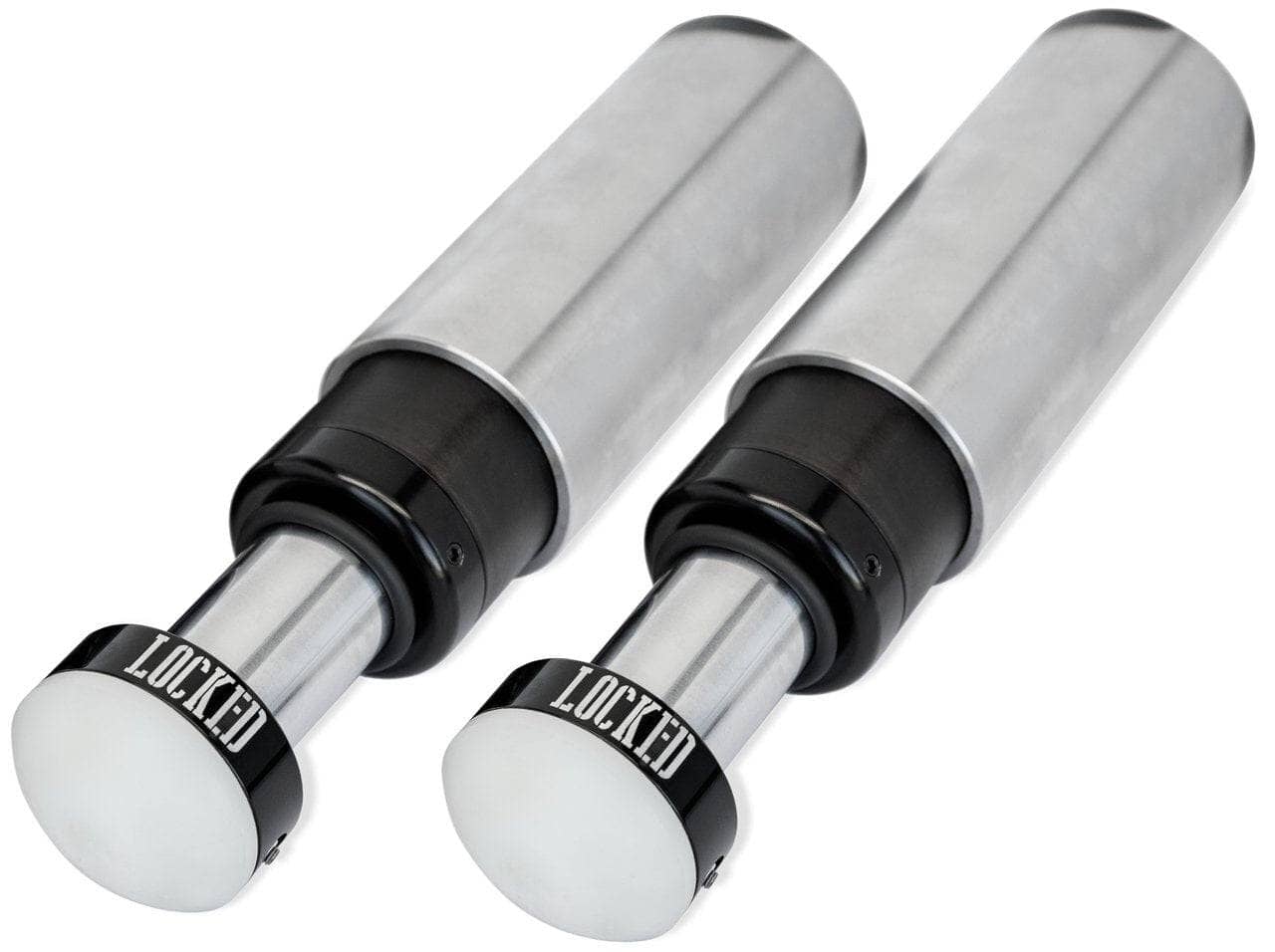

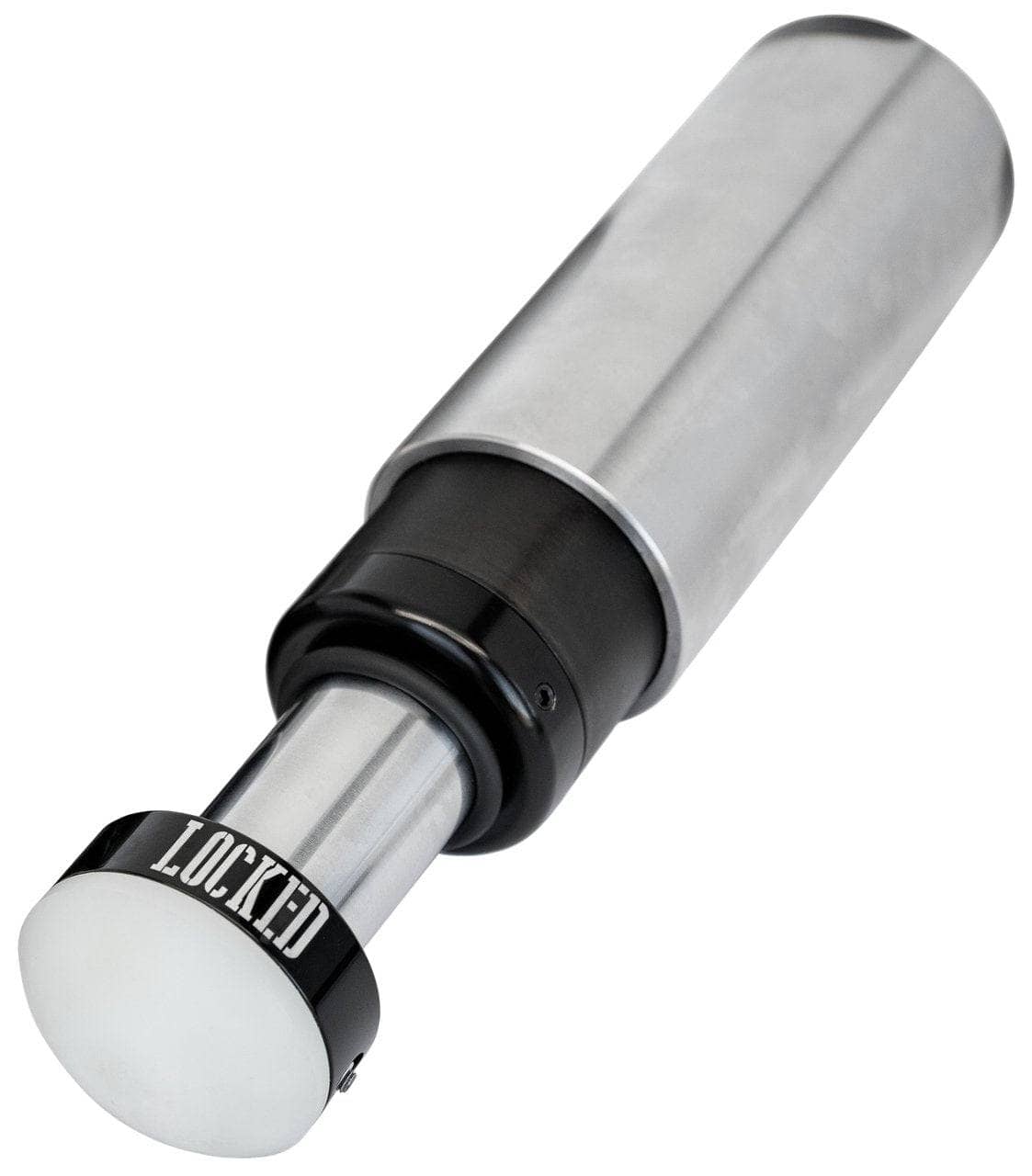

• (2) 2.5" Bump Stops
• (2) Pin-Style Mounting Sleeves (threaded style also available)

TECHNICAL SPECS:

• 2.5" Diameter Body
• 1.58" Shaft
• 2.5" Stroke: Extended 13.5" | Collapsed 11"
• 4" Stroke: Extended 15.5" | Collapsed 11.5"
• Hard-chromed and polished shaft prevents rust and maximizes seal life
• Schrader cap mounts directly to the body for a cleaner, stronger seal
• Travel indicator O-ring on shaft
• Indexing pin prevents outer tube pinching
• Delrin contact pad with flush-mount design for quiet, metal-free contact

MOUNTING SLEEVES:

• Heavy-duty, weld-ready construction
• Pin-style sleeves offer full 360° coverage—no pinch points
• Engineered with extra space to accommodate welding shrinkage
• Laser-cut indexing holes keep bump stop securely aligned

BUILT TO PERFORM:

• Viton Seals
• 4130 Chromed & Polished Shafts
• Black Zinc-Coated Steel Shock Bodies
• 6061 Anodized Aluminum Components

WARRANTY:

2-Year Warranty on non-wearable parts.
6-Month Warranty on wearable parts.

NOTE:

Intended for off-highway use only.
