Adding armor, hauling or towing? Archive's Traveler Leaf is specifically designed to enhance stock 2005-2023 6-Lug Tacoma leaf spring packs.
The Traveler leaf:
- Improves load handling, combats squat
- Increased spring rate & lift keeps you off the rear bumps.
- Fits 3+1 without any modification to stock packs

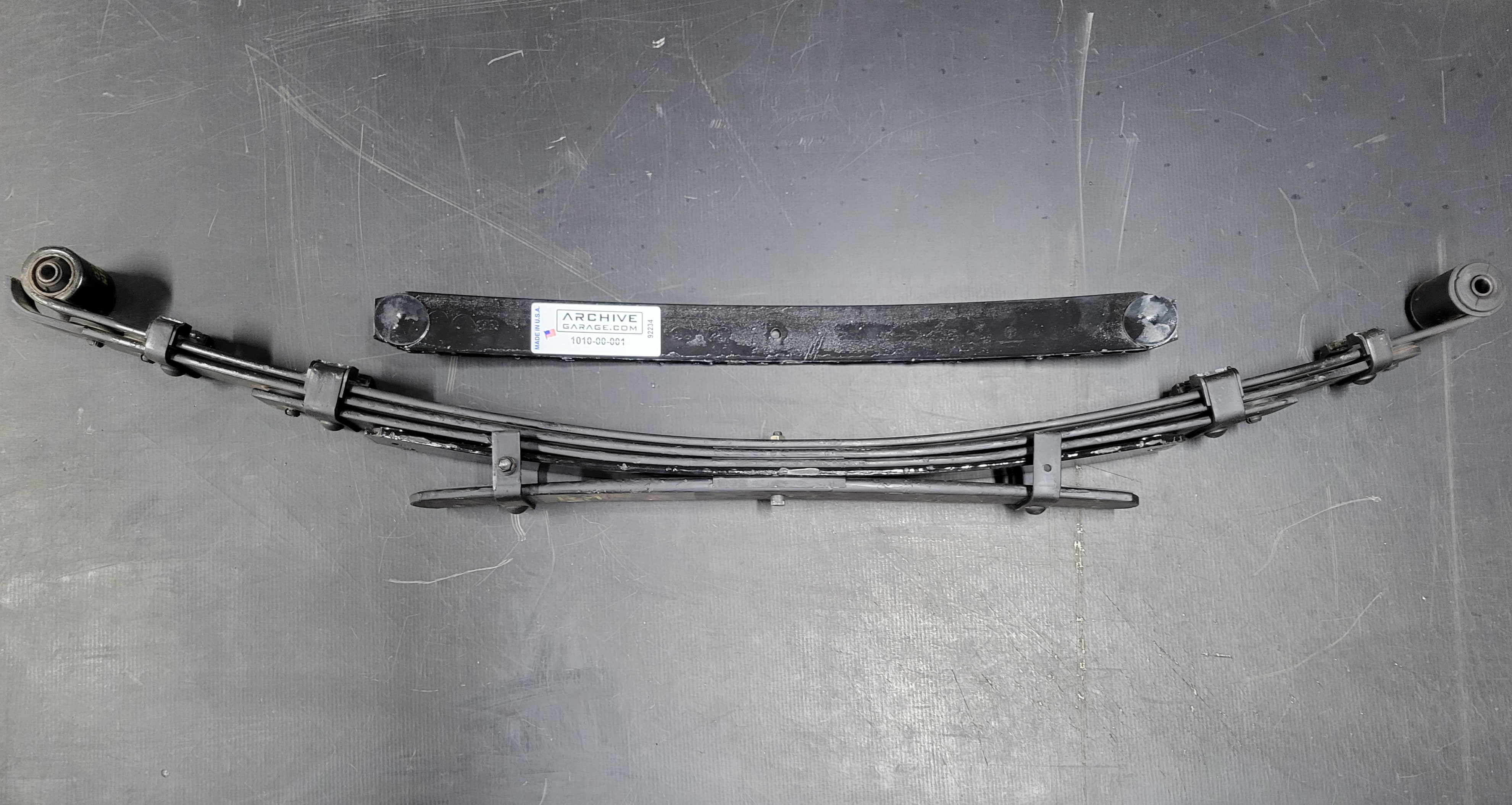

- Creates attractive 4+1 pack & retains overload
- Fits using stock Tacoma 6.5" U-bolts (check condition)
- We highly recommend our Hammer Hangers for best ride and handling!

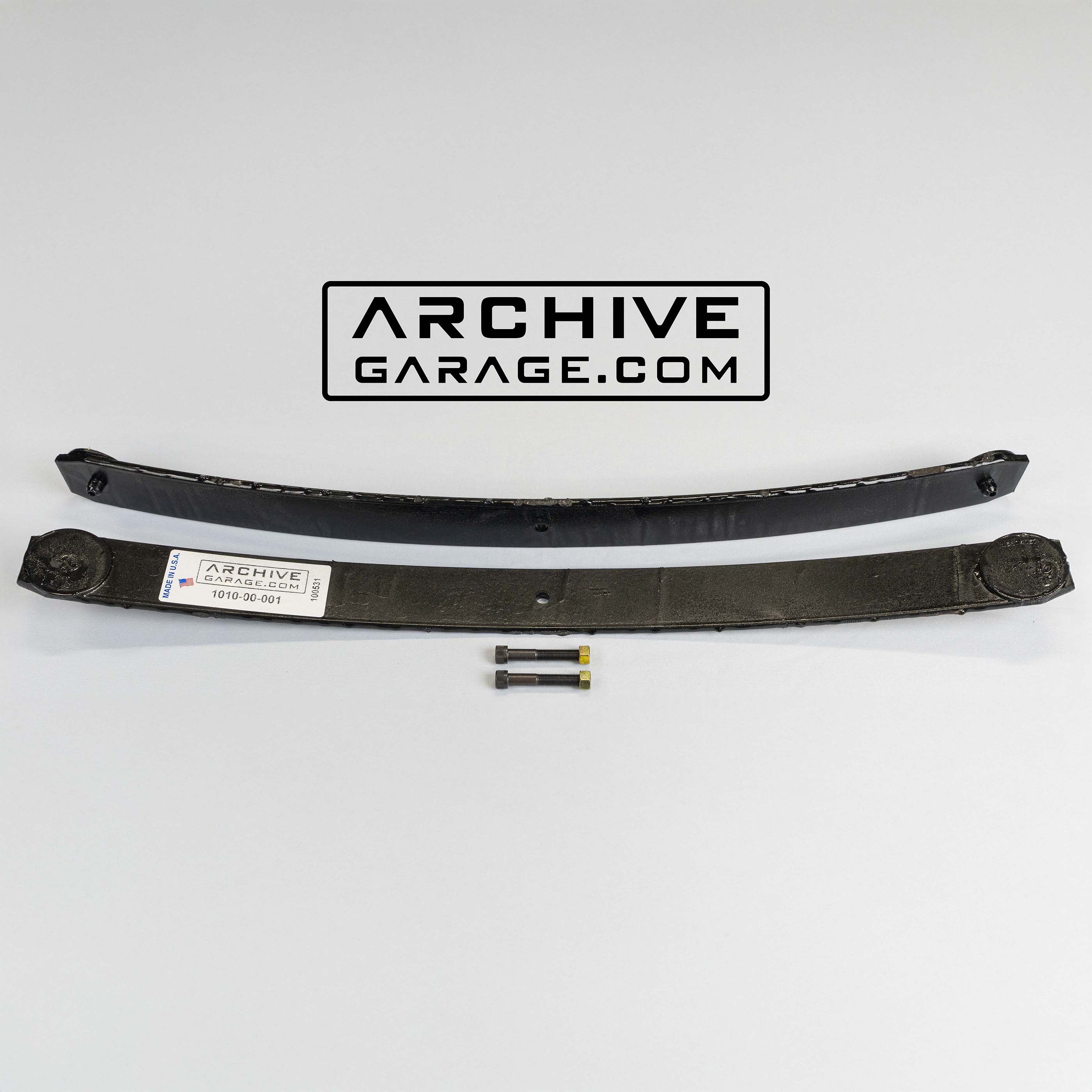

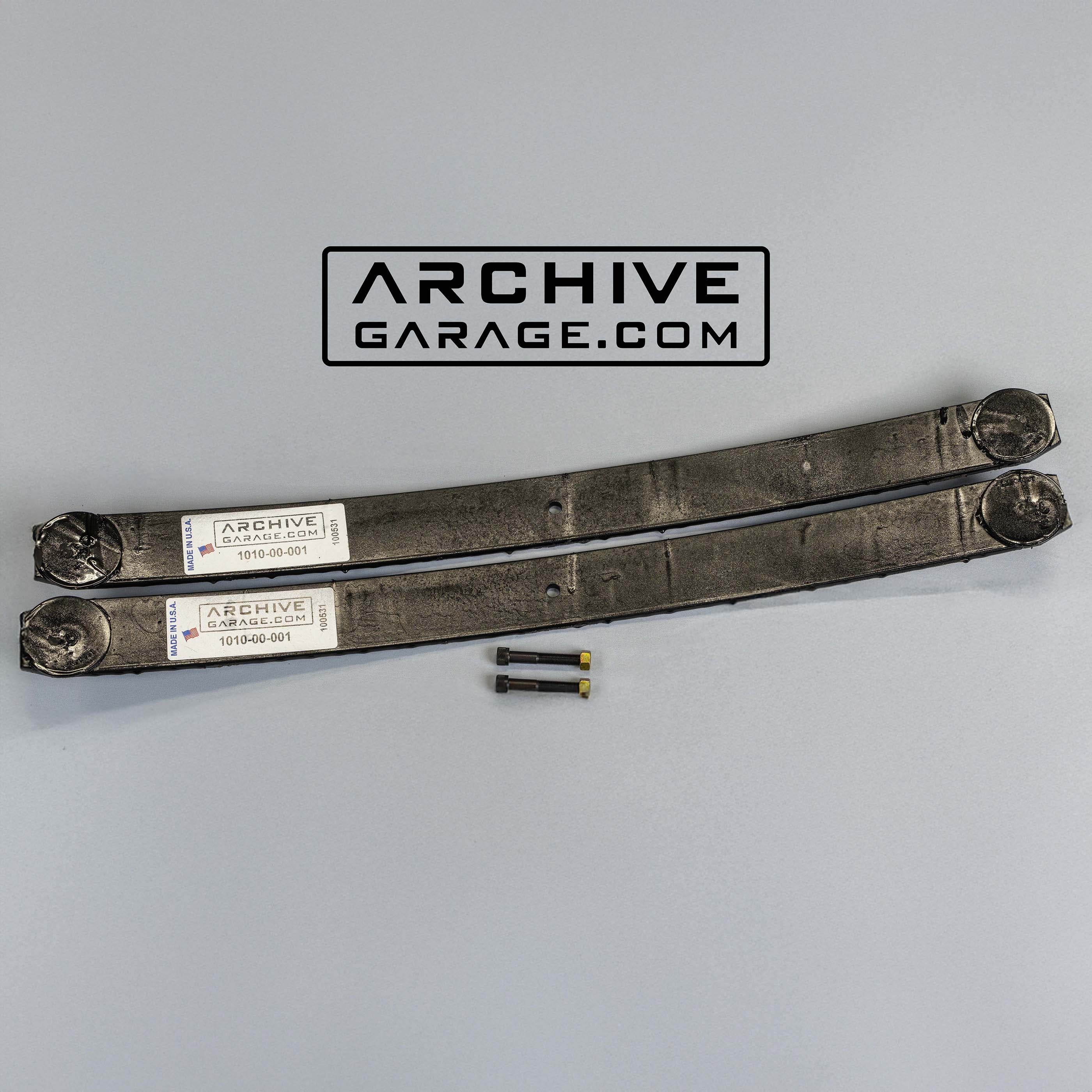

- Qty of 1 is for a pair as pictured
Specs:
- Made in USA with American 5160 steel! (NOT India or China)
- Approximate 1" lift (~9.25" top of axle tube to frame bot.) w/ 500 lbs added to DCSB axle weight**
- Approximate 2" lift (~10.25" top of axle tube to frame bot.) w/ no weight on DC 4-door
- Intended load: 200 to 750 lbs added to rear axle weight** on DC 4-door
- Diamond cut ends, tip inserts, and black painted finish
- Leaf material width: 60mm (2.375") to match stock leaves
- Leaf spring travel: same as stock (uses ~10" shock travel)
- Ride with no weight (w/ Hammer Hangers + Fox 2.5"): firmer spring rate is noticed, however still smooth.
- Ride with 500lbs added (w/ Hammer Hangers + Fox 2.5"): nice ride and confident handling
