2007-2018 5.7L Tundra Transmission Cooler Bracket

$139.00

Select do you have factory cooler in condenser?

Yes Yes
No Factory Transmission Cooler No Factory Transmission Cooler

Quantity

Description

If You Tow, Or Have Big Tires, You Need This

If your Tundra hauls heavy loads or wears bigger tires, this bracket is a must.

By the time the dash light comes on at 305°, it’s already too late—your fluid is cooked. And a complete drain and fill will cost over $200 in fluid alone.

Simple Fix. Big Difference.

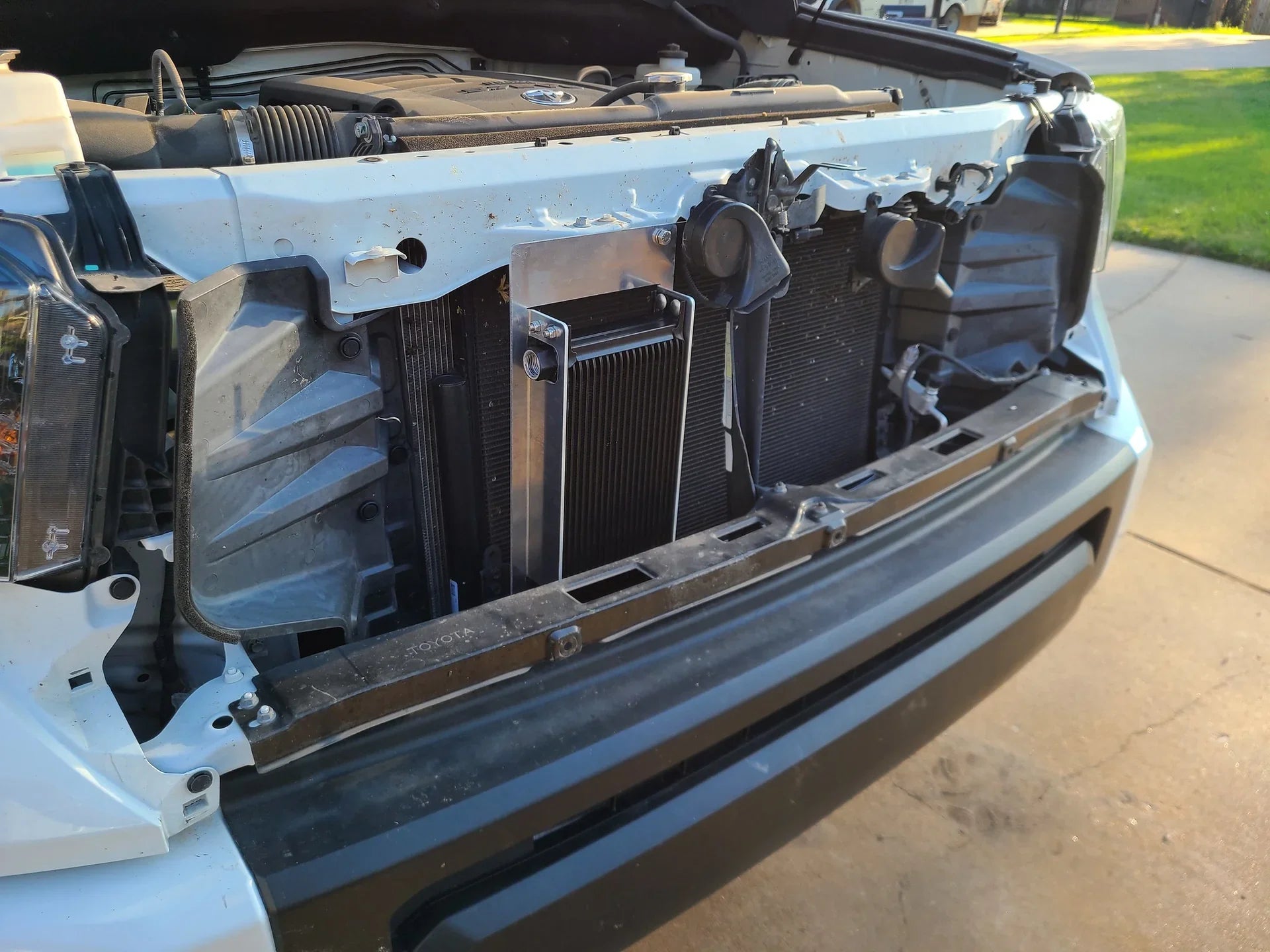

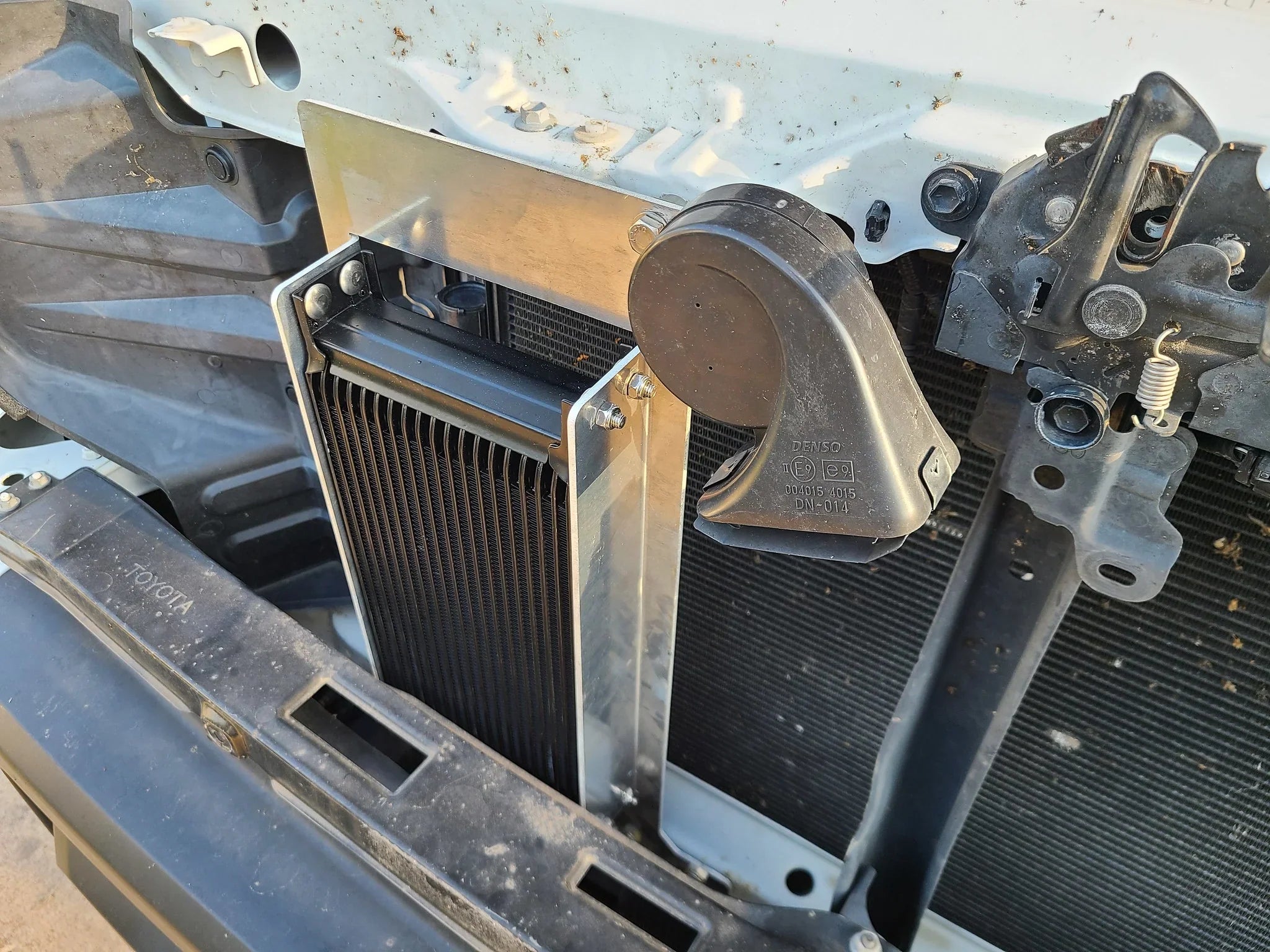

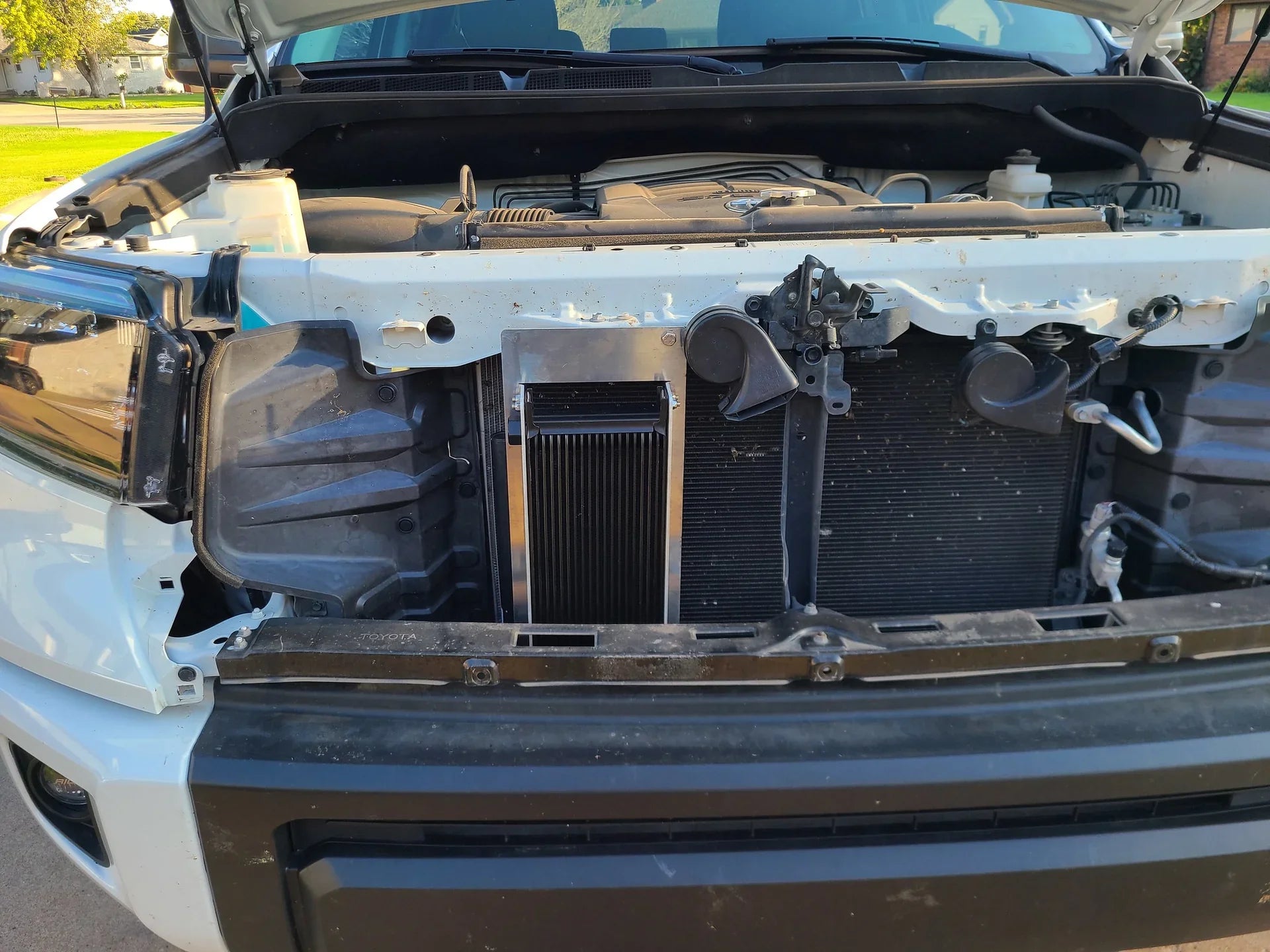

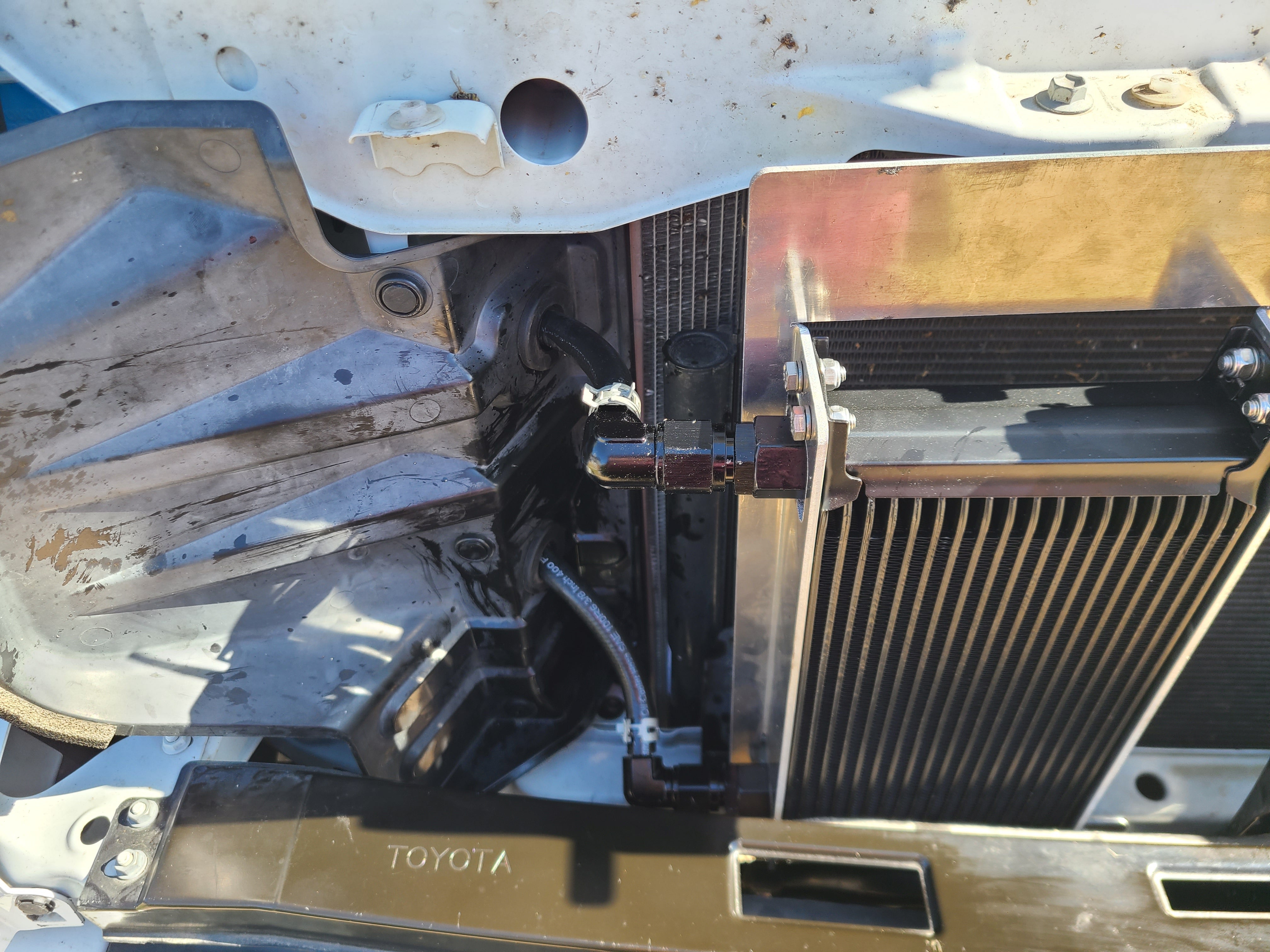

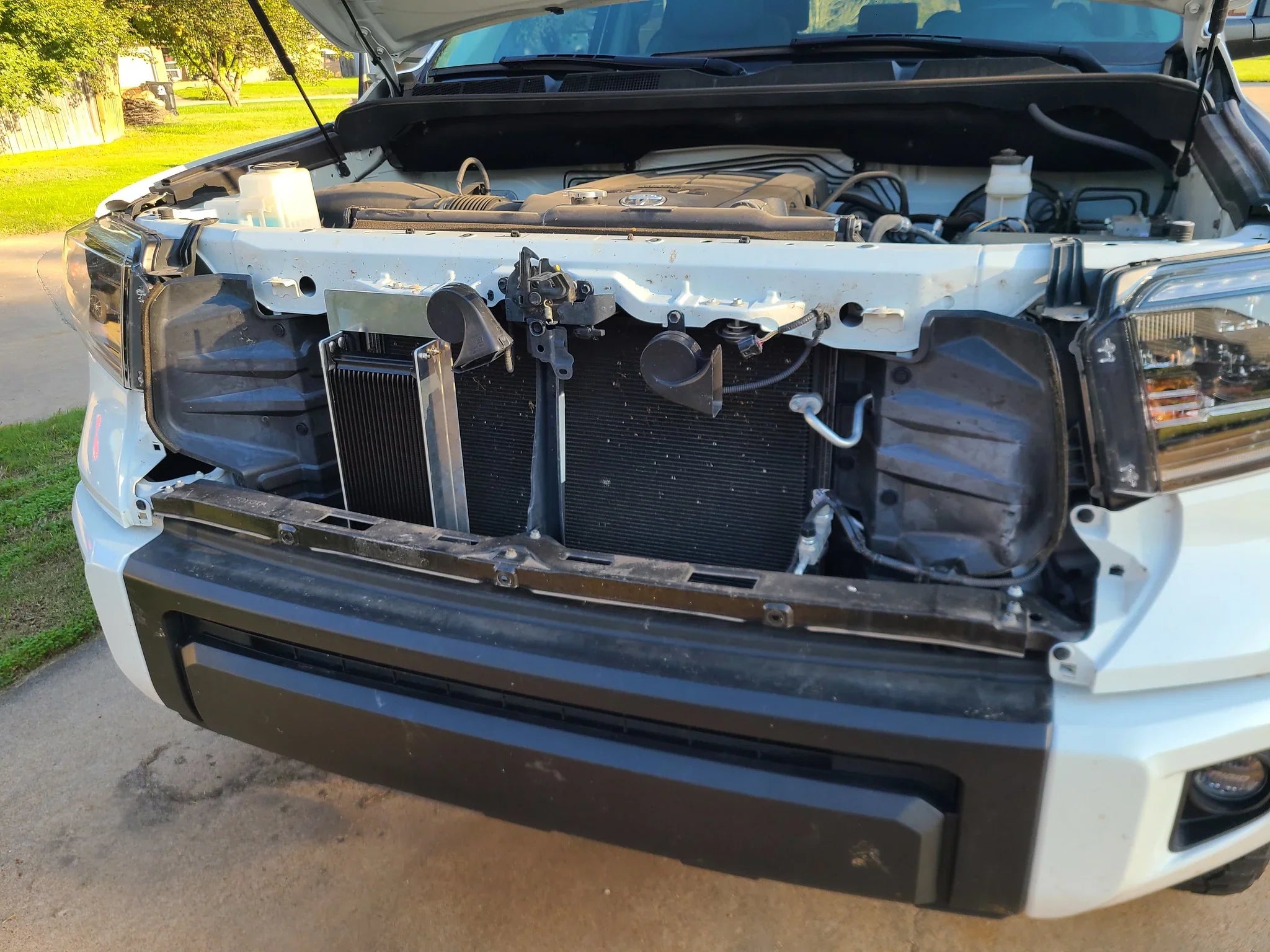

This bracket lets you mount a real external cooler like it should’ve come from the factory.

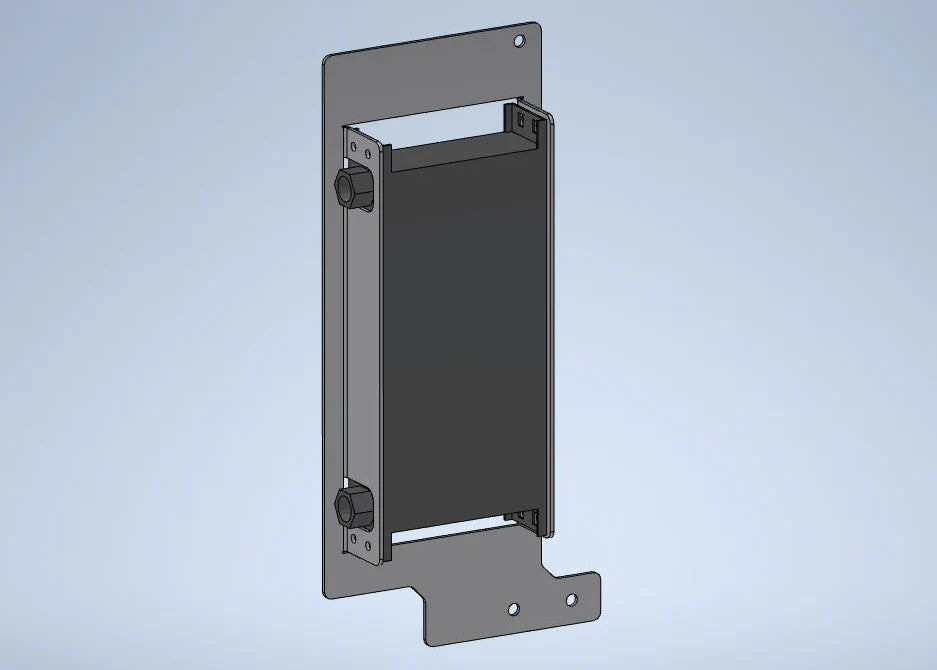

Designed for Derale 19-row or Setrab 19-row coolers
Slim profile so you’re not blocking airflow

Built Like Toyota's Should Be

Laser cut from 1/8" aluminum
Professionally powdercoated
Includes stainless hardware

How It Works With Your Truck

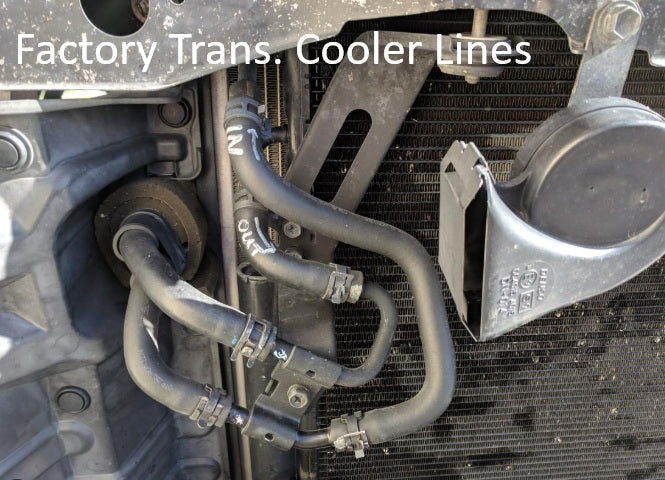

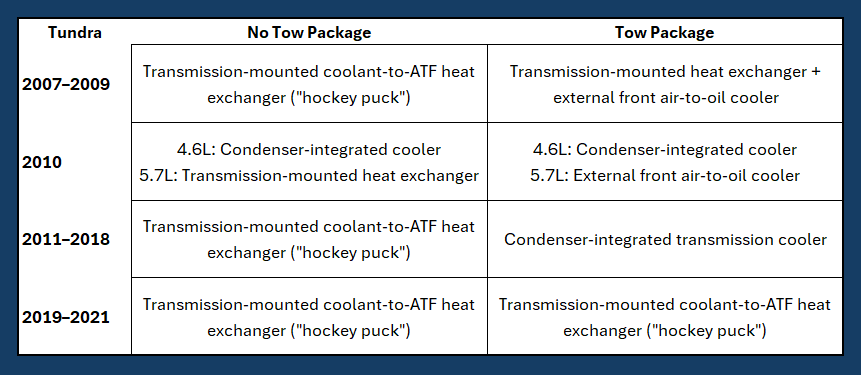

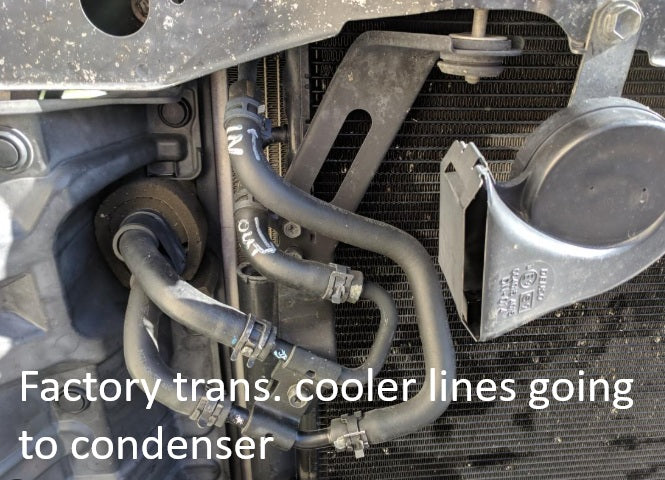

Make sure your 2007–2018 Tundra already has the factory transmission cooler and thermostat

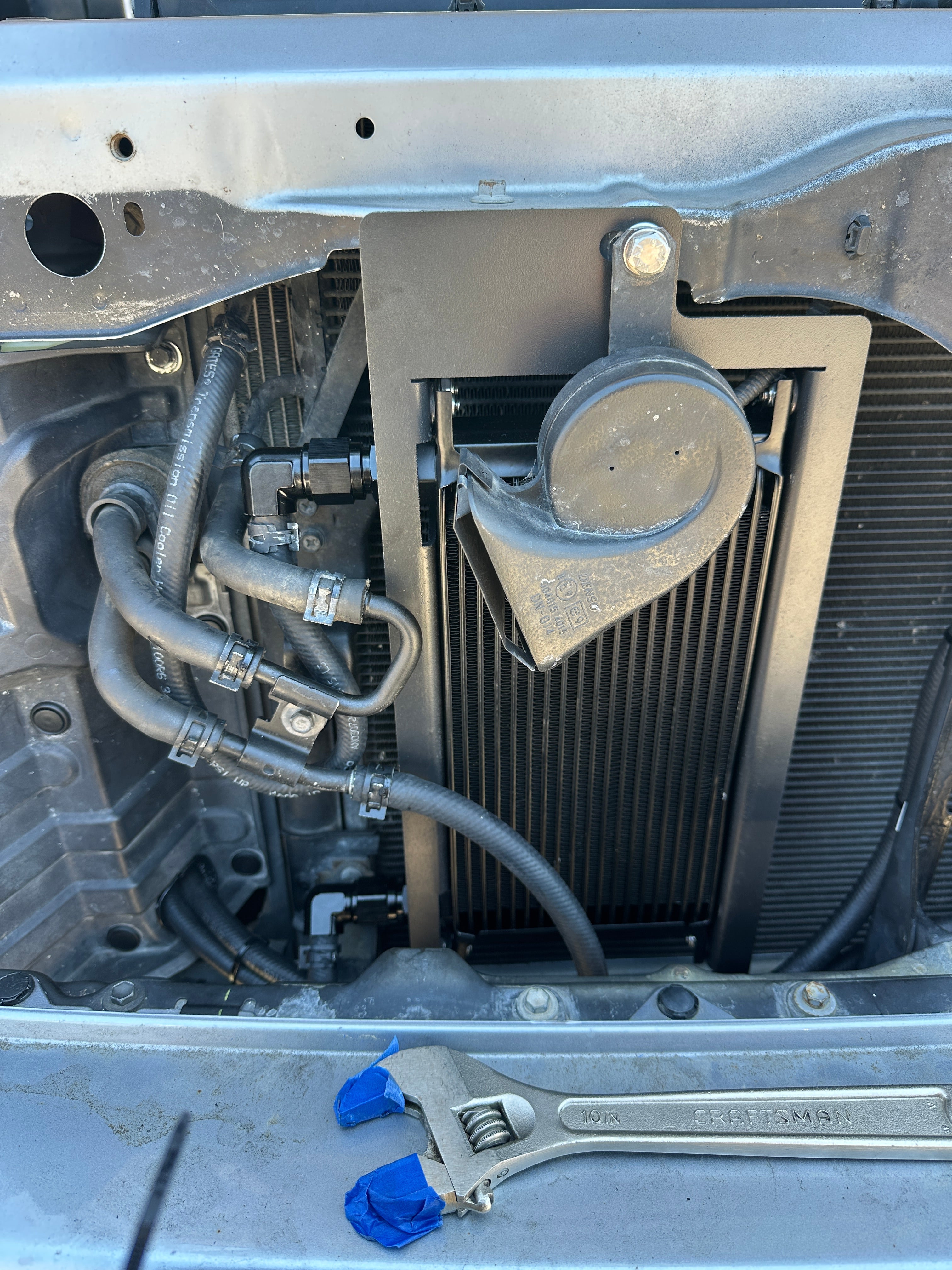

You can splice this cooler in series with the factory condenser or radiator cooler, or cap off the factory cooler and run just this big one
An external cooler makes a huge improvement over the “fluid warmer” in your condenser or radiator

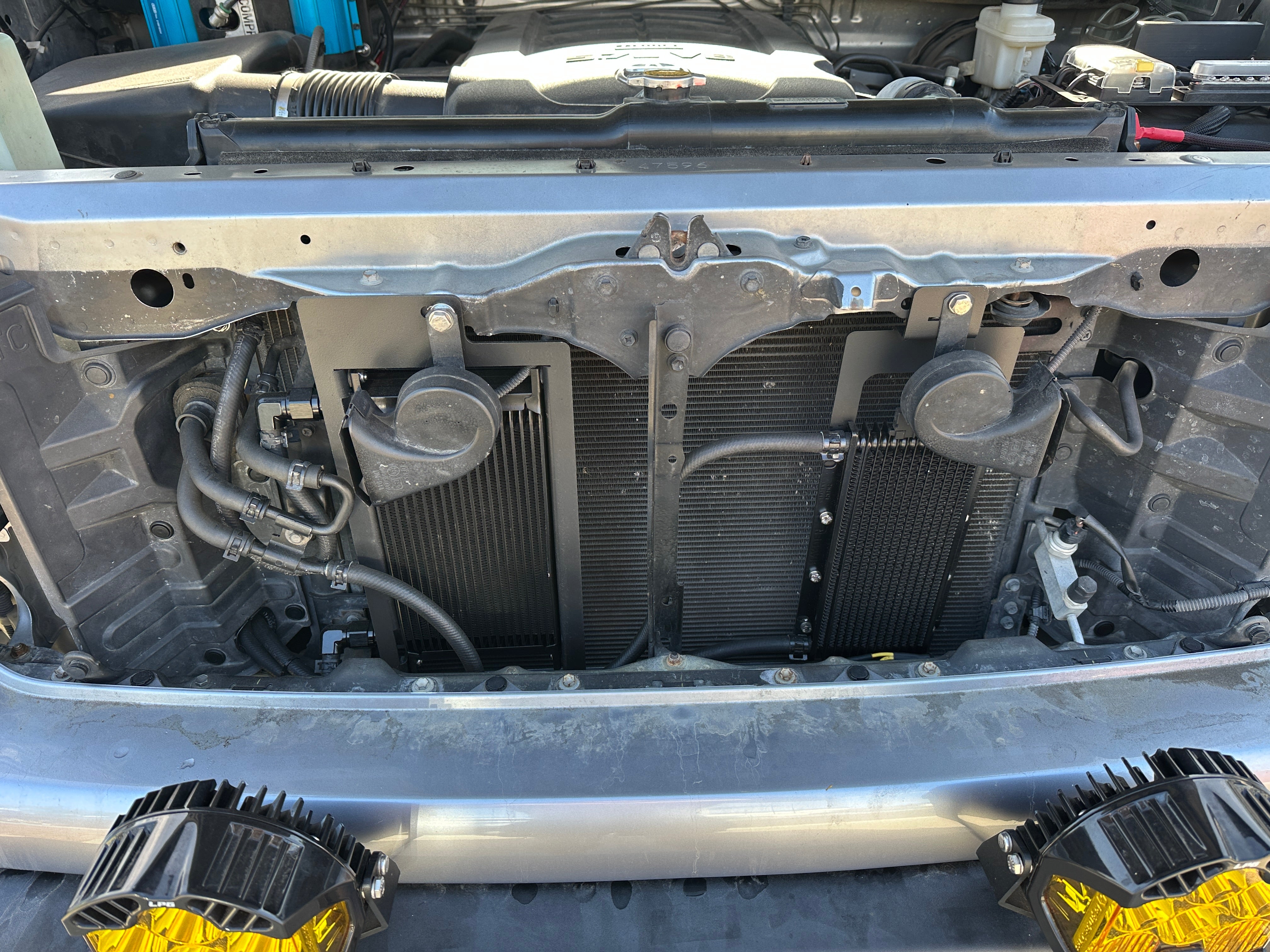

Works With My Other Kits

Pair it with my steering cooler bracket and save $10—because doing it once is smarter than doing it twice.

See separate listing for my install kit: Derale 19-row Install Kit – Full Metal Designs

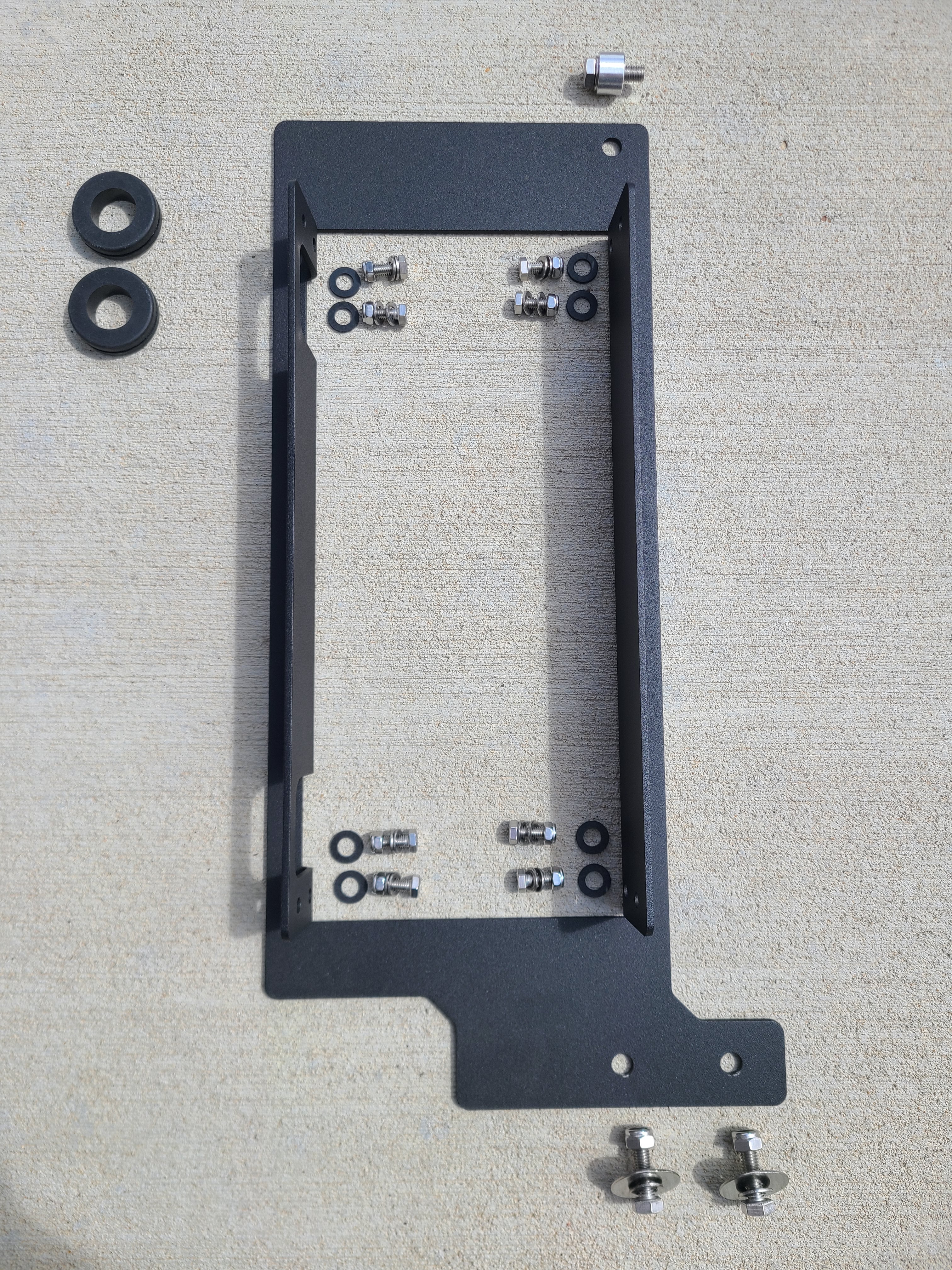

What’s Included

Powdercoated aluminum mounting bracket
Stainless hardware (bracket → truck)
Stainless hardware (cooler → bracket)
Rubber grommets for hose routing (need to drill 1.25" holes in plastic shield)

Needed to Complete Install

If you already have a factory cooler:

Derale 19-row cooler or Setrab 50-619-7612
- Derale part numbers: 13403, 51978, 51981
- (90° barb fittings for 3/8" hose are ideal)
3/8" inside diameter automotive hose — 2 ft
2 quarts transmission fluid

If you don’t have a factory cooler:
