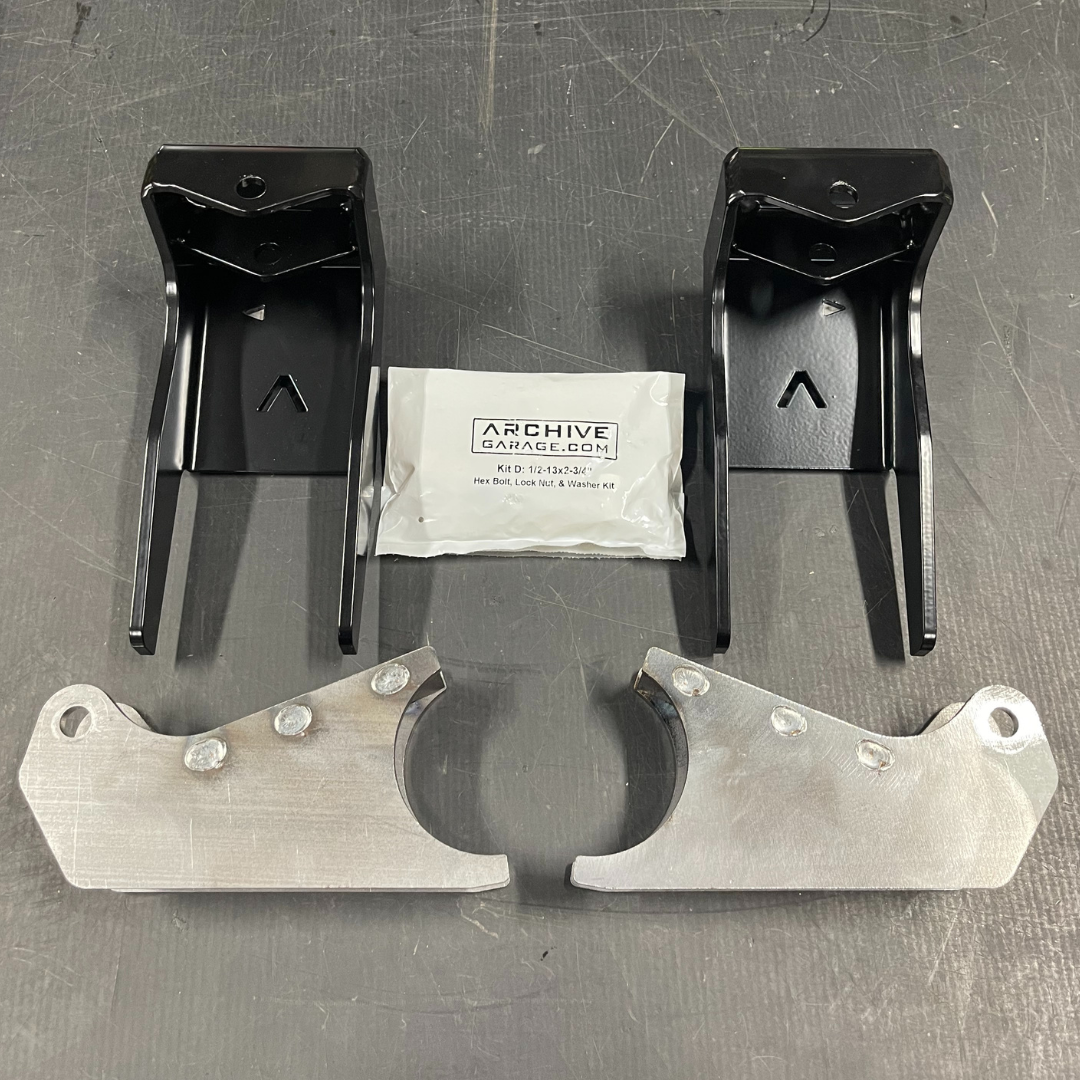

The Archive Garage 2022+ Tundra Rear Shock Relocation Tower Kit allows fitting up to 12" travel shocks without spacing bumpstops or lifting rear of truck. The stock truck has a tiny amount of droop travel and articulation, and you'll top the shocks out (fully extend) even during street driving.
- The relo kit can stuff up to 19" collapsed length.
- Mount tabs are 1.5" wide with 1/2" thru bolt (M12 bolts avail.)
- Fit up to 3.0 3-tube bypasses (Check out 1G Raptor offerings here)
- NOT FOR COILOVERS, smooth-body shocks only. You do not want to move the bending point of the frame rails forward from where Toyota engineered the coil buckets.
- Extended brake hoses are required!
- May not require wheel spacers or even aftermarket wheels depending on the shock body size used.
Looking for Shocks to pair with Archive Relocation Towers? - Fox 2.0x12.1 Remote Reservoir (18.35" collapsed)
