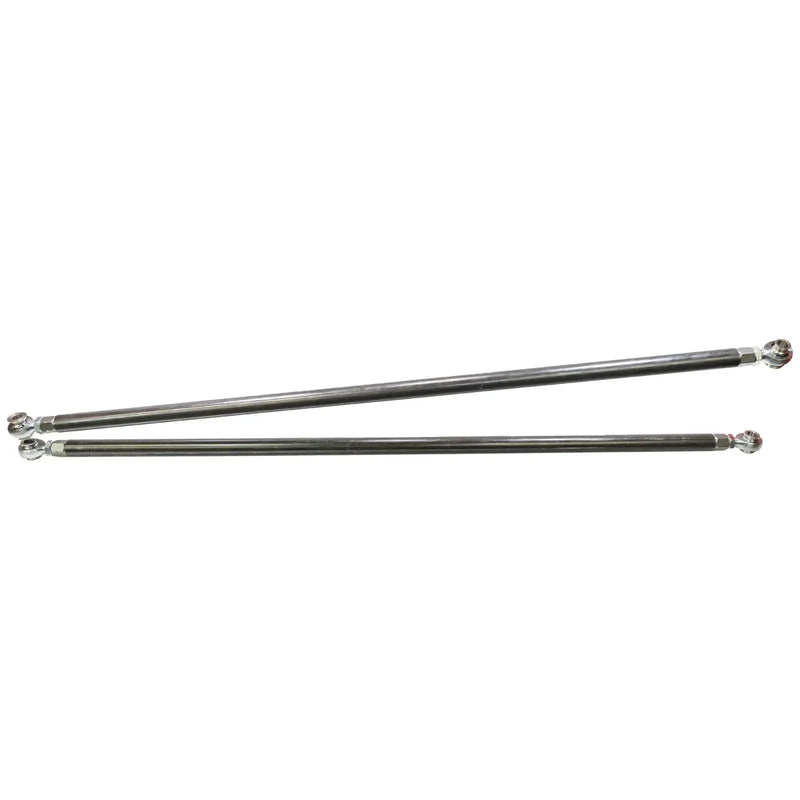

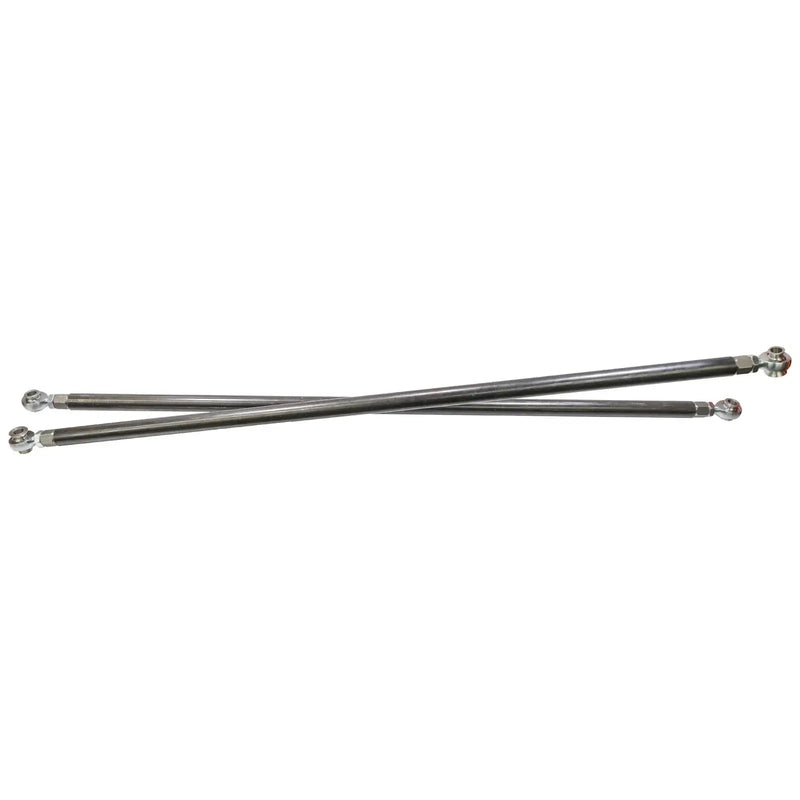

3/4" Heim Steering Kit
DIY steering upgrade with 3/4" Chromoly Heims

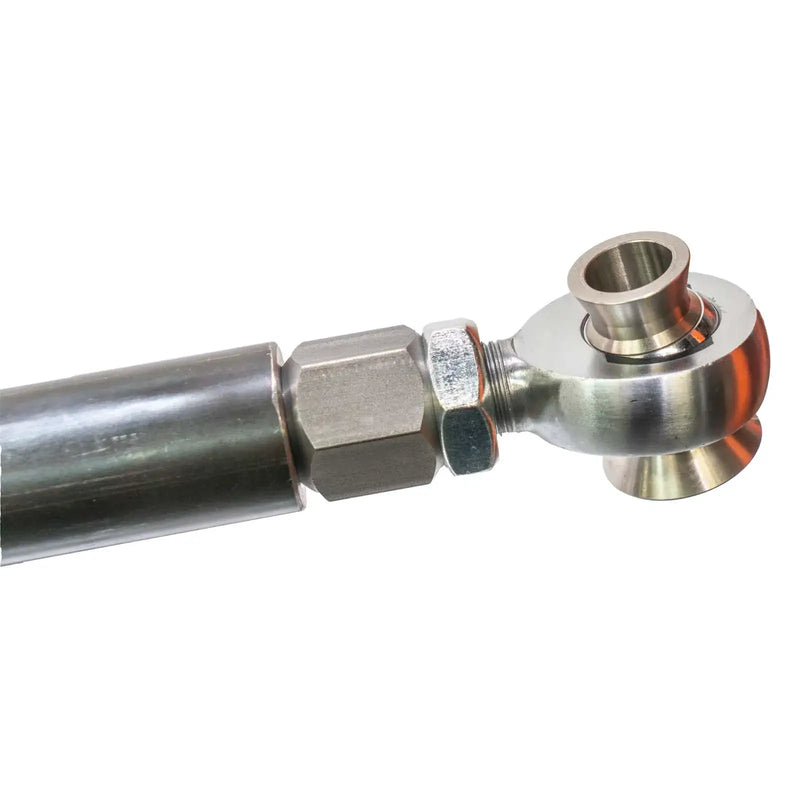

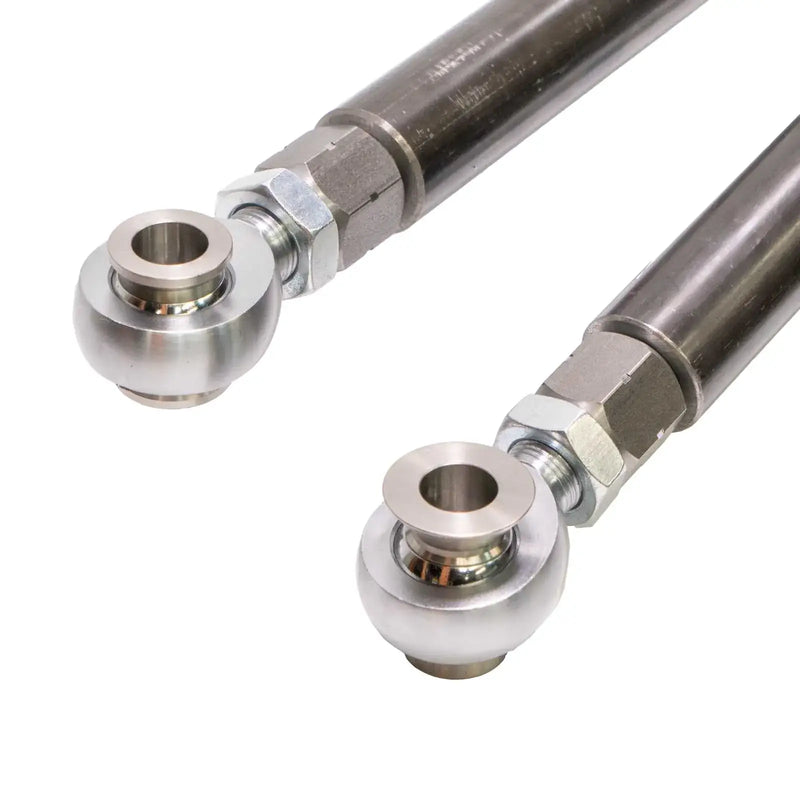

Not your basic steering setup—this is the real deal for those ready to upgrade from stock-style tie rods to something stronger, more adjustable, and trail-proven. This kit uses 3/4" Ruffstuff Heat Treated Chromoly Heim joints for superior articulation and strength, paired with 1.5" x .25" wall DOM tubing for serious abuse resistance. Whether you're building for a stock knuckle mount or high-steer arms, this setup delivers tight steering response and long-term reliability.

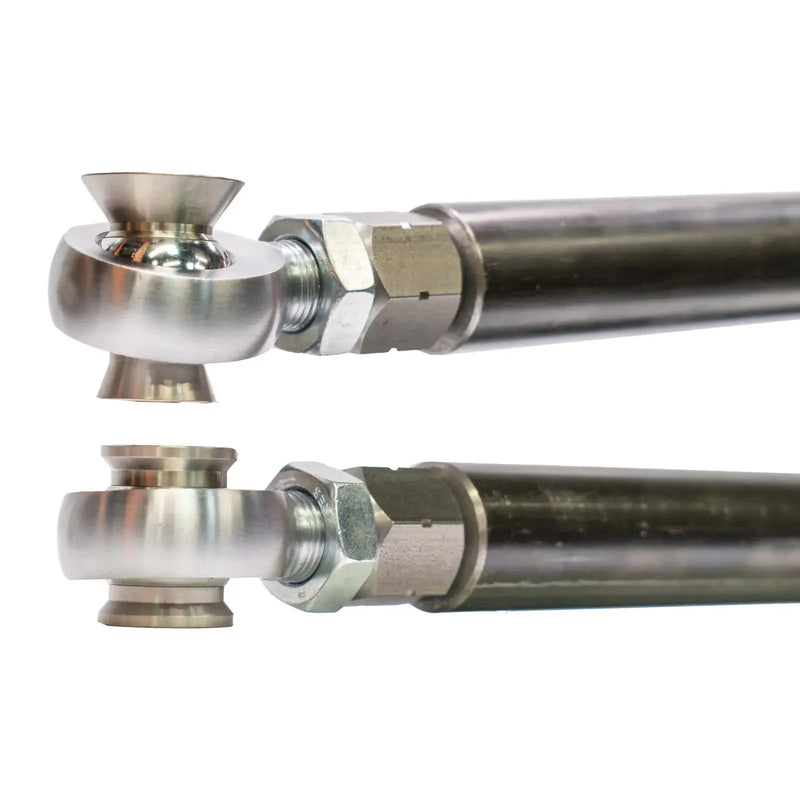

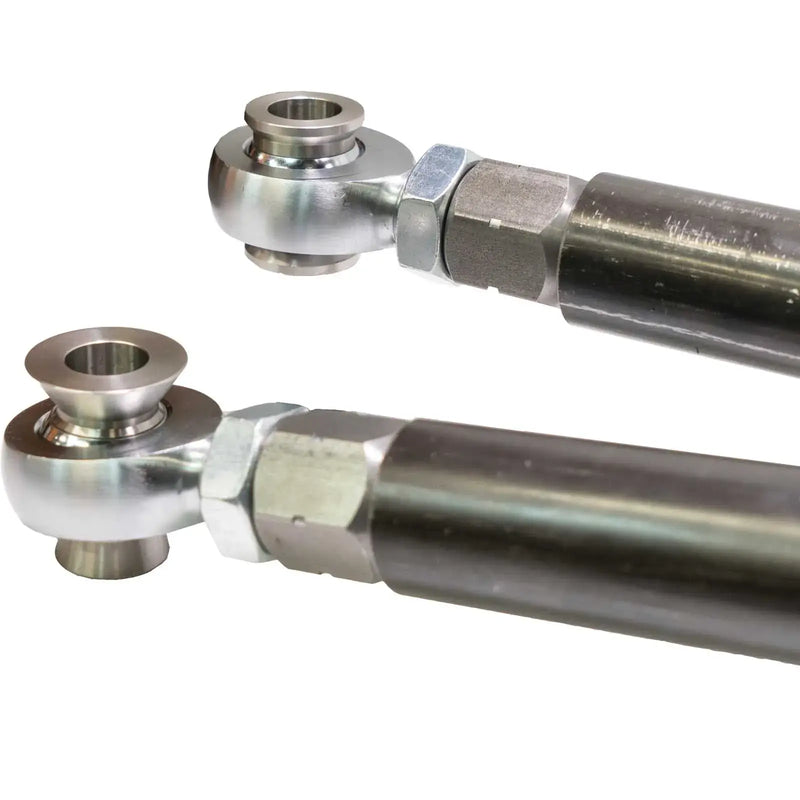

One of the standout features here is our integrated Safety Misalignment Spacers. We combined the safety washer with a standard misalignment spacer into one stainless steel piece. That means fewer parts, less clutter, and no weak shear points at the joint.
This is a DIY kit that gives you control over tube length and layout—just remember: measure twice, cut once, and always weld with the right setup. If you're running 35" tires or larger, we recommend stepping up to our 7/8" Heim Steering Kit.
Key Features
- Part Number: R1307
- Built for 3/4" Heim joints with 5/8" bore arms or knuckles
- Includes extra-long DOM tubes for custom fitment (cut to length)
- Threaded tube adapters feature hex heads for easy adjustability
- Safety misalignments eliminate separate washers for strength and simplicity
- Designed for DIY builders—welding required
- Works with high steer arms or stock knuckles (with 5/8" bore)
- Made in the USA

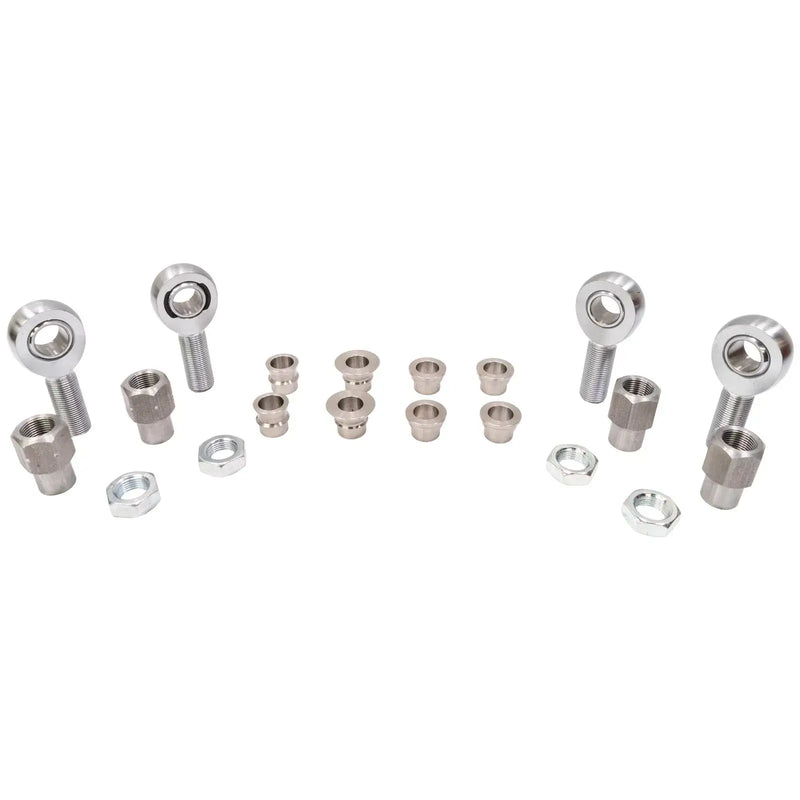

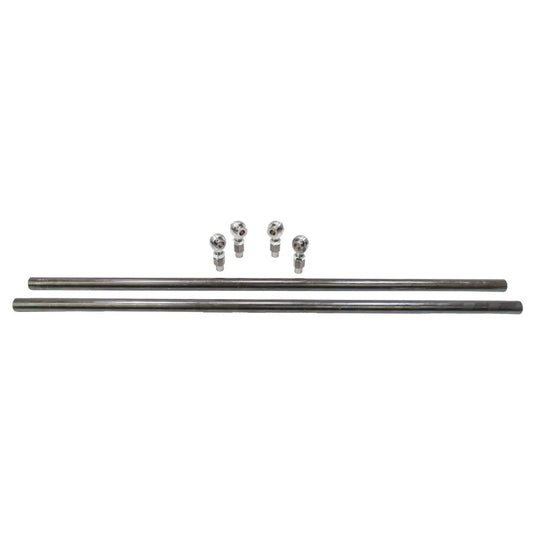

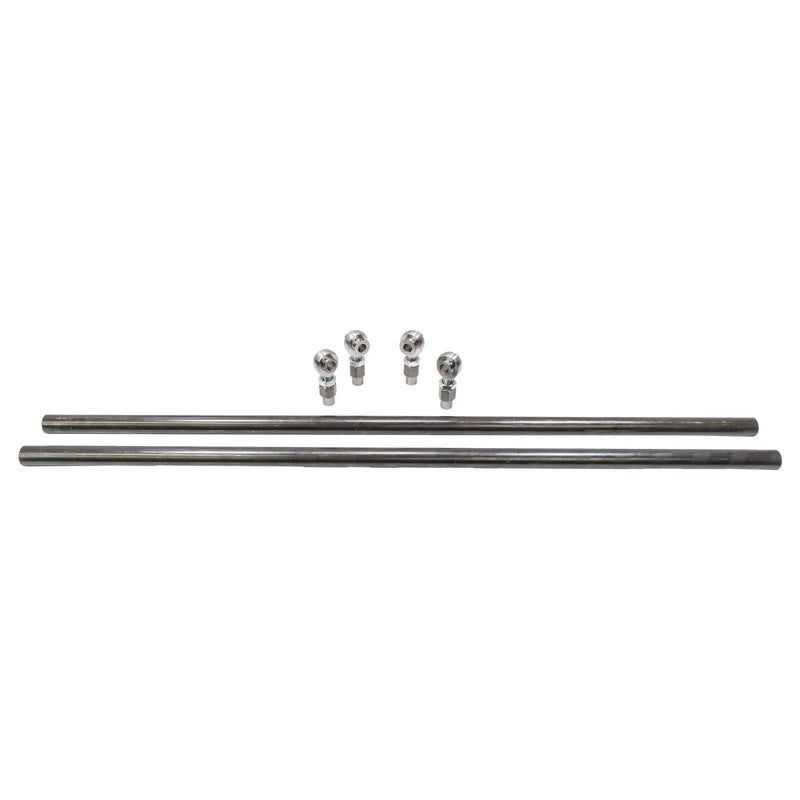

What's Included in This Kit

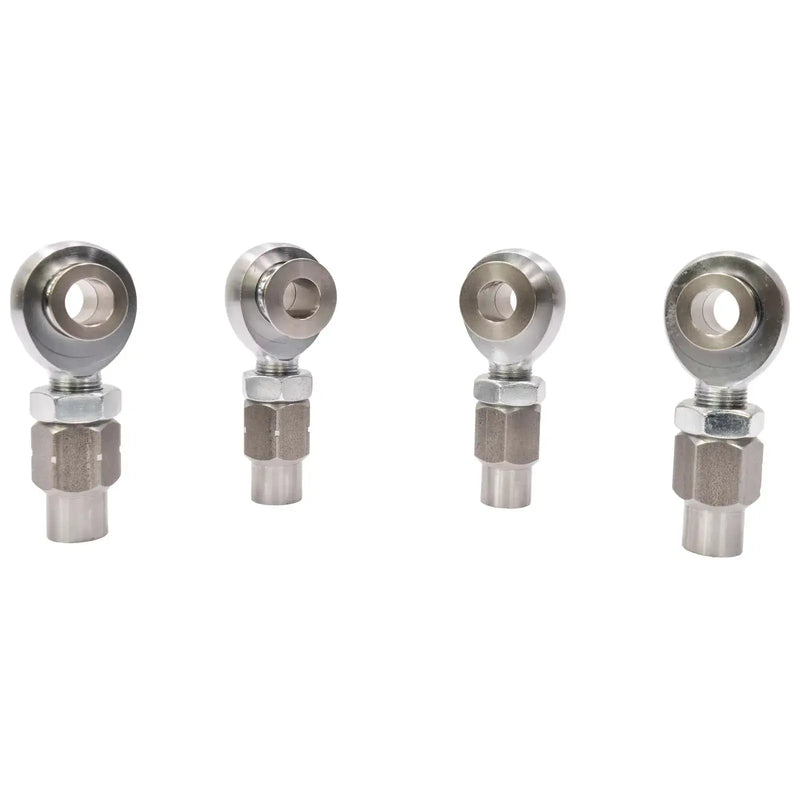

- 2 - RH 3/4" x 3/4" Heat Treated Chromoly Heims
- 2 - LH 3/4" x 3/4" Heat Treated Chromoly Heims
- 2 - RH 3/4" Hex Head Tube Adapters (1" Tube ID)
- 2 - LH 3/4" Hex Head Tube Adapters (1" Tube ID)
- 2 - RH 3/4" Jam Nuts
- 2 - LH 3/4" Jam Nuts
- 2 - 3/4" x 5/8" RS Stainless Safety Misalignment Spacers
- 2 - 3/4" x 5/8" RS Stainless High Misalignment Spacers
- 4 - 3/4" to 5/8" Narrow Stainless Misalignment Spacers

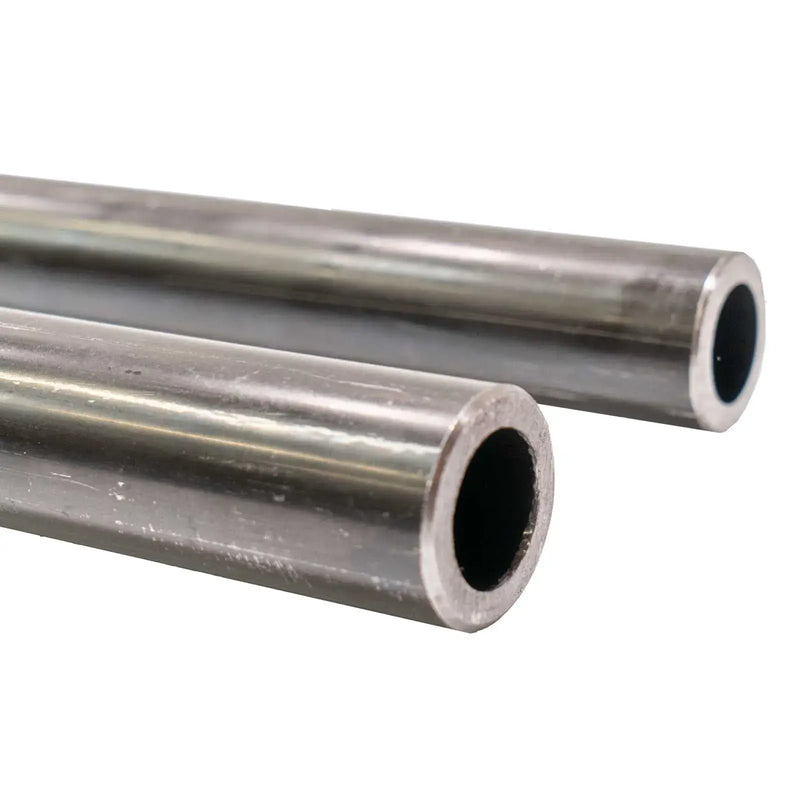

- 2 - 1.5" x .25" x 54" DOM Tubes
Rod End Maintenance Tip
We only recommend using Tri-Flow to service our rod ends. Using products like WD-40 or Blaster will void the warranty.
Tips to Help Prevent Any Seized or Warped Threads
- Correctly adjust welder settings and start your puddle on the tube (too much heat will warp the threads).
- Do not weld the tube adapter with the rod end threaded inside (different cooling rates will lock them together).
- Wait until everything is fully cooled before threading rod ends into the adapters.
Note: 5/8" bolts not included. You'll need to determine the correct length based on your arms and pitman arm thickness.
