4" Shackle 1/4" Offset

4" Shackle 1/4" Offset

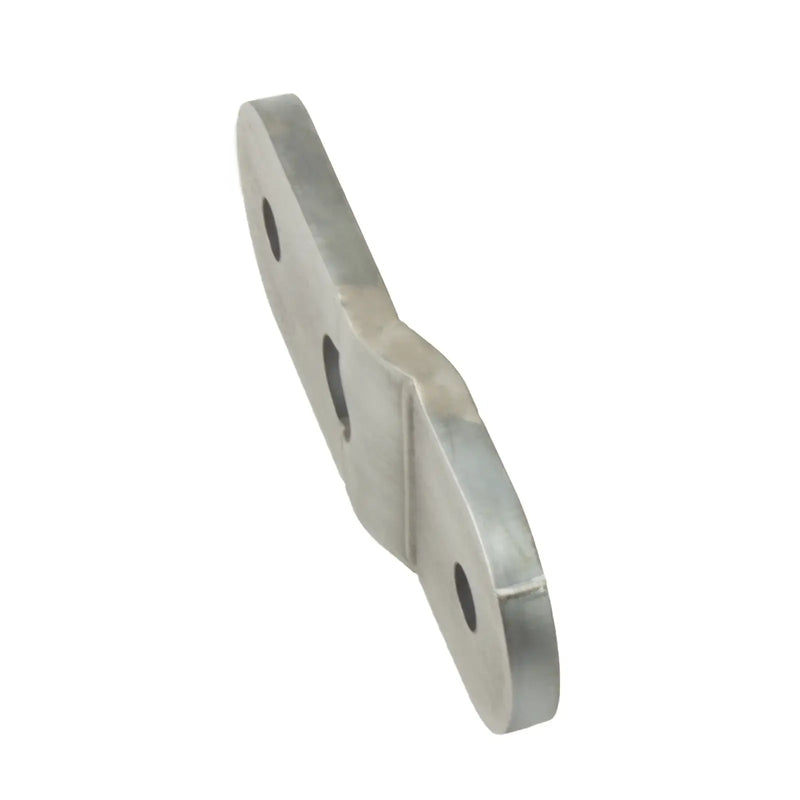

Offset leaf spring shackle for easy width adjustments

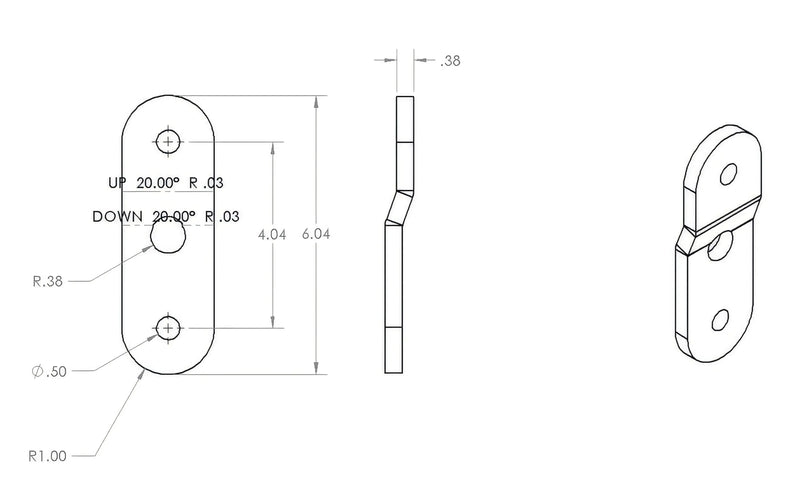

This 4" leaf spring shackle features a built-in 1/4" offset, giving you a total of 1/2" offset when paired. That makes it perfect for running different width springs without modifying your hangers—like using 2.5" Wrangler springs on a CJ with 2.0" hangers. Laser cut from 3/8" A50 plate steel, it’s built for strength and durability, with a 0.75" center hole ready for an optional reinforcement sleeve. Simple, functional, and proven on the trail.

• Part Number: R1048
• 4" length
• 1/4" offset per shackle — 1/2" offset when paired
• Laser cut from 3/8" A50 plate steel
• 0.75" center hole for optional reinforcement
• Ideal for common spring swaps like CJ to YJ

Sold Individually
