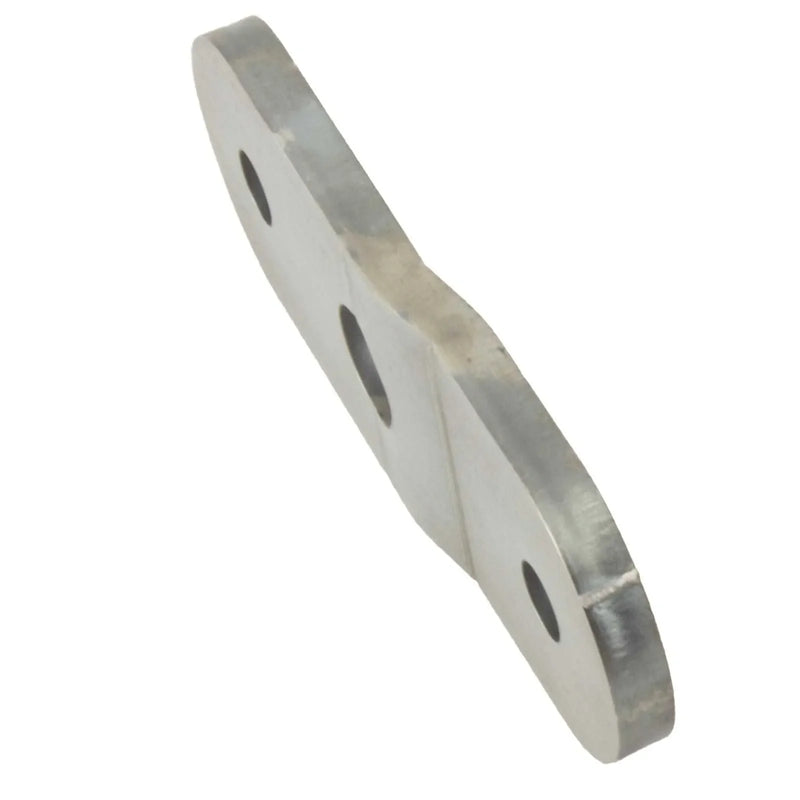

4" Shackle 1/8" Offset

4" Shackle 1/8" Offset

Subtle offset shackle for fine-tuning spring width fitment

This 4" leaf spring shackle features a 1/8" built-in offset, giving you a total of 1/4" offset when paired. It’s just enough to adapt different spring widths without replacing your hangers—perfect for setups like running 2.5" Chevy springs on a Toyota with 2.75" hangers. Made from 3/8" A50 plate steel and laser cut for precision, these shackles are trail-proven tough. The 0.75" center hole is ready for an optional reinforcement sleeve if you want to make them even stronger.

• Part Number: R1049
• 4" length
• 1/8" offset per shackle — 1/4" total offset when paired
• Laser cut from 3/8" A50 plate steel
• 0.75" center hole for optional reinforcement
• Great for spring width swaps like Toyota to Chevy

Sold Individually
