Description
The Dirt King spec coilover shocks were developed specifically for our 4WD F-150 long travel kits with a custom hose layout, custom valving, and proper spring rates. They are ready to be installed right out of the box. For the best off road performance we recommend pairing these spec coilover shocks with our spec bypass shocks.
Specifications
- Shock Manufacture: Fox
- Spring Manufacture: Eibach
-
Amount of Lift: Adjustable from 0-2.5" of lift
- DSC Adjusters

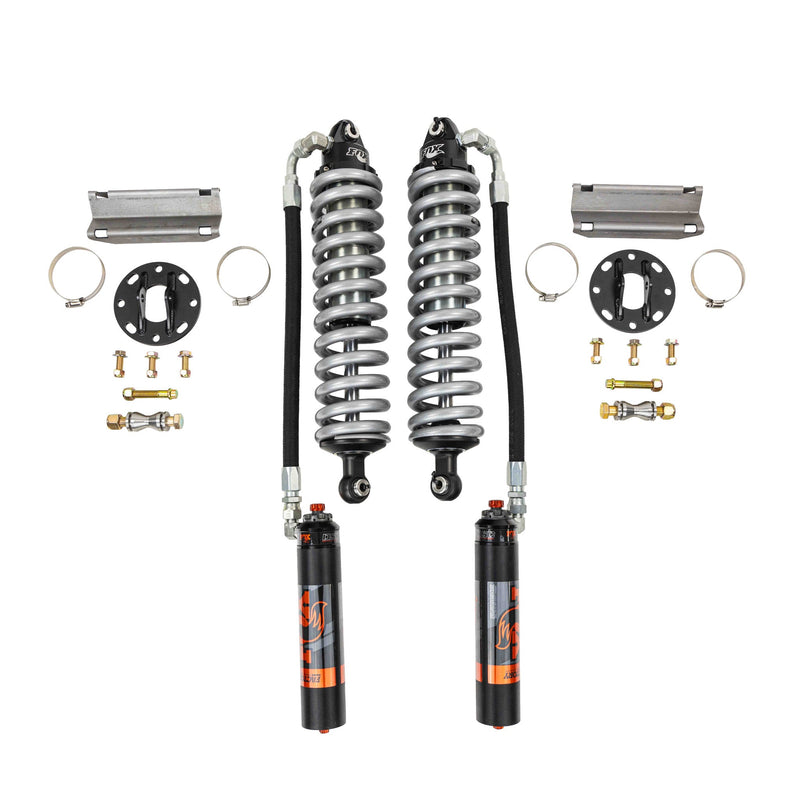

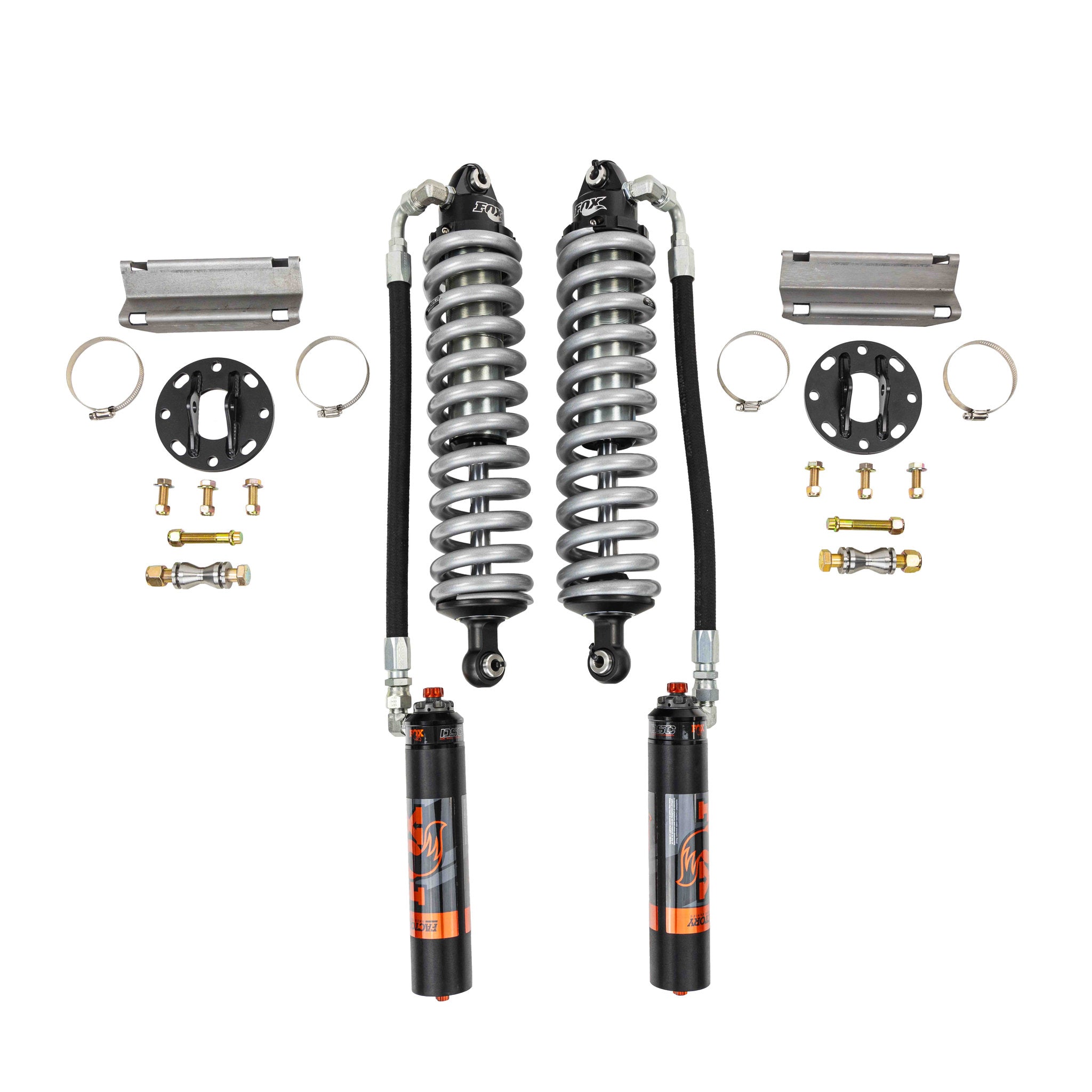

What's Included
- Fox spec built shocks
- Coil bucket shock mounts
- Weld on reservoir mounts
- All necessary mounting hardware
Features
| Body | 2.5" Smooth bore and honed seamless alloy body |
|---|---|
| Body Plating | Zinc-plated and double-clear coated for long lasting finish |
| External Reservoir | 2.5" Smooth bore and honed seamless alloy reservoir |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Spring | Application specific, adjustable 3.0 Eibach® racing springs |
| Shaft | 7/8" hard chrome plated steel shafts |
| Piston | 6061-T6 hard-anodized, high flow aluminum piston |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical |
| Mounting | For Dirt King long travel kits only |
| Adjustments | Ride height preload ring |
Compatibility
Works with the following suspension systems: DK-922908-B, DK-922908-H, DK-923908-B, DK-923908-H, DK-924908-B, DK-924908-H.
