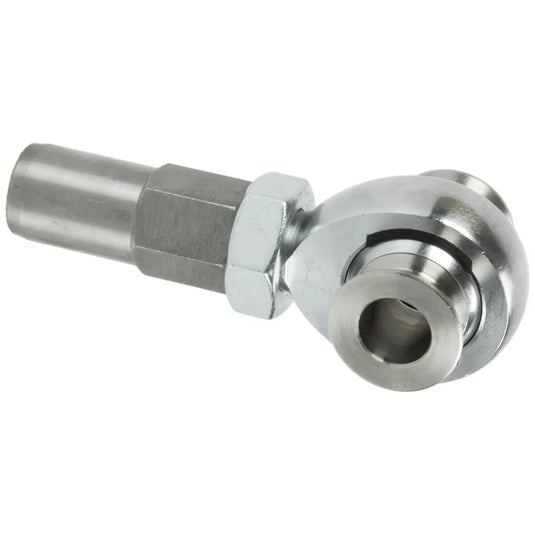

5/8" Rod End Kit
Complete 5/8" chromoly rod end setup for steering or suspension
This 5/8" Rod End Kit includes everything you need for a strong, adjustable, and reliable joint in your suspension or steering system. The heat-treated chromoly rod end is rated to over 17,900 lbs of static radial load, making it a great fit for trail rigs, crawlers, or daily-driven builds. Choose your misalignment spacer size to get the articulation or tight fitment you want, and select the correct tube adapter to match your build. Precision-machined components ensure smooth performance and easy assembly.
Key Features
- Part Number: R2112
- Heat-treated chromoly 5/8" rod end
- Rated to over 17,900 lbs static radial load
- Includes tube adapter for 3/4" or 1" ID tubing
- Includes jam nut
- Choice of misalignment spacer options (5/8"-5/8" or 5/8"-1/2")
- Mounts to a 1.5" wide bracket
- Proudly made in the USA
What's Included in This Kit
- 1 - 5/8" x 5/8" Chromoly Rod End (Left or Right Hand Thread)
- 1 - Tube Adapter (for 3/4" or 1" ID tube)
- 1 - 5/8"-18 Jam Nut
- 2 - Stainless Misalignment Spacers (choose 5/8"-1/2" or 5/8"-5/8")
Available Kit Options
Thread Direction:
Left Hand
Right Hand
Tube Adapter Size:
3/4" ID
1" ID
Misalignment Options:
5/8"-1/2" Stainless (30° articulation)
5/8"-5/8" Spacer (limited misalignment)
Rod End Maintenance Tip
Only use Tri-Flow to service rod ends. Using WD-40, PB Blaster, or similar products will cause internal damage and void the warranty.
Tips to Help Prevent Any Seized or Warped Threads
- Correctly adjust welder settings and start your puddle on the tube (too much heat will warp the threads).
- Do not weld the tube adapter with the rod end threaded inside.
- Wait until fully cooled before threading rod ends into adapters.
