5" Shackle 1/4" Offset

5" Shackle 1/4" Offset

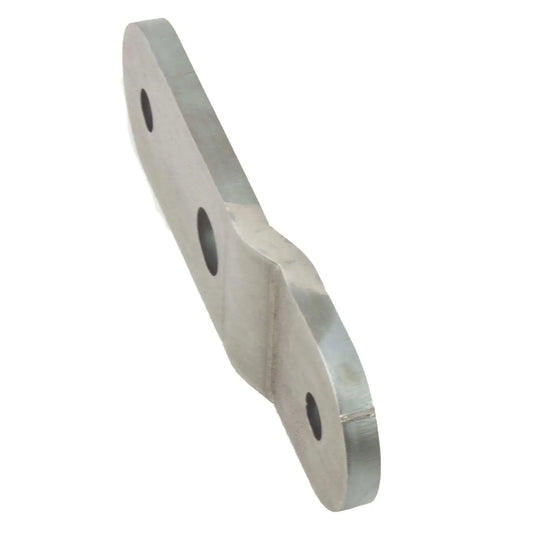

Offset shackle for easy spring width swaps

This 5" leaf spring shackle features a 0.25" (1/4") offset, giving you a total of 0.5" (1/2") offset when paired. It’s a simple way to adapt different spring widths without modifying your shackle hangers—perfect for swaps like running 2.5" Wrangler springs on a CJ originally set up for 2.0" springs. Laser-cut from 3/8" A50 plate steel for strength and accuracy, it includes a 0.75" center hole for an optional reinforcement sleeve. Built for serious off-road use.

• Part Number: R1052
• Length: 5"
• Offset: 0.25" (1/4") per shackle
• Material: 3/8" thick A50 Plate Steel
• 0.75" hole for optional reinforcement sleeve
• Great for leaf spring swaps like CJ to Wrangler

Sold Individually
