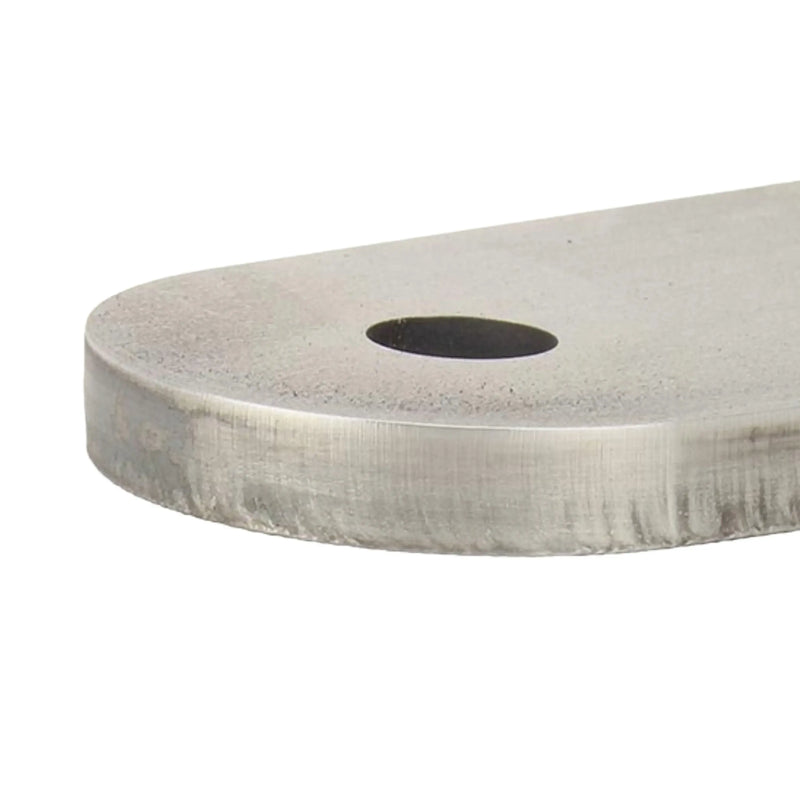

90 Degree Medium Link Tab

90 Degree Medium Link Tab

Durable Mounting Tab for Frame, Truss, or Crossmember Applications

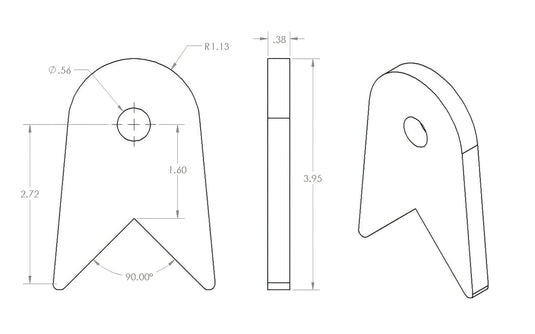

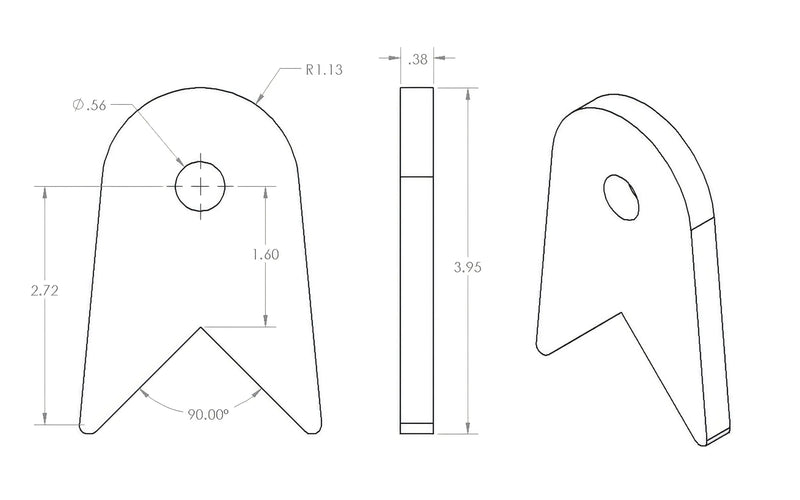

This medium 90-degree link tab is built for mounting to the edge of a frame, truss, or square crossmember. Crafted from 3/8" A36 steel and precision laser cut, it provides the strength and accuracy you need for suspension and link setups. It measures 1.75" from the base center to the bolt centerline and features a 9/16" bolt hole that can be easily drilled to a different size if required.

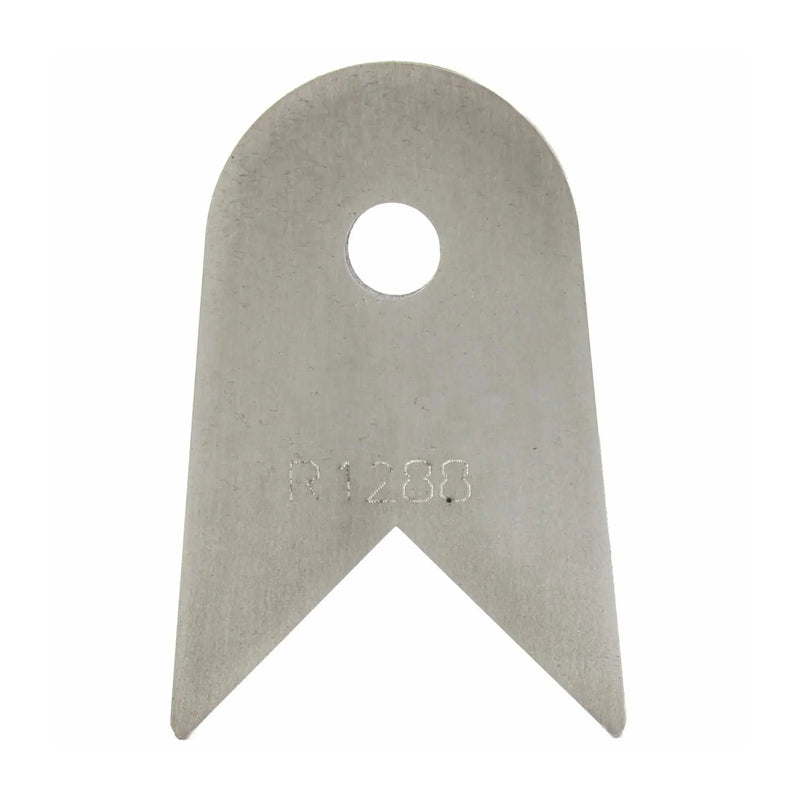

• Part Number: R1288
• Material: 3/8" thick A36 steel
• Length: 1.75" from base center to bolt centerline
• Bolt Hole: 9/16" (drillable to custom size)
• Precision laser cut for consistent fit
• Sold individually
