JK 1 Ton Swap Sterling - ABS Mounting Plates

Complete your 1 Ton Swap off by providing the JK computer correct data and eliminating codes and limp mode issues.

**Use of this kit may require an optional tuner which has access to adjusting Gear Ratio and Tire size. Your actual programmer settings may differ from the axle ratio and tire size on your vehicle depending on tone ring tooth count used. If using the 60 tooth option, speedometer may be off 1 - 3%. **

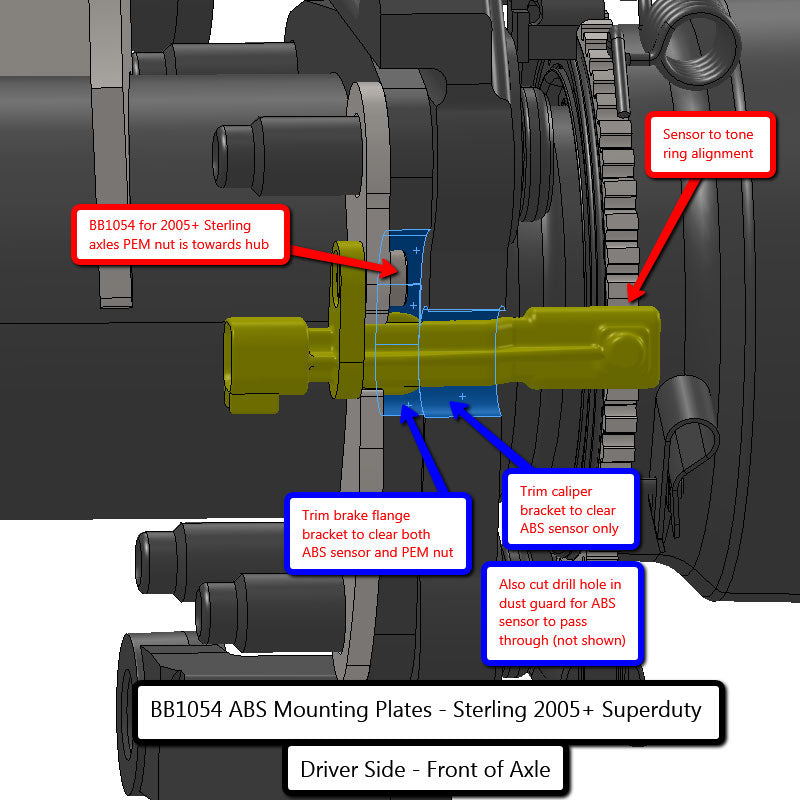

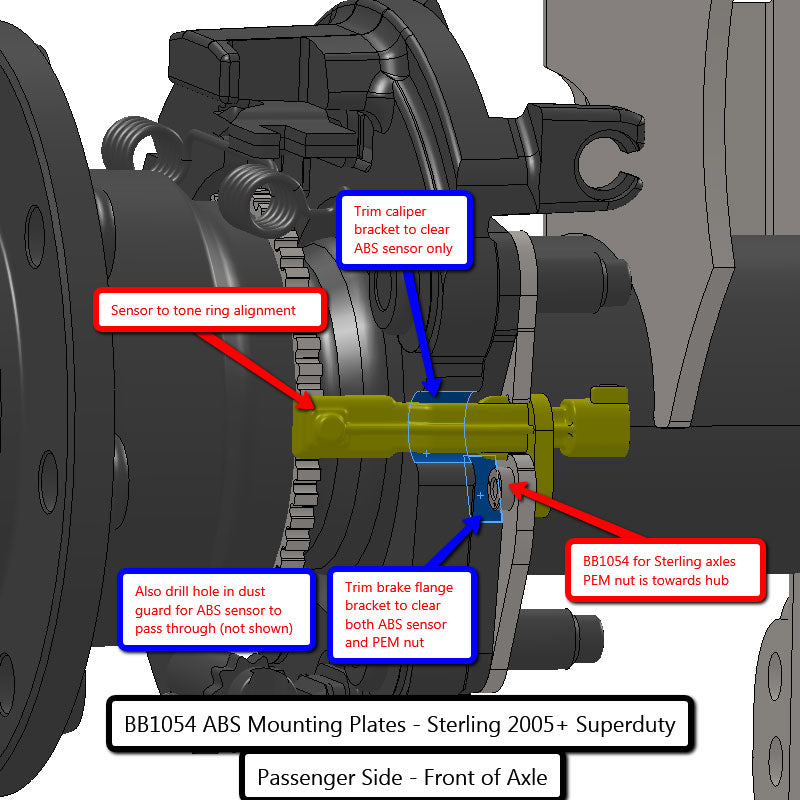

Laser Cut for precision reading from ABS Sensor. Requires machining of Hub and pressing on over machined surface.

2005 and up Sterling SuperDuty 10.5” Axle

BB1050: Sterling ABS sensor plate mounts with 60 Tooth tone rings

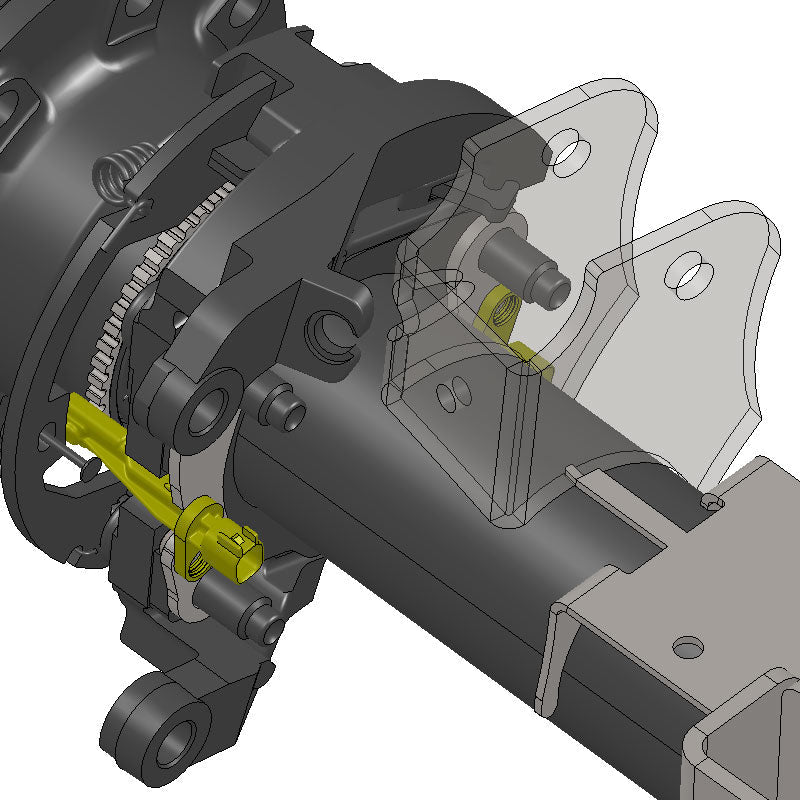

These mounts are used with JK Factory ABS Sensors.  The 2005+ SuperDuty Dana 60 front utilizes a 60 Tooth tone ring and this kit is designed to work with a matching SuperDuty Axle set.

If using a front axle without tone rings a second BB1054 can be used to add a second ABS Sensor to each wheel and then splice into the front sensor wiring.

Individual parts that are in this kit and available separately:

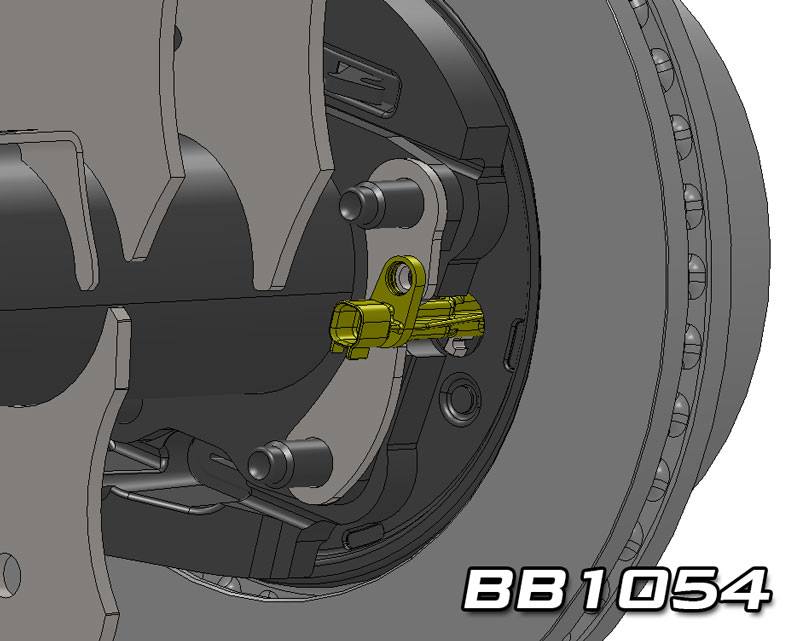

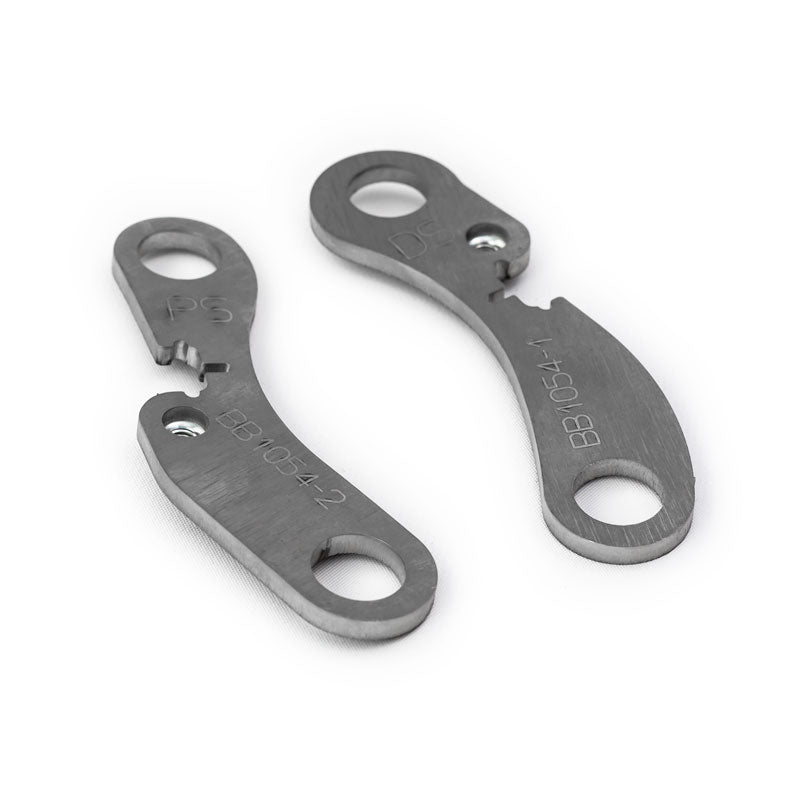

BB1054: Sterling ABS sensor plate/ mounts

BB1053: 60 Tooth tone ring  Sterling

NOTE: For use with ARTEC tone rings. P/N BB1051 or BB1053
