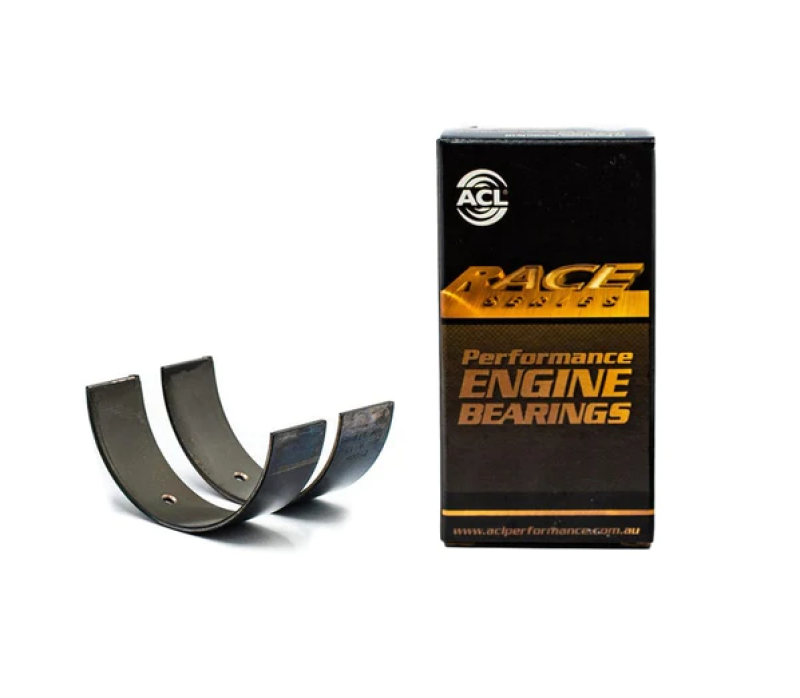

ACL Race Rod Bearing Set - Toyota 3SGE 3SGTE Size: STD
ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures. Each ACL race bearing design features the following:
- Large chamfer to accomodate larger crankshaft fillets
- 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
- Increased crush and tighter wall tolerance for better seating
- Improved overlay and reduced thickness for increased fatigue strength
- Hardened steel backing to maintain crush under high loads and temperatures
*** Price is for 1 COMPLETE SET OF ROD BEARINGS FOR 1 ENGINE ***
| Part Number | 4B8366H | 4B8366HX |
|---|---|---|
| Available Sizes | STD, .025, .25, .50 |
STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | Identical Halves |
| Material | Tri-metal hardened steel backs | Tri-metal hardened steel backs |
| Min. Std. Shaft Size | 1.8892in / 47.985mm | 1.8892in / 47.985mm |
| Max. Std. Shaft Size | 1.8898in / 48.000mm | 1.8898in / 48.000mm |
| Min. Std. Tunnel Size | 2.008in / 51.004mm | 2.008in / 51.004mm |
| Max. Std. Tunnel Size | 2.0088in / 51.024mm | 2.0088in / 51.024mm |
| Max Wall at Crown | 0.0586in / 1.488mm | 0.0581in / 1.475mm |
| Max. Overall Length | 0.8386in / 21.30mm | 0.669in / 17mm |
| Notes | ||
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988 - 1992 | Toyota | Celica | All Trac |
| 1986 - 1993 | Toyota | Celica | GT, ST, GTS |
| 1993 | Toyota | Celica | GTS All Trac |
| 1986 | Toyota | Celica | Supra |
| 1991 - 1995 | Toyota | MR2 | Base, Turbo |
