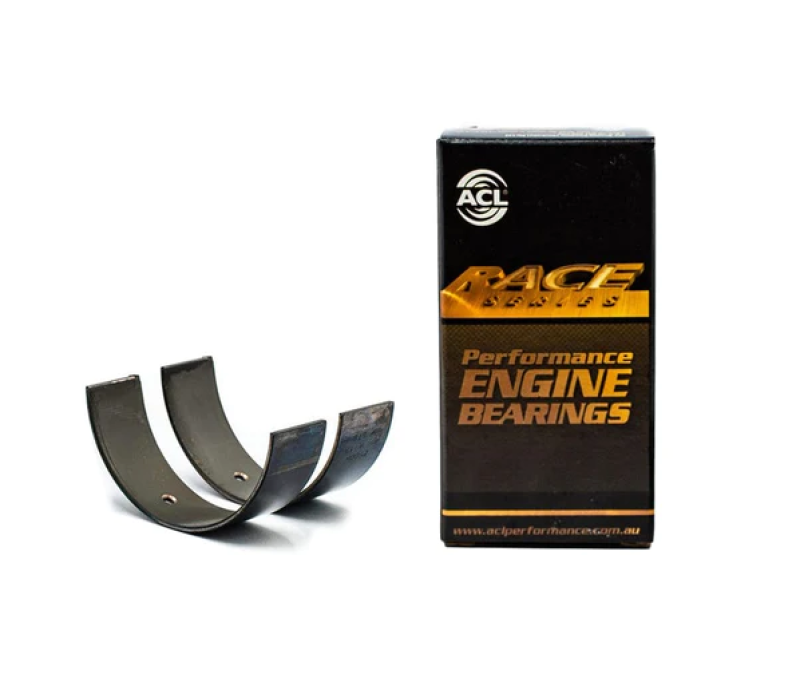

ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures. Each ACL race bearing design features the following:
- Large chamfer to accomodate larger crankshaft fillets
- 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
- Incresed crush and tighter wall tolerance for better seating
- Improved overlay and reduced thickness for increased fatigue strength
- Hardened steel backing to maintain crush under high loads and temperatures
- Size: STD
Note: Pictures may not be actual product.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1987 - 1988 | Acura | Integra | LS Special Edition |
| 1986 - 1989 | Acura | Integra | RS, LS |
| 1998 - 2000 | Honda | Accord | Coupe |
| 1998 - 2002 | Honda | Accord | LX, DX, EX, EX-R |
| 2000 - 2002 | Honda | Accord | SE |
| 2001 - 2002 | Honda | Accord | Value Package |
| 1988 - 1991 | Honda | Civic | Base, RT 4WD |
| 1988 - 2000 | Honda | Civic | DX, LX |
| 1990 - 2000 | Honda | Civic | EX |
| 1997 - 2000 | Honda | Civic | EX-R |
| 1999 - 2000 | Honda | Civic | EX-R SIR |
| 1998 - 2000 | Honda | Civic | GX |
| 1996 - 2000 | Honda | Civic | HX |
| 1988 | Honda | Civic | SE |
| 1989 - 2000 | Honda | Civic | Si, CX |
| 1999 | Honda | Civic | Value Package |
| 1992 - 1995 | Honda | Civic | VX |
| 1988 - 1989 | Honda | Civic | Wagovan |
| 1993 - 1997 | Honda | Civic del Sol | S, Si |
| 1994 - 1997 | Honda | Civic del Sol | VTEC |
| 1989 - 1991 | Honda | CRX | Base |
| 1988 | Honda | CRX | DX |
| 1988 - 1991 | Honda | CRX | Si, HF |
| 1997 - 2001 | Honda | Prelude | Base, Type SH |
