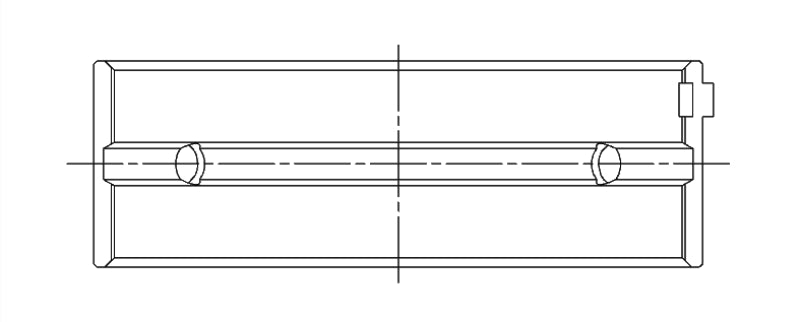

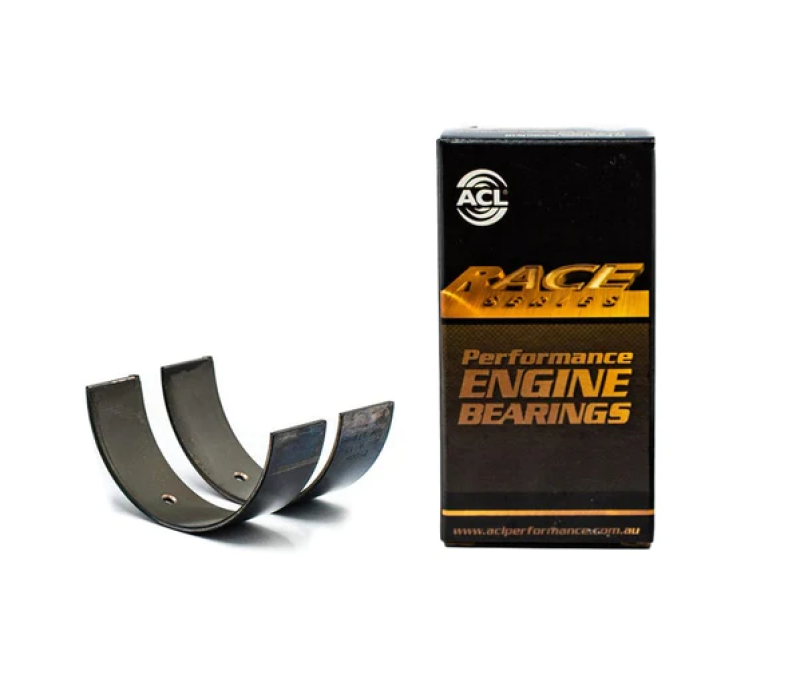

ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures. Each ACL race bearing design features the following:
- Large chamfer to accomodate larger crankshaft fillets
- 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
- Incresed crush and tighter wall tolerance for better seating
- Improved overlay and reduced thickness for increased fatigue strength
- Hardened steel backing to maintain crush under high loads and temperatures
- Size: STD
Note: Pictures may not be actual product.
HX Series Bearings are .0005" thinner per half to give .001" extra clearance for standard sized cranks.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 2001 | Acura | Integra | GS-R |
| 1990 - 2001 | Acura | Integra | LS, GS |
| 1990 - 1998 | Acura | Integra | RS |
| 1995 - 1996 | Acura | Integra | Special Edition |
| 1997 - 2001 | Acura | Integra | Type R |
| 2002 - 2006 | Acura | RSX | Type-S, Base |
| 2012 | Acura | TSX | A-Spec |
| 2004 - 2014 | Acura | TSX | Base |
| 2012 - 2014 | Acura | TSX | Special Edition |
| 2013 - 2014 | Acura | TSX | Tech, V6 Tech, Premium |
| 2010 - 2014 | Acura | TSX | V6 |
| 2003 | Honda | Accord | Coupe |
| 2002 - 2005 | Honda | Accord | DX |
| 2002 - 2012 | Honda | Accord | EX, LX, SE |
| 2007 - 2012 | Honda | Accord | EX-L |
| 2002 | Honda | Accord | EX-R |
| 2012 | Honda | Accord | HFP |
| 2005 - 2007 | Honda | Accord | Hybrid |
| 2007 | Honda | Accord | LX SE, Special Edition |
| 2006 | Honda | Accord | LX Special Edition |
| 2008 - 2012 | Honda | Accord | LX-P, LX-S |
| 2002 - 2007 | Honda | Accord | Value Package |
| 2011 - 2013 | Honda | Civic | Base |
| 2008 - 2011 | Honda | Civic | DX-G |
| 1999 - 2015 | Honda | Civic | EX, DX, Si, LX |
| 2008 - 2015 | Honda | Civic | EX-L |
| 1999 - 2000 | Honda | Civic | EX-R, CX, EX-R SIR, HX |
| 2006 - 2007 | Honda | Civic | EXS, LXS |
| 1999 - 2012 | Honda | Civic | GX |
| 2012 - 2015 | Honda | Civic | HF |
| 2006 - 2015 | Honda | Civic | Hybrid |
| 2009 - 2015 | Honda | Civic | Hybrid-L |
| 2009 - 2011 | Honda | Civic | LX-S |
| 2008 | Honda | Civic | MUGEN Si |
| 2013 - 2015 | Honda | Civic | Natural Gas, Touring |
| 2015 | Honda | Civic | SE |
| 2012 | Honda | Civic | Si HFP |
| 2009 - 2010 | Honda | Civic | Sport |
| 1999 | Honda | Civic | Value Package |
| 2002 - 2003 | Honda | CR-V | Base |
| 1998 - 2015 | Honda | CR-V | EX |
| 2005 - 2015 | Honda | CR-V | EX-L |
| 2009 | Honda | CR-V | EXL |
| 2015 | Honda | CR-V | i-Style |
| 1997 - 2015 | Honda | CR-V | LX |
| 2000 - 2015 | Honda | CR-V | SE |
| 2012 - 2015 | Honda | CR-V | Touring |
| 2003 - 2004 | Honda | Element | DX |
| 2003 - 2011 | Honda | Element | EX |
| 2004 - 2011 | Honda | Element | LX |
| 2007 - 2010 | Honda | Element | SC |
