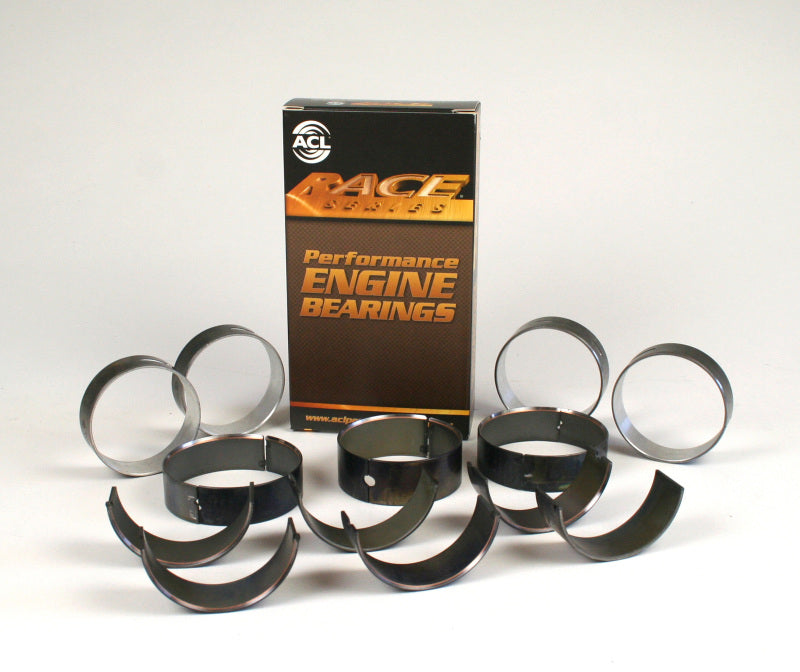

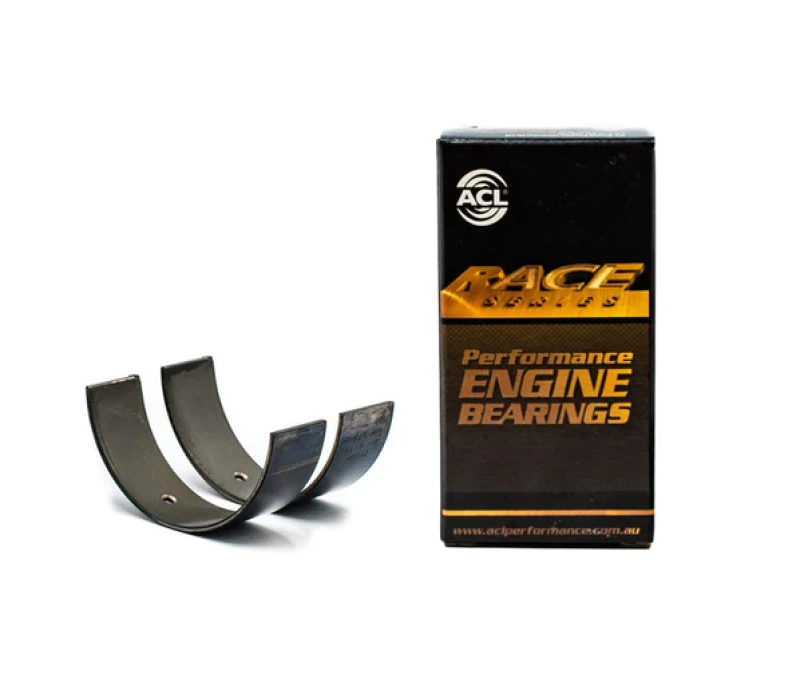

ACL Performance Race Bearings are manufactured with a tri-layer metal with a hardened steel backing in order to withstand high RPM conditions, high stress loads, and high temperatures. Each ACL race bearing design features the following:
- Large chamfer to accomodate larger crankshaft fillets
- 3/4 groove to provide optimum oil supply to rods and to maximize load carrying capacity
- Incresed crush and tighter wall tolerance for better seating
- Improved overlay and reduced thickness for increased fatigue strength
- Hardened steel backing to maintain crush under high loads and temperatures
- Size: STD
Note: Pictures may not be actual product.
HX Series Bearings are .0005" thinner per half to give .001" extra clearance for standard sized cranks.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 - 2016 | Scion | FR-S | Base |
| 2015 | Subaru | BRZ | Aozora Edition, Series.Blue |
| 2013 - 2017 | Subaru | BRZ | Limited, Premium, Base, Sport-tech |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2017 | Toyota | 86 | Base, Special Edition |
