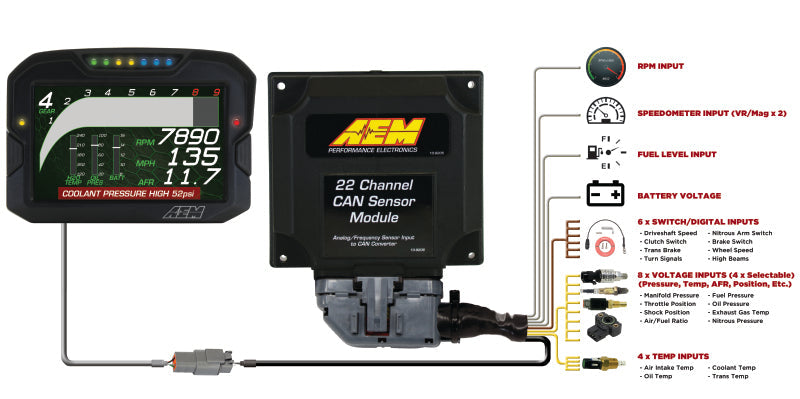

- Convert analog, digital and frequency-based inputs to AEMnet CAN bus for display on CD-5 Carbon and CD-7 Dashes!
- Perfect for users with carbureted vehicles who want to add a CD Dash display
- Ideal for EFI users who want to add more channels to a CD Dash without purchasing multiple CAN-based devices
- Daisy chain two Modules together for additional channels
- IP65-rated enclosure is 'dust tight' and water resistant

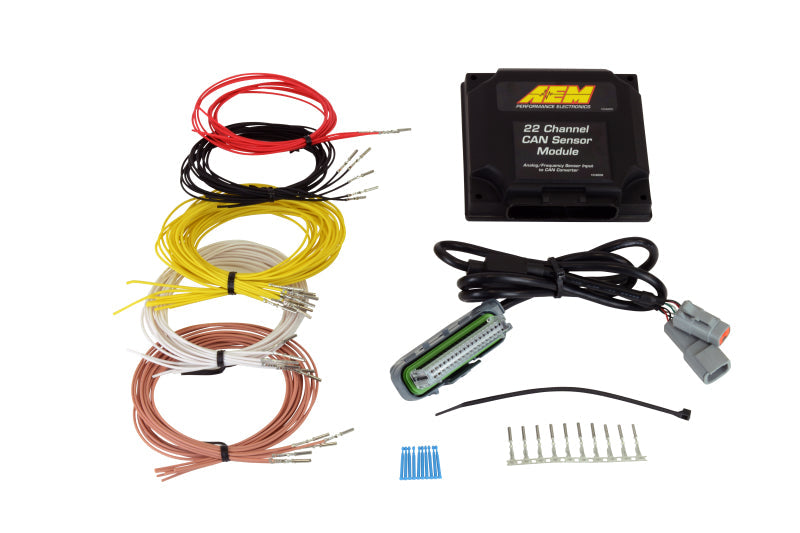

- Wiring harness included with 36-inch flying leads and pre-wired CAN cable
- Four Dedicated 0-5V analog inputs
- Four Temperature (thermistor) inputs
- Four User configurable analog inputs, (jumper selectable; 0-5v, thermistor, or RTD)
- One dedicated fuel level input (0 to 250 ohm range)
- Six Digital Inputs, active low, protected to ~18v, frequency, duty cycle or simple switch
- One Tach Input, trigger when low, 12v internal Pull Up
- Two VR pair frequency inputs (crank, wheel or drive shaft speeds)
- Jumper selectable CAN bus speeds, 250k,500k,1M
- Jumper selectable terminating resistor
- Jumper selectable header length, 11bit or 29 bit
- Dimensions: 4.7" L x 4.3" W x 1.4" H (not including connector)
- Weight: 6.4oz / 180g

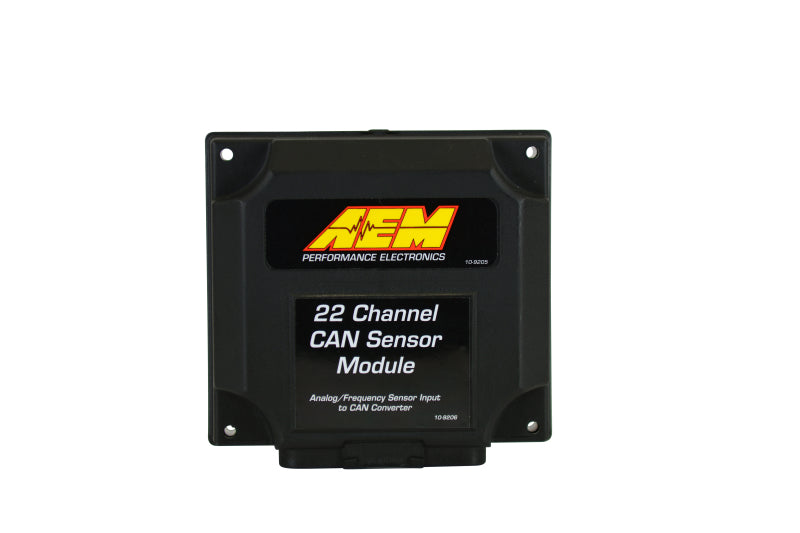

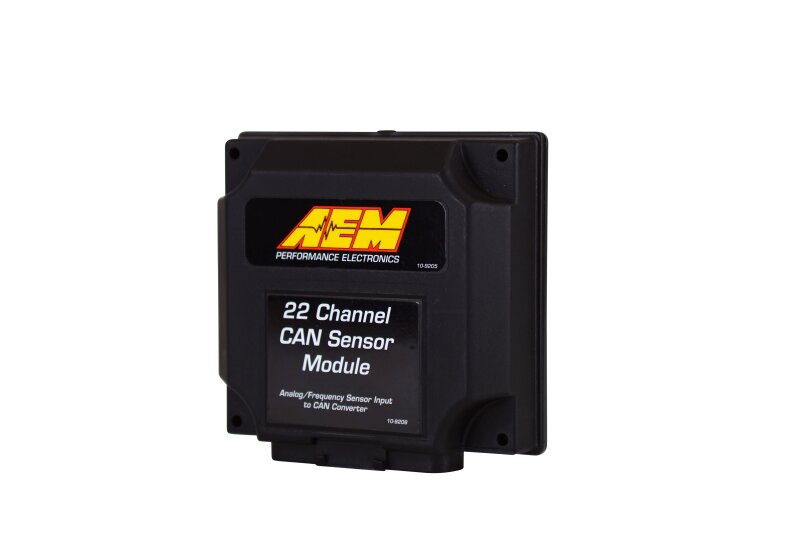

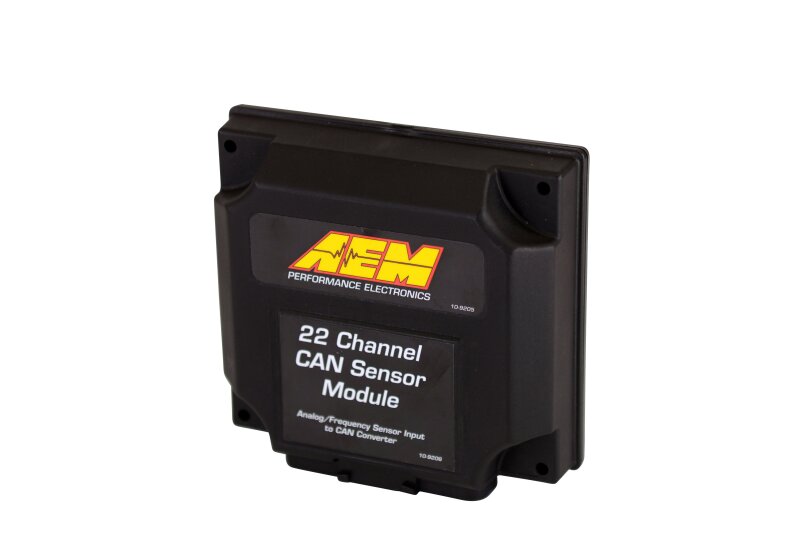

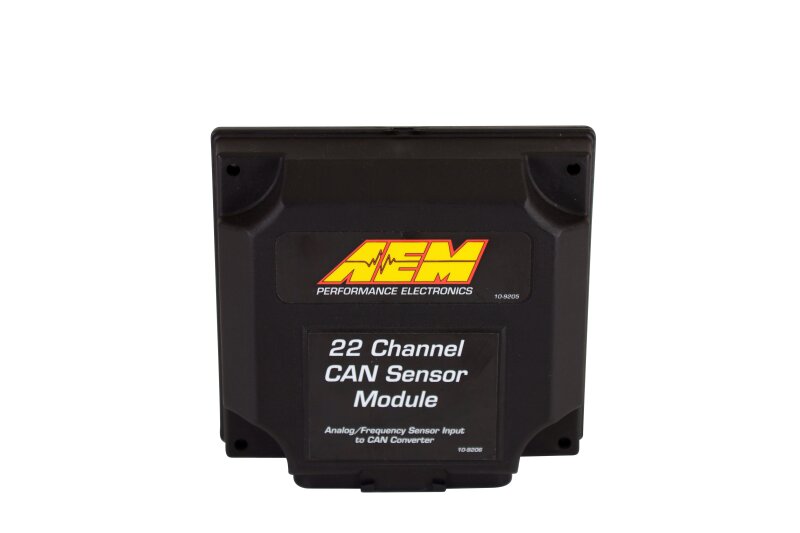

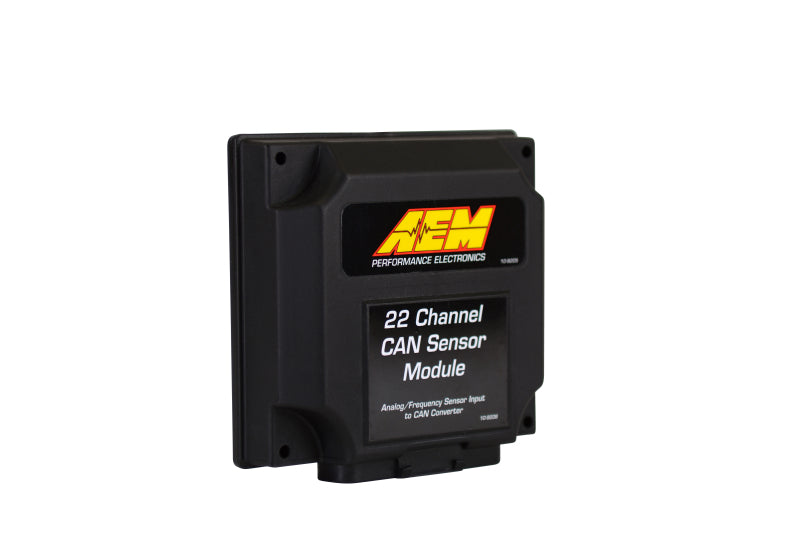

AEM Electronics 22 Channel CAN Sensor Module
Sale price
$476.95
Regular price
$506.95You saved$30.00 OFF
