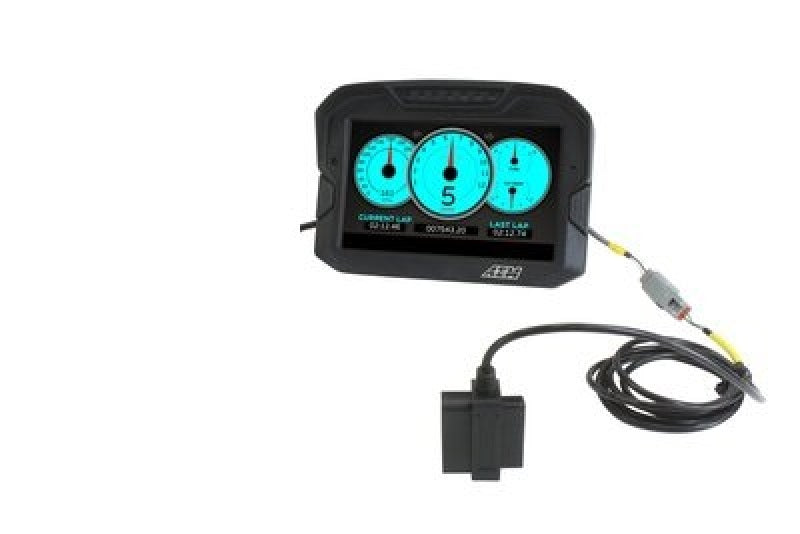

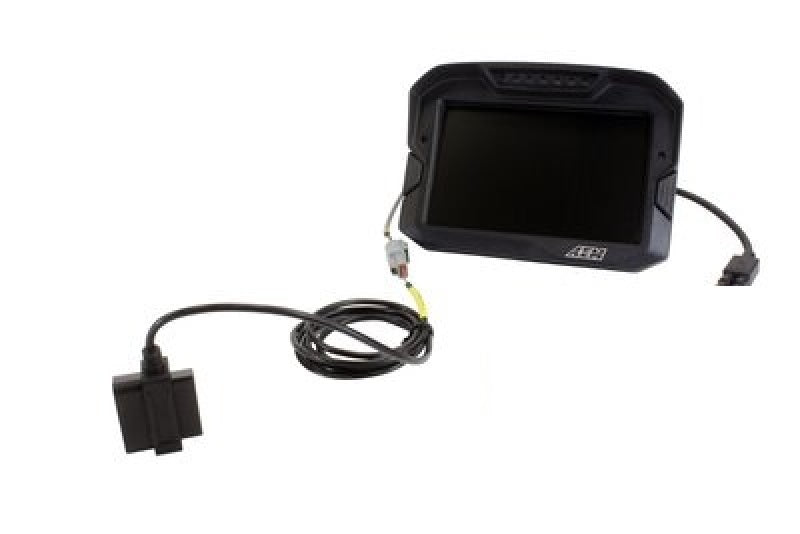

AEM has updated its CD-7 Digital Dash Display from an aluminum enclosure to a carbon fiber composite enclosure and in the process has reduced its mass from 740g/26.1 oz. to only 595g/20.9oz. That's almost 1/3rd lbs. less and makes the CD-7 Carbon the lightest graphical dash of its size among major competitors! The new CD-7 Carbon digital displays also have optional integrated 20Hz GPS, which replaces the dash packages that included a Vehicle Dynamics Module. Of course, the Vehicle Dynamics Module still works with any CD Digital Dash Display and can be purchased separately.

CD-7 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.
