Aeromotive 03-04 Cobra A1000 Stealth Fuel Pump

In 2003 Ford developed a specific tank for the 03 and 04 Mustang Cobras. This tank looked like a normal tank from the outside, but featured one of the finest internal baffling systems we?ve seen from an OE tank to date. In late 2011, Ford decided to discontinue these tanks. At Aeromotive, we saw and opportunity to reproduce these tanks. Not only can we offer reproduction 03-04 Cobra tanks, but we can also modify the tooling in the production process to offer this same tank to fit all Fox Body Mustangs. And that is exactly what we did. But we took it one step further. We built specific A1000 and Eliminator Fuel Pumps that bolt right into top of these tanks.

In doing so, we created a fuel pump that not only drops into our reproduction tank, but also the factory 03-04 Ford Mustang Cobras. These pumps are nothing more than variations on our popular and proven A1000 and Eliminator Fuel Pumps. So whether you need a replacement pump for your Aeromotive kit, or already have an 03-04 Cobra Tank, these pumps are the perfect choice. See notes and details below.

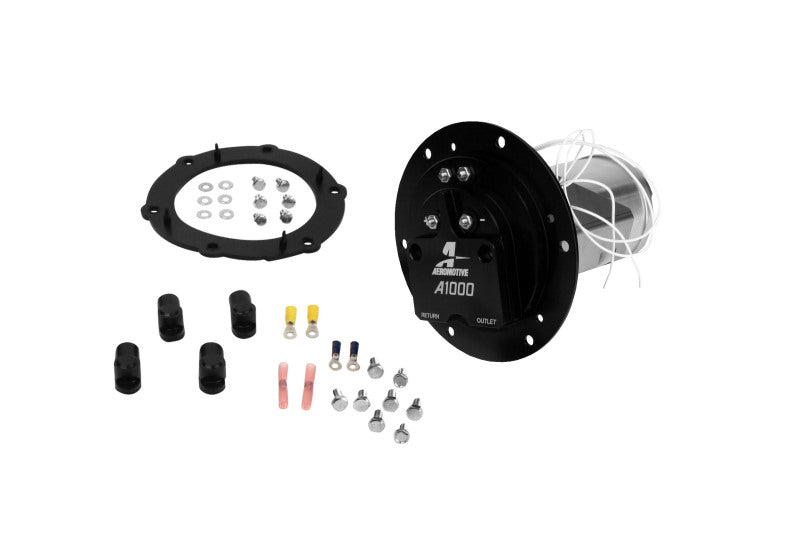

P/N 18679 ? 03-04 Cobra A1000 Stealth Fuel Pump
Direct fit for 03-04 Ford Mustang Cobra Fuel Tanks
Also fits Aeromotive P/N?s 18690, 18685, 18686, 17130, 17131
100-Micron Stainless Steel Pre Filter
(1) ORB-08 Outlet Port & (1) ORB-08 Return Port
Installs using factory mounting flange
Uses factory 03-04 Fuel Level Sending Unit
Wiring upgrade recommended
Requires the use a full return style system

Recommended Parts:

P/N 13101 ? EFI Bypass Regulator

P/N 12301 ? 10-Micron Post Pump Filter

P/N 12305 ? 2? Billet Filter Bracket

P/N 16301 ? Fuel Pump Wiring Kit

P/N 14101 ? 86-95 5.0L GT & Cobra Fuel Rail Kit or?

P/N 14103 ? 96-04 4.6L SOHC GT Fuel Rail Kit or?

P/N 14104 ? 96-98.5 4.6L DOHC Cobra Fuel Rail Kit

AN-08 Fuel Line

For engine swaps, see our Fuel Rail Section for your engine platform

Year specifications:

Direct drop-in fuel pump for the 03-04 Ford Mustang Cobra fuel tank. Uses factory fuel level sending unit and mounting flange. Requires a full return style fuel system with the use of a fuel pressure regulator like the Aeromotive P/N 13101 or similar.

P/N 18679 ? 03-04 Cobra A1000 Stealth Fuel Pump

P/N 18680 ? 03-04 Cobra Eliminator Stealth Fuel Pump

(Requires the use of 03-04 Cobra fuel level sending unit as well)

Vehicle Fitments:
