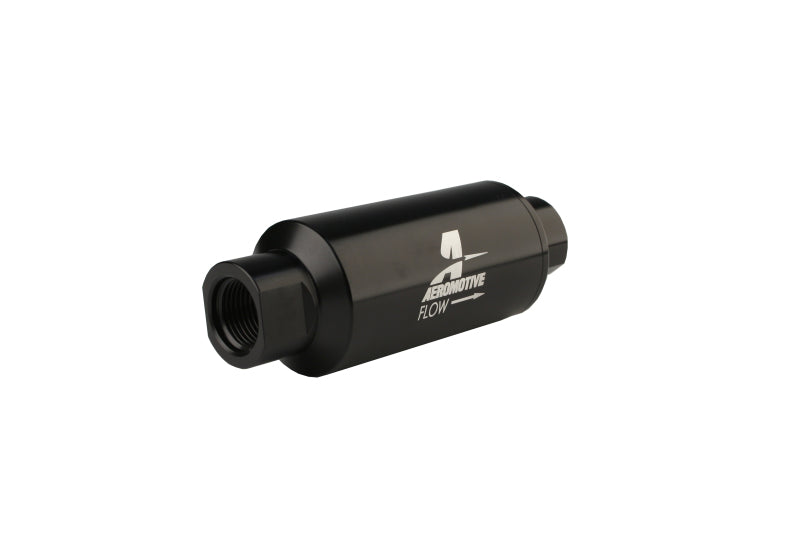

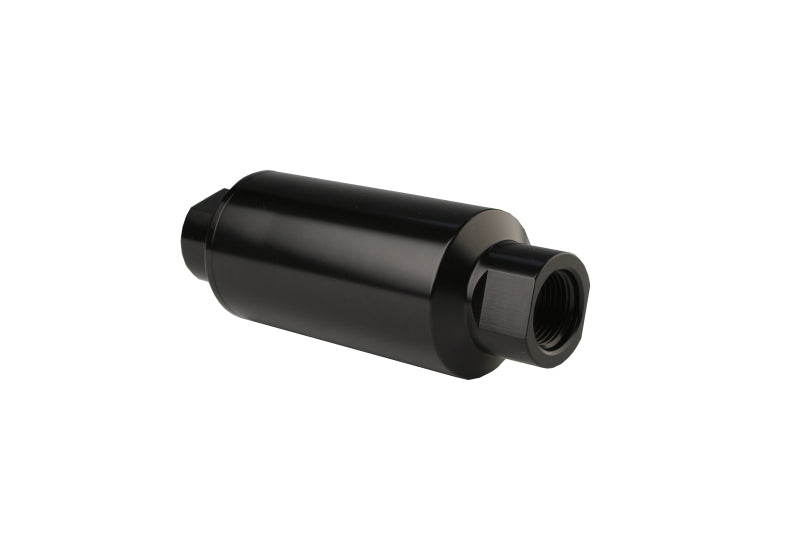

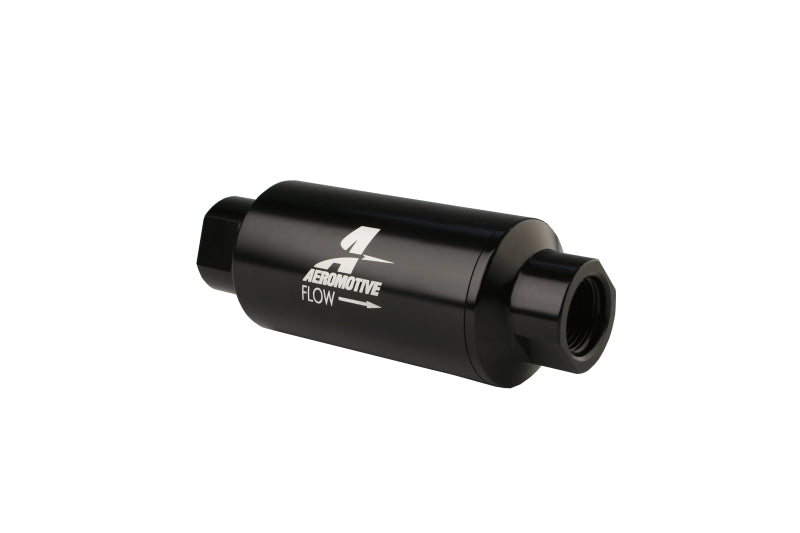

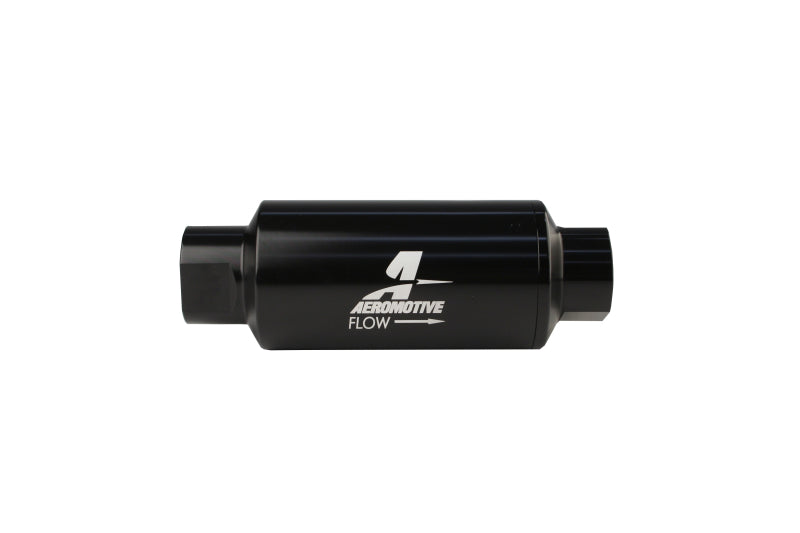

Aeromotive 10 Micron, ORB-10 Black Fuel Filter

An inexpensive insurance policy to protect your investment.

Proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components.

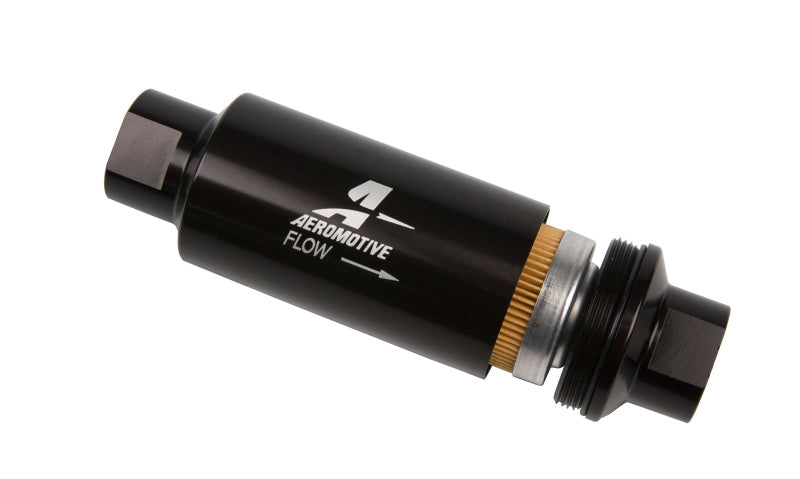

High-flow, 10-micron fabric (fine) replaceable element.
Flows 2,000 lb/hr with a pressure drop of less than 1 PSI.

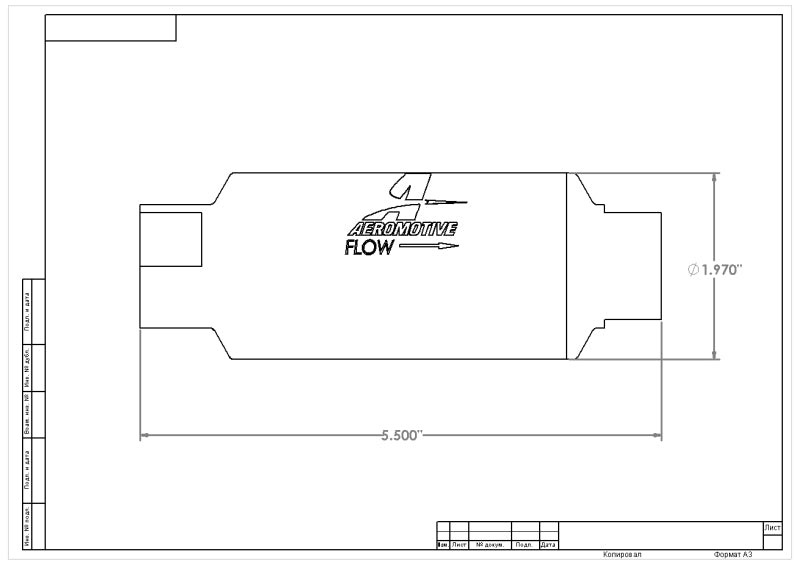

Compact size: 5.5" long x 2" diameter
ORB-10 ports. Fittings available to adapt these filters to AN-10, -08 and -06 line sizes. (see Fittings & Adapters)
All filter assemblies feature an O-ring for positive sealing in high pressure applications.
CNC-machined from 6061-T6 aircraft aluminum.
Bright dip black anodized finish for a corrosion resistant, show car quality appearance.

10-micron filters may ONLY be used after the fuel pump to protect your injectors or carburetor.

Fabric elements not suitable for use in E85 or alcohol applications.
