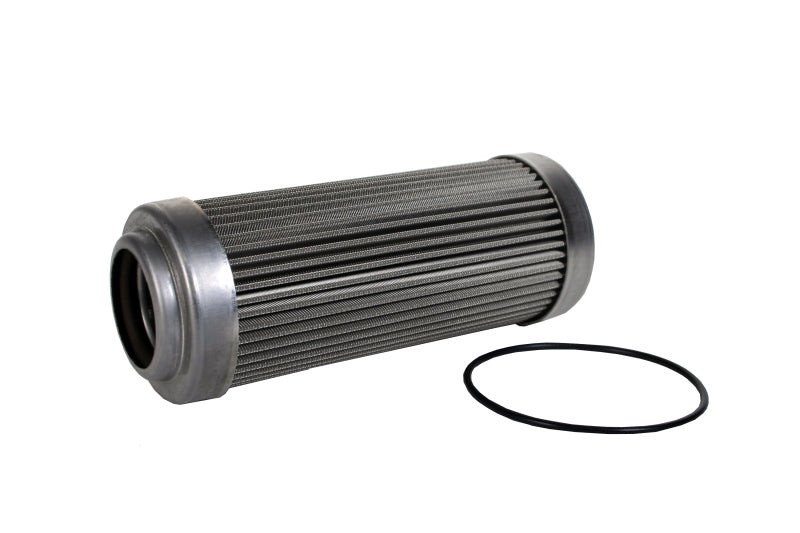

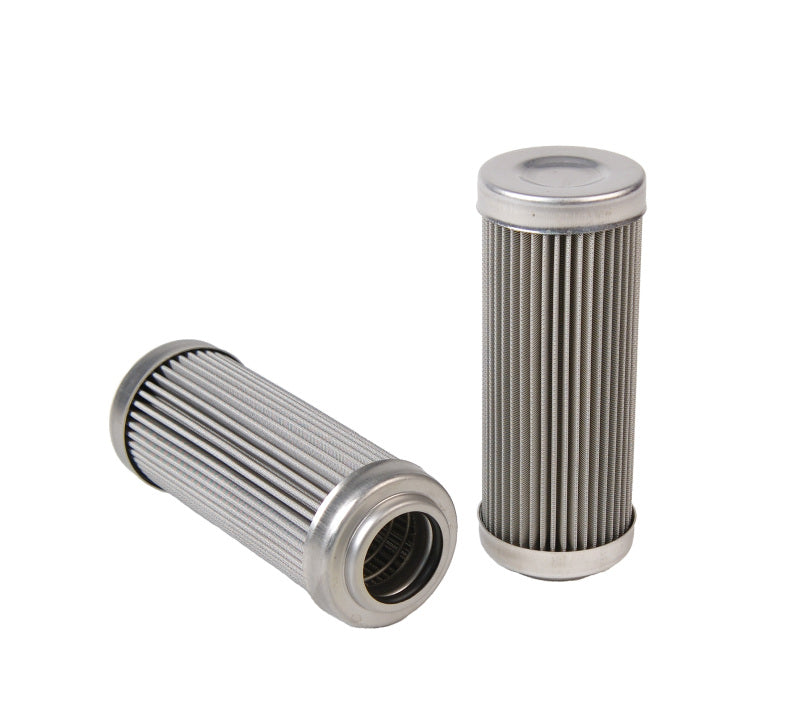

Aeromotive 100 Micron Element for ORB-12 Filters

Commonly the most overlooked component in a fuel system, filter neglect can be the most costly. If not cleaned or replaced regularly, filter elements can become clogged resulting in reduced fuel flow, engine performance and ultimately, fuel pump or even worse, engine damage. By simply replacing and/or cleaning your filter elements regularly, you can avoid costly repairs to your fuel system and ensure peak engine performance.

Aeromotive recommends annual inspection and service of filter elements. This includes replacing 10-micron fabric elements and cleaning or replacing 100-micron stainless steel elements. Severe duty applications or newly installed systems may require more frequent maintenance.

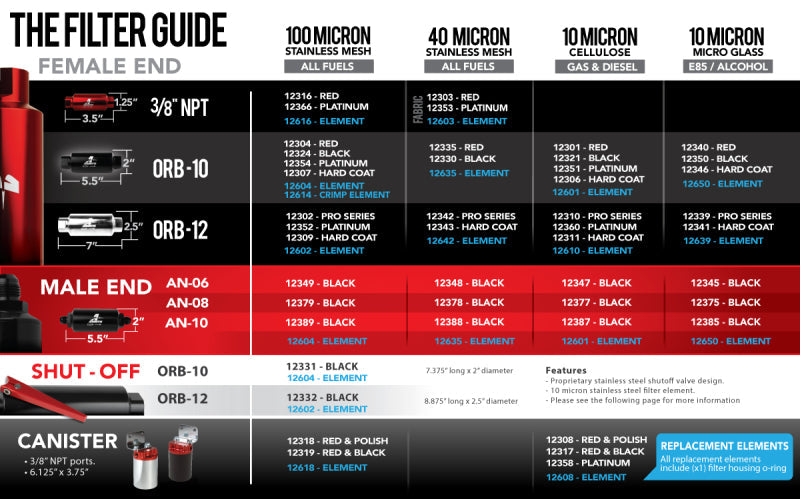

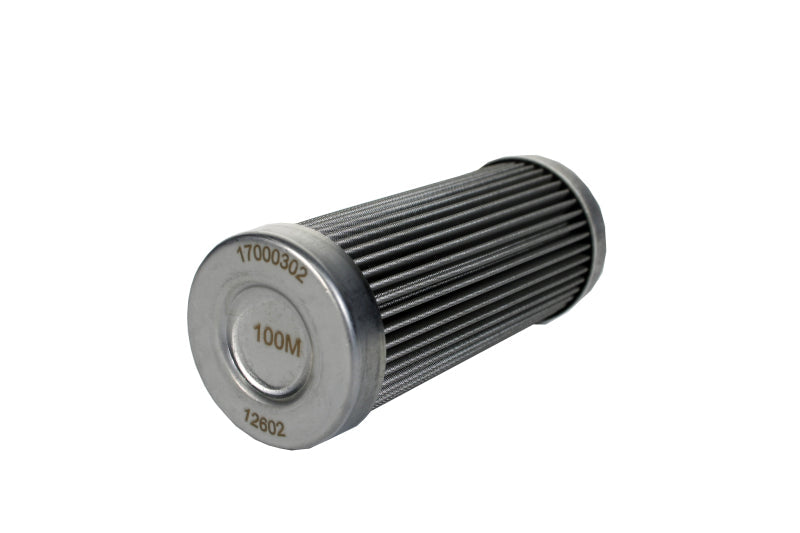

How do you know what element you need for your filter? Several Aeromotive filters share the same housing, but the elements inside may be drastically different and putting the wrong filter or element in the wrong place could be costly for your fuel pump or your engine. To find out, look inside the inlet of the filter. Stamped on the top of the element is the micron rating. (See figure 1 below) This will tell you what element you need for your filter.

For Filter P/N?s:

12302

12332

12309

12352
