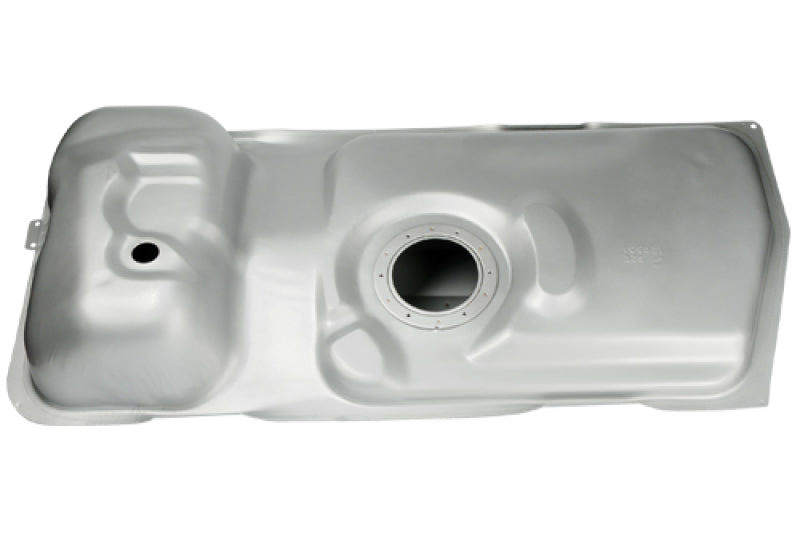

Aeromotive 86-98.5 Fox Body Stealth Tank Only

Designed as a replacement for the Aeromotive Kit Part Numbers:

18685

18686

17130

17131

This tank will also work as a replacement tank for your factory 86-98.5 Mustang. It will accept both the Aeromotive A1000 (P/N 18679) and Eliminator (P/N 18680) Fuel Pumps as well factory 2003-2004 Fuel Pump hanger assemblies. For more details on this tank and its design, see the notes below from the 18685-86 Kits.

In 2003 Ford developed a specific tank for the 03 and 04 Mustang Cobras. This tank looked like a normal tank from the outside, but featured one of the finest internal baffling systems we?ve seen from an OE tank to date. In late 2011, Ford decided to discontinue these tanks. At Aeromotive, we saw and opportunity to reproduce these tanks. Not only can we offer reproduction 03-04 Cobra tanks, but we can also modify the tooling in the production process to offer this same tank to fit all Fox Body Mustangs. And that is exactly what we did. But we took it one step further. We built specific A1000 and Eliminator Fuel Pumps that bolt right into top of these tanks.

These Fox Body Stealth tanks give you the best performance possible from a stock appearing tank, and our proven A1000 or Eliminator fuel pumps built right into the tank. Choose from either pump and you can now bolt in a fuel tank into your Fox that appears stock, but features an innovative baffling system, a built in fuel pump capable of supporting almost any hp demand and a pre-pump filter.

These tanks are a direct bolt-in for 1986 ? 1998 ? Ford Mustangs. Although the Fox Body began in 1979 and carried all the way through 2004, some modifications are necessary for these system to be direct bolt-ins. See notes below on year specifications.

P/N 18690 ? 86-98 ? Fox Body Stealth Tank Only
Bolts right into factory location using factory tank straps
Use Aeromotive In-tank Fuel Pumps or
Factory 2003-2004 Cobra Fuel Pump Hanger Assembly and leveling unit

Year specifications:

* For 1979 ? 1985 Mustangs, you must use an 1986 or later leveling unit and aftermarket fuel level gauge. (73-10 Ohm)

* 1998.5 ? 2004 Mustang Stealth Tanks coming soon. If you have a factory 2003 or 2004 Cobra or Cobra Fuel Tank, it is a direct bolt-in to your car. The following Aeromotive Fuel Pump part numbers are bolt-ins for these tanks only. (Requires the use of 03-04 Cobra fuel level sending unit as well)

Vehicle Fitments:
