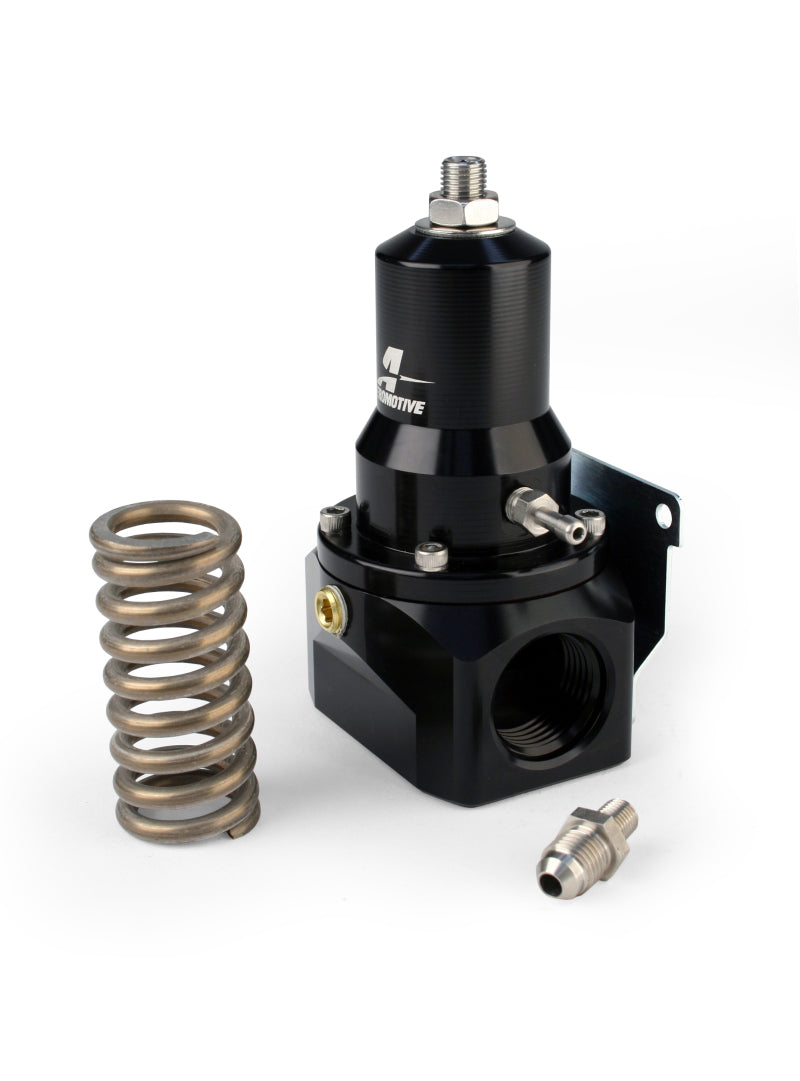

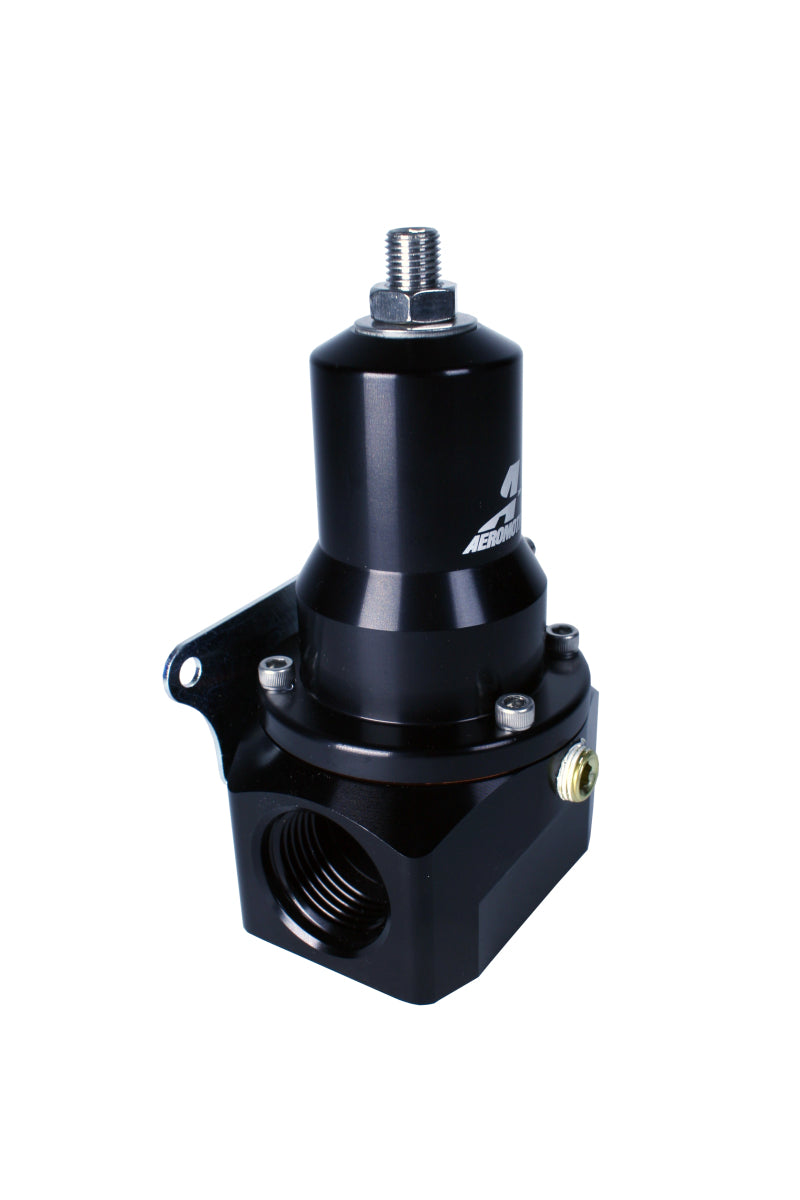

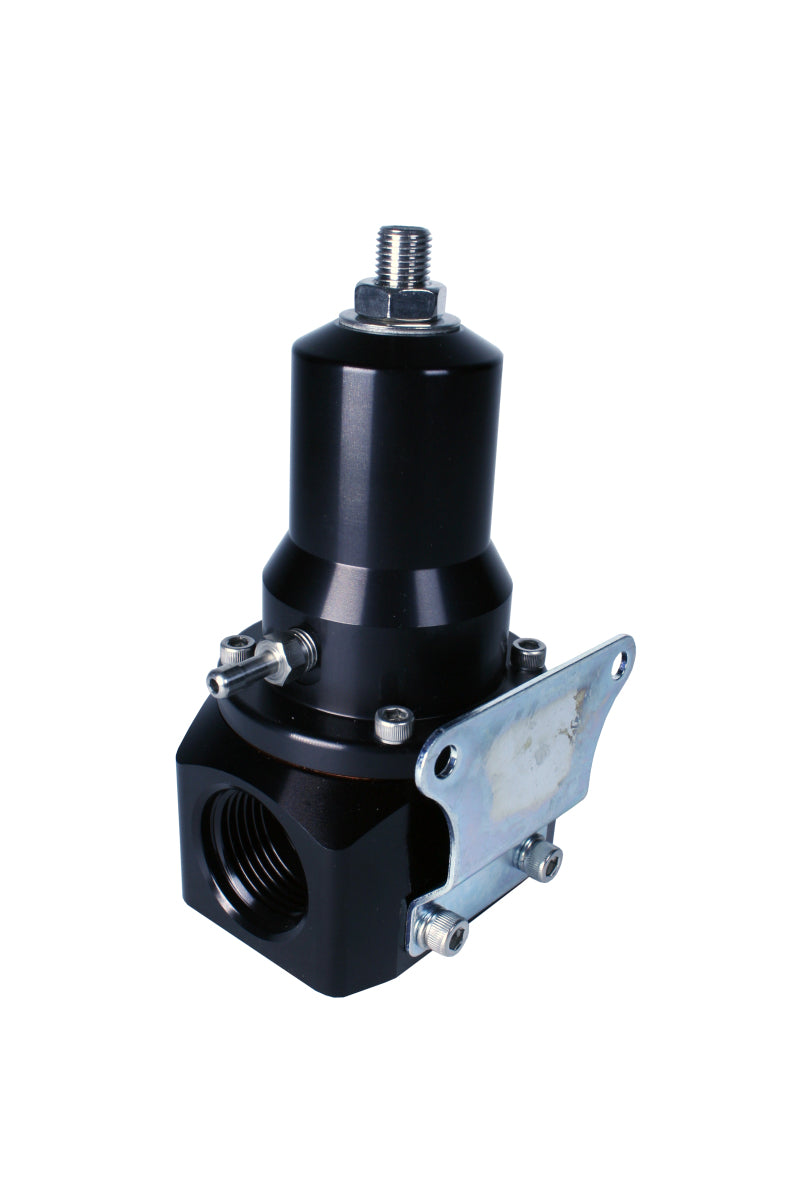

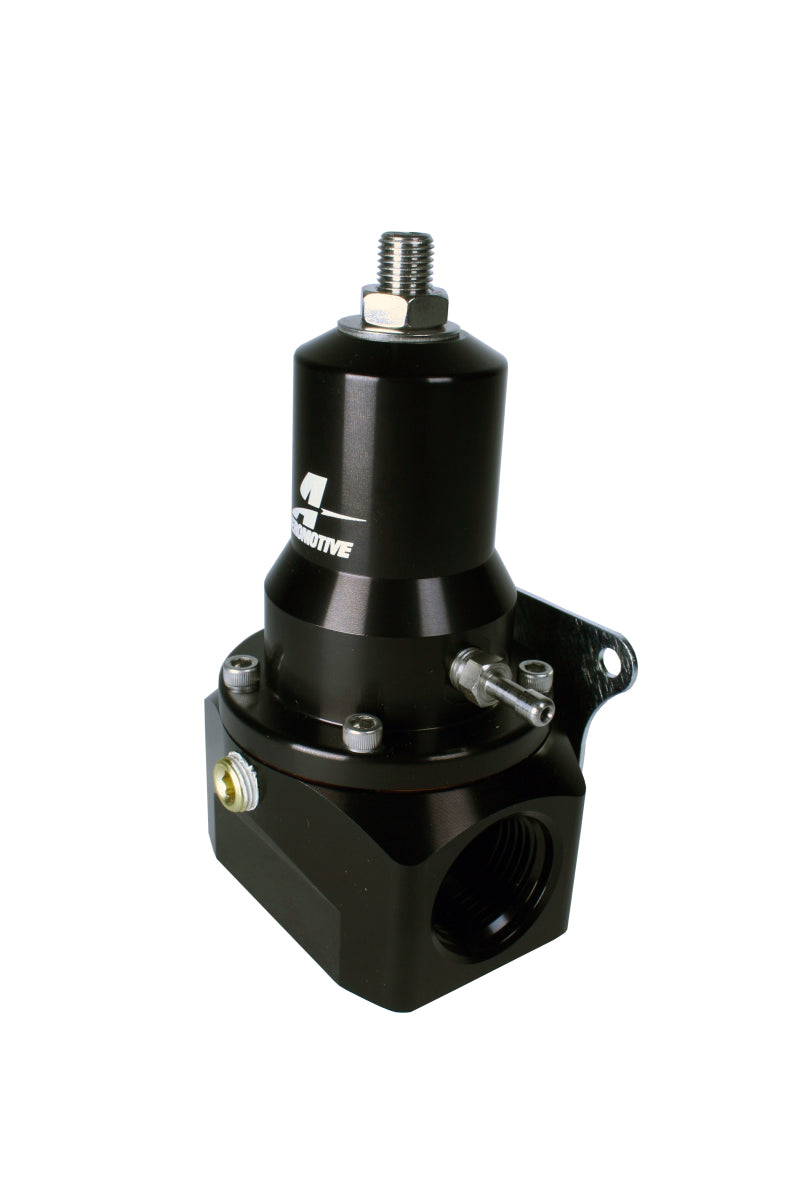

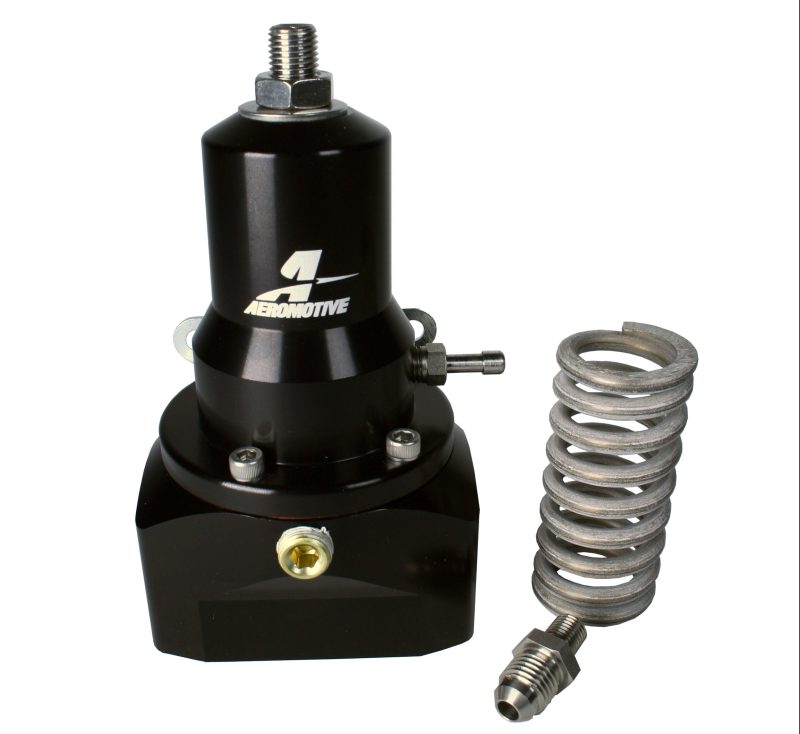

Adjustable, Regulator, 30-120 PSI, .500 Valve, ORB-12 Inlet/Outlet
Extreme Flow EFI Regulator
For Belt/Hex Drive Fuel Pumps and EFI Engines
- ORB-12 Inlet/Outlet and Return Ports
- Extreme Flow Capability
- Wide Base Pressure Range 30-120 PSI
Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It's designed for use with Belt or Hex Drive Fuel Pumps. Other benefits include:
- Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port.
- 0.500? high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps.
- Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight.
- Standard spring (installed) supports 30-75 PSI base fuel pressure.
- High Pressure spring (included) supports 75-120 PSI base fuel pressure.
- Supports vacuum and boost reference on a 1:1 ratio with PSI.
Additional information
- Weight: 1.4 lbs
- Dimensions: 5.5 x 5.5 x 2.5 in
