EFI Regulator Belt Drive, 30-120 psi, .500 Valve, 4x AN-08 & AN-10

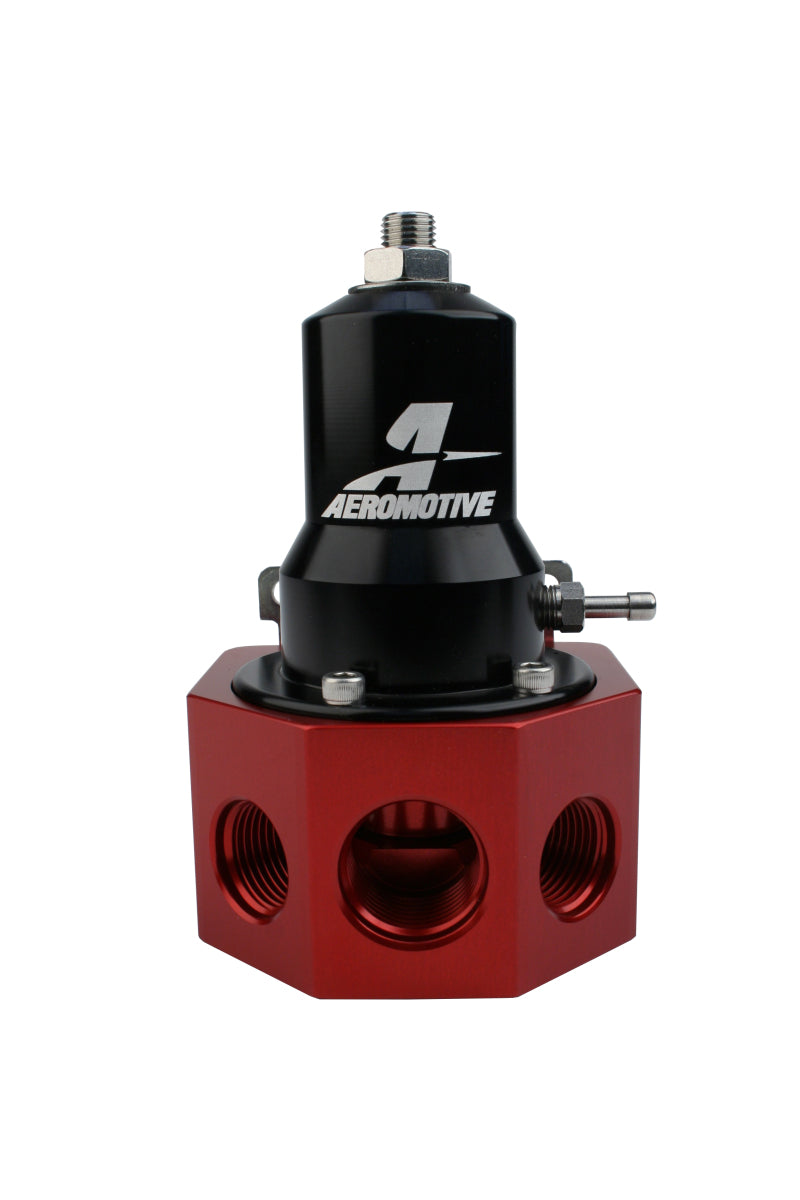

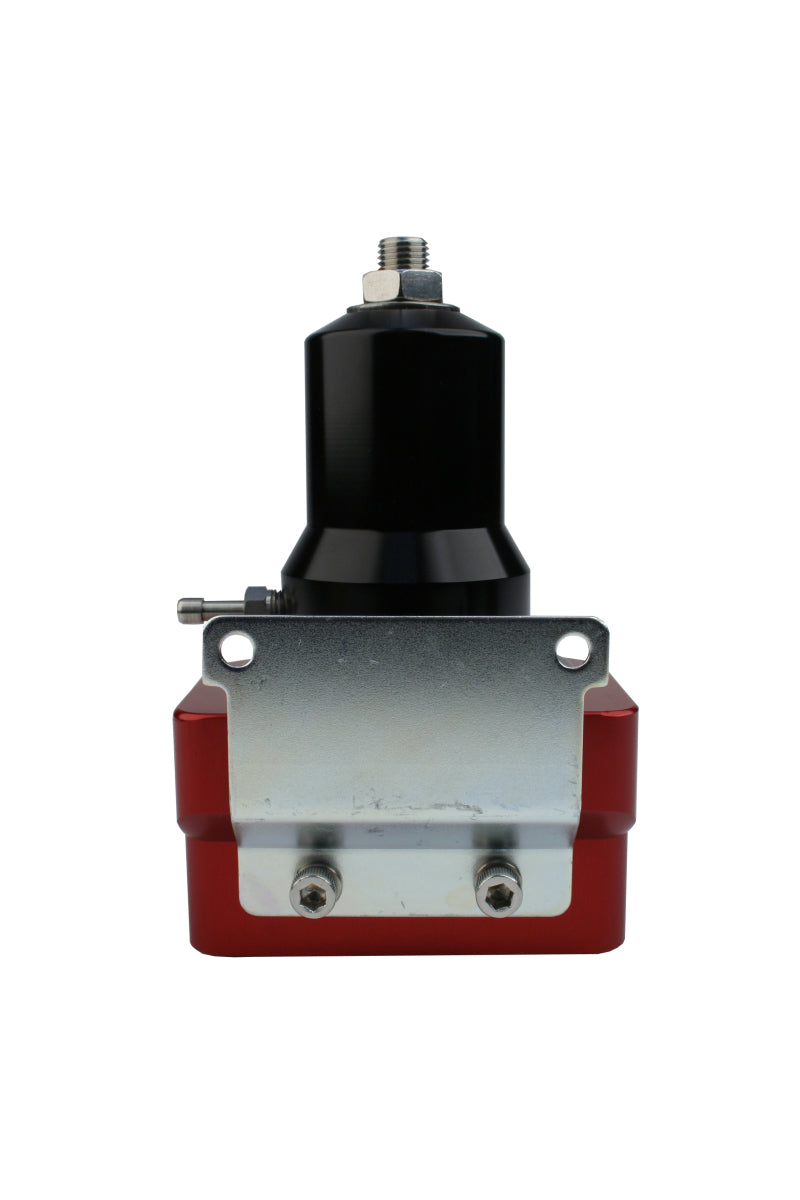

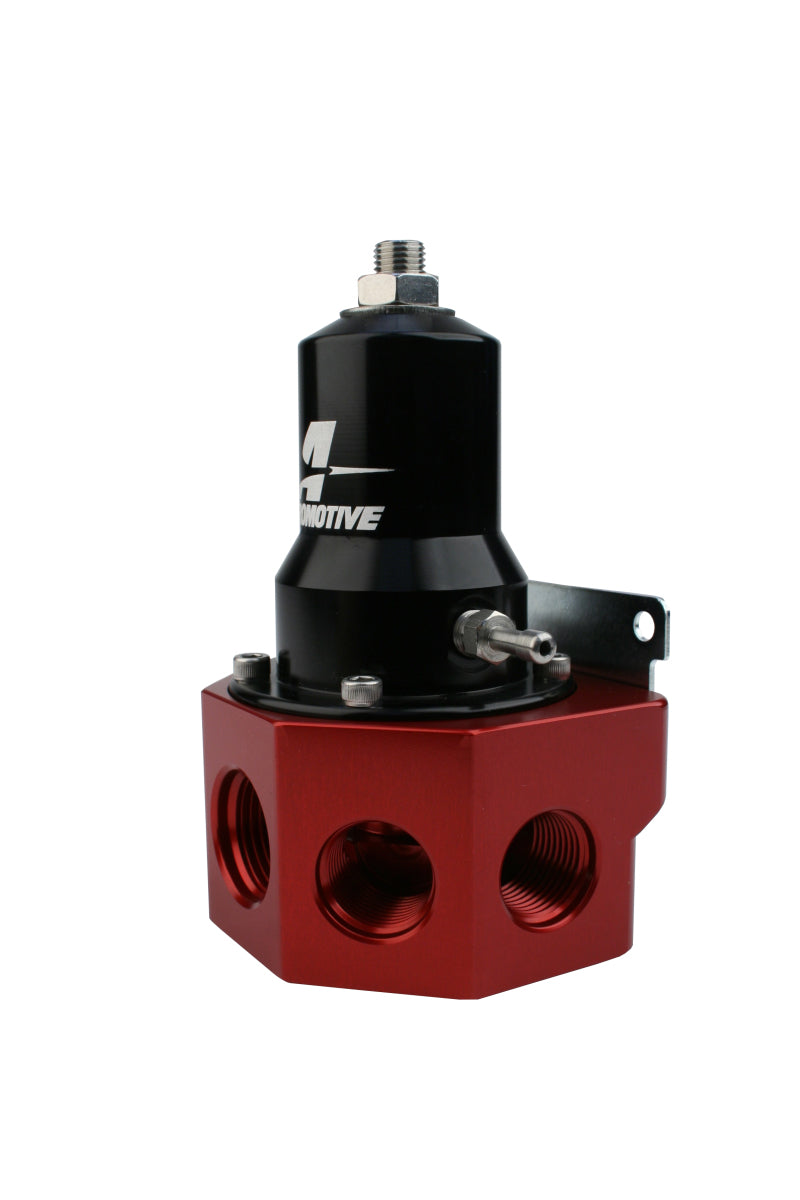

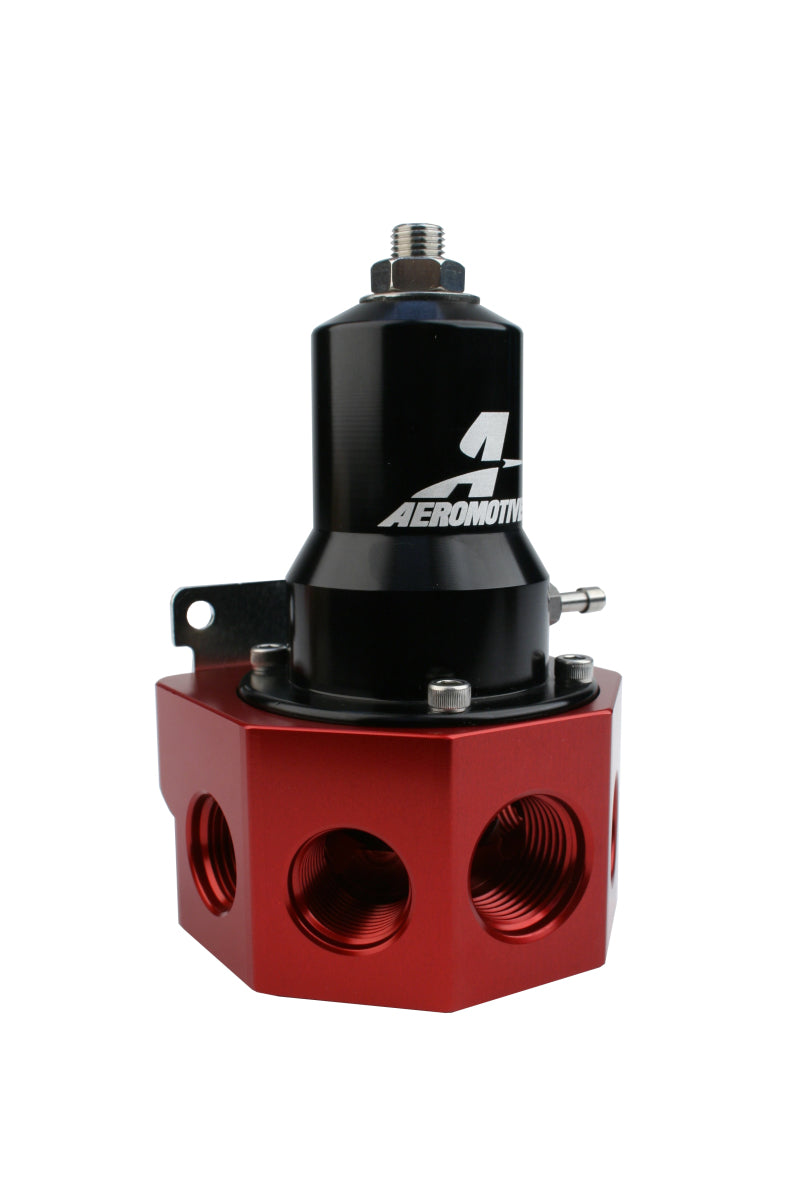

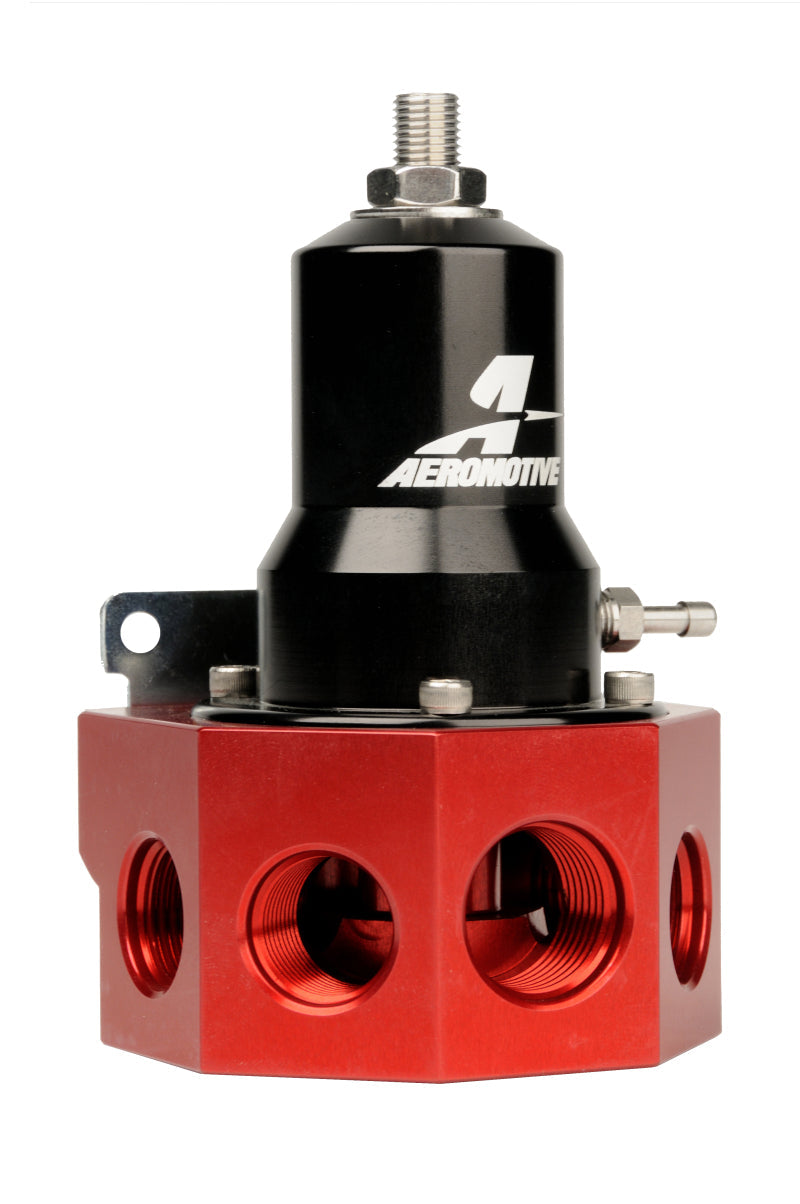

Extreme Flow EFI Regulator 13133
Designed for use with Belt or Hex Drive Fuel Pumps .

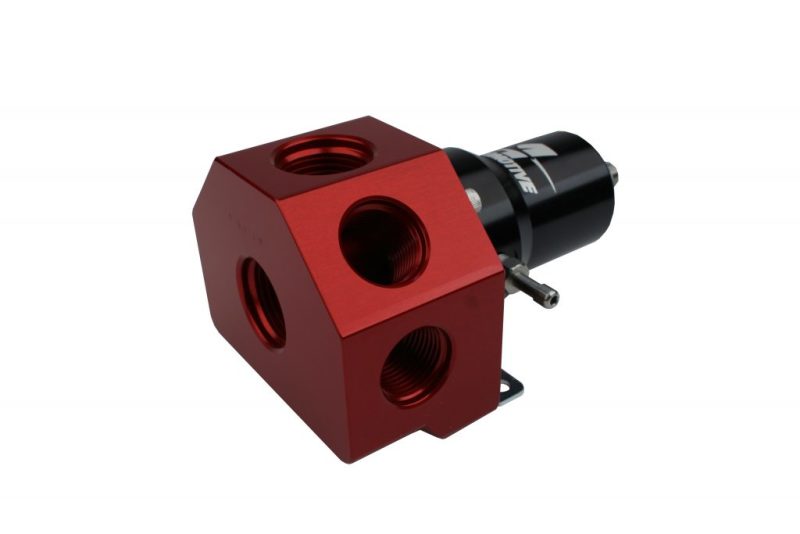

Expanded, 5-Port Body with 1 - AN-10 plus 4 AN-08 inlet/outlet ports, and one AN-10 return port.
0.500 High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pumps
Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.
Standard spring (installed) supports 30-75 PSI base fuel pressure.

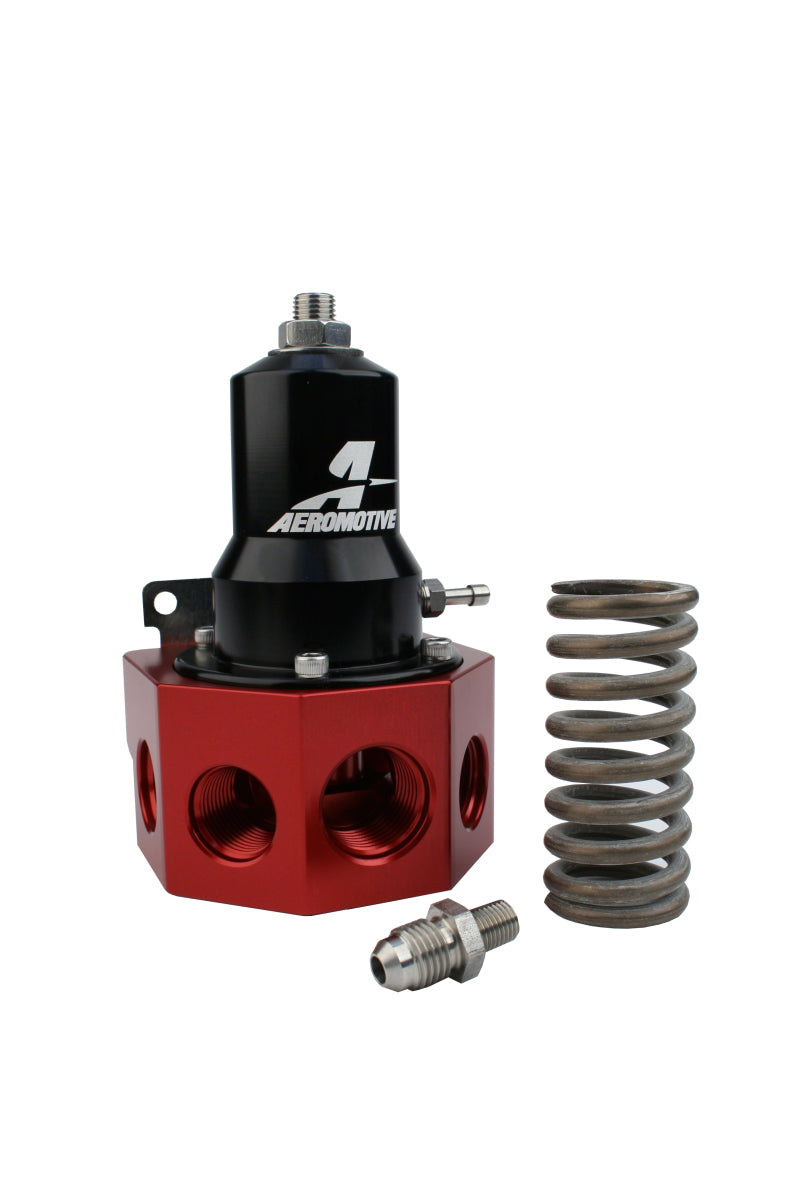

High Pressure spring (included) supports 75-120 PSI base fuel pressure.
Supports vacuum and boost reference on a 1:1 ratio with PSI.
Additional information
- Weight: 1.3 lbs
- Dimensions: 5.5 x 5.5 x 2.75 in
