Aeromotive 98-02 GM LS1 F-Body Fuel Rail System
Each Fuel Rail System provides a custom engineered installation solution. Featuring CNC-Machined Billet Fuel Rails and custom mounting brackets as well as all the necessary components and accessories required to perform a complete installation, in one box.
*Fits 1998-2002 GM LS1 F-Body - Returnless System

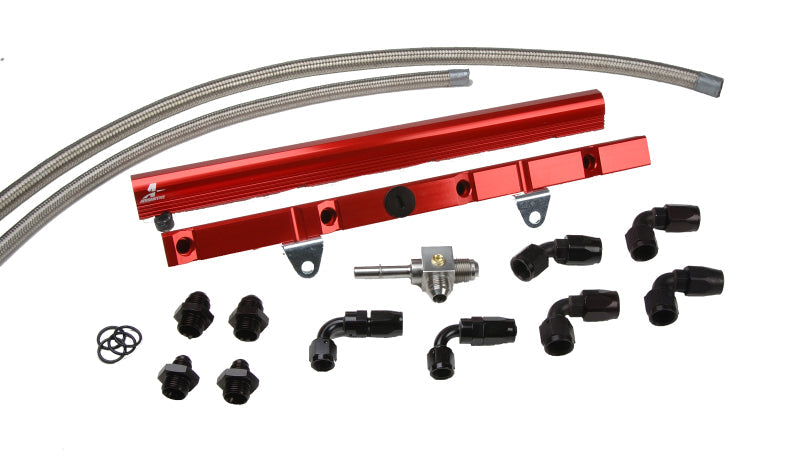

Each Billet Fuel Rail System is comprised of:
- High Flow, CNC-machined, Billet Fuel Rails with custom, steel mounting brackets.
- Billet Adjustable Regulator or Fuel Pressure Sensor Adapter.
- All necessary ORB-Port fittings with O-rings, and Billet Aluminum, AN-hose ends.
- Stainless Steel braided fuel lines.
- Custom OEM fuel supply and return line adapter fittings, as required.
This kit contains the following parts:
- 1ea p/n 14106 GM LS1 Fuel Rails
- 1ea p/n 15116 Supply Adapter Tee Fitting
- 2ea p/n 15607 -8/-8AN Cutoff Tapered Flare Fitting
- 2ea p/n 15605 -8/-6 Reducer Union Fitting
- 2ea p/n 15652 -6 90-Deg Hose End
- 1ea p/n 15654 -8 45-Deg Hose End
- 3ea p/n 15655 -8 90-Deg Hose End
- 2ft -6 Stainless Steel Braided Fuel Line
- 4ft -8 Stainless Steel Braided Fuel Line
- 4ea AN-08 O-Ring
For more information on the fuel rails, see the corresponding fuel rail kit for your applications.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998 | Chevrolet | Camaro | Lujo |
| 1998 - 2002 | Chevrolet | Camaro | Z28, Z28 SS, Base |
| 1998 - 2002 | Pontiac | Firebird | Formula, Base, Trans Am |
