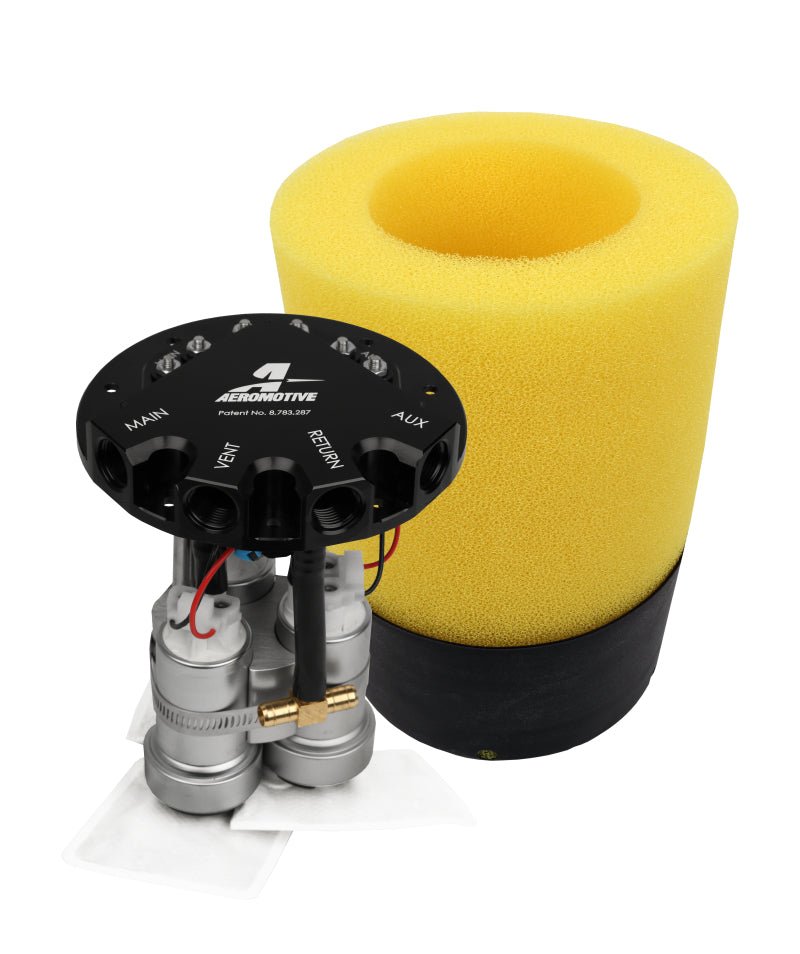

Trifekta Phantom In-Tank Kit
new Phantom Trifekta is designed to extend the patented Phantom technology into the realm of ultra-high horsepower street/strip applications. Equipped with triple 450lph, E85 friendly Walbro pumps, the new Aeromotive Trifekta supports staged pump control to reduce recycling and improve continuous duty capability. The Trifekta is ready to feed blown EFI applications making a whopping 1,650 FWHP on E85 and as much as 2,400 FWHP on gas.
- Triple 450lph Walbro Fuel Pumps
- Patented Phantom Bladder technology
- Includes everything required to mount in-tank
- ORB-08 Outlet, Vent & Return Ports
- 6in Billet Top Cap : Requires Drilling 4.5in hole
- Three Sets of Electrical Terminals : Main Pump, Auxiliary Pumps and Fuel Level Sending Unit
Description
Featuring an engineered, high capacity foam and bladder baffle, the New Phantom Trifekta includes a custom billet CNC hat with dual ORB-08 outlet ports, an ORB-08 return, and triple electrical bulkheads to allow independent pump control. Using a larger, custom Phantom gasket and internal c-ring, the Trifekta takes full advantage of its Phantom Heritage, delivering an incredibly easy, effective Phantom installation, in virtually any tank from 6" to 11" deep. Installing the Phantom Trifekta is as easy as any other Phantom, requiring no extensive fabrication or welding modifications to install in the tank.
For universal, on-demand fuel delivery and ultra-high horse power, combined with quiet, continuous duty capability, there is simply nothing else on the market like Aeromotive's new Phantom Trifekta
Additional information
| Weight: | 9 lbs |
|---|---|
| Dimensions: | 18 × 8 × 8 in |
Pump Details
Mounting Configuration: External
| CARB or EFI | Power Adder | FUEL | Horsepower |
|---|
