Pro Series Extreme Flow EFI Regulator, 30-120 psi,.313 Valve, 2x AN-10
Extreme Flow 2-Port EFI Regulator
30-75 PSI and 75-125 PSI Base Pressure Range
- Extreme Flow Design optimized for the Eliminator, Pro-Pump and Dual A1000 fuel systems.
- Suitable for Mechanical pumps up to 5.0 GPM.

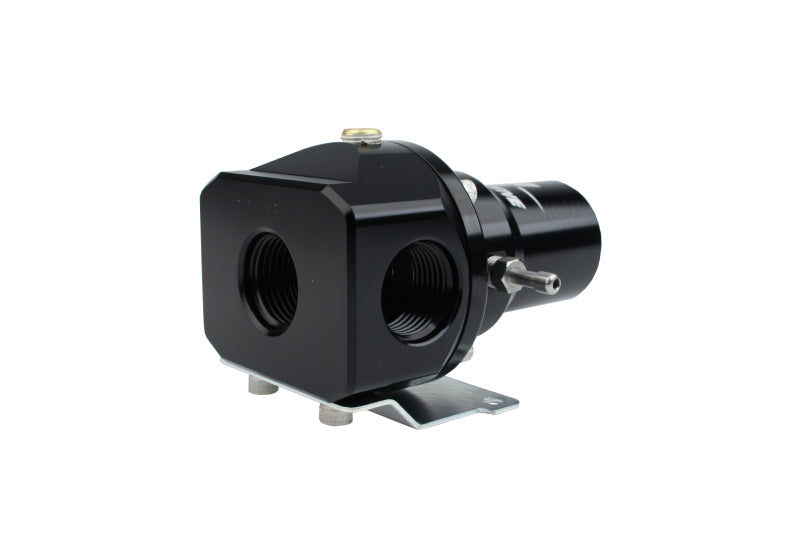

- Compact, 2-Port Body with dual AN-10 inlet/outlet ports and one AN-10 return port
- High Flow 0.313? Valve/Seat, optimized for larger electric fuel pumps in the 2.5-5.0 GPM flow range.
- Dual Springs expand pressure range while maintaining a low profile and reduced weight.
- Standard spring (installed) supports 30-75 PSI base fuel pressure.

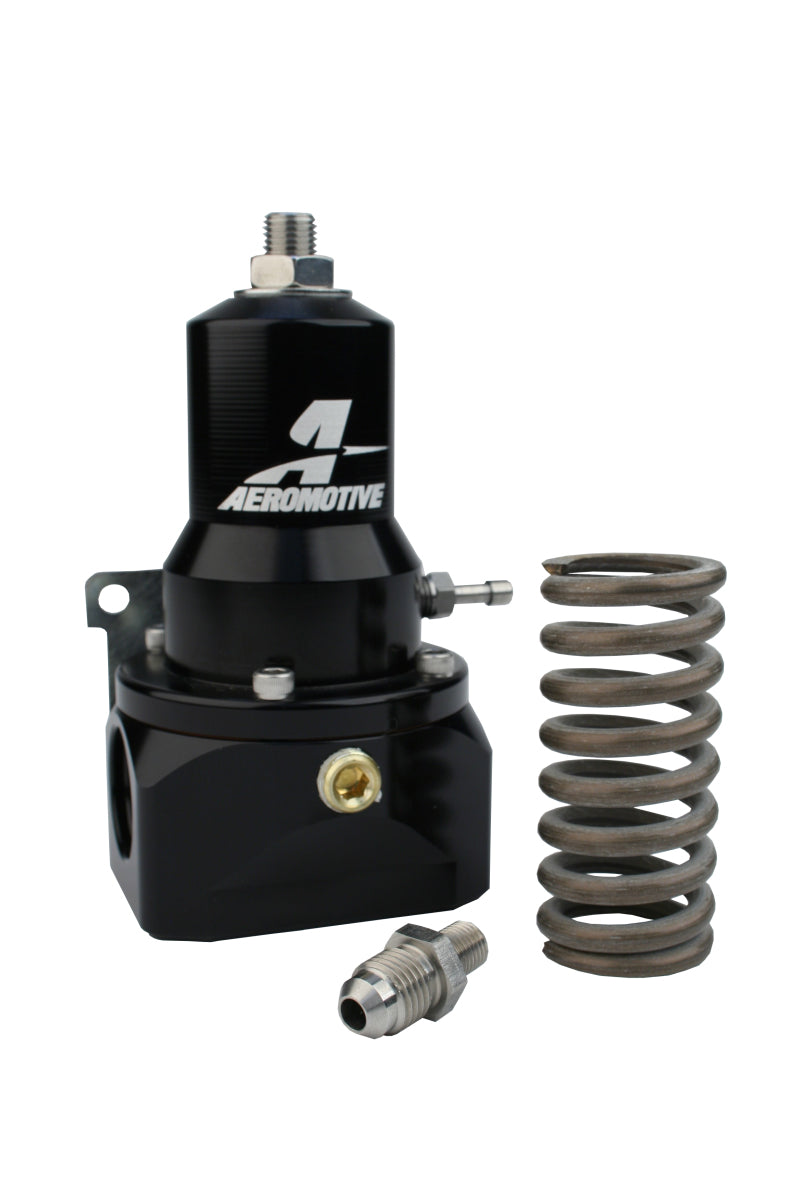

- High Pressure spring (included) supports 75-120 PSI base fuel pressure.
- Systems where an electric pump is desired and where base pressure exceeds 70-PSI should run two pumps of similar flow rate, in series.
- Vacuum and boost reference on a 1:1 ratio.
- Compatible with gasoline, ethanol and methanol.
Additional information
- Weight: 1.3 lbs
- Dimensions: 5.5 x 5.5 x 2.75 in
