Fuel Pump

Fuel Pump System

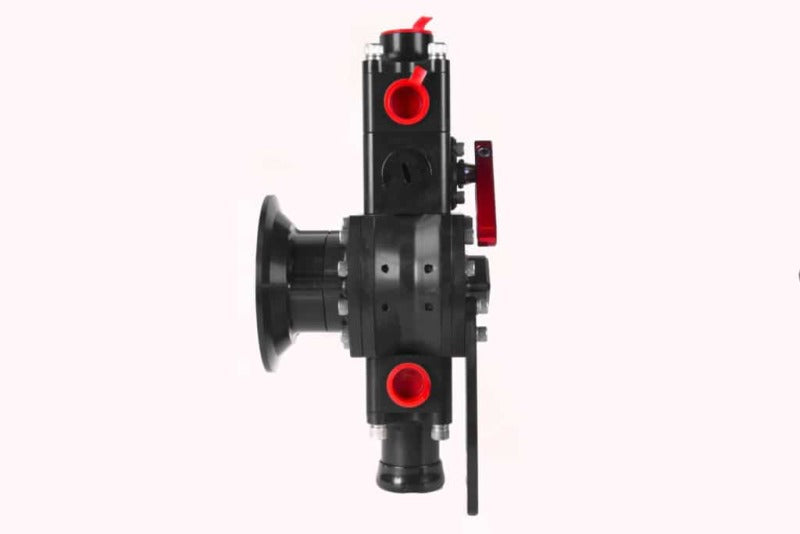

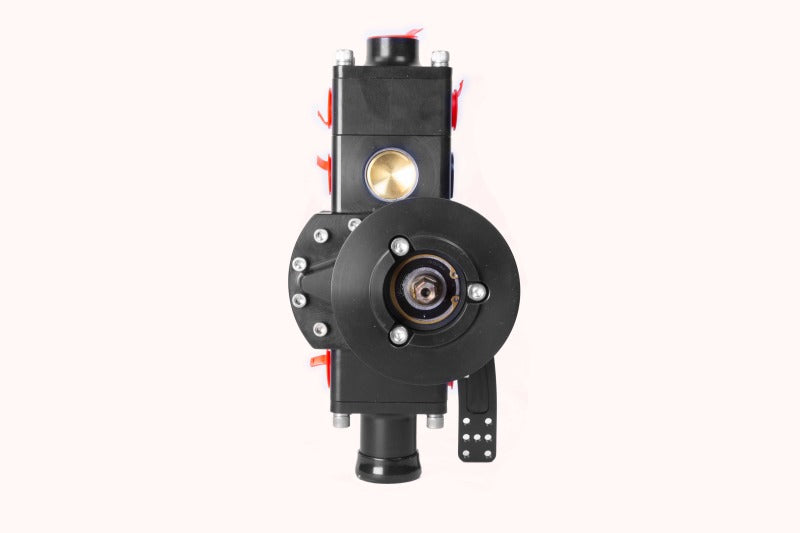

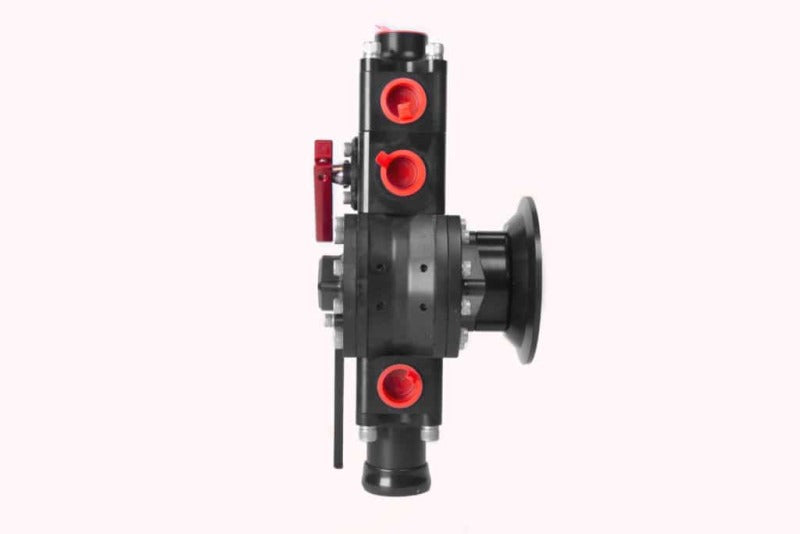

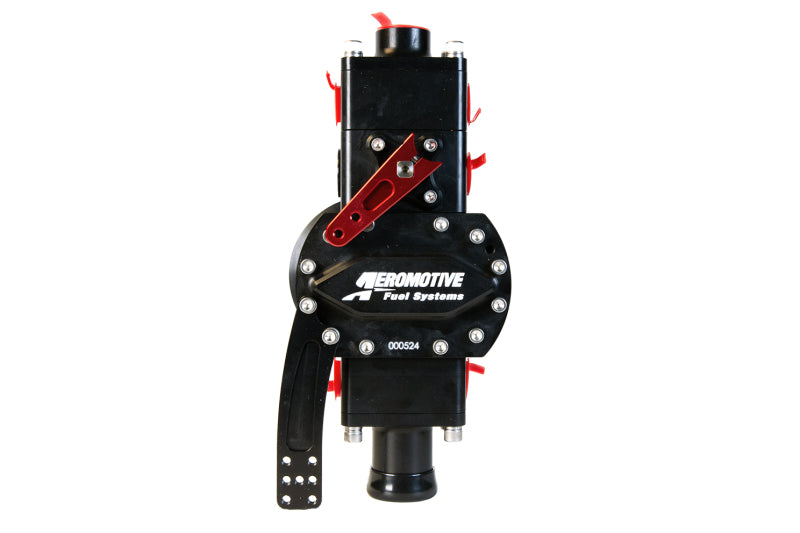

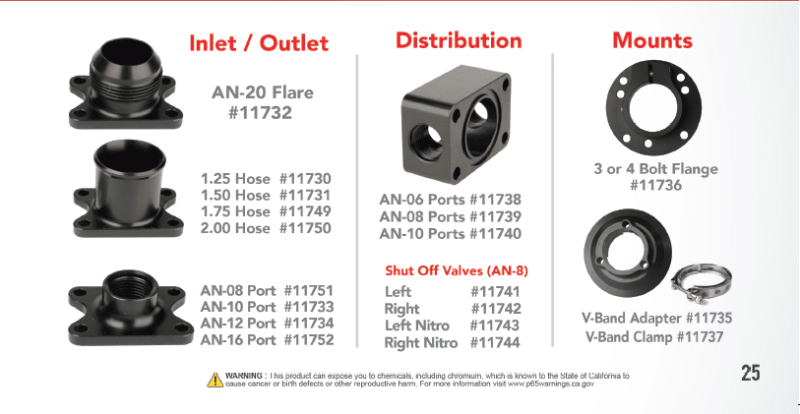

The Aeromotive Spur Gear Pump is the largest mechanical pump in the Aeromotive family, and is available in flow ratings from 16 GPM to 32 GPM, with a variety of inlet/outlet attachments, and three different sized distribution blocks to ensure proper plumbing.?Mounting options include a 3 or 4 bolt flange, and a V-band adapter.?Pumps are available with a 3/8? or 7/16? shaft, and a hard coat anodized aluminum or steel body. Seal options include Gas/Alcohol or Nitro, and NHRA Certifiable part numbers are available. PN 17134 includes: 16.5 GPM Spur Gear Fuel Pump w/aluminum body, 3/8? shaft for Gas/Alcohol applications, 1 ea. P/N 11730 1.25? Hose adapter inlet, 1 ea. P/N 11733 AN-10 Port, 1 ea. P/N 11735 V-Band Adapter, 1 ea. P/N 11737 V-Band, 2 ea. P/N 11739 AN-08 Distribution block, 1 ea. P/N 11741 Left hand AN-8 shut off valve.

System, Pump, 16.5 GPM, Shut Off Valve, 2x AN-08 Blocks, 1-1/4" Inlet, AN-10 Outlet, .775 Gear Set.
