Alpine Microphone Mount | '10 - '24 4Runner

Regular price $11.00
Sale price $11.00 Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.

Alpine Microphone Mount for 2010–2024 Toyota 4Runner

We're proud to offer a clean, factory-style solution for mounting your Alpine aftermarket microphone in the OEM microphone location of your 2010–2024 Toyota 4Runner. This mount tucks the microphone neatly into the headliner console, maintaining a clean appearance while ensuring optimal voice clarity and performance.

Key Benefits:

  • Utilizes your 4Runner’s factory microphone location
  • Provides a clean, OEM-style look
  • Maintains excellent microphone clarity and function

Installation Instructions

Remove the Headliner Console

  • If equipped with a sunglasses compartment: Open it and remove the two screws.
  • If equipped with terrain knobs (TRD Pro, Off-Road, etc.): Gently pull off the control panel to reveal the screws, then remove them.
  • Pull the front of the console straight down to release the pressure clips.

Disconnect Console Wiring

  • Unplug the wiring harness connector from the console.

Remove Factory Microphone

  • Locate the black rectangular factory mic.
  • Push it forward to release the dome light switch and cover.
  • Unplug the mic and reinstall the dome light switch and cover.

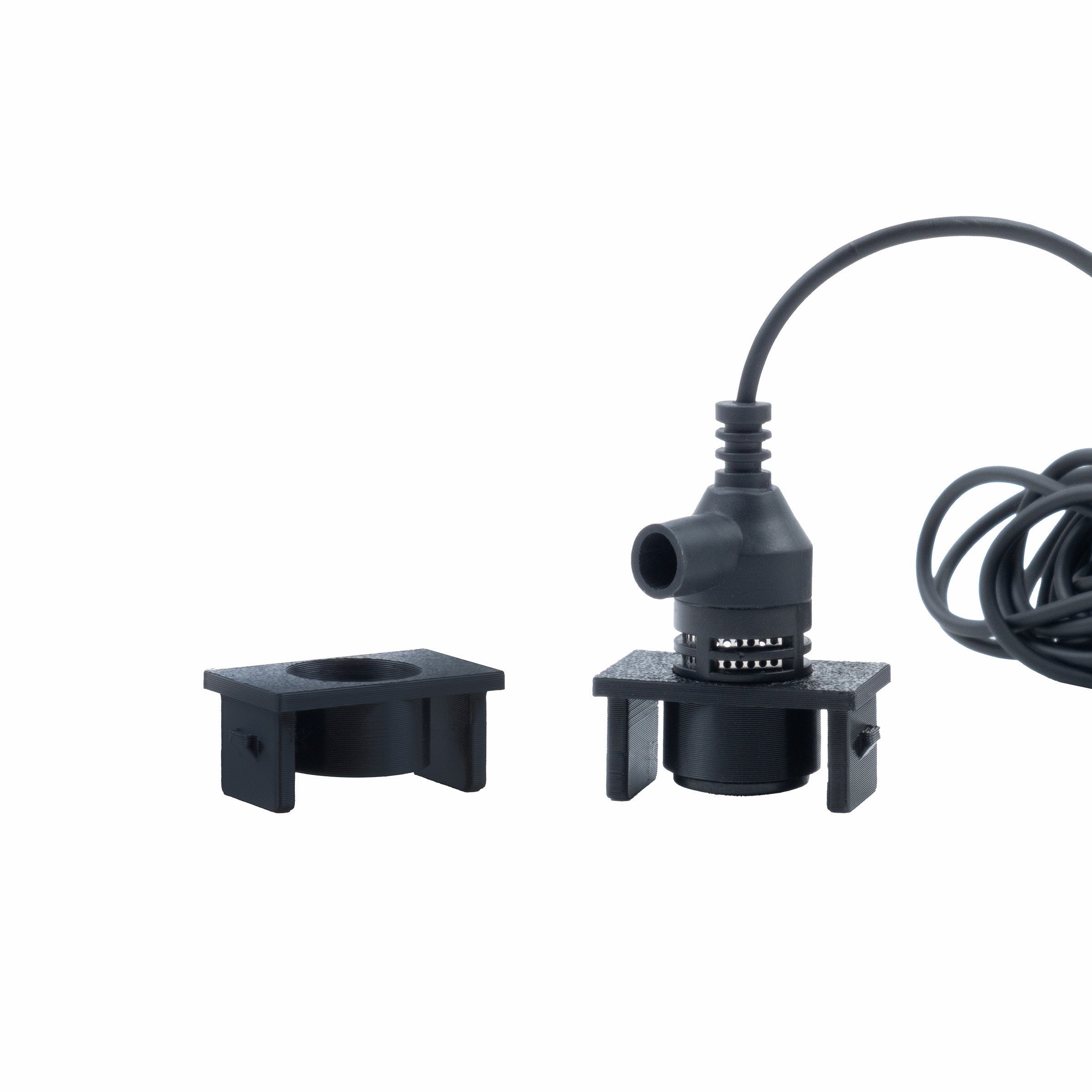

Mount the Alpine Microphone

  • Push the rounded end of the microphone through the opening of the mount.
  • Ensure the rounded end sits near the bottom of the center mount support.

Install the Microphone Mount into Console

  • Insert the mount into the headliner console with the legs facing down.
  • Push until it clicks securely into place.

Route the Microphone Wire

  • Run the wire from the headliner console toward the rearview mirror.
  • Reinstall the console while pulling any slack toward the mirror.
  • Continue routing the wire along the top of the windshield toward the driver’s side A-pillar.
  • Tuck the wire behind the A-pillar cover and run it down to the driver’s footwell.
  • Route the wire under the dash to the back of your Sony bundle.
  • Plug the 3.5mm jack into the red microphone port on the Sony radio chassis.

Test Functionality

  • Power on the system and confirm the microphone is functioning properly.
