N1-X Evolution Extreme Muffler (Stainless & Titanium)
2015+ Lexus RC-F Axleback Exhaust
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|

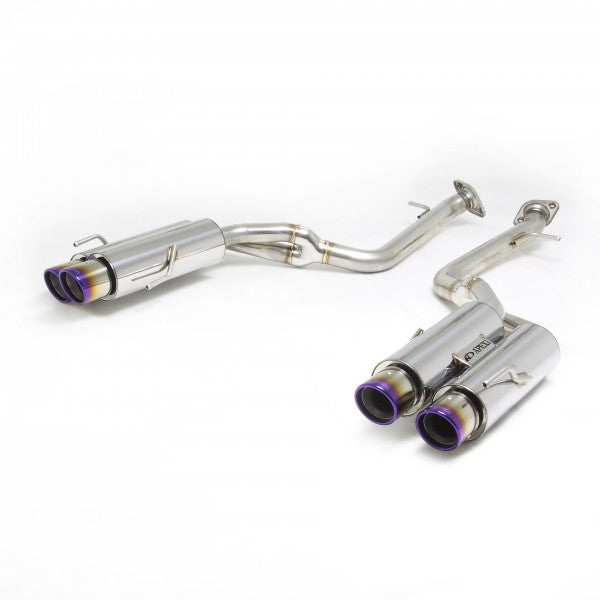

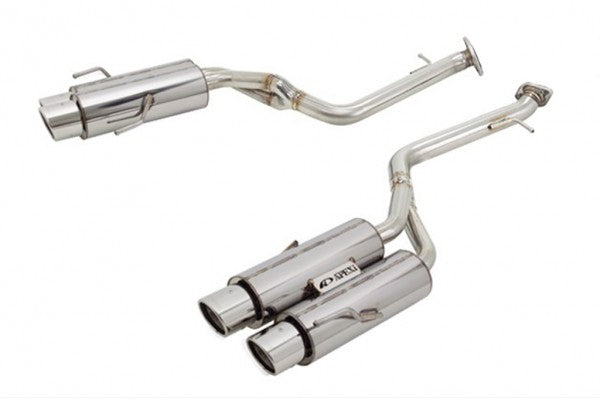

| Part Number | - 164AKT01: Stainless Steel Tip - 164-KT01: Titanium Tip |
| Year |
2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
| Make | Lexus |
| Model | RC-F |
| Body Style | 2-Door Coupe |
| Engine | 2UR-GSE |
| Chassis | USC10 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 65mm. x 2 - 50mm. x 4 |
| Tip Diameter | 93mm. x 4 |
| Pieces | 2 |
| Exhaust Tip Style | Oval-Dual wall rolled, Angle cut |
| Piping Material | SUS 304 Stainless Steel |
| Muffler Material | SUS 304 Stainless Steel |
| Muffler Tip Material |
- SUS 304 Stainless Steel |
| System Weight | Rear Section only 33.0 lbs. (Stock- 38.75 lbs.) |
| Special Notes | Sound Level: 92.2 dB @ 4,500 RPM. Modular design-> Midpipe and Rear Section can be interchanged with factory exhaust components. NOTE: Do not use harsh chemicals or metal polish cleaners when cleaning titanium tips. We recommend using standard isopropyl |
 |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
