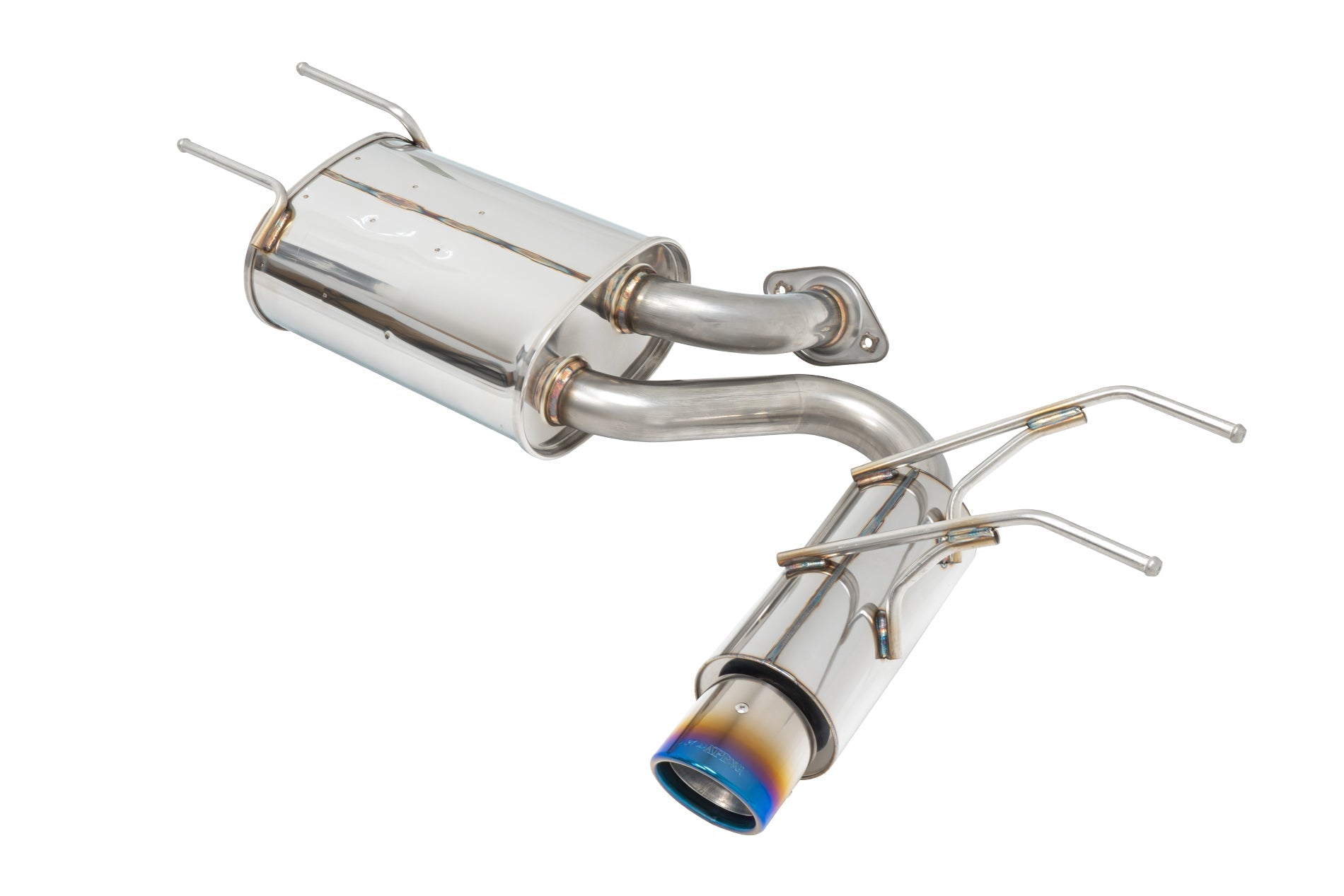

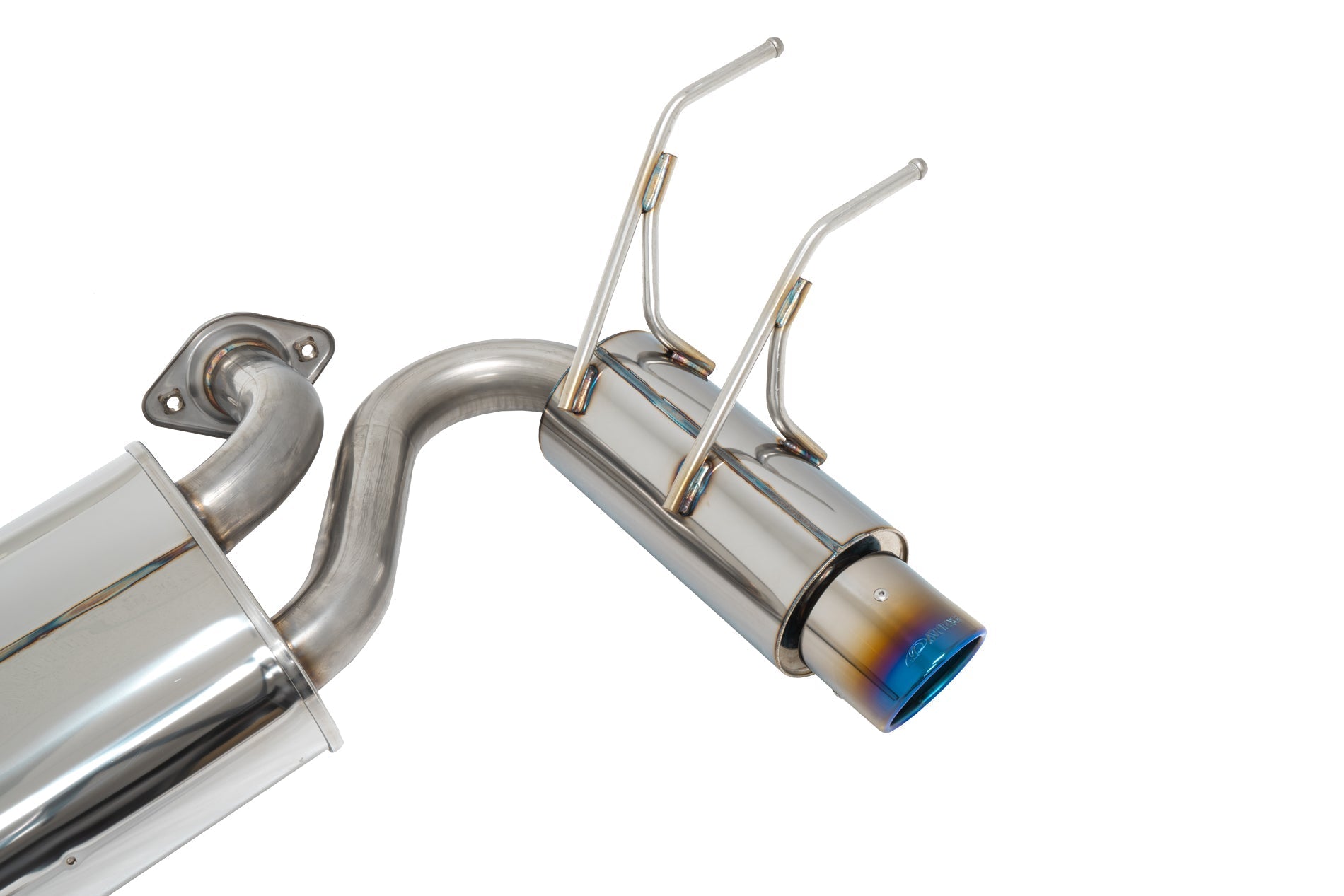

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number | 164-Z001J |
| Year | 2016, 2017, 2018, 2019, 2020, 2021 |
| Make | Mazda |
| Model | MX-5 |
| Body Style | 2-Door Coupe |
| Engine | PE-VPS |
| Chassis | ND5RC |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 54mm. |
| Tip Diameter | 93mm. |
| Pieces | 1 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | Titanium |
| Special Notes | Sound Level: 85.7 dB @ 4,500 RPM. Modular design-> Rear Section can be interchanged with factory exhaust components. NOTE: Do not use harsh chemicals or metal polish cleaners when cleaning titanium tips. We recommend using standard isopropyl alcohol. |
 |
