N1-X Evolution Extreme Muffler Catback Exhaust (Resonated)
2014- 2015 Lexus IS250 / IS350 AWD

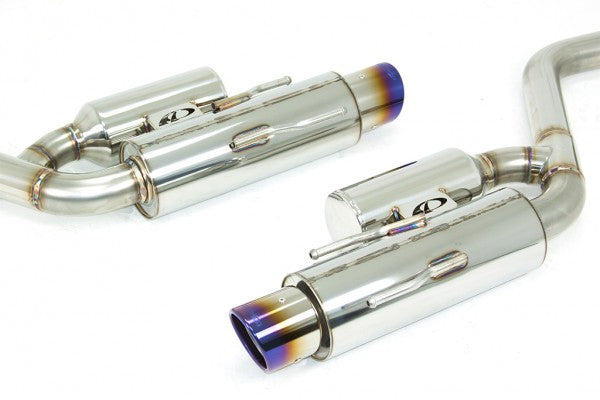

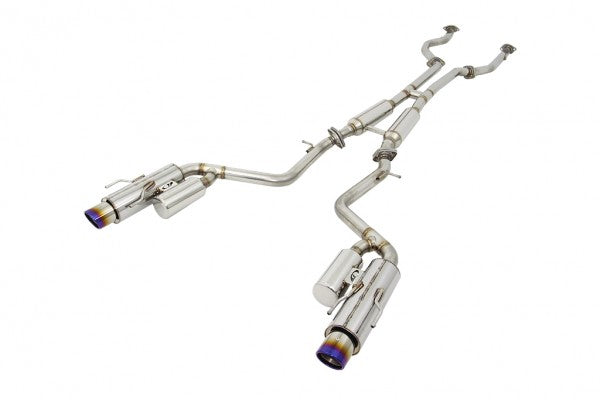

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number | 164KT202, 164KT209 |
| Year | 2014~2016 |
| Make | Lexus |
| Model | IS250, IS350 |
| Body Style | 4-Door Sedan |
| Engine | 2GR-FSE |
| Chassis | GSE35, GSE36, GSE37 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 60.5mm. x 2 |
| Tip Diameter | 93mm. x 2 |
| Pieces | 5 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | Titanium |
| System Weight | 52.12 lbs. (Includes Full Exhaust System, gaskets and hardware pack) (Stock- 61.40 lbs.) |
| Sound Level | Sound Level: 84.7 dB @ 4,500 RPM. |
| Special Notes | Modular design-> Midpipe and Rear Section can be interchanged with factory exhaust components. NOTE: Do Not Use metal polish, cleaners, solvents, etc. containing abrasive chemicals/substances when cleaning titanium tips |
 |
