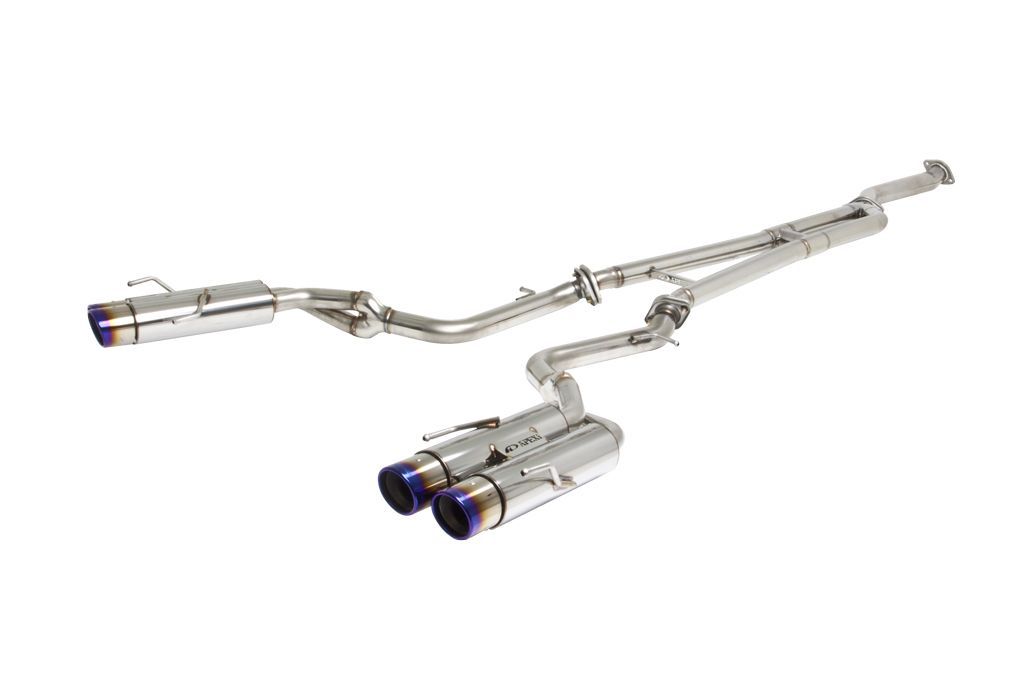

N1-X Evolution Extreme Muffler Catback Exhaust
2017+ Lexus IS200t / 300 RWD (Turbo)
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number | 164KT214P |
| Year | 2017, 2018, 2019, 2020 |
| Make | Lexus |
| Model | IS200t, IS300 (Turbo) |
| Body Style | 4-Door Sedan |
| Engine | 8AR-FTS |
| Chassis | ASE30 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X)- Non-Resonated |
| Piping Diameter | 60.5mm. x 2 -> 50mm. x 4 |
| Tip Diameter | 93mm. x 4 |
| Pieces | 4 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | Titanium |
| System Weight | 45.00 lbs. (Includes Full Exhaust System, gaskets and hardware pack) (Stock- 61.85 lbs.) |
| Sound Level | Sound Level: 90.1 dB @ 4,500 RPM. |
| Special Notes | Modular design->Midpipe and Rear Section can be interchanged with factory exhaust components. NOTE: Do Not Use metal polish, cleaners, solvents, etc. containing abrasive chemicals/substances when cleaning titanium tip |
 |
