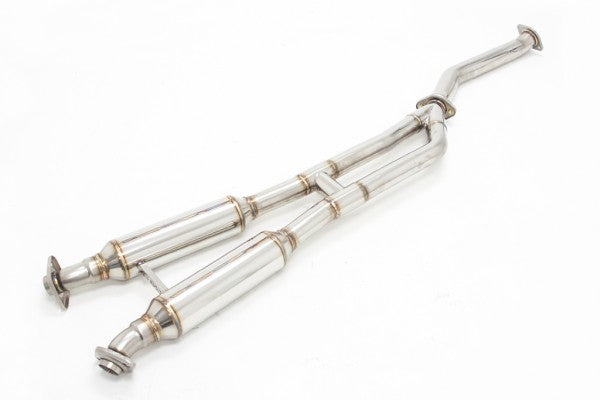

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler. Optimum exhaust efficiency is achieved through the mid-pipes running parallel between the catalytic converter and rear muffler section. The H-style piping design was opted to equalize the pressure in both exhaust pipes. Our unique modular design allow the mid-pipes to be interchangeable with the factory OEM exhaust system components along with the rear section which is sold separately.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
- Compatible with the N1-X Evolution Extreme rear section part number 164-KT13
| Bolt-On | Yes |
|---|---|
| Part Number | 144-KT05 |
| Year | 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 |
| Make | Lexus |
| Model | RC200t, RC300 (Turbo) |
| Body Style | 2-Door Coupe |
| Engine | 8AR-FTS |
| Chassis | ASC10 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 60.5mm. x 2 |
| Pieces | 3 |
| Piping Material | SUS304 Stainless Steel |
| System Weight | Mid-pipe only 21.96 lbs. (Stock- 28.40 lbs.) 6.44 lbs. lighter than OEM |
| Sound Level | Sound Level (with part # 164-KT13): 91.8 dB @ 4,500 RPM. |
| Special Notes | Modular design-> Mid-pipe and Rear Section can be interchanged with factory exhaust component |
| Gasket Replacement | - Front Section (Header to Midpipe) x2 - P106 x D66.5: 3901-0700 - Mid Section (Center of the Midpipe Kit) x2 - P97 x D66.5 : 3901-1660 - Rear Section (Connecting to Rear Axleback) : Factory OE Donut Gasket (Lexus OE Factory product) |
 |
