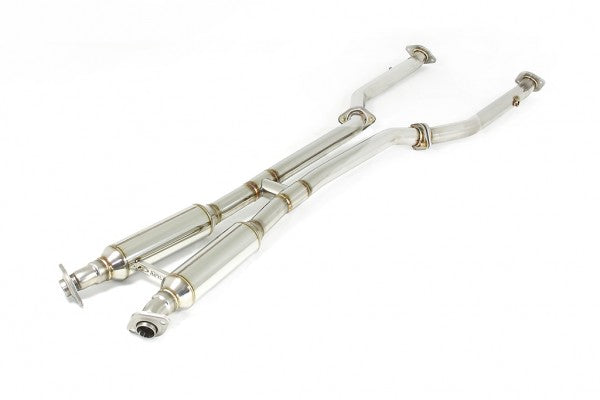

N1-X Evolution Extreme Midpipe
2015+ Lexus RC350 AWD/RWD
2015+ Lexus RC300 (2GR-FSE | V6) AWD/RWD

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler. Optimum exhaust efficiency is achieved through the mid-pipes running parallel between the catalytic converter and rear muffler section. The H-style piping design was opted to equalize the pressure in both exhaust pipes. Our unique modular design allow the mid-pipes to be interchangeable with the factory OEM exhaust system components along with the rear section which is sold separately.

PRODUCT FEATURES:

• High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
• Matched and manufactured for select chassis
• Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
• Compatible with the N1-X Evolution Extreme rear section part number 164-KT13

Bolt-On	Yes
Part Number	- 144-KT04 - 144-KT10
Year	2015~Present
Make	Lexus
Model	- AWD : 144-KT10 - RWD : 144-KT04
Body Style	2-Door Coupe
Engine	2GR-FSE
Chassis	GSC10
Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	60.5mm. x 2 -> 50mm. x 4
Pieces	3
Piping Material	SUS304 Stainless Steel
System Weight	Mid-pipe only 26.20 lbs. (Stock- 32.20 lbs.) 6.0 lbs. lighter than OEM
Special Notes	Sound Level (with part # 164-KT13): 92.2 dB @ 4,500 RPM. Modular design-> Mid-pipe and Rear Section can be interchanged with factory exhaust components.
Gasket Replacement	- Front Section (Header to Midpipe) x2 - P106 x D66.5: 3901-0700  - Mid Section (Center of the Midpipe Kit) x2 - P97 x D66.5 : 3901-1660 - Rear Section (Connecting to Rear Axleback) : Factory OE Donut Gasket (Lexus OE Factory product)
