ARB TOURING AWNING "L" BRACKET - SOLD INDIVIDUALLY

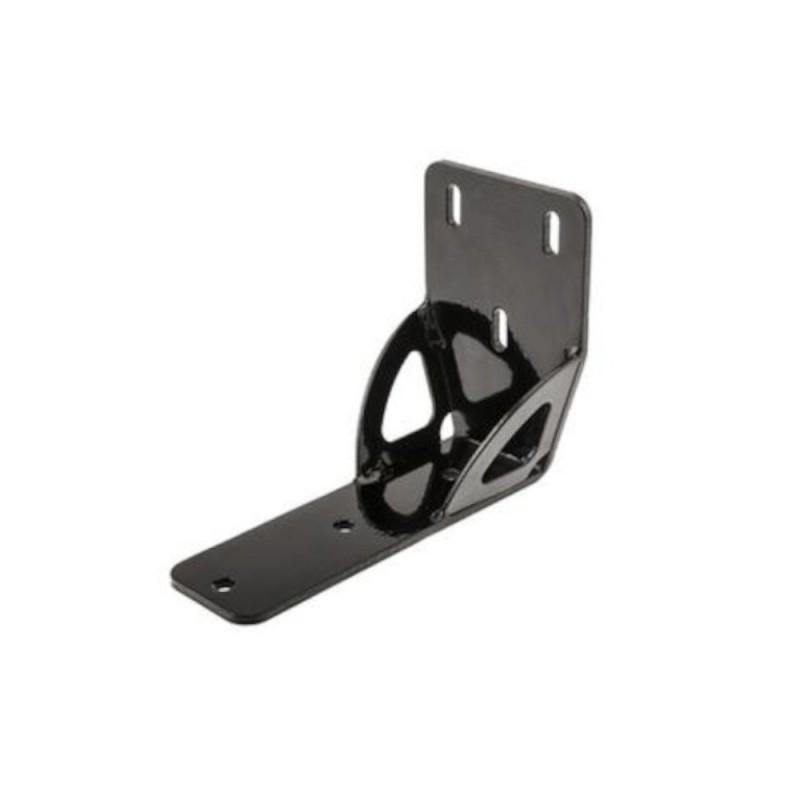

The 813402 awning bracket is designed with welded gussets to provide additional strength when awnings are mounted to roof bars on vehicles used off road or under extreme conditions.Zinc plated and powder coated for corrosion resistance and designed to mount either upright or inverted, the 813402 awning bracket is 50 mm wide allowing it to fit over both Thule SquareBar & Rhino Heavy Duty bars in the inverted position, or upright using T-bolts or channel nuts on Thule ProfessionalBar, WingBar & AeroBar or Rhino Heavy Duty. Pre-drilled to accept 8mm bolts, at least 2, but preferably 3 bolts should be used to mount to the roof bar for maximum strength. The outer bolt hole between the gussets must always be used for the gusset to be effective. Three slotted 6mm holes are provided to mount the awning.The 813402 awning bracket is not supplied with hardware. Due to different bar designs, it is recommended to use T-bolts and channel nuts supplied by the roof bar manufacturer.

• Universal
• Sold individually
• Zinc plated
• Powder coated
• Mount either upright or inverted
• 50 mm wide
• Pre-drilled to accept 8mm bolts
• Hardware not included
• Designed to provide additional strength
