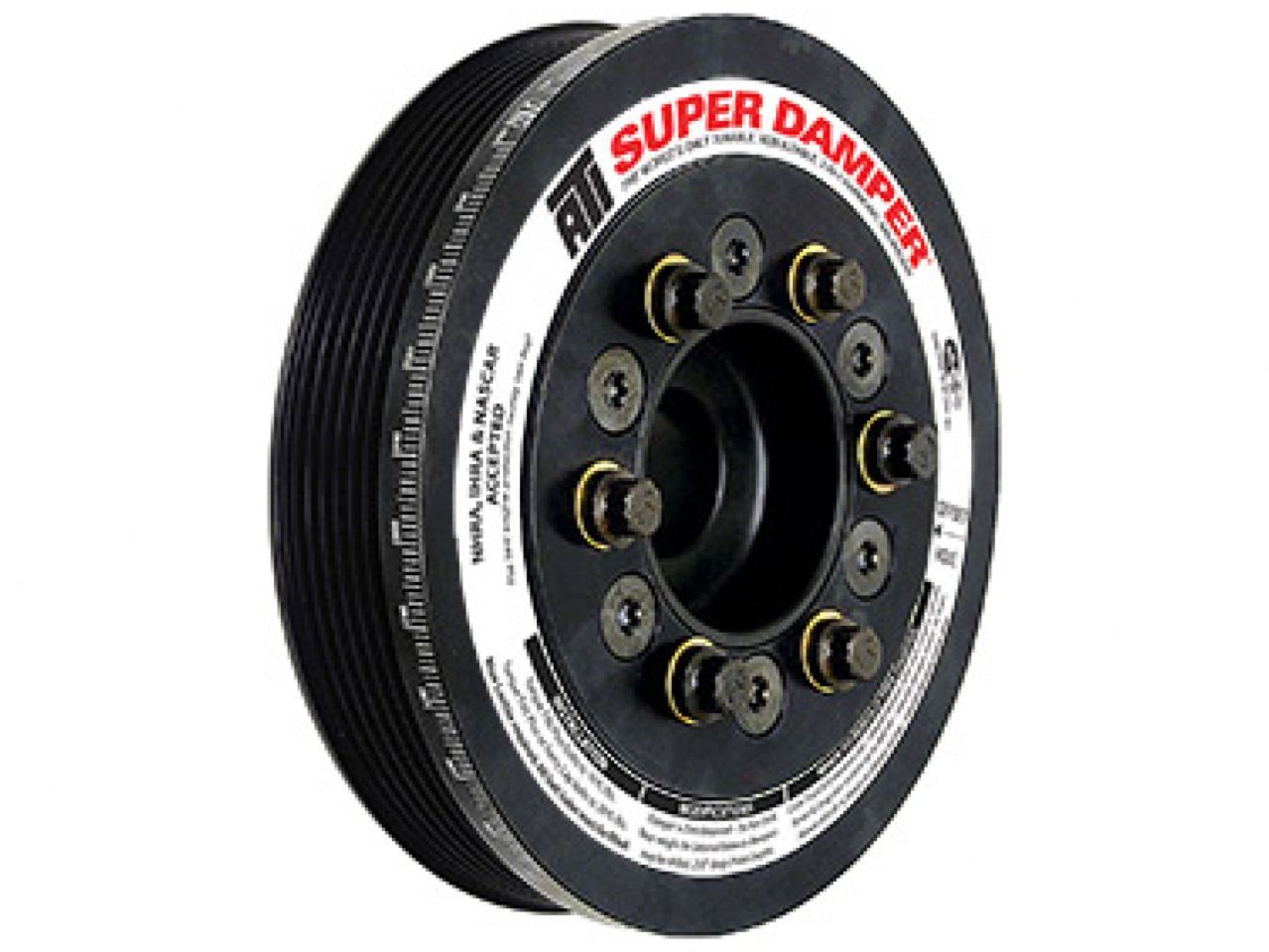

Ford Super Dampers
The patented ATI Super Damper is the only damper designed exclusively for high performance Ford engines.
- Eliminates torsional crankshaft vibrations
- Exceeds SFI 18.1 specs
- Black zinc chromate finished
- Tunable, rebuildable, and extremely efficient at ALL RPM
- Laser engraved 360° timing marks
- Ford Oem Front - 4 Bolt Pulley & 3.35" C Timing Tab
- Timing marks 0-60° in 1° increments.
Inner and outer shells are available in aluminum or steel, and contain a steel inertia weight. This inertia weight has six (2-ring design) or eight (3-ring design) computer machined grooves to retain the proper durometer O-rings (dyno tested for each application).
Specifications:
- Outside Diameter: 6.325 in.
- Shell Material: Steel
- Engine Balance: External
- Degree Marking Range: 360
- Safety Rating: SFI 18.1
- Rings: 3
- Total Weight: 6 Lbs
- Inertia Weight: 2.40 Lbs
-
For: V8 Sb All Ford 28.2 Oz.in. Except '82 & Up 302 Ho
