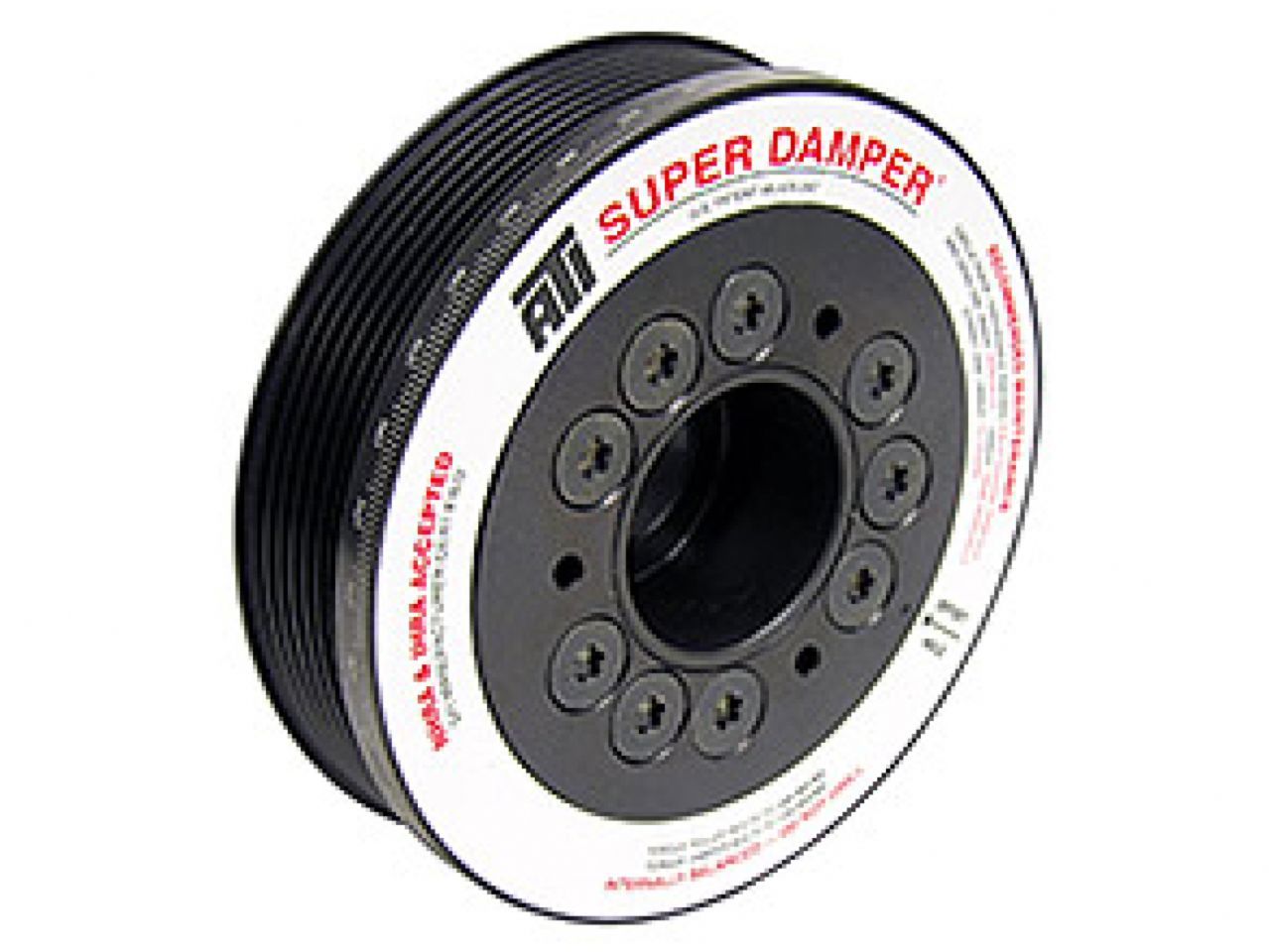

Honda F Series Damper

For Honda F22 & F20 Engines

ATI Super Dampers for the Honda S2000 F-series engine are available for both street and racing applications. The street version comes with 360° laser-etched timing marks and features a single serpentine belt drive on the outer shell to utilize the factory serpentine belt set-up. Race dampers allow for the mounting of a dry sump oiling drive gear to the front of the pulley. All F-series Super Dampers exceed SFI 18.1 Safety Certification and are approved for NHRA & IHRA competition.

Specifications:

• Application: Race
• Outer Diameter: 7.074"(10% UD)
• Weight: 5.0 Lbs
• Shell Material: Aluminum
• Inertia Ring Type: 2

Note: Race Damper (#918465) uses pulley #916766. 4.595" diameter, 6 Rib, 10% UD
